Displaying Data
Overview

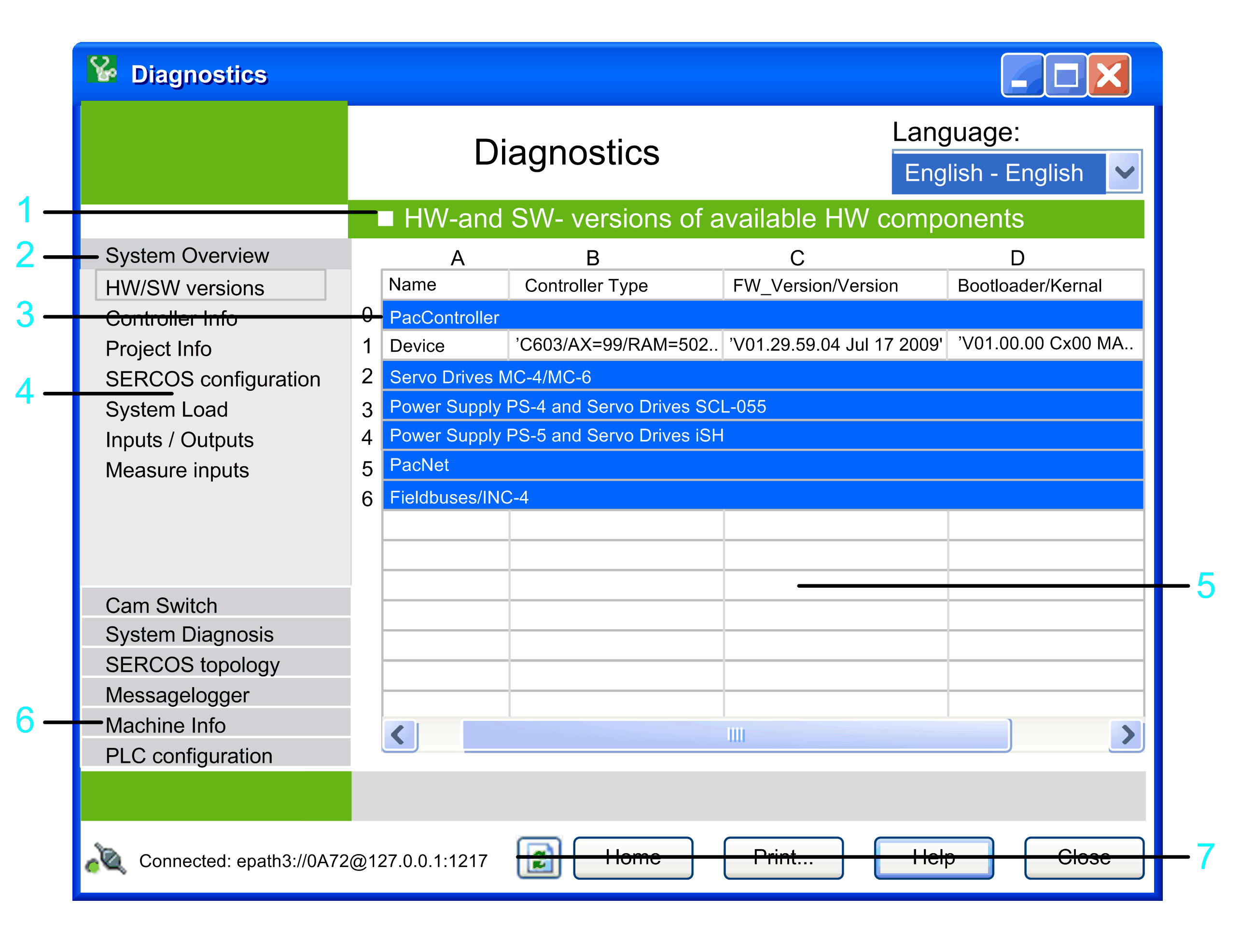

In order to display controller data, click the button in the Home window. The window allows you to display controller data in different ways.
1 Title of the selected view.
2 Selects a data view or a group (summary of data views).
3 Selected view.
4 Selects a view.
5 You can sort the data in the table by clicking one of the column headings.
6 Choose a data view using group and side buttons.
7 Refresh button: Updates the data on the screen. Note: The message logger data is not updated during the data update. You can add it by executing the command Load message logger from the contextual menu of the Message logger view.
For more information on the individual elements, refer to the General Views chapter.
