Hardware Architecture
Necessary Equipment to Fulfill Limit Switch Functionality
The following table includes a list of the devices used in the system, including the description.
|
Symbol
|
Description
|
Remarks
|
|
|
Limit switch, cross type
|
XCKMR
|
|
|

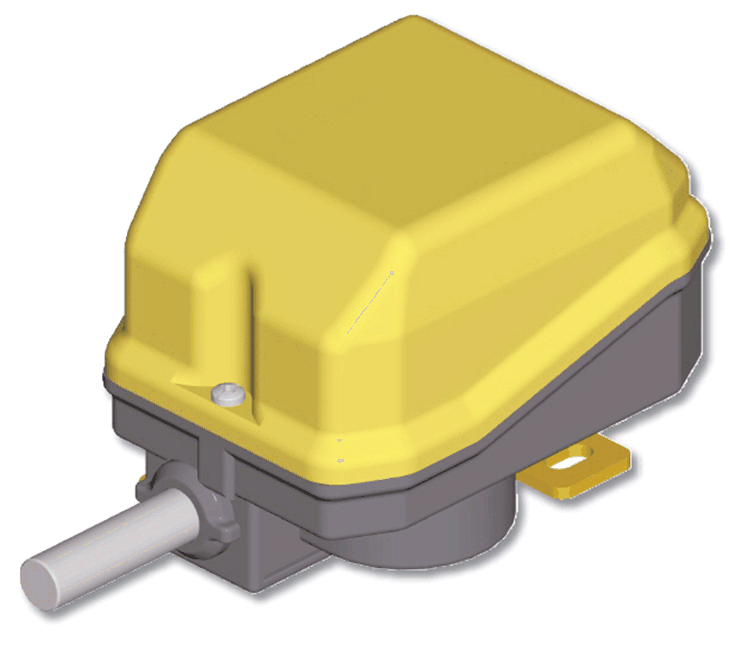

Limit switch, screw type
|
3rd party product
|
