Replacement Equipment of the Lexium T Robots

Replacement Equipment

Item description and content	Item reference	To be used for

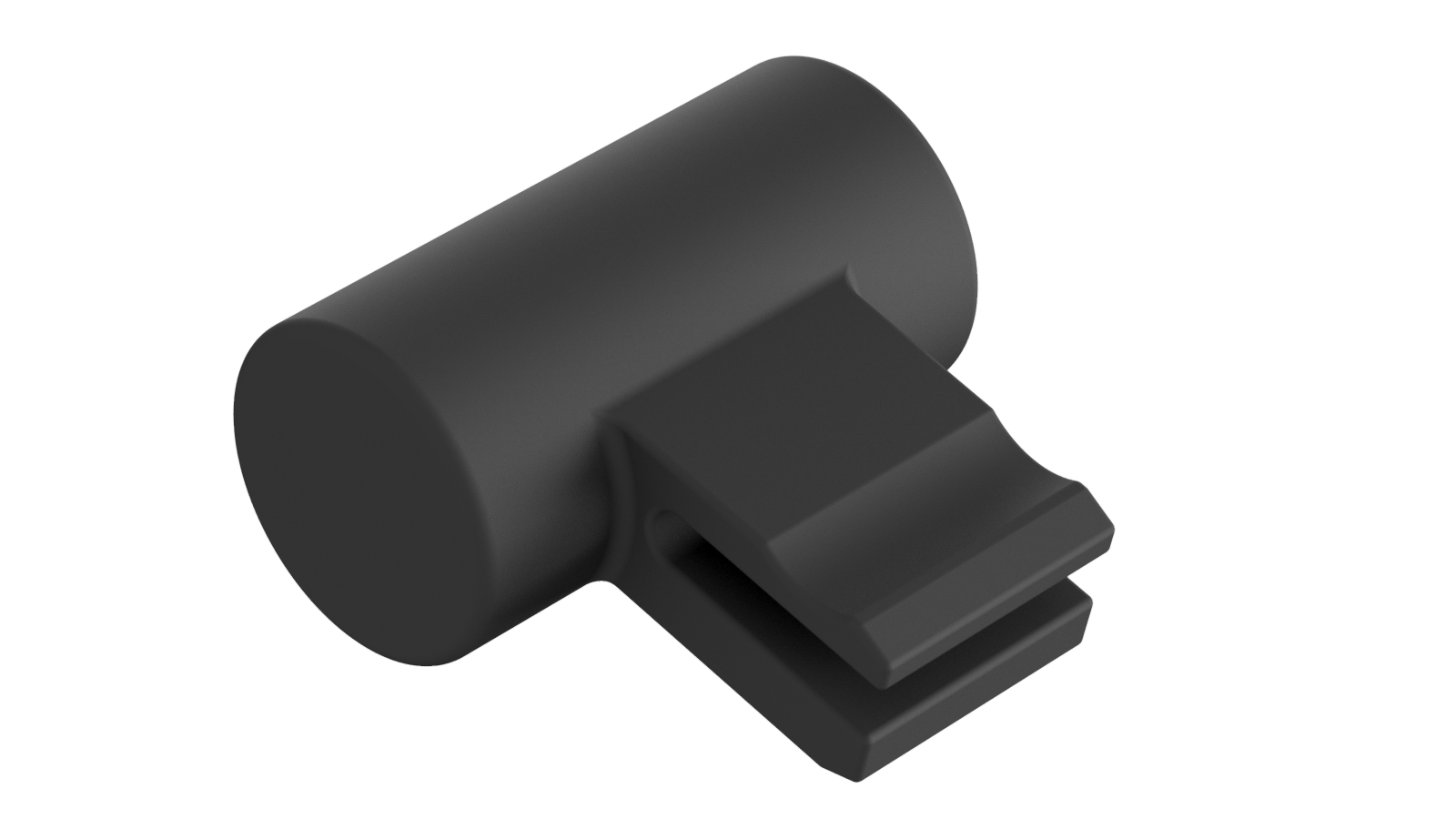

Calibration tool: 1x calibration tool	VRKTXYYYYY00001	All Lexium T robots
Calibration tool: 1x calibration tool	VRKTXYYYYY00001	All Lexium T robots

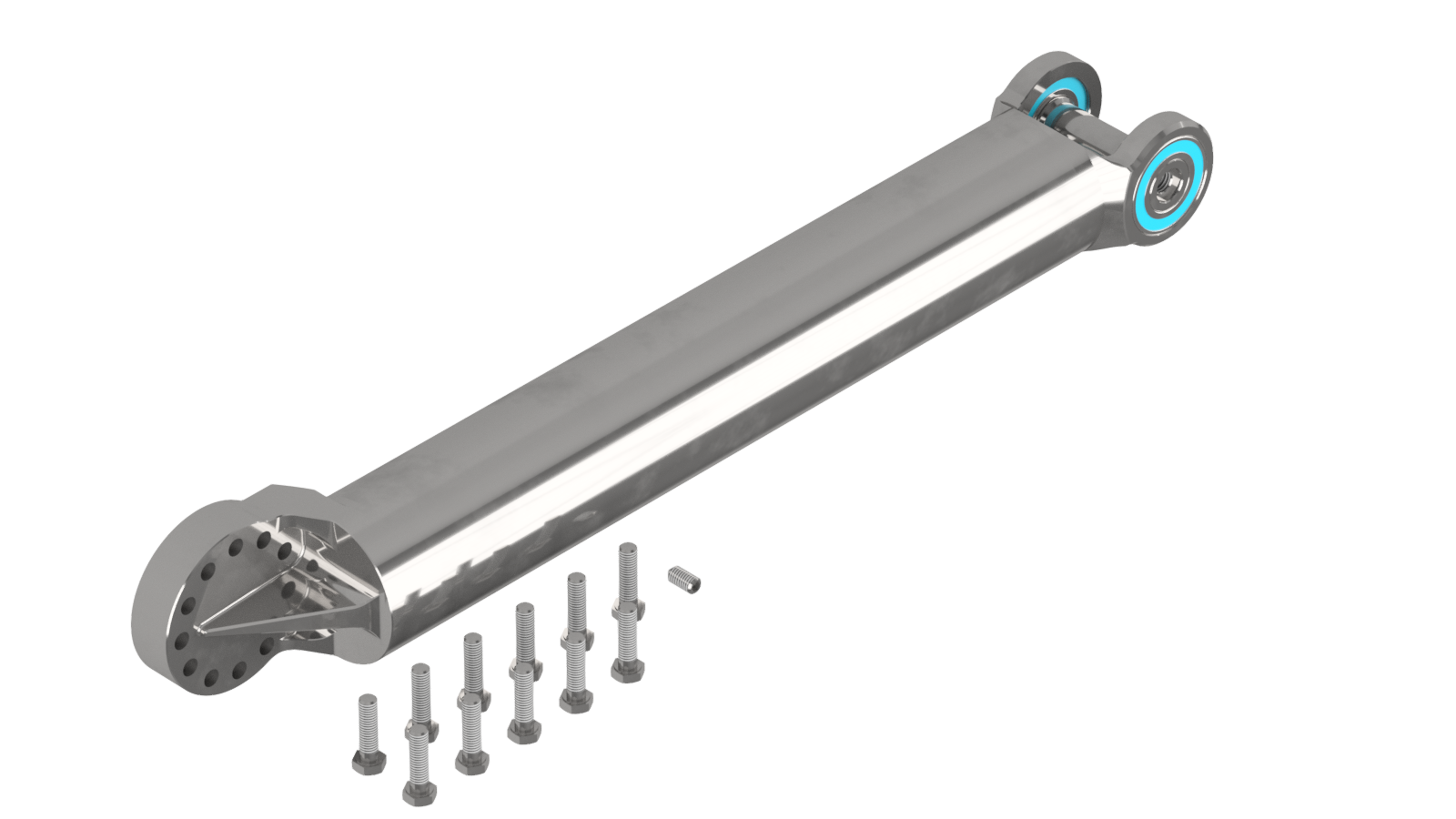

Upper arm with bearings and bolts: 1x upper arm complete 1x indexing bolt gearing 7x screw upper arm in case of VRKT1 11x screw upper arm in case of VRKT2, VRKT3, VRKT5	VRKT1YYYYY00002	VRKT1•••NC
	VRKT2YYYYY00002	VRKT2•••NC
	VRKT3YYYYY00002	VRKT3•••NC
	VRKT5YYYYY00002	VRKT5•••NC

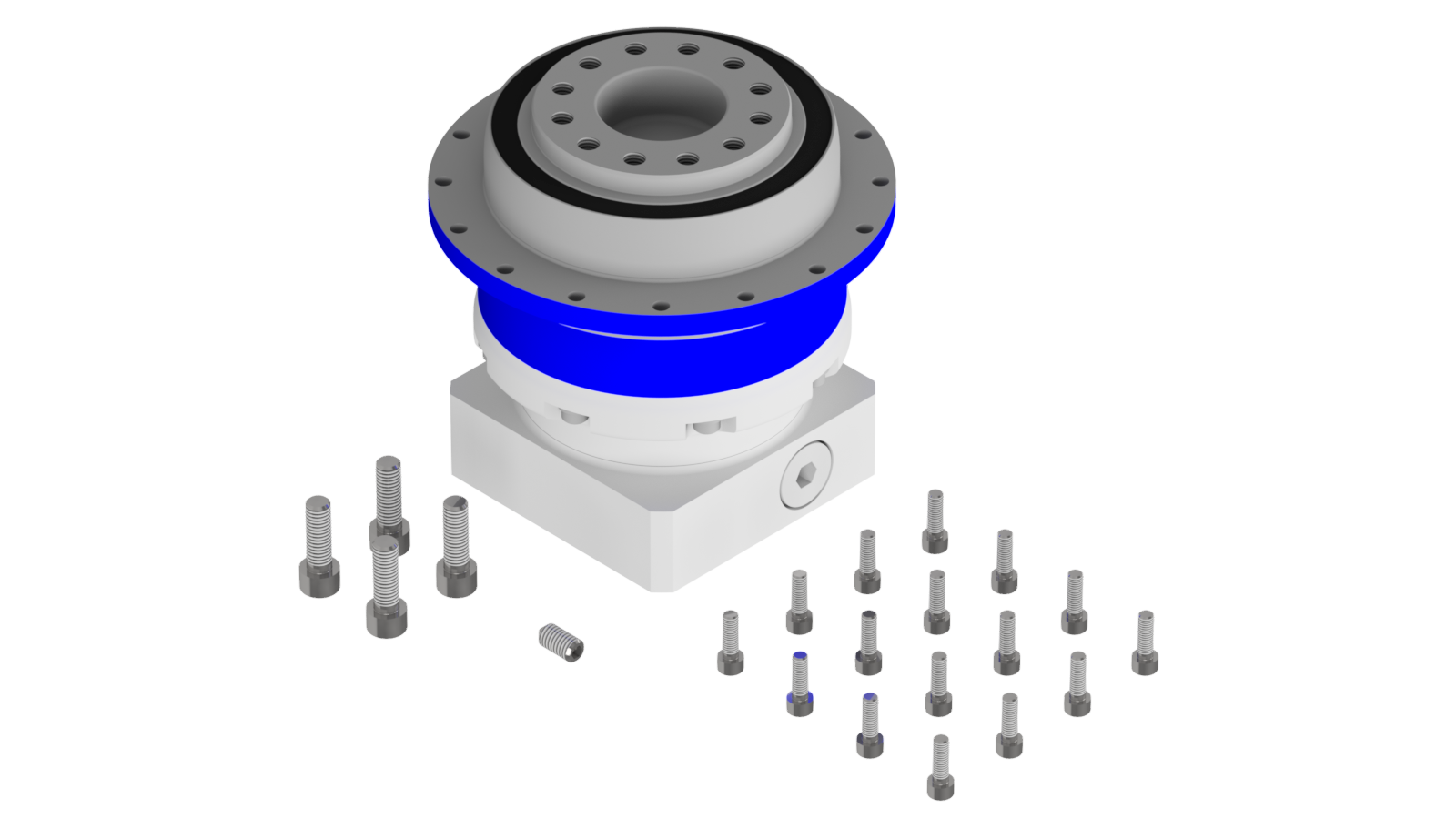

Main gearbox with fasteners and indexing bolt: 1x gearbox main axis 16x screw gearbox/mounting plate 4x screw motor/gearbox 1x indexing bolt gearbox	VRKT1YYYYY00003	VRKT1•••NC
	VRKTXYYYYY00003	VRKT2•••NC VRKT3•••NC VRKT5•••NC
Lower arm with half shells and fasteners: 1x lower arm complete 2x half shell 8x screw half shell 8x lock washer half shell	VRKT1YYYYY00004	VRKT1•••NC
	VRKT2YYYYY00004	VRKT2•••NC
	VRKT3YYYYY00004	VRKT3•••NC
	VRKT5YYYYY00004	VRKT5•••NC

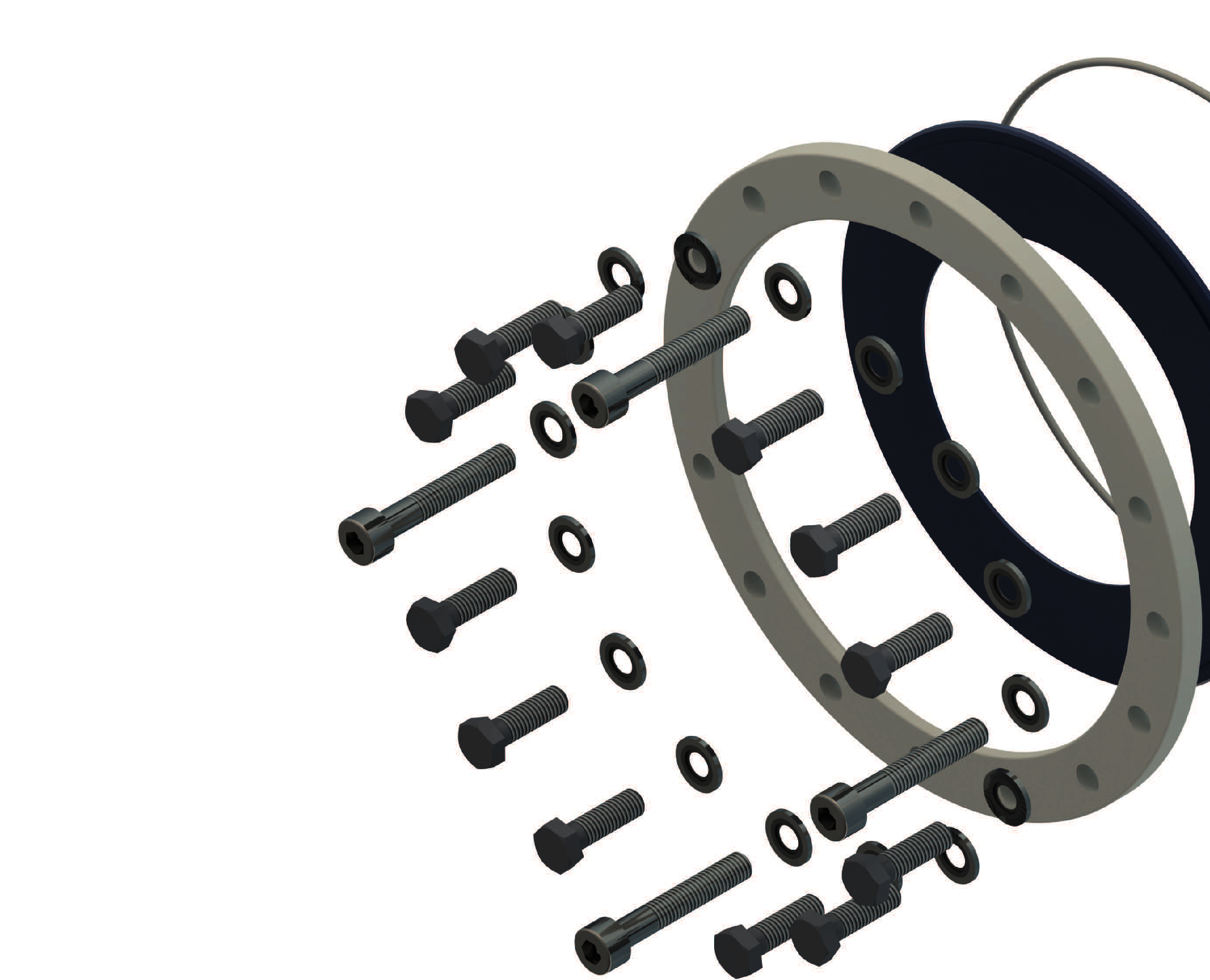

Protector Cap for the main axes with fasteners. Set for one robot: 2x Protector Cap 2x supporting ring 2x O-ring for Protector Cap 24x socket head screw for Protector Cap 8x hexagon screw for Protector Cap 32x sealing washer	VRKT1YYYYY00030	VRKT1•••NC
	VRKT1YYYYY00030	VRKT1•••NC

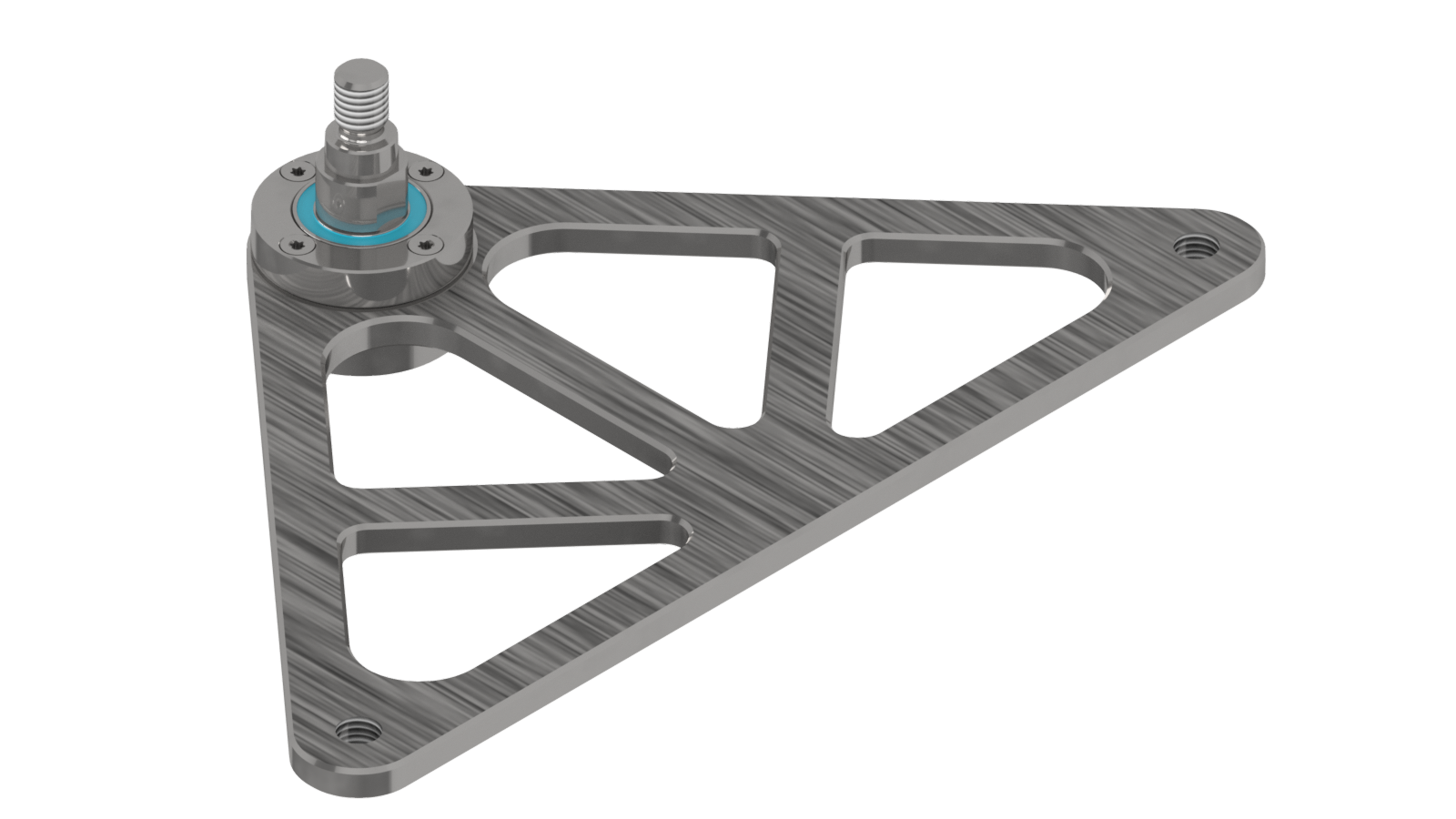

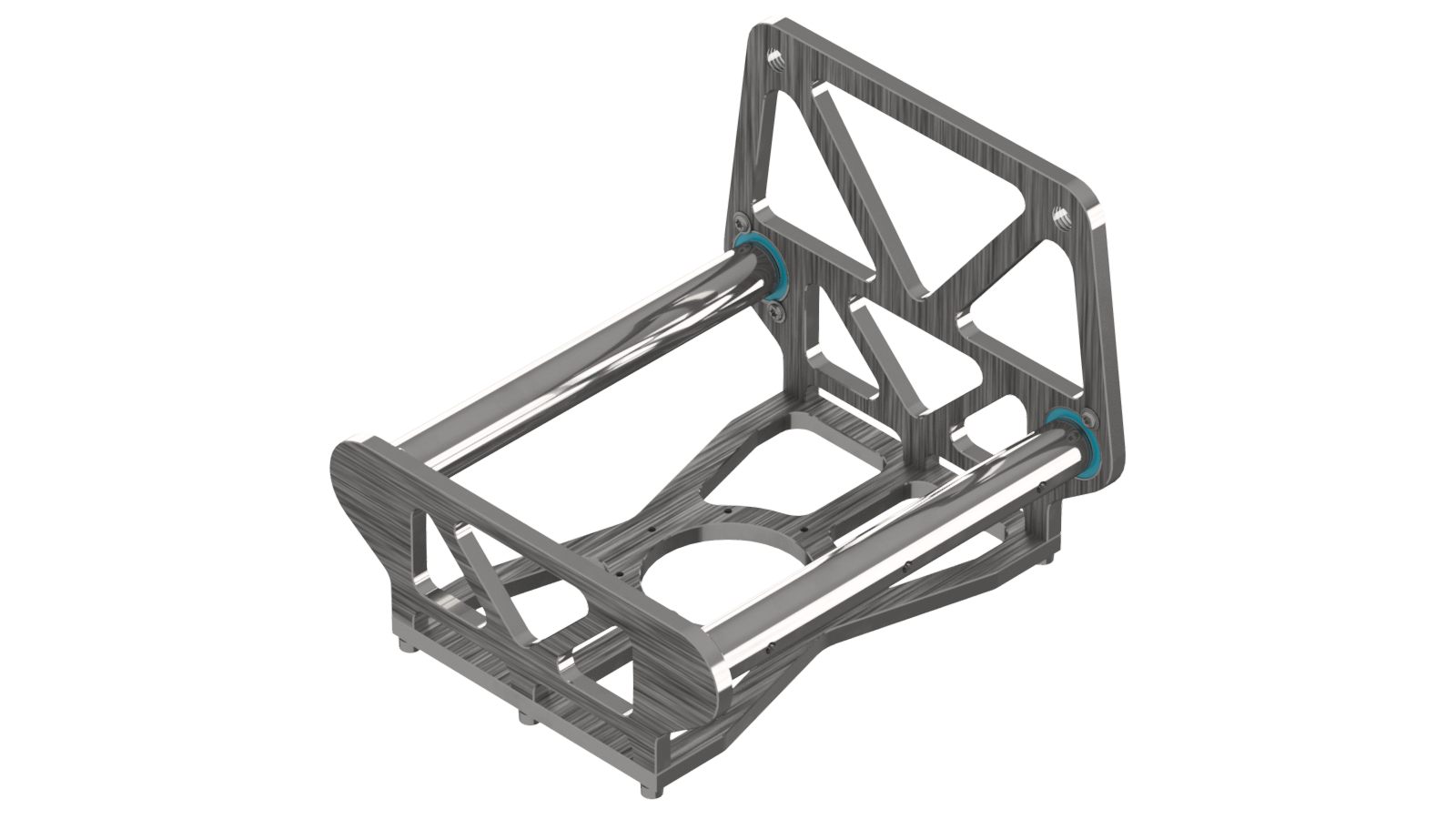

Parallel plate with bearings and shafts: 1x parallel plate complete	VRKT1YYYYY00005	VRKT1•••NC
	VRKTXYYYYY00005	VRKT2•••NC VRKT3•••NC VRKT5•••NC

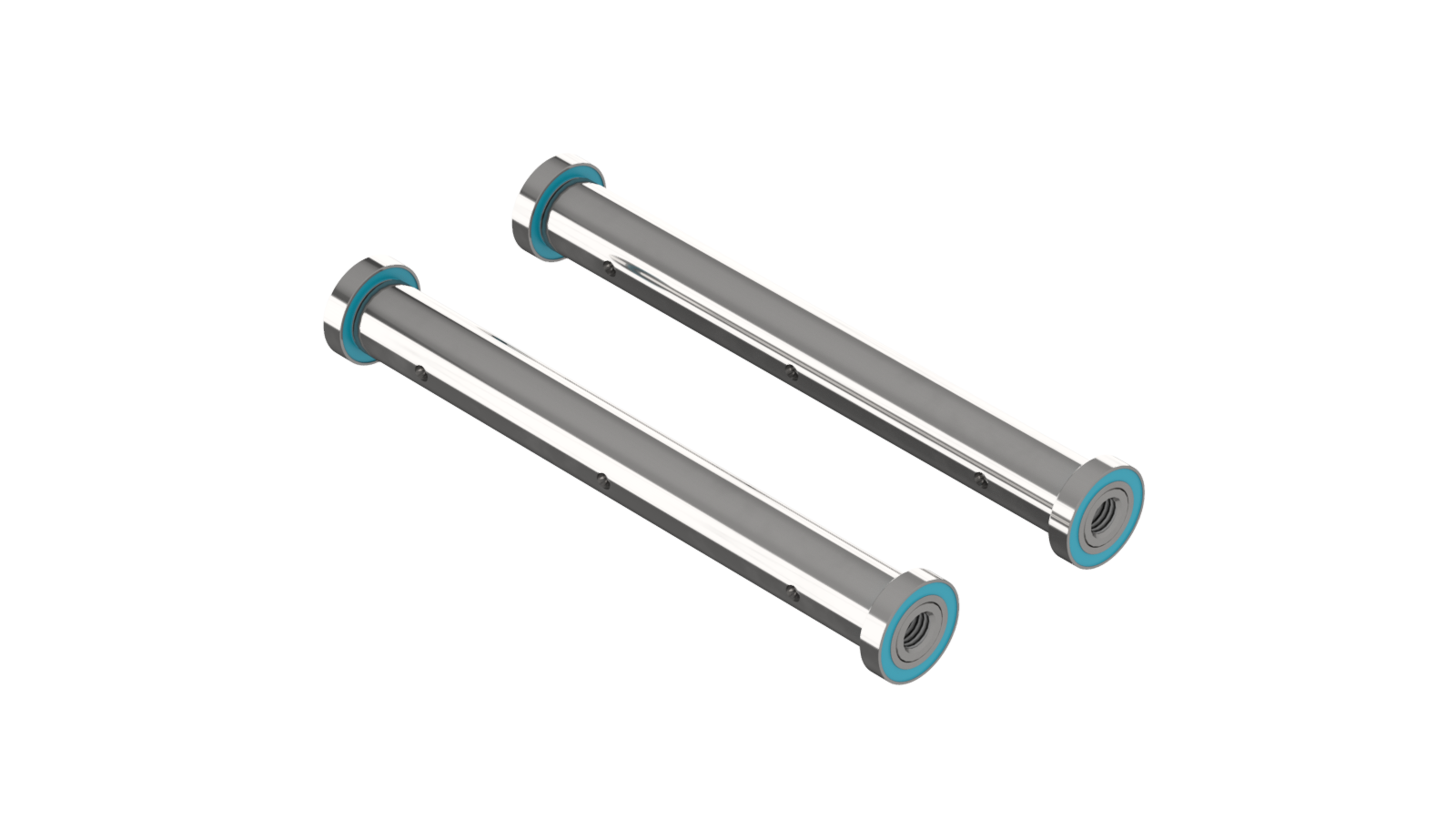

Two shafts parallel plate with bearings: 2x shaft complete with mounted bearings	VRKTXYYYYY00006	All Lexium T robots

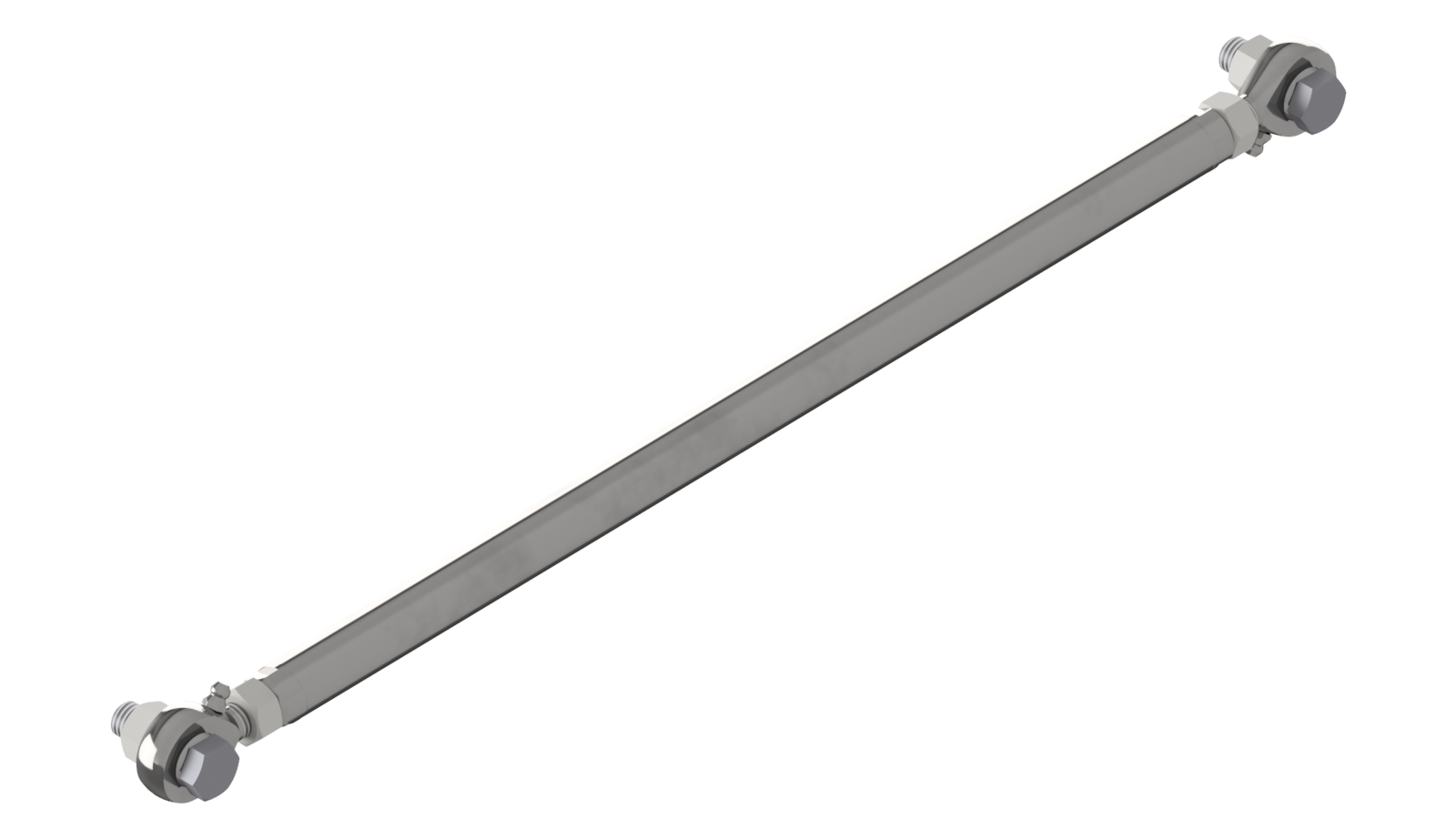

Parallel linkage rod long with fasteners: 1x linkage rod complete	VRKT1YYYYY00007	VRKT1•••NC
	VRKT2YYYYY00007	VRKT2•••NC
	VRKT3YYYYY00007	VRKT3•••NC
	VRKT5YYYYY00007	VRKT5•••NC
Parallel linkage rod short with fasteners: 1x linkage rod complete	VRKT1YYYYY00008	VRKT1•••NC
	VRKT2YYYYY00008	VRKT2•••NC
	VRKT3YYYYY00008	VRKT3•••NC
	VRKT5YYYYY00008	VRKT5•••NC
Lever parallel linkage with bearings: 1x lever with shaft and bearings	VRKT1YYYYY00009	VRKT1•••NC
	VRKTXYYYYY00009	VRKT2•••NC VRKT3•••NC VRKT5•••NC

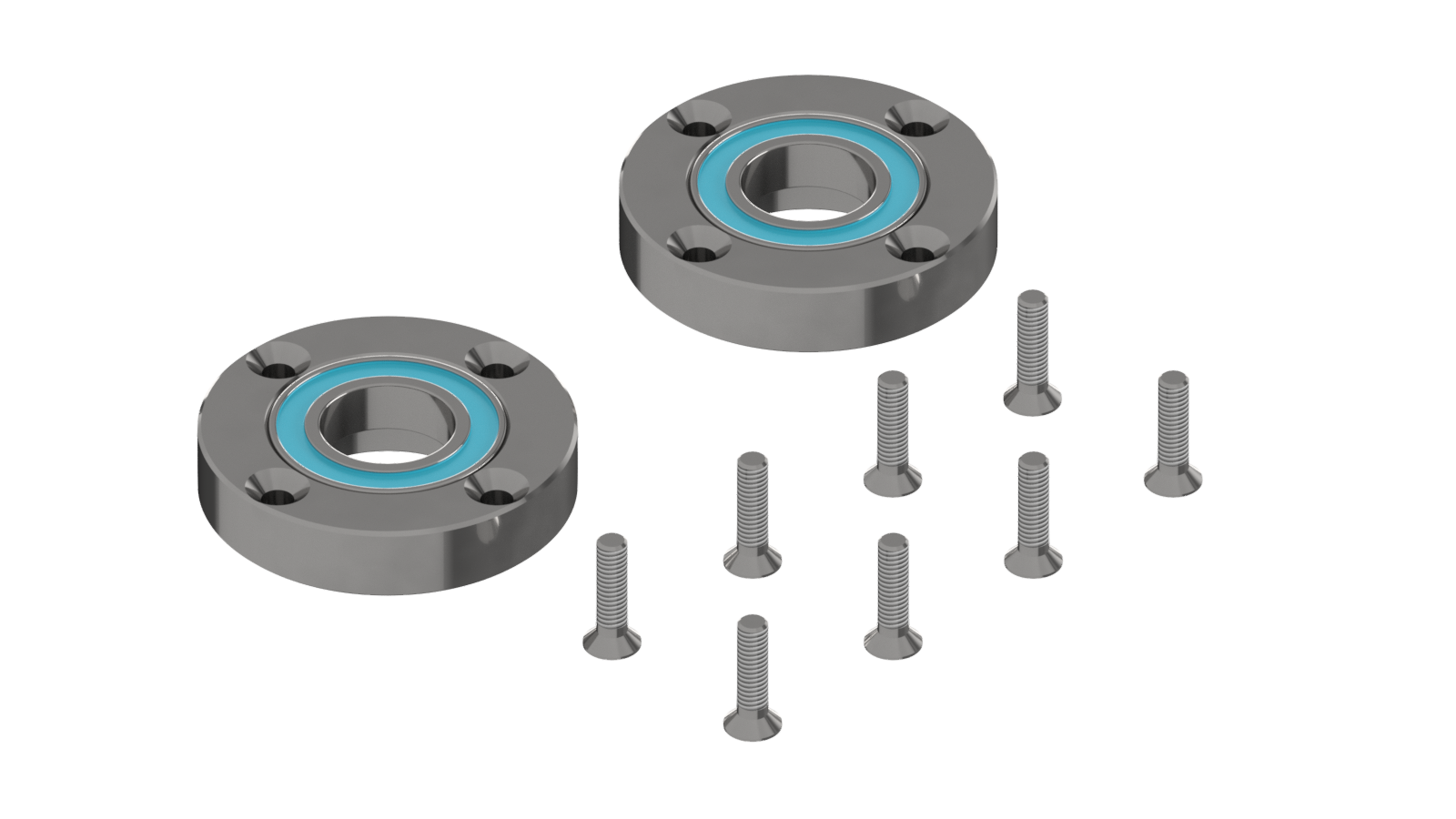

Bearing lever parallel linkage: 2x shell with mounted bearings 8x screw for shell	VRKTXYYYYY00010	All Lexium T robots

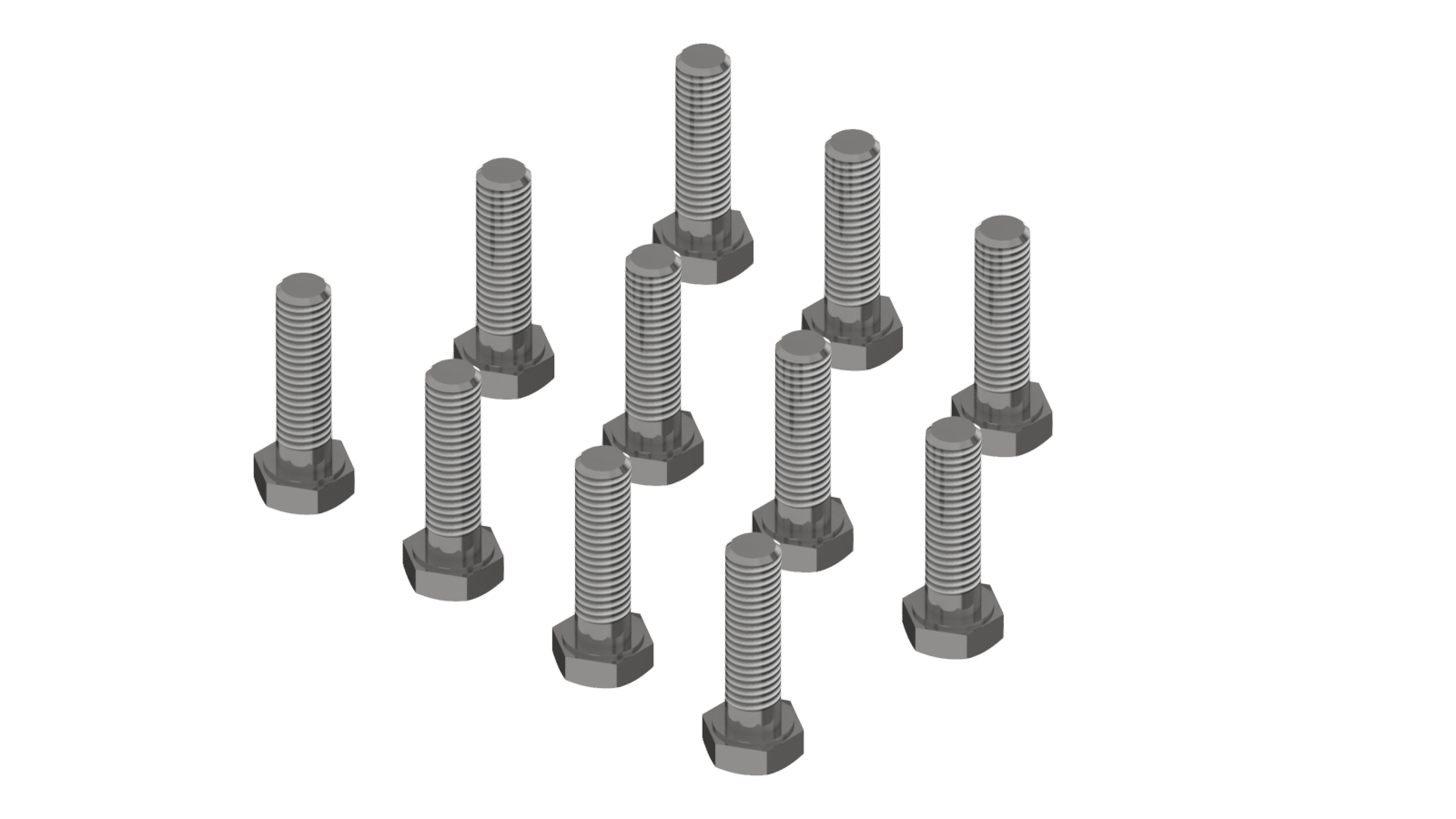

Set fasteners upper arm: 7x screw upper arm in case of VRKT1 11x screw upper arm in case of VRKT2, VRKT3, VRKT5	VRKT1YYYYY00011	VRKT1•••NC
	VRKTXYYYYY00011	VRKT2•••NC VRKT3•••NC VRKT5•••NC

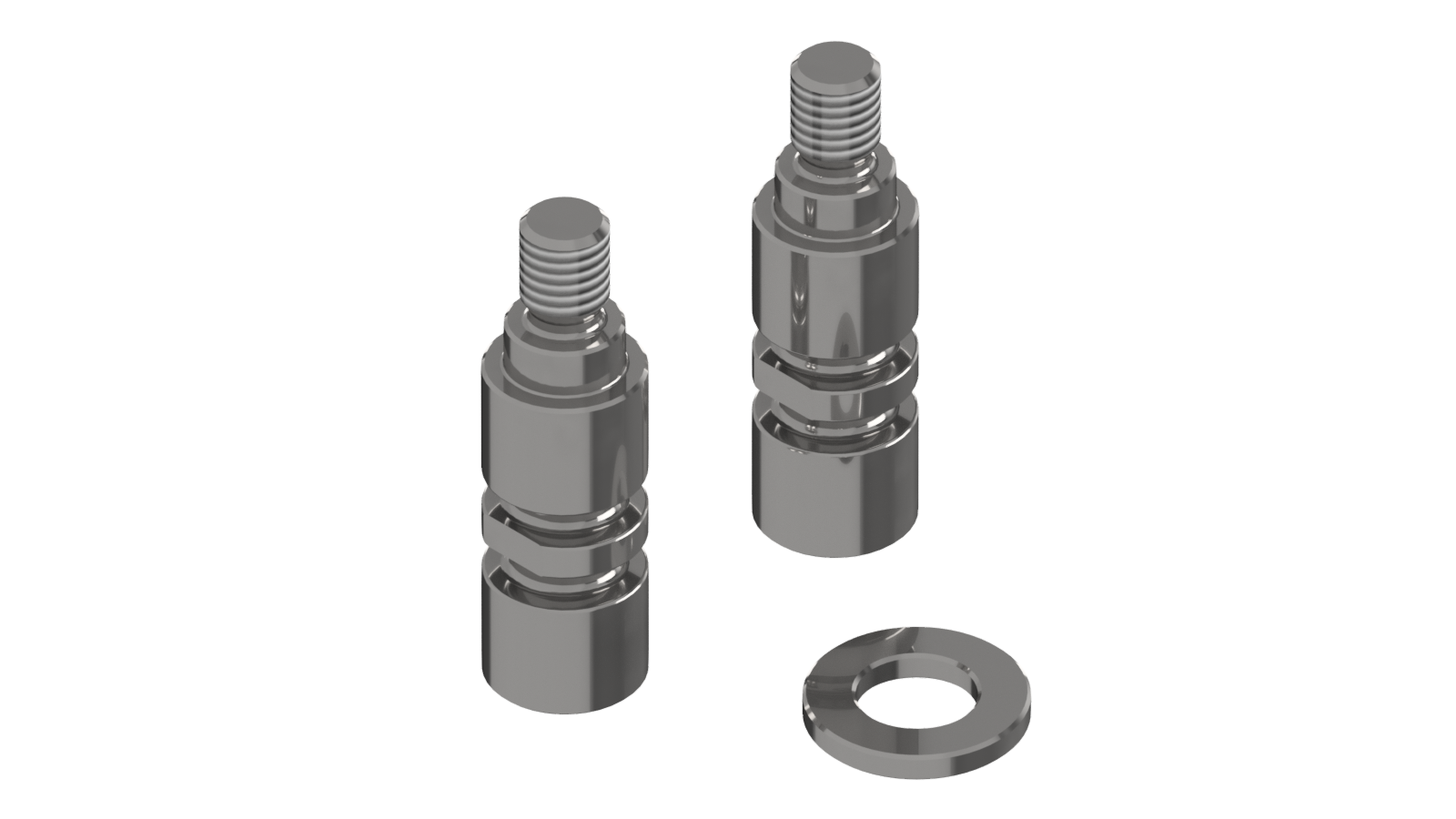

Set of mounting shafts lower arm: 2x mounting shaft lower arm 1x distance ring	VRKTXYYYYY00012	All Lexium T robots

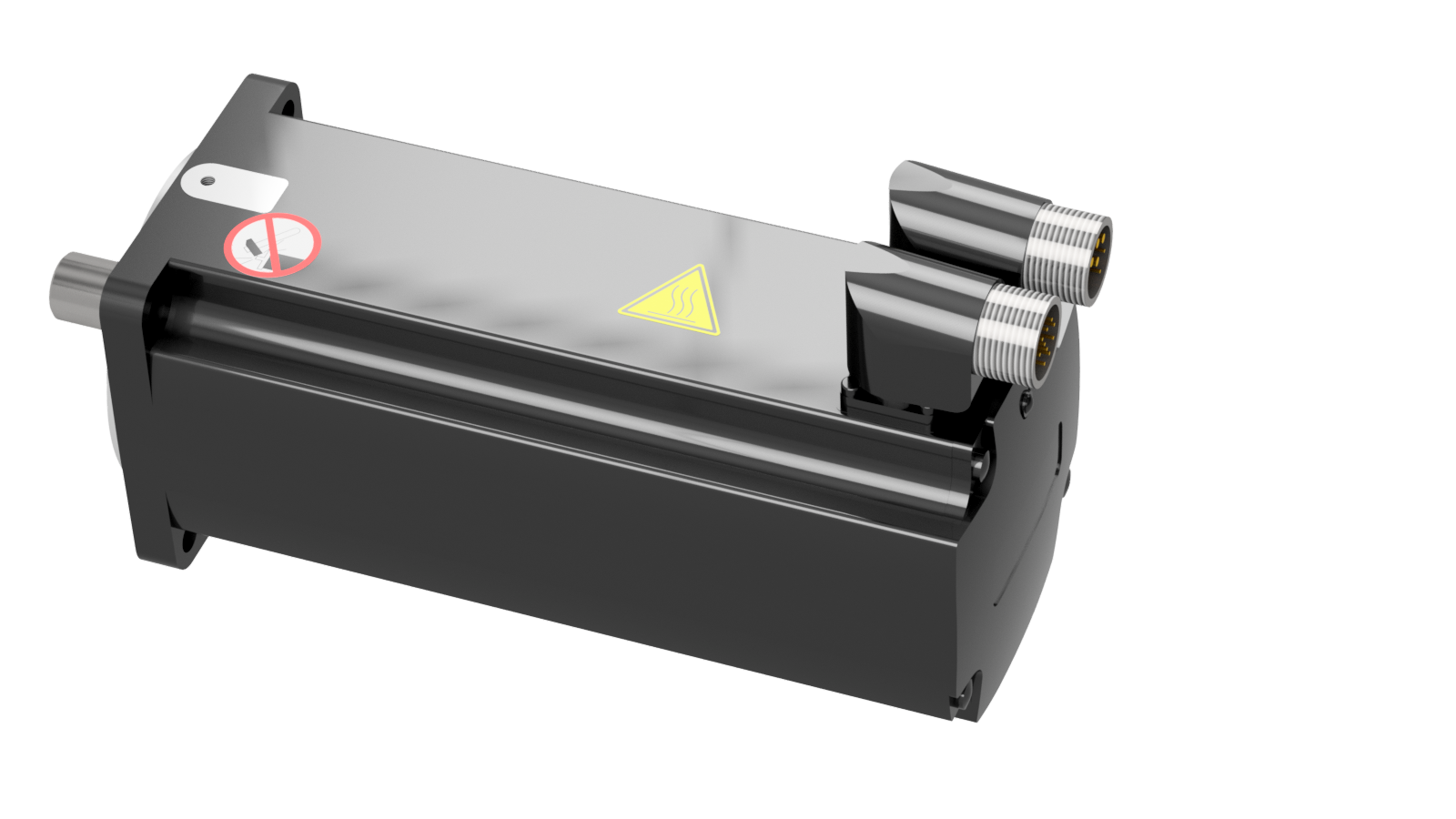

PacDrive motor for main axis, MH3: 1x motor	MH30703P02F2200	VRKT1•••NC

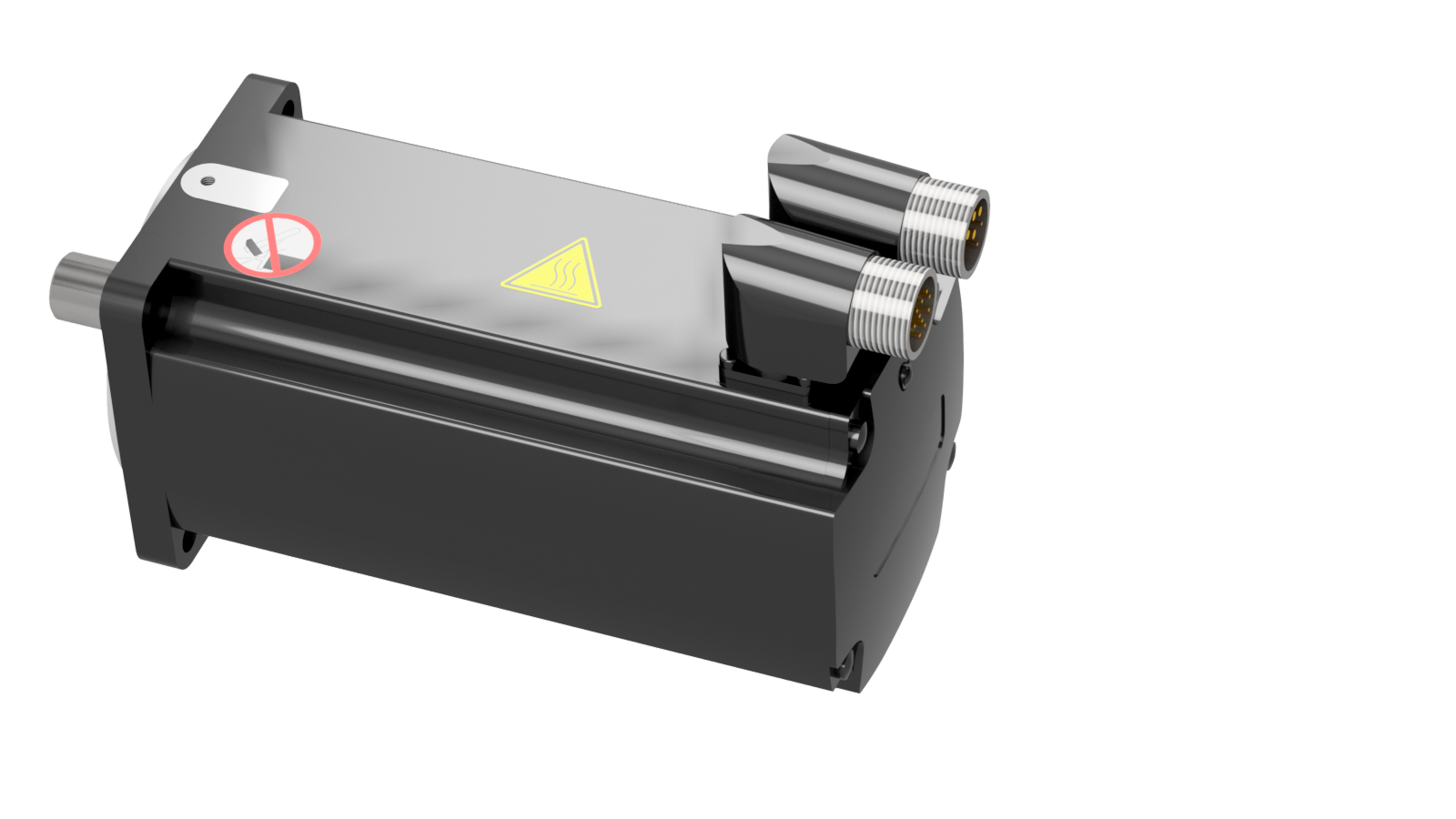

PacDrive motor for main axis, MH3: 1x motor	MH31002P02F2200	VRKT2M0•NC VRKT3M0•NC VRKT5M0•NC
PacDrive motor for main axis, MH3: 1x motor	MH31003P02F2200	VRKT2M1•NC VRKT3M1•NC VRKT5M1•NC

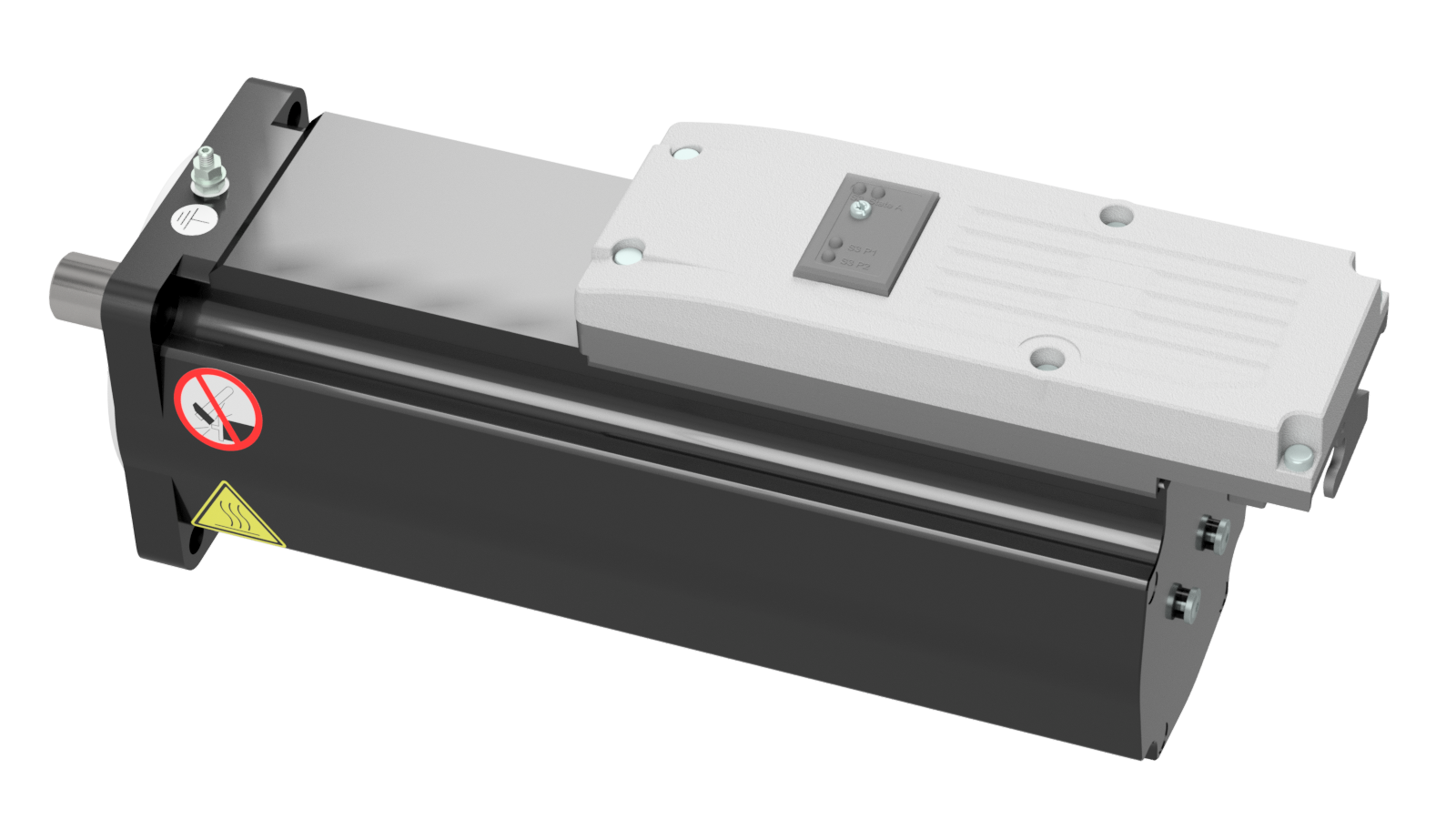

PacDrive motor for main axis, Lexium 62 ILM: 1x motor	ILM1003P02F0000	VRKT2L••NC VRKT3L••NC VRKT5L••NC
