GroupState

General

Type	AD
Devices supporting the parameter	Lexium LXM62 Power Supply
Traceable	Yes

Functional Description

Displays the operating state of the power supply and the connected drives (also refer to InternalDeviceState).

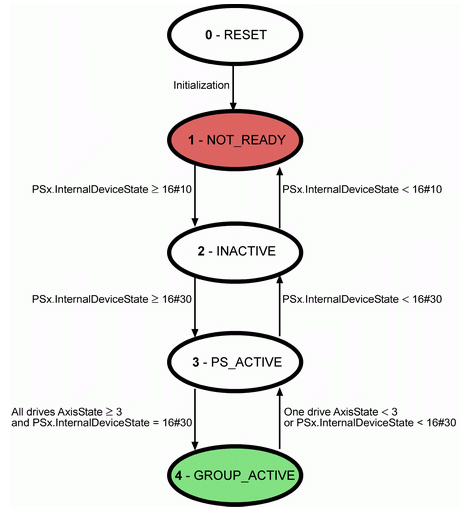

GroupState and GroupReady parameters

y-States:

0 - RESET

1 - NOT_READY

2 - INACTIVE

3 - PS_ACTIVE

4 - GROUP_ACTIVE

Value	Data type	Meaning
Initialization / 0	DINT	–
not ready / 1	DINT	Waiting for Sercos phase 4 (16#01) Waiting for PSx ready = TRUE (see also Ready) Waiting for the drives ready = TRUE (see also Ready) Waiting for HW Enable on = TRUE Waiting for Inverter Enable (only LXM 62 PSD) on = TRUE Waiting for DC bus voltage (16#04) Waiting for mains phases active (see also PhaseCheckMode)
inactive / 2	DINT	Waiting for PowerSupplyCheck (16#30) NOTE: Only possible if (PSx = real) or (PSx = virtual and the drives = virtual)
active / 3	DINT	Waiting for the drives ControllerEnable (AxisState ≥ 3)
Group active / 4	DINT	Power supply and the drives are active.
