FUNCTION_BLOCK INTEGRAL
determines approximately the integral over time.

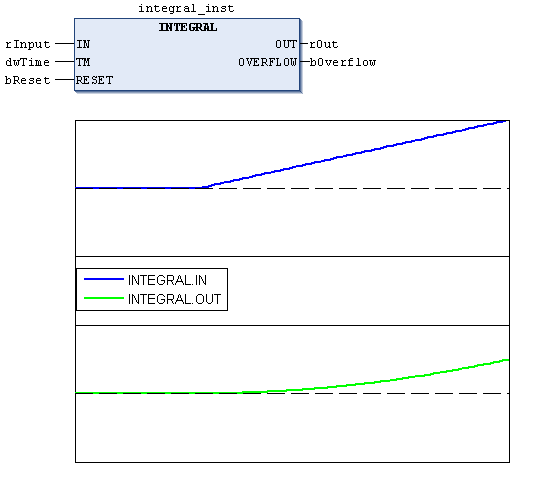

Example: Function block in FBD
|
InOut:
|
|
Scope
|
Name
|
Type
|
Initial
|
Comment
|
|
Input
|
IN
|
REAL
|
|
Input value
|
|
TM
|
DWORD
|
|
Time since last call in msec
|
|
RESET
|
BOOL
|
|
TRUE: OUT is set to zero and OVERFLOW to FALSE
|
|
Output
|
OUT
|
REAL
|
|
Value of the integral. This is done by summing all part integrals IN * TM
|
|
OVERFLOW
|
BOOL
|
FALSE
|
TRUE: The value of OUT is out of range of REAL variables. he function is blocked till it is new initialised by input RESET.
|
|
