To fasten the payload, fastening threads and counterbores for screws with cylinder heads (counterbores according to DIN 974-1) are provided at the end plates.
Each thread has a counterbore for a locating dowel for reproducible mounting of the payload. For a section view of the end plate, refer to the dimensional drawing of the corresponding axis in Mechanical Data.
For suitable parts, refer to Replacement Equipment and Accessories.

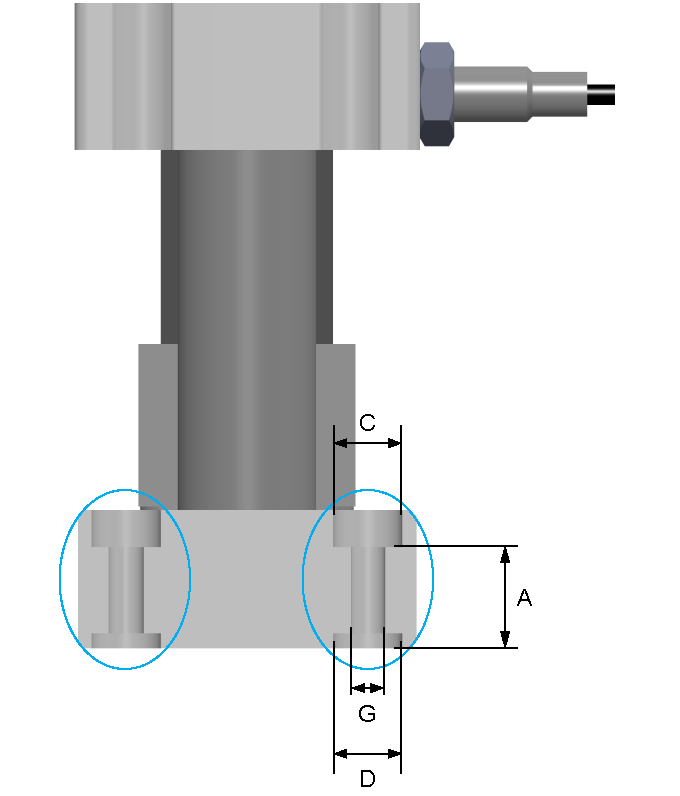

The following table presents the dimensions for mounting the payload to the end plates:
|
Description |
Parameter |
Unit |
Value |
||||
|---|---|---|---|---|---|---|---|
|
CAR40 |
CAR41 |
CAR42 |
CAR43 |
CAR44 |
|||
|
Counterbore for screws with cylinder heads |
C |
– |
M4 |
M4 |
M5 |
M5 |
M6 |
|
Thread size |
G |
– |
– |
M5 |
M6 |
M6 |
M8 |
|
Total depth (thread and counterbore for locating dowel) |
A |
mm (in) |
– |
10.6 (0.42) |
14.6 (0.57) |
14.6 (0.57) |
13.6 (0.54) |
|
Counterbore diameter for locating dowel |
D |
mm (in) |
8 H7 (0.315) |
8 H7 (0.315) |
10 H7 (0.39) |
10 H7 (0.39) |
12 H7 (0.47) |
|
NOTE: For more information, refer to the respective dimensional drawing in Mechanical Data. |
|||||||
