Timing Chart

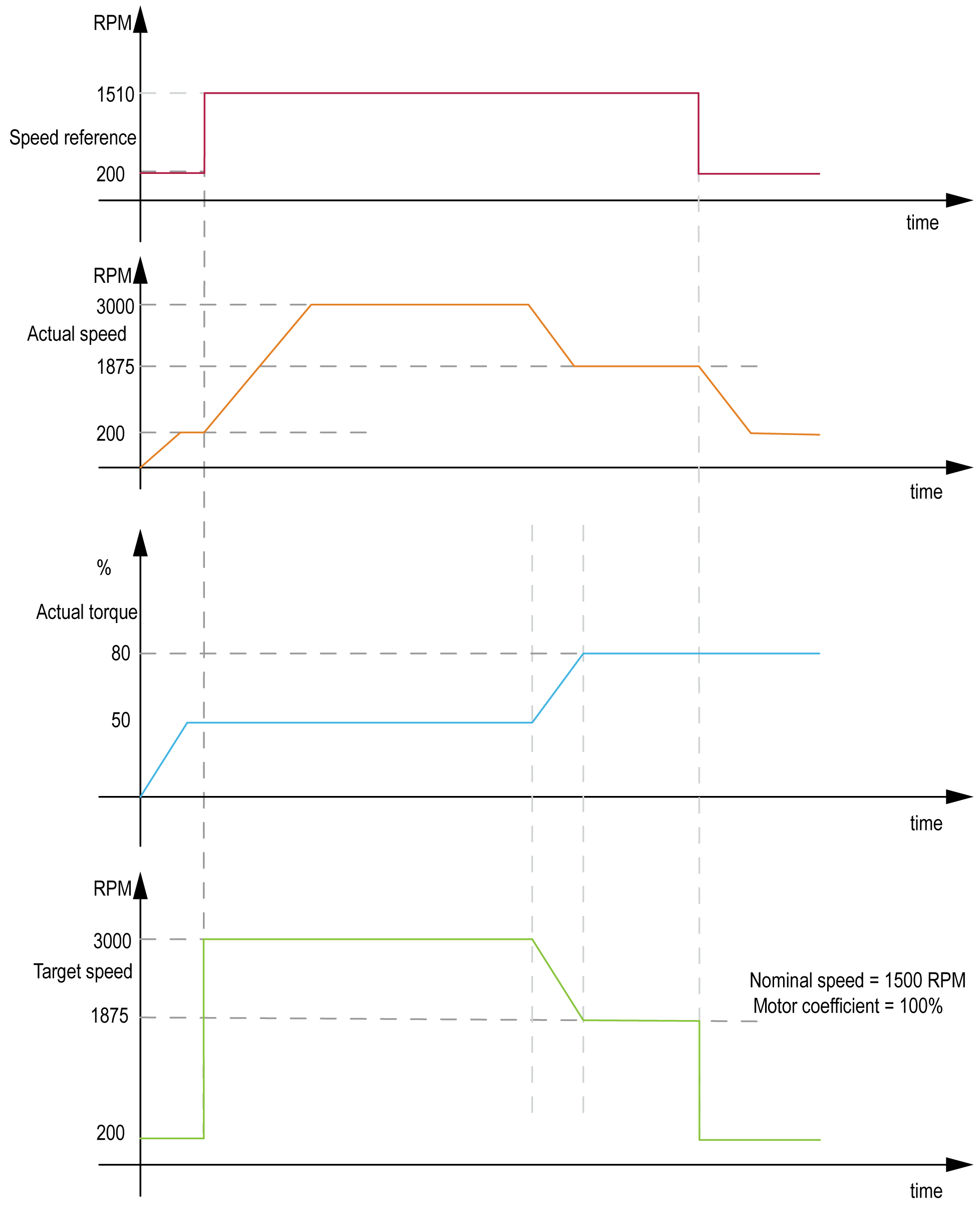

Hoist Moving Up

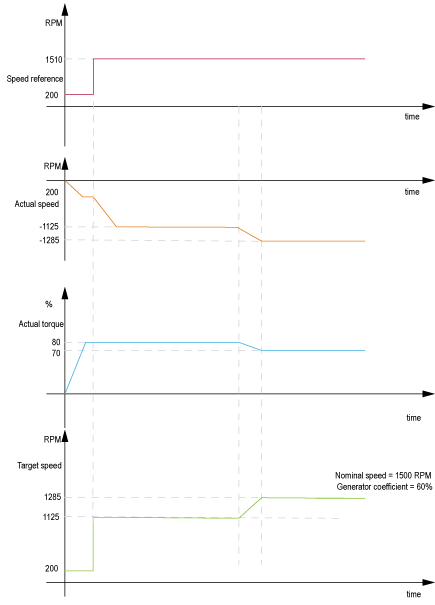

Hoist Moving Down and Dynamic Measurement Activated

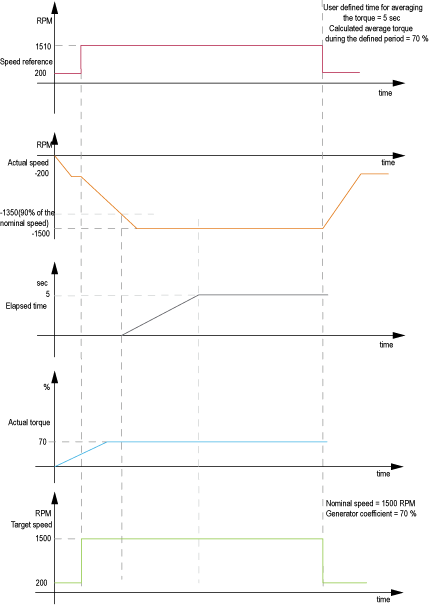

Hoist Moving Down and Average Torque Measurement Activated

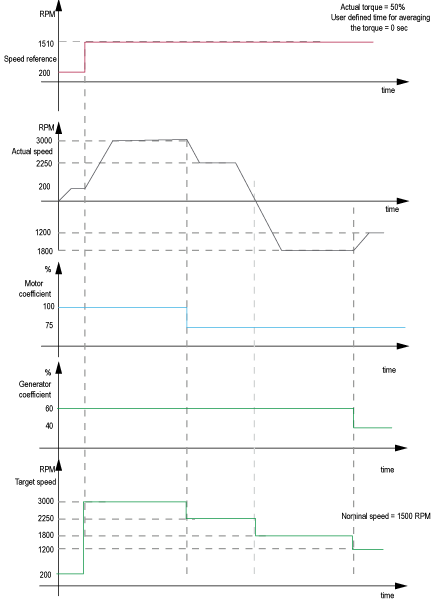

Hoist Moving Down-Response of Speed on the Change of Motor and Generator Coefficient






NOTE: The timing diagram does not depict the real performance of the hoist.
