IF_CarrierConfiguration - General Information
Task
Interface for the configuration of a single carrier within the Lexium™ MC multi carrier transport system.
Description

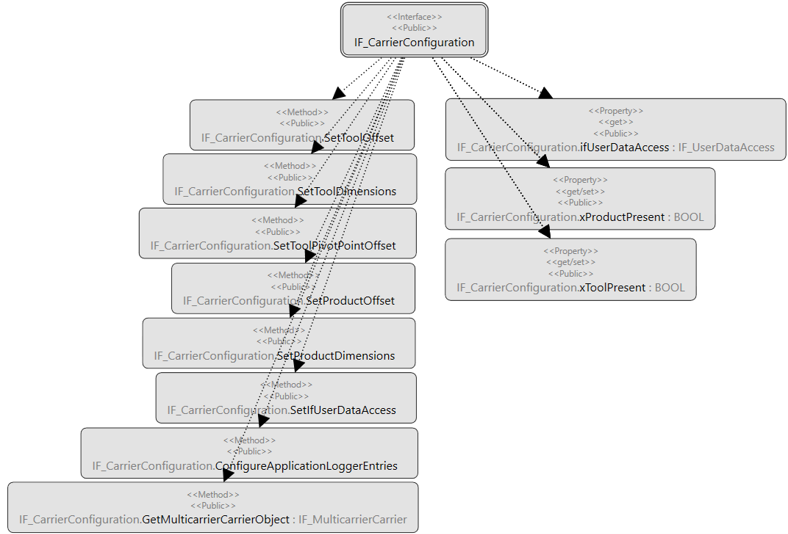

The interface provides several methods and properties for configuring a single carrier within the Lexium™ MC multi carrier transport system.
Properties
|
Property |
Data type |
Accessing |
Description |
|---|---|---|---|
|
ifUserDataAccess |
IF_UserDataAccess |
Read |
Interface to the user-defined function block that has been connected with the method SetIfUserDataAccess This property can only be read if the method SetIfUserDataAccess has been called successfully. See also IF_UserDataAccess. |
|
xProductPresent |
BOOL |
Read/Write |
If xProductPresent is set to TRUE, the dimensions of a product defined by the method SetProductDimensions (see SetProductDimensions) are considered for the properties lrFrontOffset and lrRearOffset (see IF_CarrierFeedbackConfiguration – Properties). |
|
xToolPresent |
BOOL |
Read/Write |
If xToolPresent is set to TRUE, the dimensions of a tool defined by the method SetToolDimensions (see SetToolDimensions) are considered for the properties lrFrontOffset and lrRearOffset (see IF_CarrierFeedbackConfiguration – Properties). |
