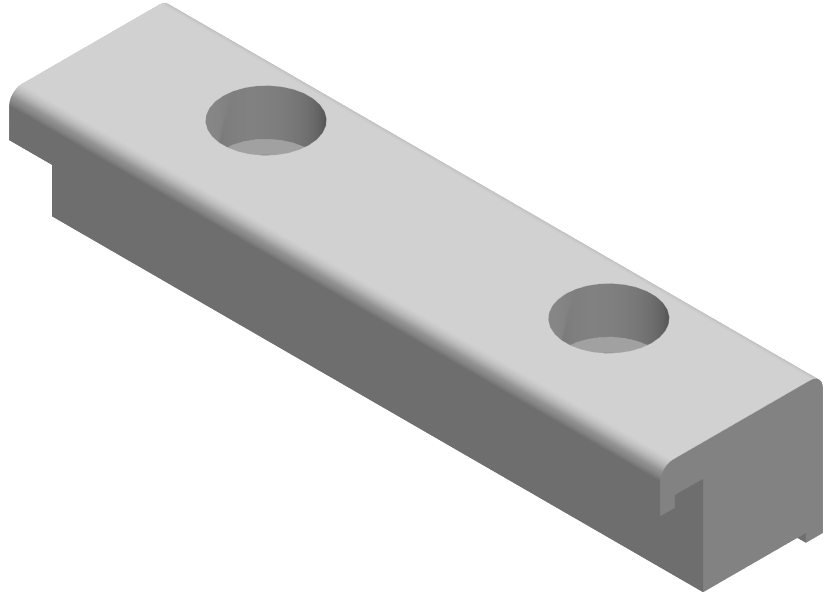

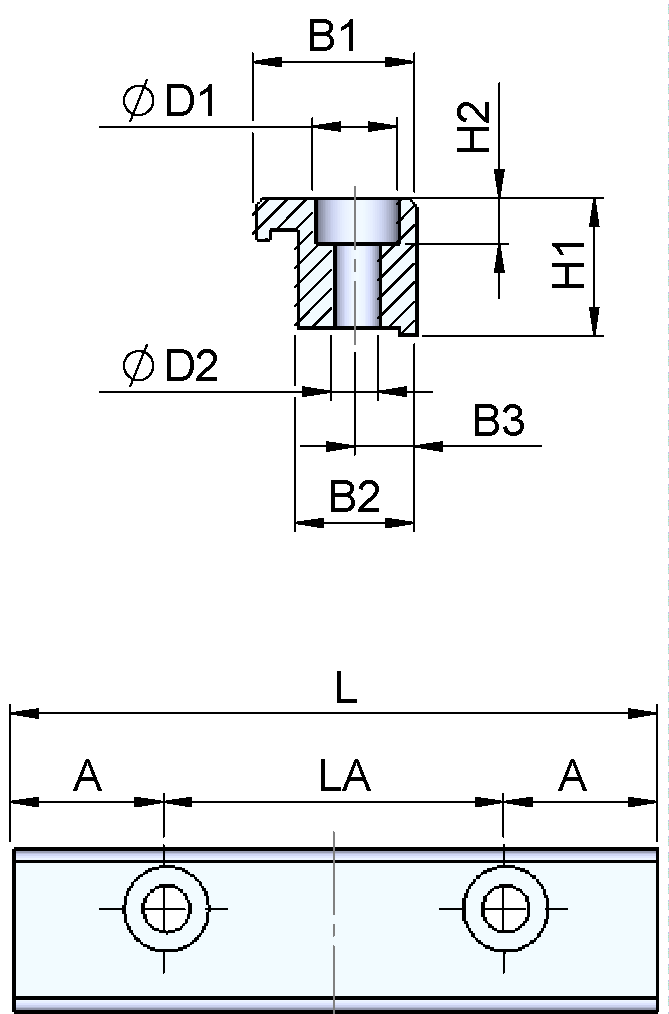

For mounting the axis body to a mounting surface:

o10x clamping claw

PAS41

VW33MF10511

PAS42

VW33MF10512

PAS43

VW33MF10613

PAS44

VW33MF10814

Dimension

A

mm

(in)

18

(0.71)

18

(0.71)

18

(0.71)

18

(0.71)

B1

18

(0.71)

19

(0.75)

24

(0.94)

28

(1.1)

B2

14

(0.55)

14

(0.55)

16

(0.63)

20

(0.79)

B3

7

(0.276)

7

(0.276)

8

(0.315)

10

(0.39)

D1

10

(0.39)

10

(0.39)

11

(0.43)

15

(0.59)

D2

5.5

(0.217)

5.5

(0.217)

6.6

(0.26)

9

(0.354)

H1

11.2

(0.44)

16.2

(0.64)

21.5

(0.85)

22

(0.87)

H2

5.4

(0.213)

5.4

(0.213)

6.4

(0.25)

12

(0.47)

L

76

(3)

76

(3)

76

(3)

76

(3)

LA

40

(1.57)

40

(1.57)

40

(1.57)

40

(1.57)

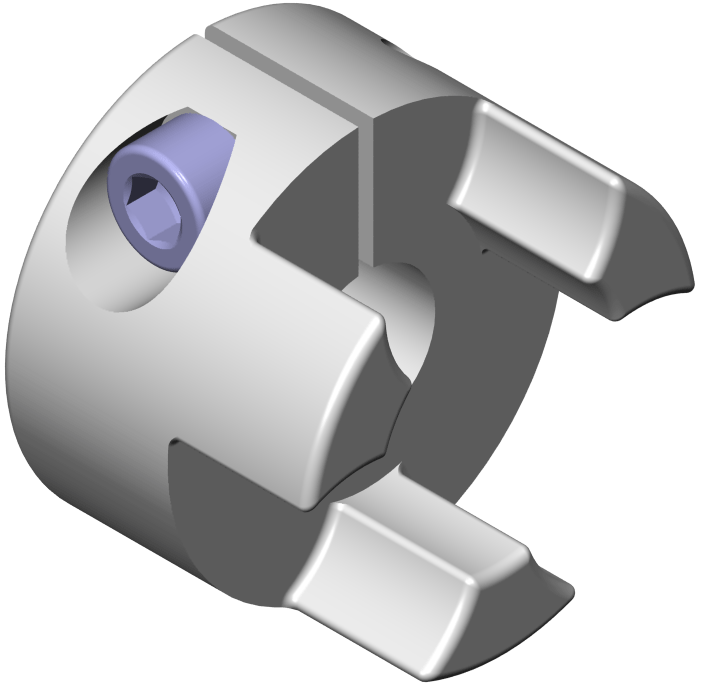

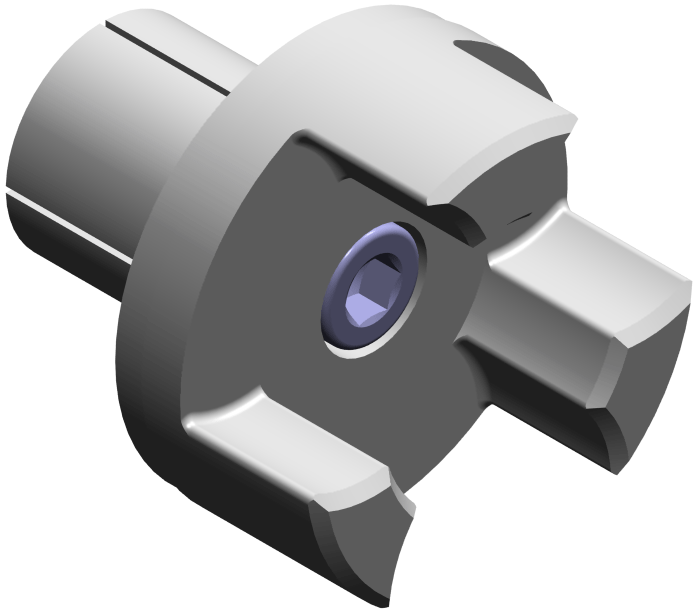

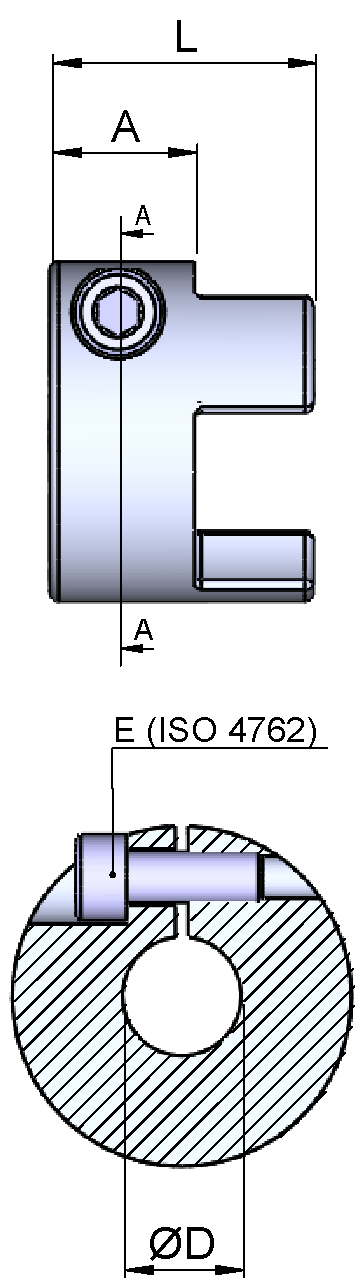

For mounting attachments to the shaft of the motor or gearbox:

o1x clamping hub with tensioning screw

PAS41

6.35 (0.25)

SPM3MFCC06A06

8 (0.315)

SPM3MFCC08A06

9 (0.354)

SPM3MFCC09A06

10 (0.39)

SPM3MFCC10A06

11 (0.43)

SPM3MFCC11A06

12 (0.47)

SPM3MFCC12A06

14 (0.55)

SPM3MFCC14A06

PAS42

6.35 (0.25)

SPM3MFCC06A07

8 (0.315)

SPM3MFCC08A07

9 (0.354)

SPM3MFCC09A07

10 (0.39)

SPM3MFCC10A07

11 (0.43)

SPM3MFCC11A07

12 (0.47)

SPM3MFCC12A07

14 (0.55)

SPM3MFCC14A07

16 (0.63)

SPM3MFCC16A07

19 (0.75)

SPM3MFCC19A07

20 (0.79)

SPM3MFCC20A07

PAS43

12 (0.47)

SPM3MFCC12A08

14 (0.55)

SPM3MFCC14A08

19 (0.75)

SPM3MFCC19A08

20 (0.79)

SPM3MFCC20A08

22 (0.87)

SPM3MFCC22A08

24 (0.94)

SPM3MFCC24A08

25 (0.98)

SPM3MFCC25A08

PAS44

12 (0.47)

SPM3MFCC12A09

14 (0.55)

SPM3MFCC14A09

19 (0.75)

SPM3MFCC19A09

20 (0.79)

SPM3MFCC20A09

22 (0.87)

SPM3MFCC22A09

24 (0.94)

SPM3MFCC24A09

25 (0.98)

SPM3MFCC25A09

(1) Refer to dimensional drawing (following table).

Moment of inertia J

–

kg·cm²

(lb·in²)

0.015

(0.0051)

0.15

(0.051)

0.55

(0.188)

1.22

(0.42)

Tightening torque

–

Nm (lbf-in)

1.9

(16.8)

14

(14)

14

(124)

35

(310)

Screw ISO 4762

E

–

M3

M6

M6

M8

Dimension

A

mm

(in)

11

(0.43)

17

(0.67)

20

(0.79)

21

(0.83)

D

⁽¹⁾

L

22

(0.87)

31

(1.22)

36

(1.42)

39

(1.54)

1   See table order data.

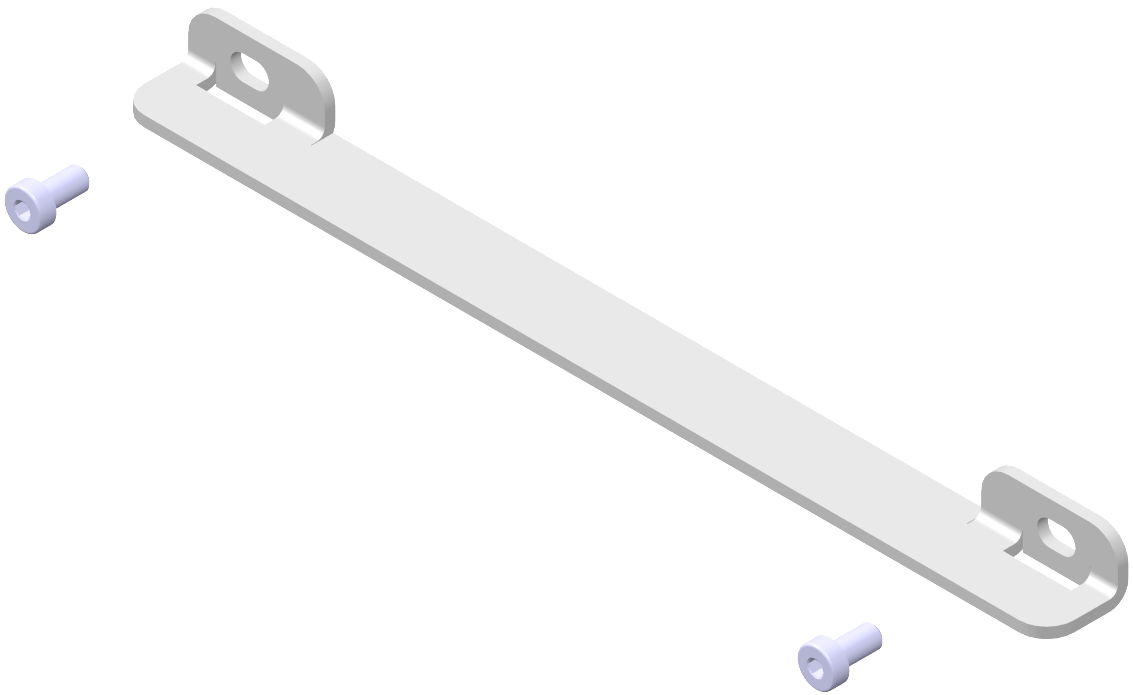

For the functionality of the inductive sensor:

o1x contact plate

o2x screw

All

VW33MASP1

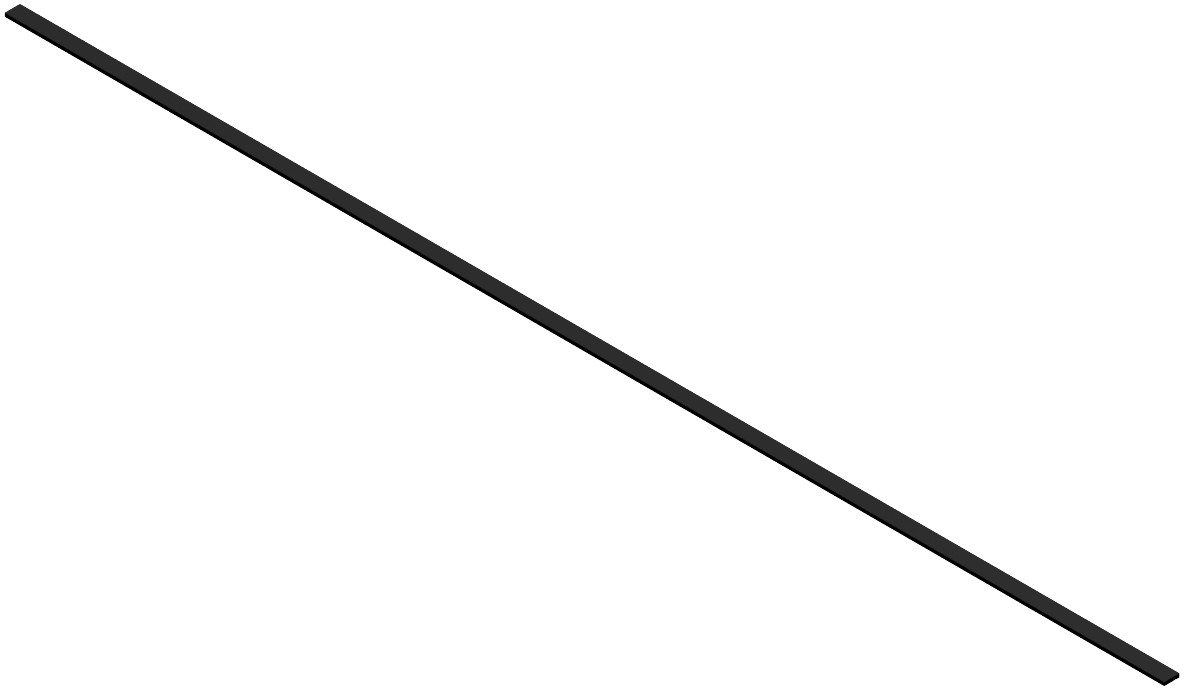

For helping to keep pollution, chips, dust, and foreign objects away from the linear guide inside the axis:

o1x cover strip

PAS41

3 (9.8)

SPM3MAC22L030

6 (19.7)

SPM3MAC22L060

PAS42

3 (9.8)

SPM3MAC36L030

6 (19.7)

SPM3MAC36L060

PAS43

3 (9.8)

SPM3MAC45L030

6 (19.7)

SPM3MAC45L060

PAS44

3 (9.8)

SPM3MAC65L030

6 (19.7)

SPM3MAC65L060

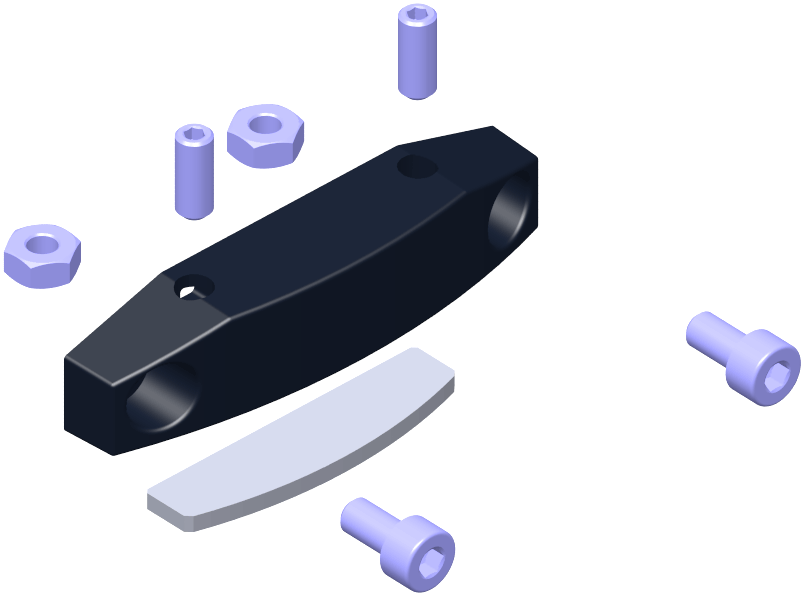

For fastening the cover strip at the end block:

o1x cover strip clamp

o1x clamping plate

o2x screws

o2x setscrews

o2x nuts

PAS41

SPM3MAC1F041

PAS42

SPM3MAC1F042

PAS43

SPM3MAC1F043

PAS44

SPM3MAC1F044

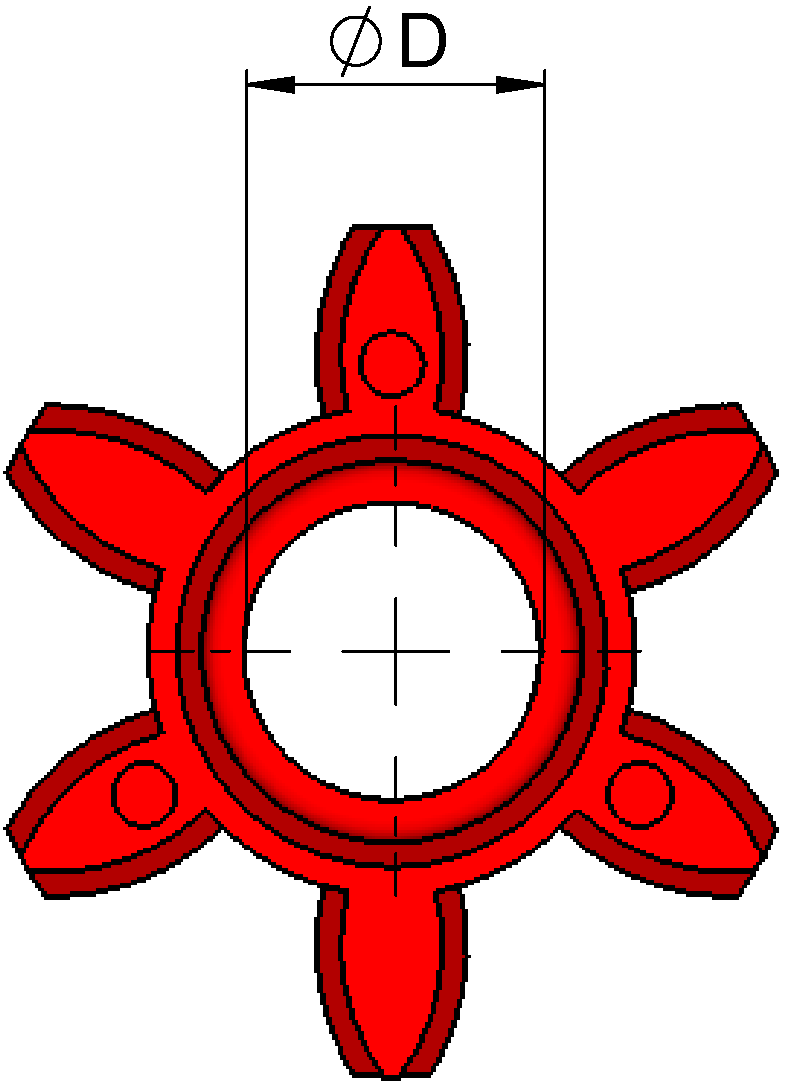

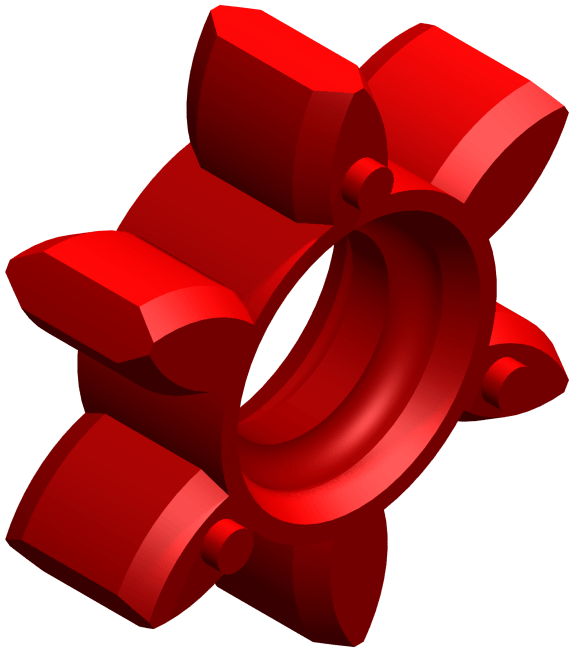

For decoupling the expanding hub and the clamping hub:

o1x elastomer spider, red

PAS41

SPM3MFR09A018

PAS42

SPM3MFR14A034

PAS43

SPM3MFR20A120

PAS44

SPM3MFR25A320

Moment of inertia

J

kg·cm²

(lb·in²)

0.001

(0.00034)

0.013

(0.0044)

0.067

(0.023)

0.150

(0.051)

Shore hardness

–

SH A

98

Color

–

–

Red

Dimension

D

mm

(in)

9

(0.354)

14

(0.55)

20

(0.79)

25

(0.98)

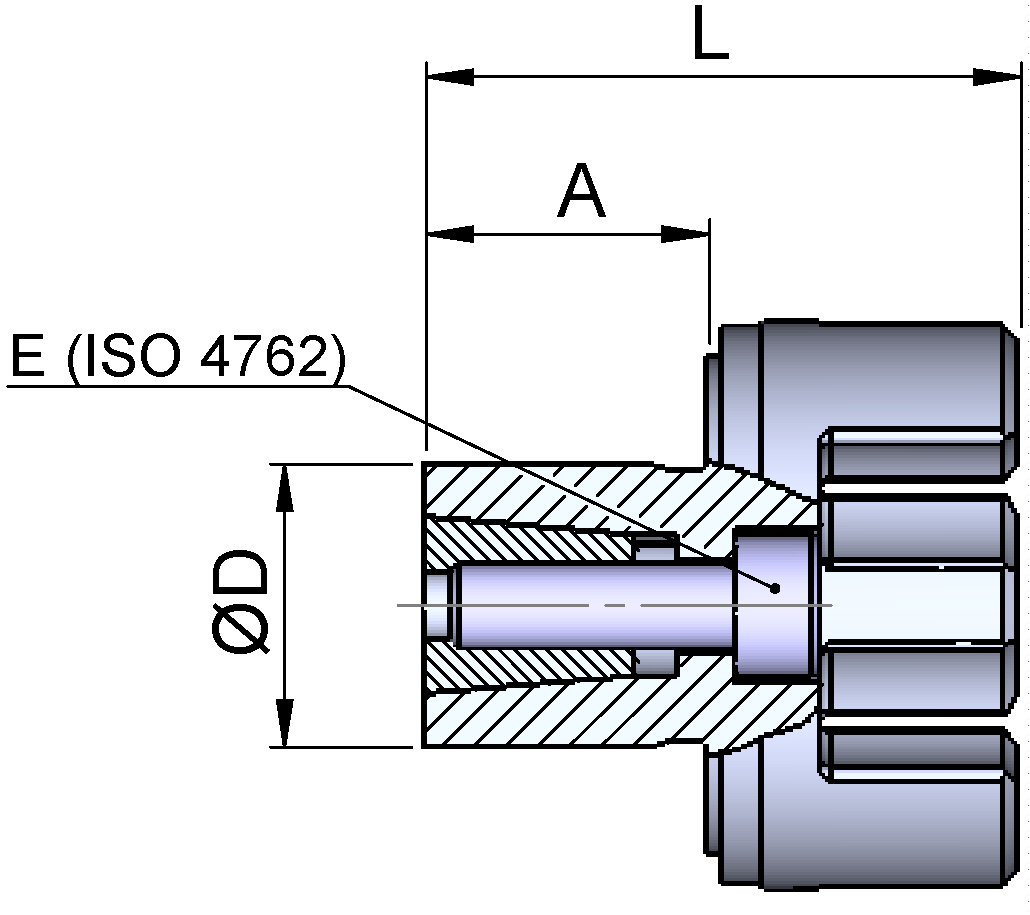

For mounting the motor or gearbox:

o1x expanding hub with cone and tensioning screw

PAS41

SPM3MFSC10A14

PAS42

SPM3MFSC20A20

PAS43

SPM3MFSC25A30

PAS44

SPM3MFSC35A36

Moment of inertia

J

kg·cm²

(lb·in²)

0.009

(0.0031)

0.09

(0.031)

0.32

(0.11)

0.77

(0.263)

Tightening torque

M_t

Nm

(lbf-in)

2.9

(25.7)

10

(89)

25

(221)

49

(434)

Screw ISO 4762

E

–

M4

M6

M8

M10

Dimension

A

mm

(in)

14

(0.55)

20

(0.79)

30 (1.18)

36

(1.42)

D

10

(0.39)

20

(0.79)

25 (0.98)

35 (1.38)

L

30

(1.18)

42

(1.65)

54

(2.13)

61.5

(2.4)

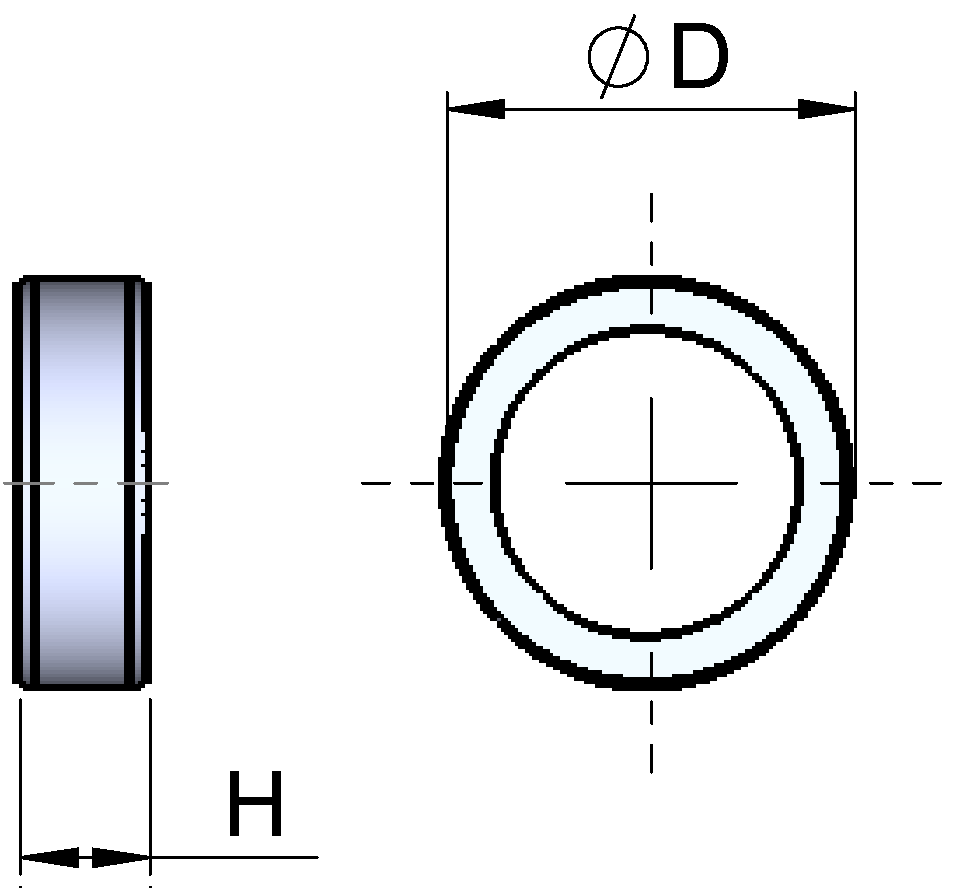

For precise and reproducible mounting of the payload at the end plates:

o20x locating dowel

PAS41 / PAS42

VW33MF020LD01

PAS43

VW33MF020LD02

PAS44

VW33MF020LD03

Dimension

D

mm

(in)

5.5

(0.217)

6.6

(0.26)

9

(0.354)

H

3.8

(0.15)

For lubricating the axis. Volume: 120 cm³ (7.3 in³); delivery volume: 0.5 cm³ (0.03 in³) / stroke:

o1x single-hand lubrication gun

PAS42 / PAS43 / PAS44 with recirculating ball bearing guide

Grease

VW33MAP01

PAS41 / PAS42 / PAS43 with roller guide

Oil

VW33MAP02

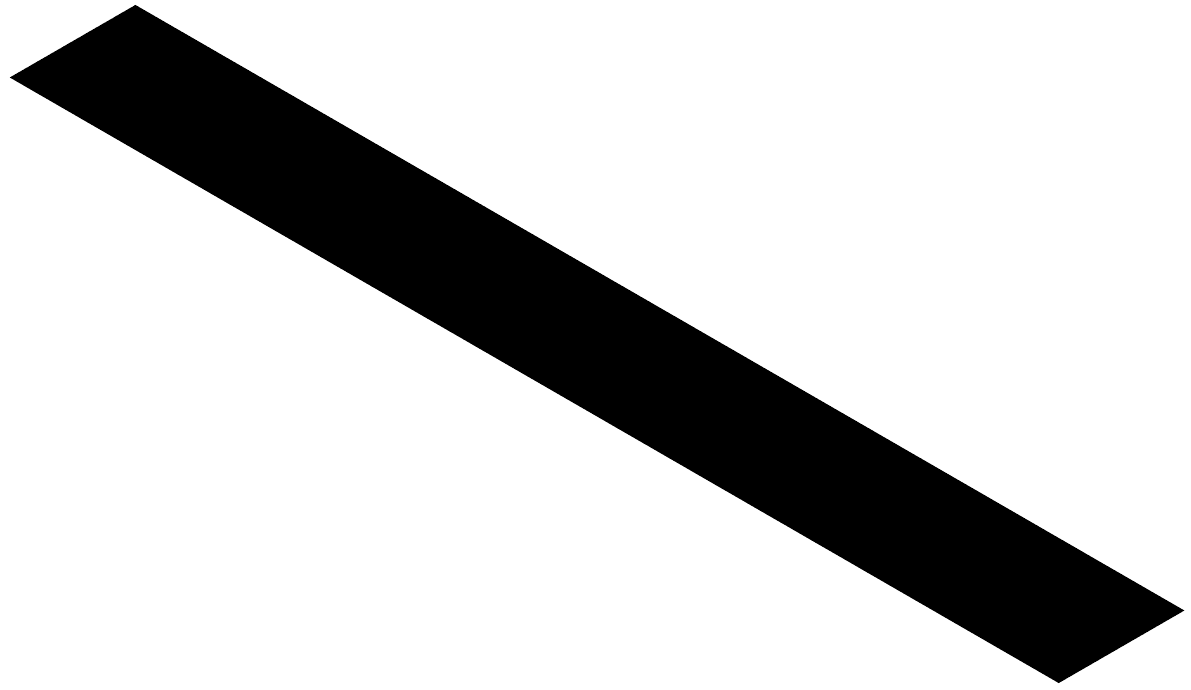

For fastening the cover strip:

omagnetic strip, 1 m (39 in) each

PAS41

3

SPM3MAW1S215

6

SPM3MAW1S230

12

SPM3MAW1S260

PAS42

3

SPM3MAW1S415

6

SPM3MAW1S430

12

SPM3MAW1S460

PAS43

PAS44

3

SPM3MAW1S615

6

SPM3MAW1S630

12

SPM3MAW1S660

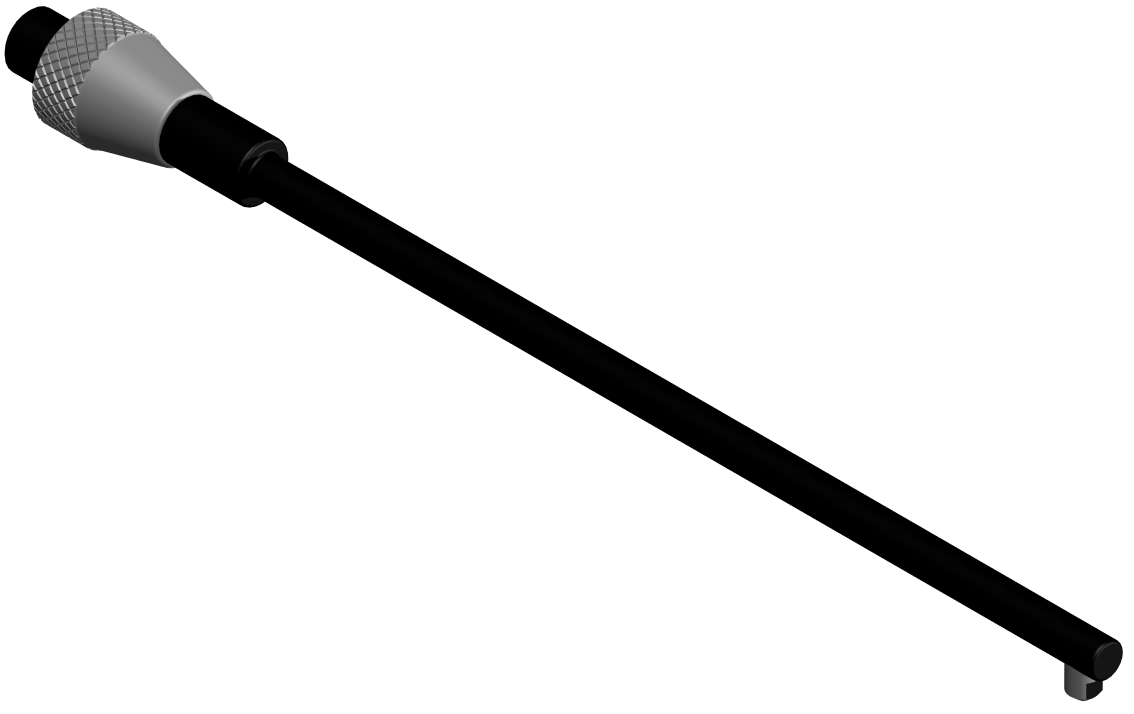

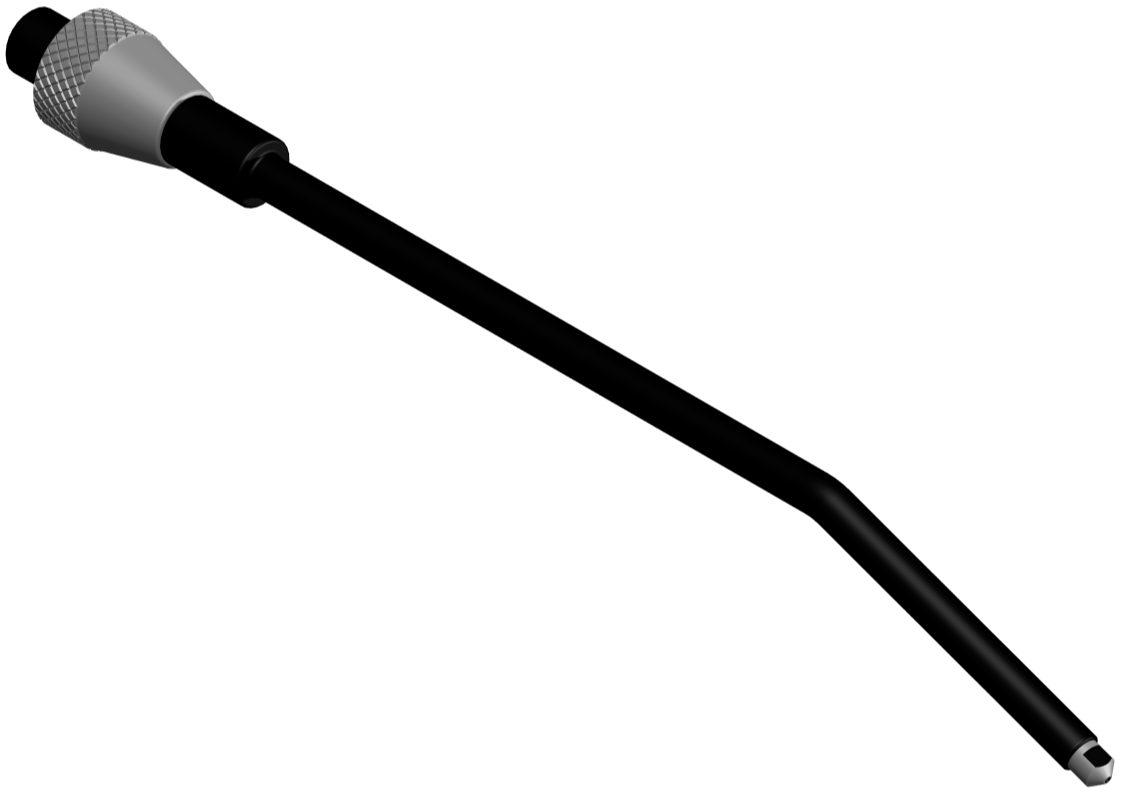

For extending the lubrication gun:

o1x nozzle pipe

Suitable for lubrication nipple type D6.

All

Pointed nozzle 90° lateral

VW33MAT01

Pointed nozzle 20° angled

VW33MAT02

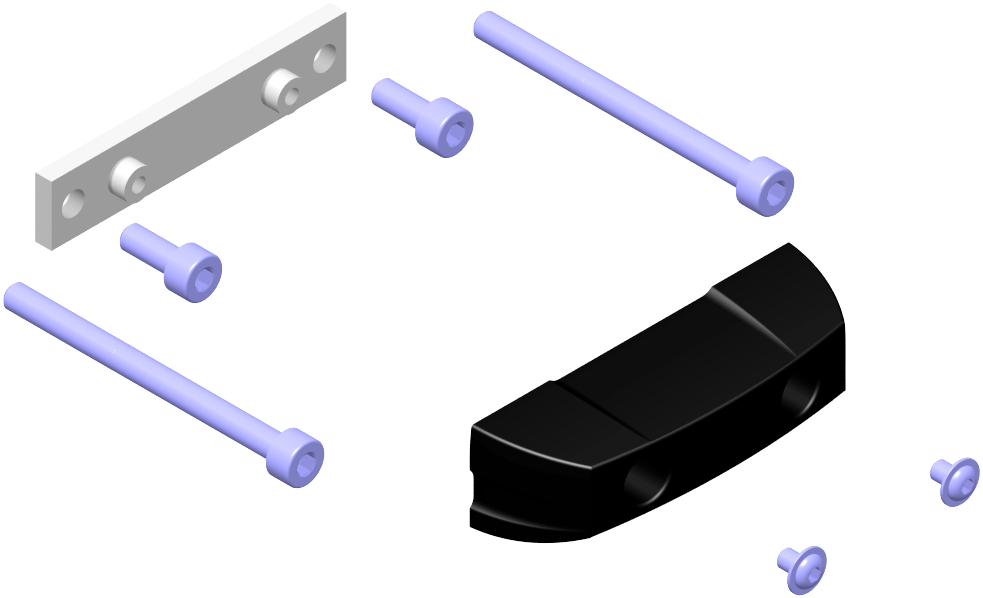

For reducing the effect of an impact:

o2x rubber buffer

o2x holding plate

o12x screw

PAS41

SPM3MAC1F041

PAS42

SPM3MAC1F042

PAS43

SPM3MAC1F043

PAS44

SPM3MAC1F044

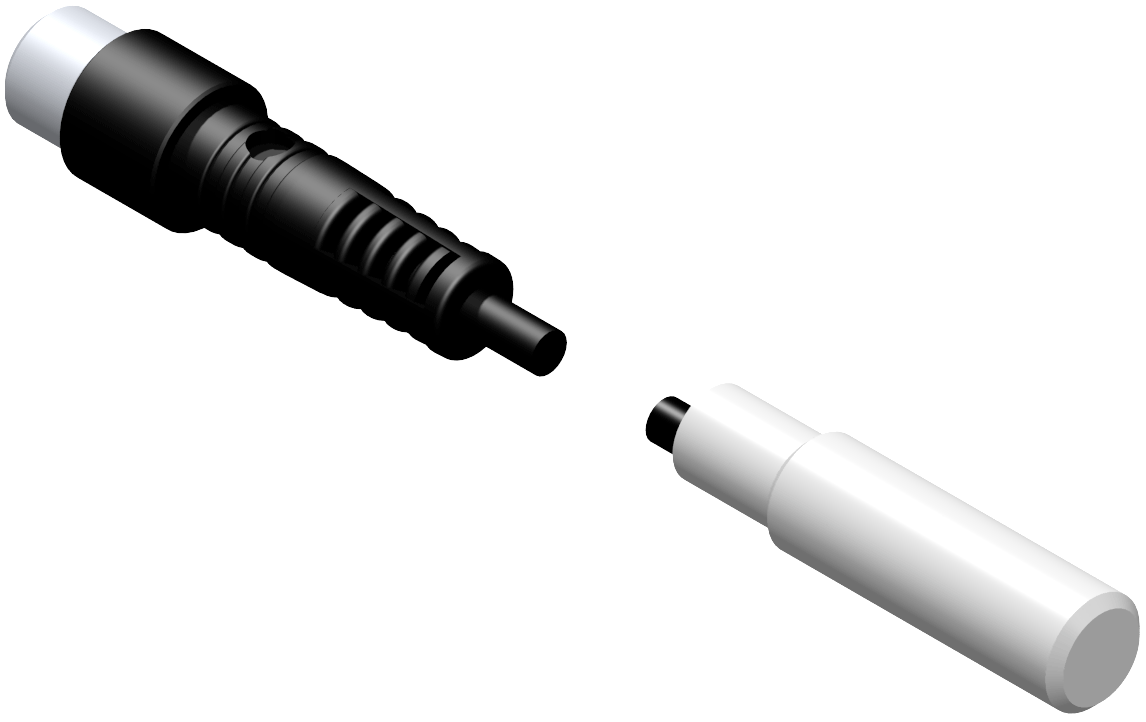

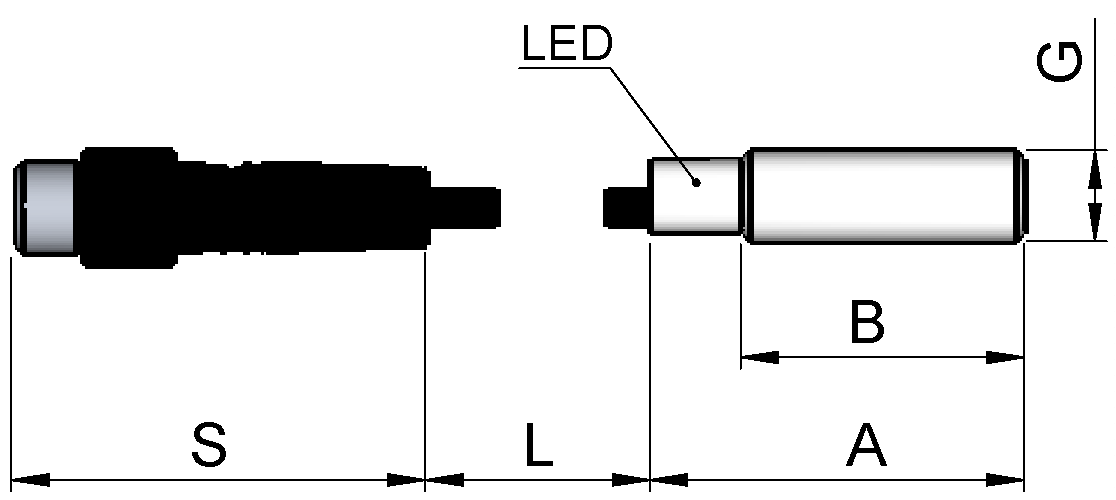

For detecting the end position of the axis:

o1x sensor

All

PNP, normally closed

XS508B1PBP01M8

PNP, normally open

XS508B1PAP01M8

NPN, normally closed

XS508B1NBP01M8

NPN, normally open

XS508B1NAP01M8

Thread

G

–

M8

Dimension

A

mm

(in)

33

(1.3)

B

25

(0.98)

L

100

(3.9)

S

36.5

(1.44)

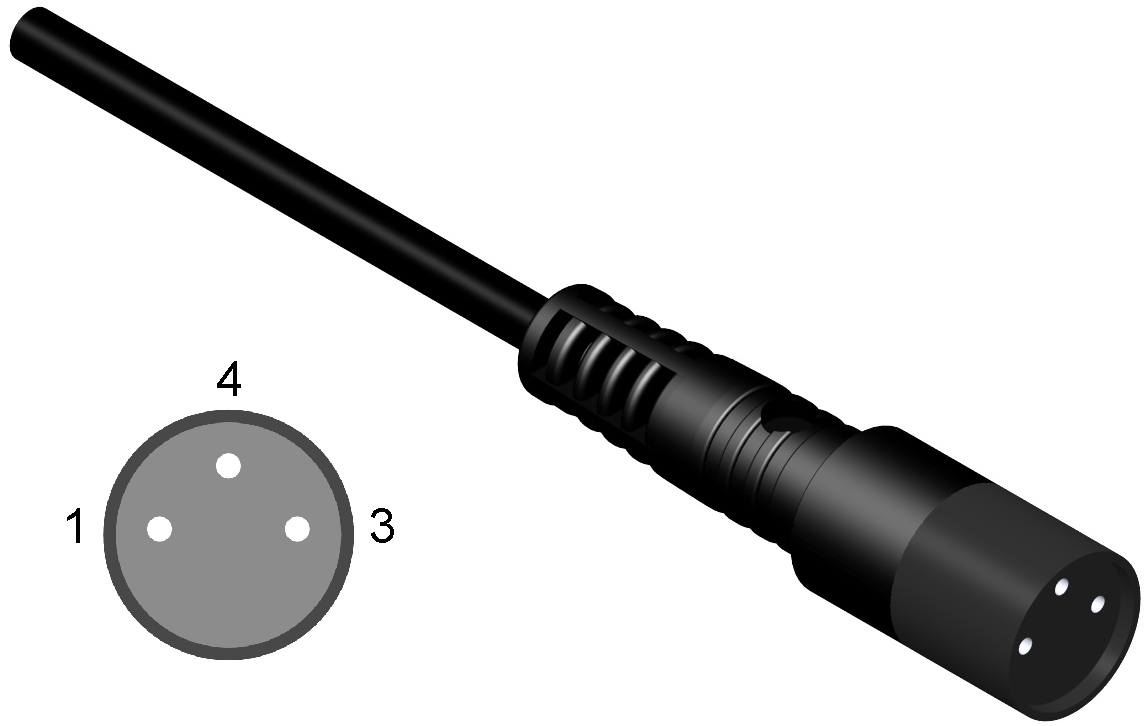

For extending the sensor cable:

o1x sensor extension cable

Suitable for energy chain applications; sensor side end 3-pin M8 circular connector, second cable end is open.

PNP and NPN normally closed /

PNP and NPN normally open

5 (16.4)

VW32SBCBGA050

10 (33)

VW32SBCBGA100

20 (66)

VW32SBCBGA200

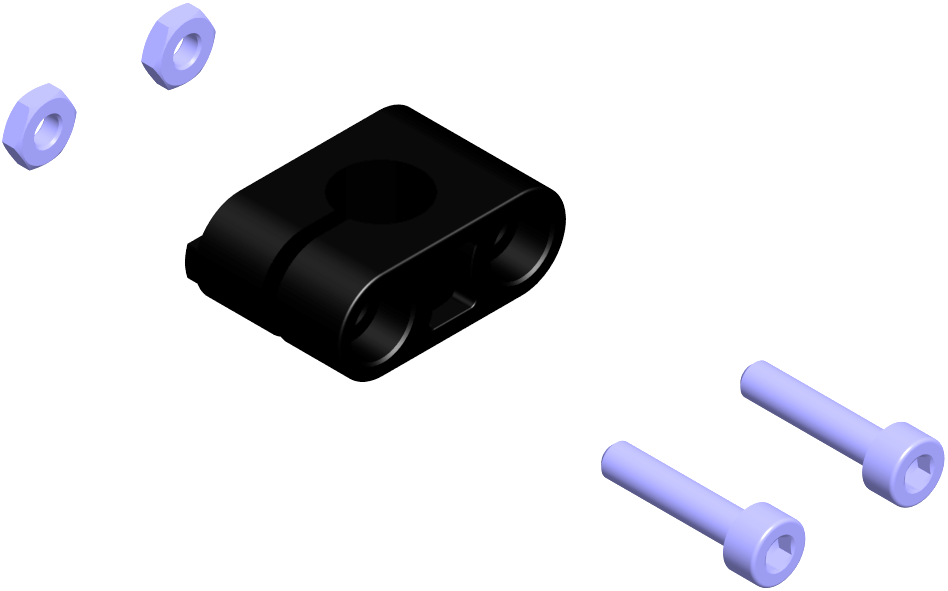

For mounting sensors to the axis:

o10x sensor holder

All

8 (0.315)

VW33MF010M8

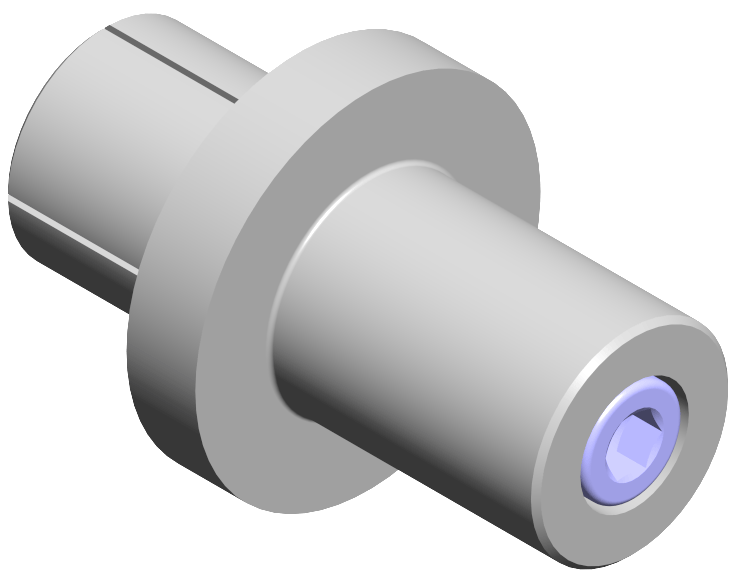

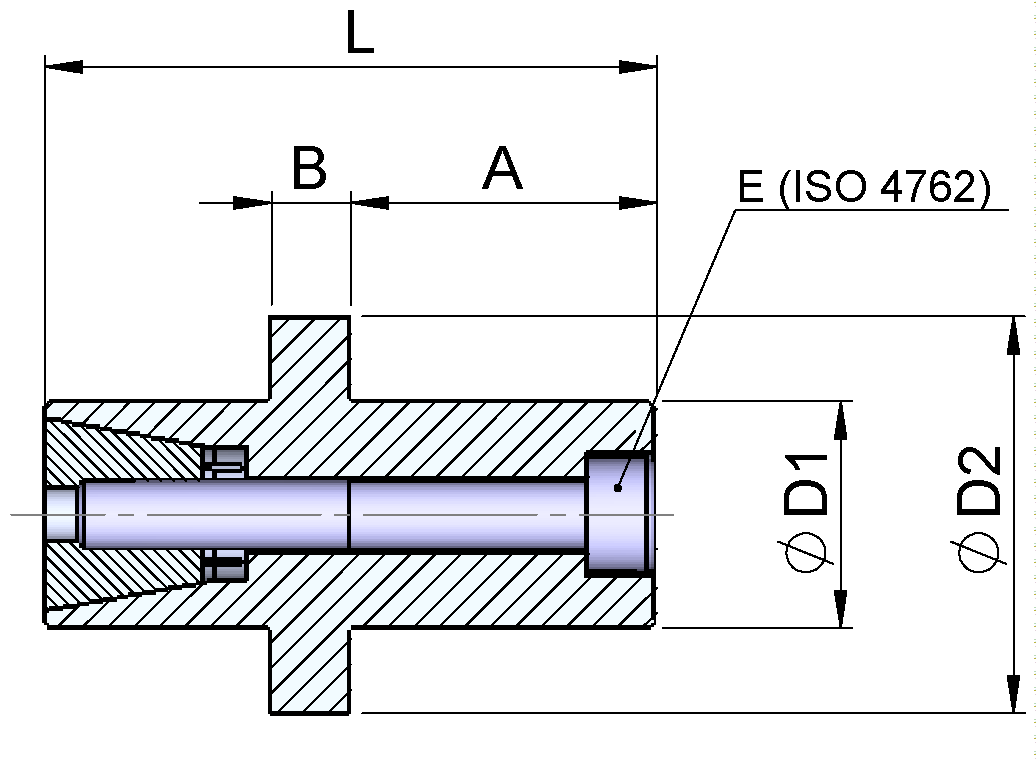

For coupling external components, for example, an external encoder:

o1x shaft extension with cone and tensioning screw

PAS41

VW33MF1S12A12

PAS42

VW33MF1S27A20

PAS43

VW33MF1S32A25

PAS44

VW33MF1S37A32

Moment of inertia

J

kg·cm²

(lb·in²)

0.002

(0.000683)

0.05

(0.017)

0.16

(0.055)

0.54

(0.185)

Tightening torque

M_t

Nm

(lbf-in)

2.9

(16.8)

10

(89)

25

(221)

49

(434)

Screw ISO 4762

E

–

M4

M6

M8

M10

Maximum radial force

F_R

N

(lbf)

230

(52)

400

(90)

700

(157)

1300

(292)

Dimension

A

mm

(in)

12

(0.47)

27

(1.06)

32

(1.26)

37

(1.46)

B

5.5

(0.217)

7

(0.276)

7.5

(0.295)

9

(0.354)

D1

12

(0.47)

20

(0.79)

25

(0.98)

32

(1.26)

D2

17

(0.67)

35

(1.38)

45

(1.77)

55

(2.17)

L

31.5

(1.24)

54

(2.13)

69.5

(2.74)

82

(3.2)

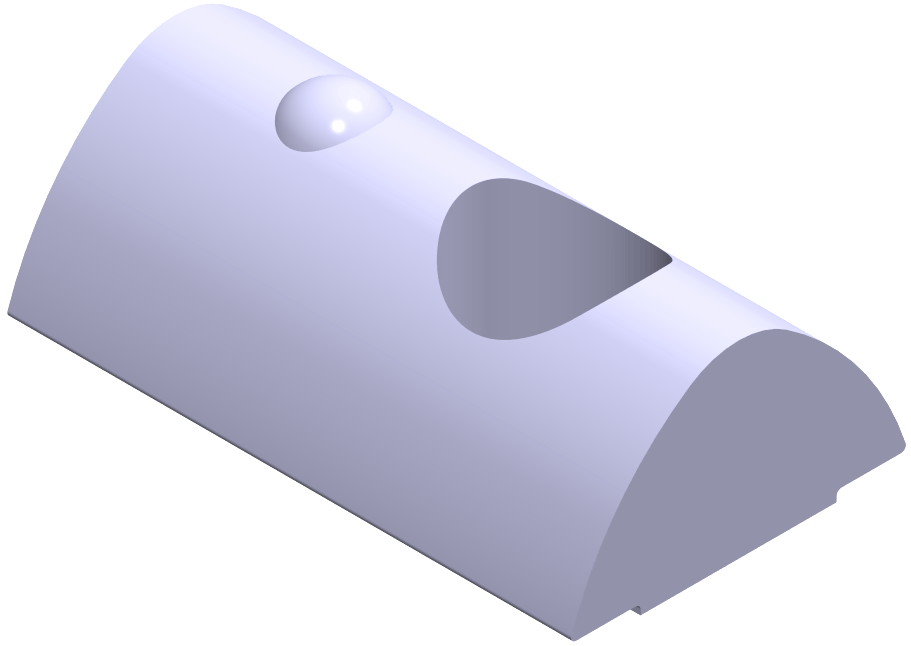

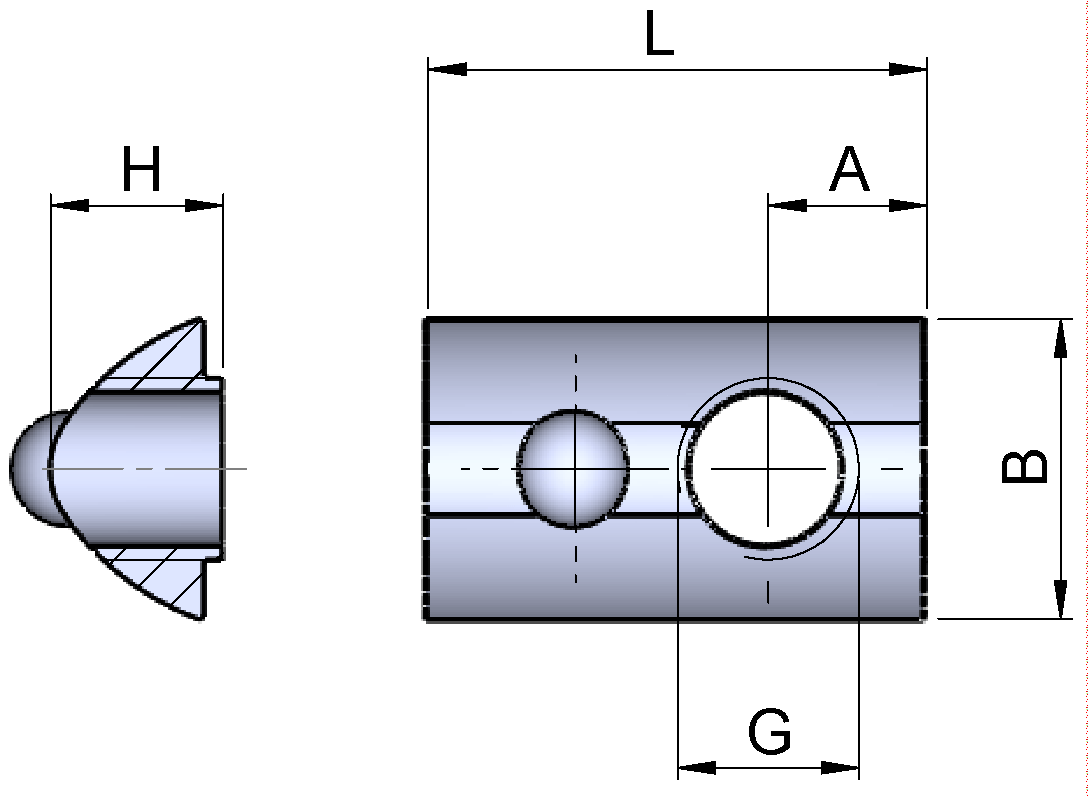

For mounting the axis body to a mounting surface or for mounting other parts to the axis:

o10x slot nut

PAS41

PAS42

5 M5

VW33MF010T5N5

PAS43

6 M6

VW33MF010T6N6

PAS44

8 M6

VW33MF010T8N6

8 M8

VW33MF010T8N8

Thread

G

–

M5

M6

M6

M8

Dimension

A

mm

(in)

4

(0.157)

5.5

(0.217)

7

(0.276)

7

(0.276)

B

7.7

(0.303)

10.6

(0.42)

13.2

(0.52)

13.2

(0.52)

H

4.6

(0.18)

6.4

(0.25)

7.6

(0.3)

7.6

(0.3)

L

12

(0.47)

17

(0.67)

22

(0.87)

22

(0.87)

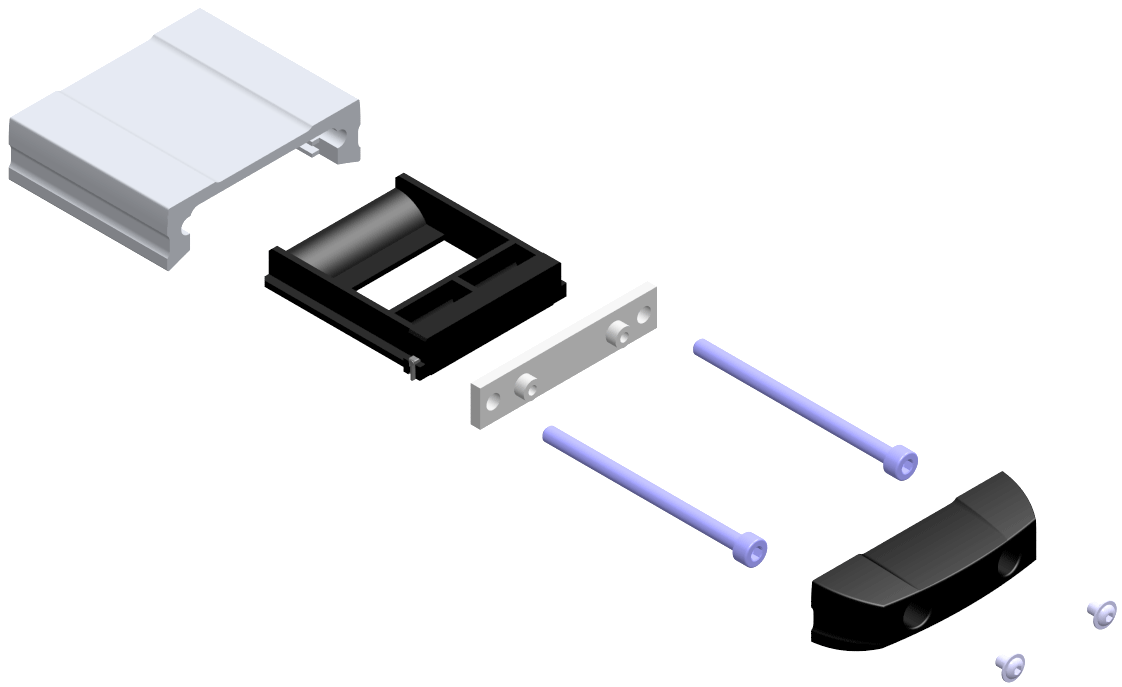

For deflecting the cover strip at the carriage:

o1x housing for strip deflector

o1x deflection unit with brush

o1x holding plate

o1x rubber buffer

o4x screws

PAS41

SPM3MAC1D0041

PAS42

SPM3MAC2D0042

PAS43

SPM3MAC3D0043

PAS44

SPM3MAC4D0044

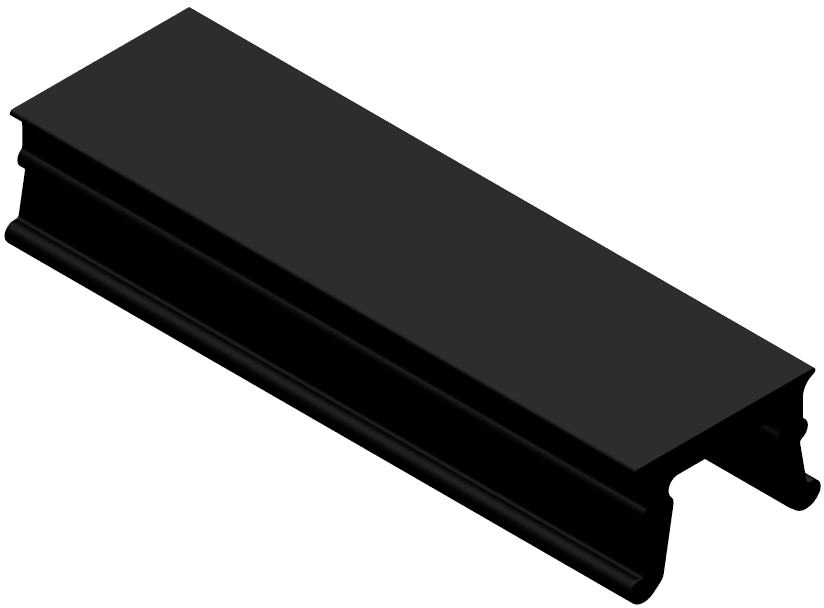

For covering the T-slot at the axis body:

o5x T-slot cover, 2 m (79 in) each

PAS41PAS42

5

VW33MC05B05

PAS43

6

VW33MC05A06

PAS44

8

VW33MC05A08

For performing a linear movement of the axis:

o1x toothed belt

PAS41

Standard

Length 1.5 m (4.9 ft)

SPM3MAS15L015

Standard

Length 3 m (9.8 ft)

SPM3MAS15L030

Standard

Length 10 m (33 ft)

SPM3MAS15L100

Antistatic

Length 1.5 m (4.9 ft)

SPM3MAA15L015

Antistatic

Length 3 m (9.8 ft)

SPM3MAA15L030

Antistatic

Length 10 m (33 ft)

SPM3MAA15L100

PAS42

Standard

Length 1.5 m (4.9 ft)

SPM3MAS25L015

Standard

Length 3 m (9.8 ft)

SPM3MAS25L030

Standard

Length 10 m (33 ft)

SPM3MAS25L100

Antistatic

Length 1.5 m (4.9 ft)

SPM3MAA25L015

Antistatic

Length 3 m (9.8 ft)

SPM3MAA25L030

Antistatic

Length 10 m (33 ft)

SPM3MAA25L100

For performing a linear movement of the axis:

o1x toothed belt

PAS43

Standard, length 1.5 m (4.9 ft)

SPM3MAS30L015

Standard, length 3 m (9.8 ft)

SPM3MAS30L030

Standard, length 10 m (33 ft)

SPM3MAS30L100

Antistatic, length 1.5 m (4.9 ft)

SPM3MAA30L015

Antistatic, length 3 m (9.8 ft)

SPM3MAA30L030

Antistatic, length 10 m (33 ft)

SPM3MAA30L100

PAS44

Standard, length 1.5 m (4.9 ft)

SPM3MAS50L015

Standard, length 3 m (9.8 ft)

SPM3MAS50L030

Standard, length 10 m (33 ft)

SPM3MAS50L100

Antistatic, length 1.5 m (4.9 ft)

SPM3MAA50L015

Antistatic, length 3 m (9.8 ft)

SPM3MAA50L030

Antistatic, length 10 m (33 ft)

SPM3MAA50L100

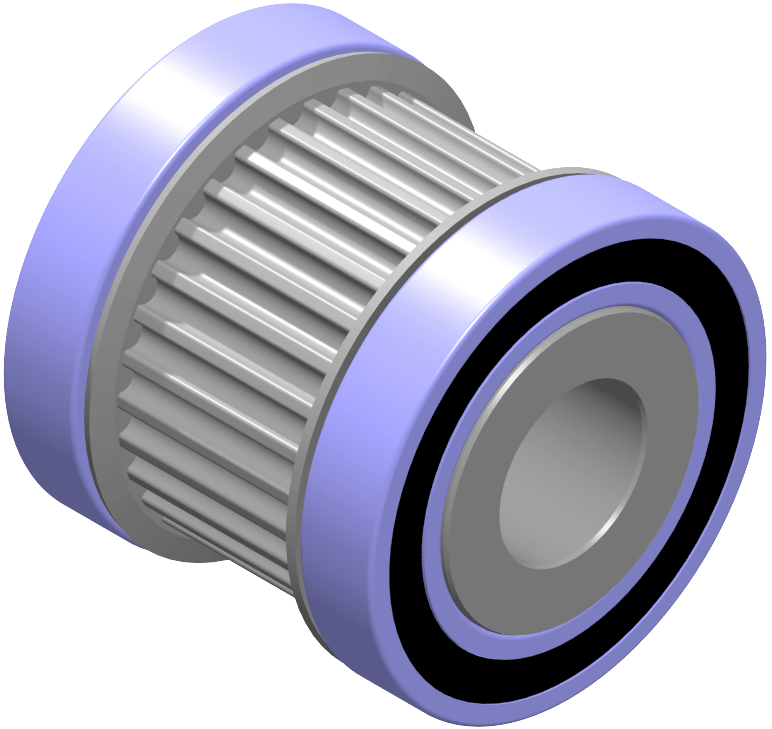

For transmissioning the drive torque to the toothed belt:

o1x toothed belt pulley with flanges and ball bearings

PAS41

Standard

SPM3MAW1S084

Increased corrosion resistance

SPM3MAW1C084

PAS42

Standard

SPM3MAW2S155

Increased corrosion resistance

SPM3MAW2C155

PAS43

Standard

SPM3MAW3S205

Increased corrosion resistance

SPM3MAW3C205

PAS44

Standard

SPM3MAW4S264

Increased corrosion resistance

SPM3MAW4C264
