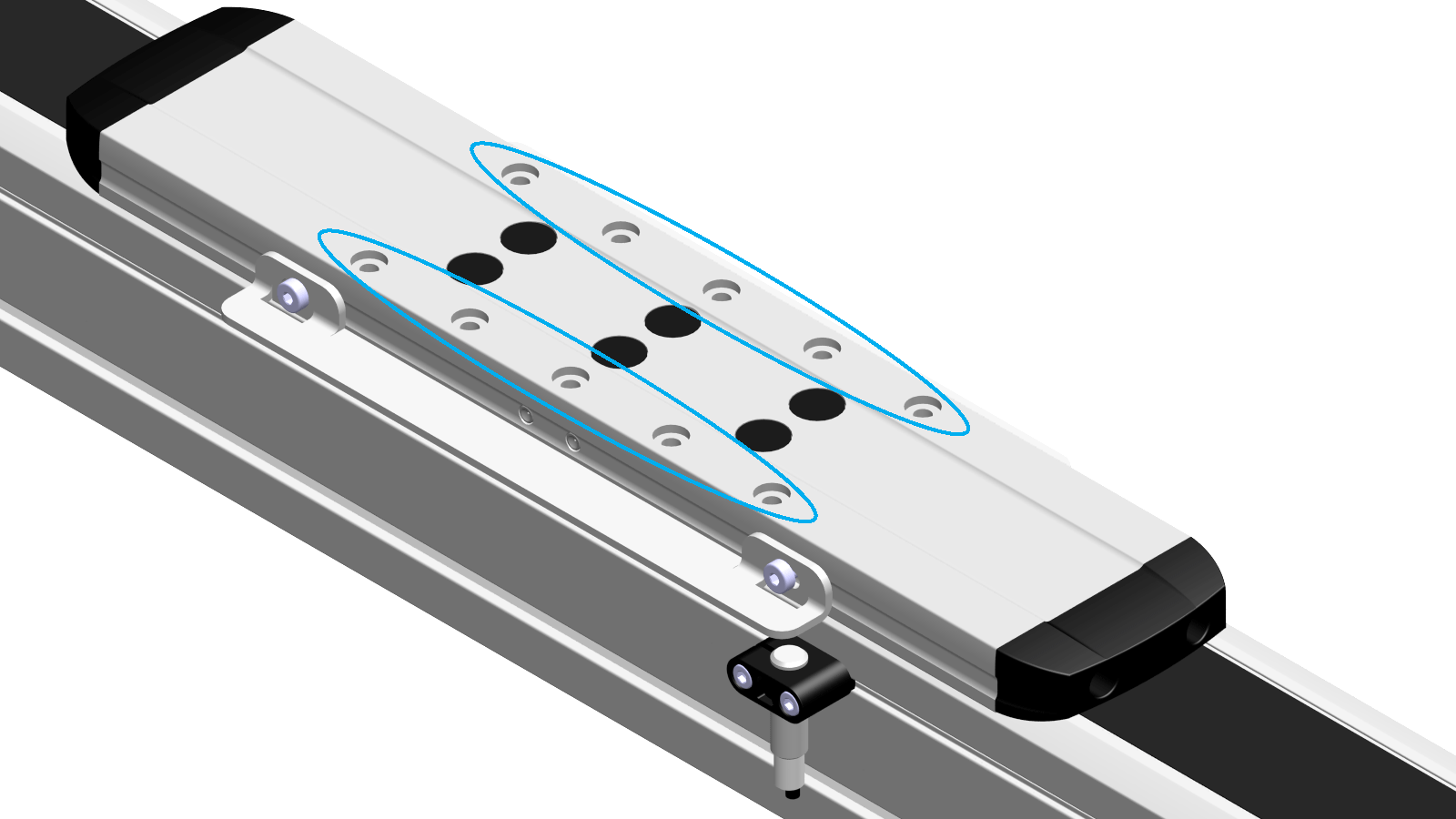

To fasten the payload, fastening threads are provided at the carriage.
Each thread has a counterbore for a locating dowel for reproducible mounting of the payload. For a section view of the carriage, refer to the dimensional drawing of the corresponding axis in Mechanical Data.
For suitable parts, refer to Replacement Equipment and Accessories.
The following table presents the installation parameters for mounting the payload to the carriage:
|
Description |
Unit |
Value |
|||
|---|---|---|---|---|---|
|
PAS41 |
PAS42 |
PAS43 |
PAS44 |
||
|
Thread size |
– |
M5 |
M5 |
M6 |
M8 |
|
Total depth (thread and counterbore for locating dowel) |
mm (in) |
12 (0.47) |
12 (0.47) |
14 (0.55) |
18 (0.71) |
|
Counterbore diameter for locating dowel |
mm (in) |
8 H7 (0.315) |
8 H7 (0.315) |
10 H7 (0.39) |
12 H7 (0.47) |
|
NOTE: For more information, refer to the respective dimensional drawing in Mechanical Data. |
|||||
