Diagnostic Messages of the Runtime System
Overview
In addition to the listed messages in the chapter Diagnostic messages, the message logger can display diagnostic messages of the runtime system in Logic Builder and Diagnostics.
These messages have a diagnostic code that deviates from the normal format:
A decimal greater than 1073741824 is displayed as diagnostic code.

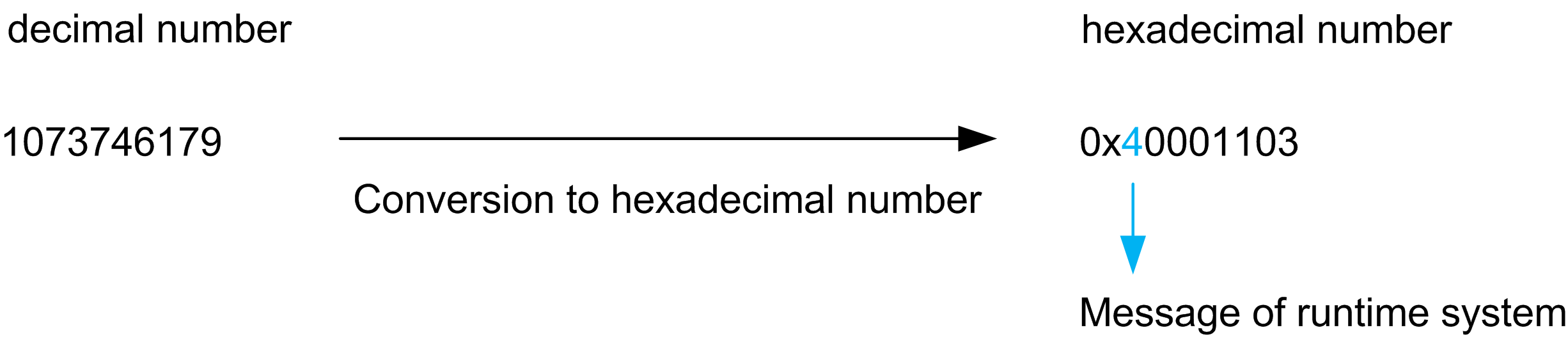

The graphic shows the composition of the diagnostic code:
If the decimal diagnostic code of the message is converted into a hexadecimal, then the digit 4 displays in the first place that it is a runtime system message.
Examples
The following examples describe some possible runtime system messages:
Task cycle time monitoring:
|
Column message logger |
Value |
Description |
|---|---|---|
|
Class |
4 |
|
|
Object |
LZS |
Runtime system |
|
Instance |
LZS |
Runtime system |
|
DiagCode |
1073746179 |
Diagnostic code (HEX: 0x40001103) |
|
Ext. Diag |
16 |
External diagnostic: Indicates the time the task required (in ms). |
|
Message |
*EXCEPTION* Watchdog Application <Task name that caused the cycle time overrun> |
Exception occurred by the task cycle time monitoring: Example: *Exception* Watchdog Application TASK_S |
Application is not loaded:
|
Column message logger |
Value |
Description |
|---|---|---|
|
Class |
3 |
|
|
Object |
LZS |
Runtime system |
|
Instance |
LZS |
Runtime system |
|
DiagCode |
1073742337 |
Diagnostic code (HEX: 0x40000201) |
|
Ext. Diag |
1 |
External diagnostic |
|
Diagnostic text |
Application <Application name> not found to start |
The application could not be loaded. Example: Application Prepare not found to start |
Boot project is not loaded:
|
Column message logger |
Value |
Description |
|---|---|---|
|
Class |
3 |
|
|
Object |
LZS |
Runtime system |
|
Instance |
LZS |
Runtime system |
|
DiagCode |
1073742350 |
Diagnostic code (HEX: 0x4000020E) |
|
Ext. Diag |
16 |
External diagnostic |
|
Diagnostic text |
Boot project <Boot project name> corrupt |
The boot project could not be loaded. |
Exception FC_SysUserCallStack:
|
Column message logger |
Value |
Description |
|---|---|---|
|
Class |
4 |
|
|
Object |
LZS |
Runtime system |
|
Instance |
LZS |
Runtime system |
|
DiagCode |
1073746179 |
Diagnostic code (HEX: 0x40001103) |
|
Ext. Diag |
8192 |
External diagnostic: Number given |
|
Diagnostic text |
*EXCEPTION* <Exception type> Application |
Exception occurred by the function FC_SysUserCallStack. Example: *EXCEPTION* VendorException Application |
Fieldbus is not running:
|
Column message logger |
Value |
Description |
|---|---|---|
|
Class |
3 |
|
|
Object |
LZS |
Runtime system |
|
Instance |
LZS |
Runtime system |
|
DiagCode |
1079970304 |
Diagnostic code (HEX: 0x405F0A00) |
|
Ext. Diag |
-2146697191 |
External diagnostic |
|
Diagnostic text |
Could not get destination queue handle |
Diagnostic of the CAN driver: Fieldbus is not running |
Fieldbus configuration:
|
Column message logger |
Value |
Description |
|---|---|---|
|
Class |
3 |
|
|
Object |
LZS |
Runtime system |
|
Instance |
LZS |
Runtime system |
|
DiagCode |
1073746433 |
Diagnostic code (HEX: 0x 40001201 |
|
Ext. Diag |
1 |
External diagnostic |
|
Diagnostic text |
Update configuration failed from driver |
Message is related to fieldbus. Verify PLC configuration or replace the controller / optional card. Restart the controller. |
Fieldbus configuration:
|
Column message logger |
Value |
Description |
|---|---|---|
|
Class |
3 |
|
|
Object |
LZS |
Runtime system |
|
Instance |
LZS |
Runtime system |
|
DiagCode |
1074791425 |
Diagnostic code (HEX: 0x40100401) |
|
Ext. Diag |
1 |
External diagnostic |
|
Diagnostic text |
DriverMemoryPointer failed |
Message is related to fieldbus. Verify PLC configuration or replace the controller / optional card. Restart the controller. |
|
Column message logger |
Value |
Description |
|---|---|---|
|
Class |
3 |
|
|
Object |
LZS |
Runtime system |
|
Instance |
LZS |
Runtime system |
|
DiagCode |
1074791442 |
Diagnostic code (HEX: 0x40100412) |
|
Ext. Diag |
1 |
External diagnostic |
|
Diagnostic text |
TCP/IP service failed |
Message is related to fieldbus. Verify PLC configuration or replace the controller / optional card. Restart the controller. |
Fieldbus configuration:
|
Column message logger |
Value |
Description |
|---|---|---|
|
Class |
3 |
|
|
Object |
LZS |
Runtime system |
|
Instance |
LZS |
Runtime system |
|
DiagCode |
1074791448 |
Diagnostic code (HEX: 0x40100418) |
|
Ext. Diag |
1 |
External diagnostic |
|
Diagnostic text |
Firmwarename is not correct / Max. number of channels per board exceeded |
Message is related to fieldbus. Verify PLC configuration or replace the controller / optional card. Restart the controller. |
Loss of communication:
|
Column message logger |
Value |
Description |
|---|---|---|
|
Class |
3 |
Diagnostic class 3 |
|
Object |
LZS |
Runtime system |
|
Instance |
LZS |
Runtime system |
|
DiagCode |
1074791536 |
Diagnostic code (HEX: 0x40100470) |
|
Ext. Diag |
0 |
– |
|
Diagnostic text |
No cyclic telegrams |
The exchange of cyclical data was interrupted. |
Loss of fieldbus communication:
|
Column message logger |
Value |
Description |
|---|---|---|
|
Class |
1 |
|
|
Object |
LZS |
Runtime system |
|
Instance |
LZS |
Runtime system |
|
DiagCode |
1074791453 |
Diagnostic code (HEX: 0x4010041D) |
|
Ext. Diag |
1 |
(Internal diagnostic) |
|
Diagnostic text |
Hardware watchdog exceeded. Reset of application is necessary. |
– |
Loss of fieldbus communication:
|
Column message logger |
Value |
Description |
|---|---|---|
|
Class |
1 |
|
|
Object |
LZS |
Runtime system |
|
Instance |
LZS |
Runtime system |
|
DiagCode |
1074791491 |
Diagnostic code (HEX: 0x40100443) |
|
Ext. Diag |
1 |
(Internal diagnostic) |
|
Diagnostic text |
16#800C0019 |
Internal diagnostic code. Contact your Schneider Electric service representative. |
Loss of Ethernet communication:
|
Column message logger |
Value |
Description |
|---|---|---|
|
Class |
1 |
|
|
Object |
LZS |
Runtime system |
|
Instance |
LZS |
Runtime system |
|
DiagCode |
1073754127 |
Diagnostic code (HEX: 0x4000300F) |
|
Ext. Diag |
1 |
(Internal diagnostic) |
|
Diagnostic text |
Failed to send data to <IP address> port. |
The Ethernet communication was interrupted. |
