Behavior of CurrentSegmentId, PreviousSegmentId, and NextSegmentId

General

Initial situation:

FB_Robot.xEnable was set to the value TRUE.

The return values FB_Robot.xActive and FB_Robot.xReady are reporting the value TRUE.

-> The robot is ready for operation.

FB_Robot.xStart remains FALSE initially.

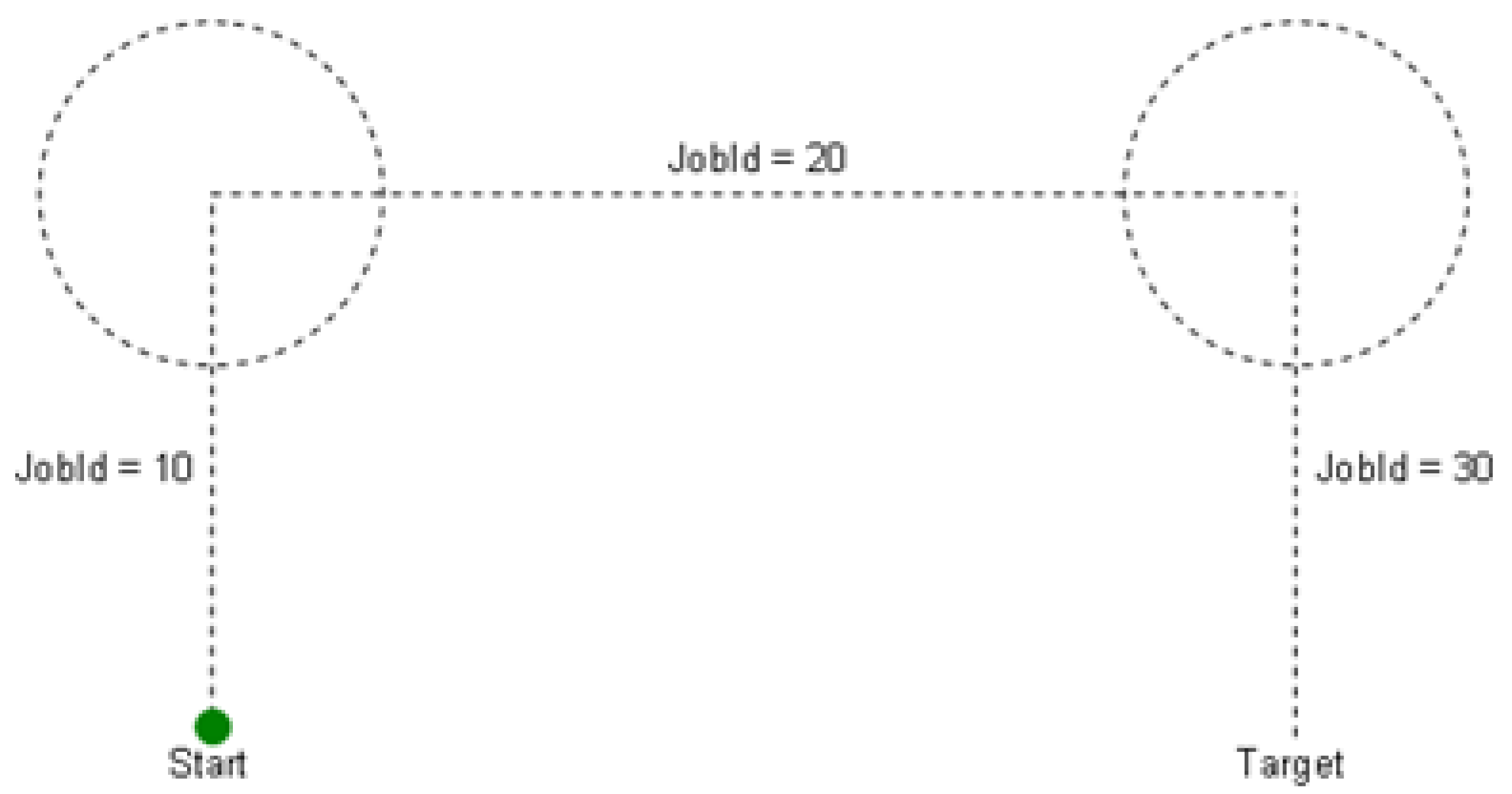

The following motion of the robot has to be implemented:

-> PreviousSegmentId = 0, CurrentSegmentId = 0, NextSegmentId = 0

Motion program in a simplified form:

MoveL(i_udiSegmentId := 10, …);

-> PreviousSegmentId = 0, CurrentSegmentId = 0, NextSegmentId = 10

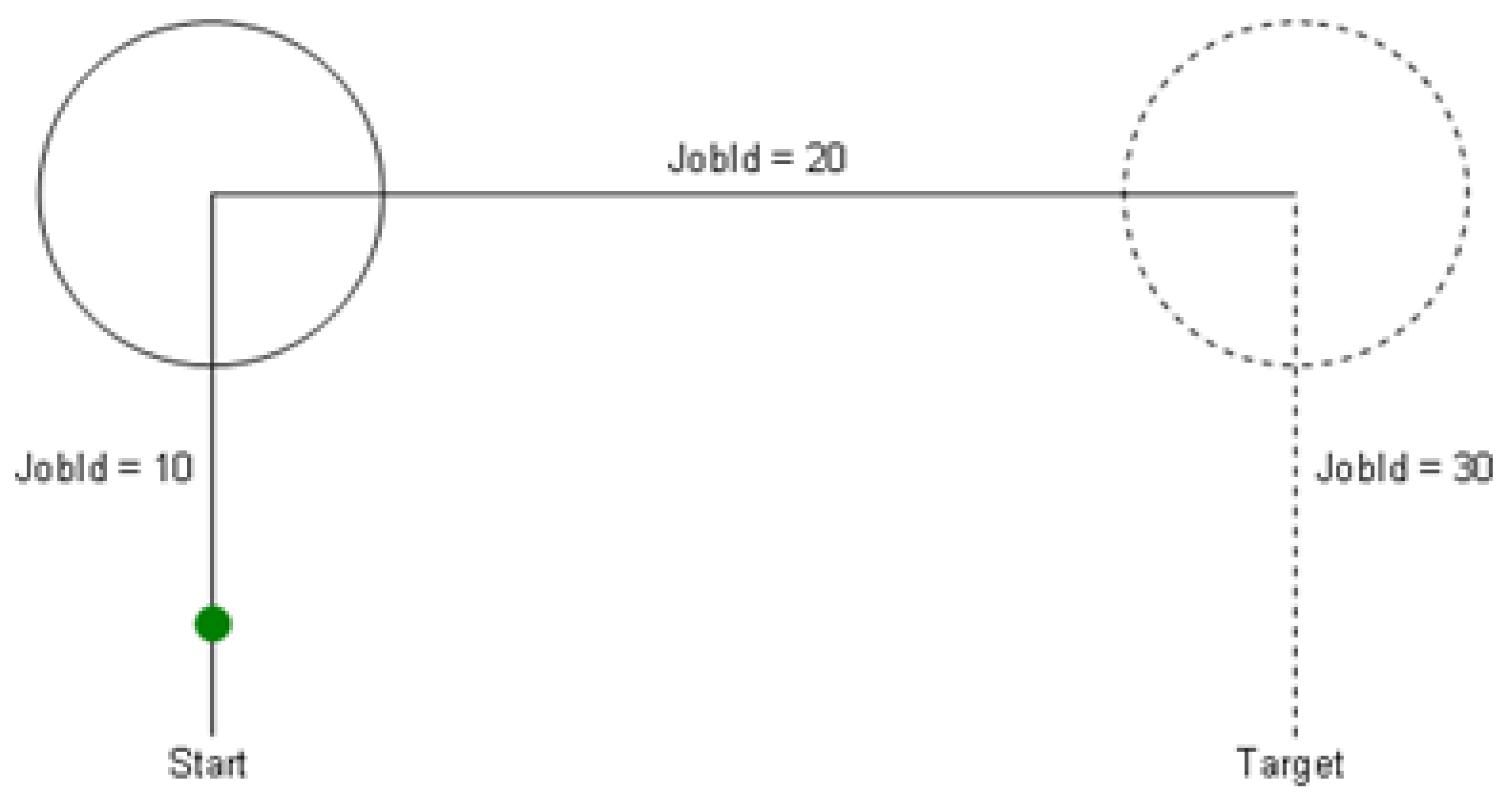

FB_Robot.xStart := TRUE; // The robot starts processing segment 10

-> PreviousSegmentId = 0, CurrentSegmentId = 10, NextSegmentId = 0

MoveL(i_udiSegmentId := 20, …); // The robot is still processing segment 10

-> PreviousSegmentId = 0, CurrentSegmentId = 10, NextSegmentId = 20

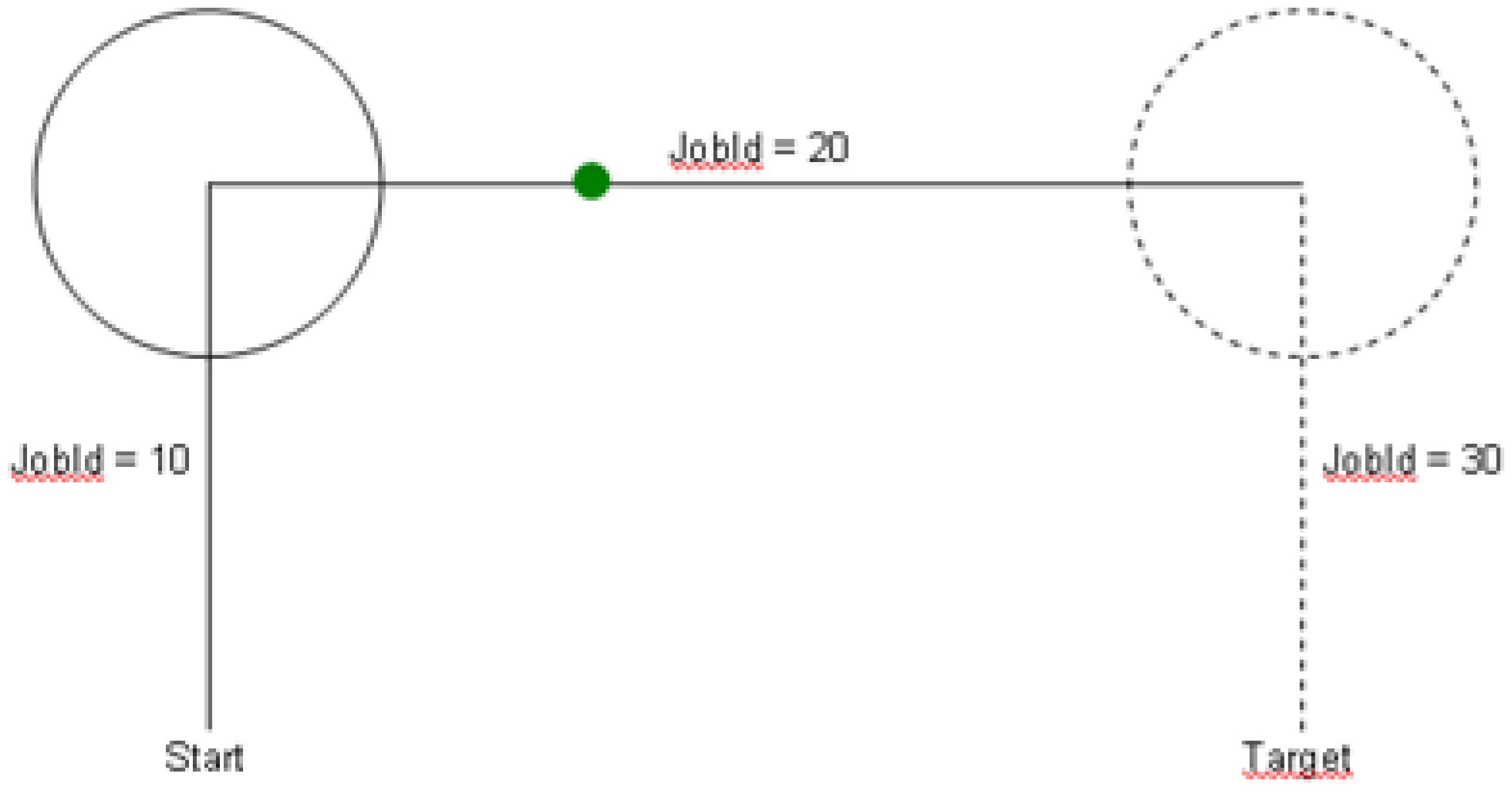

// The robot is already processing segment 20, no further segment has been loaded yet

-> PreviousSegmentId = 10, CurrentSegmentId = 20, NextSegmentId = 0

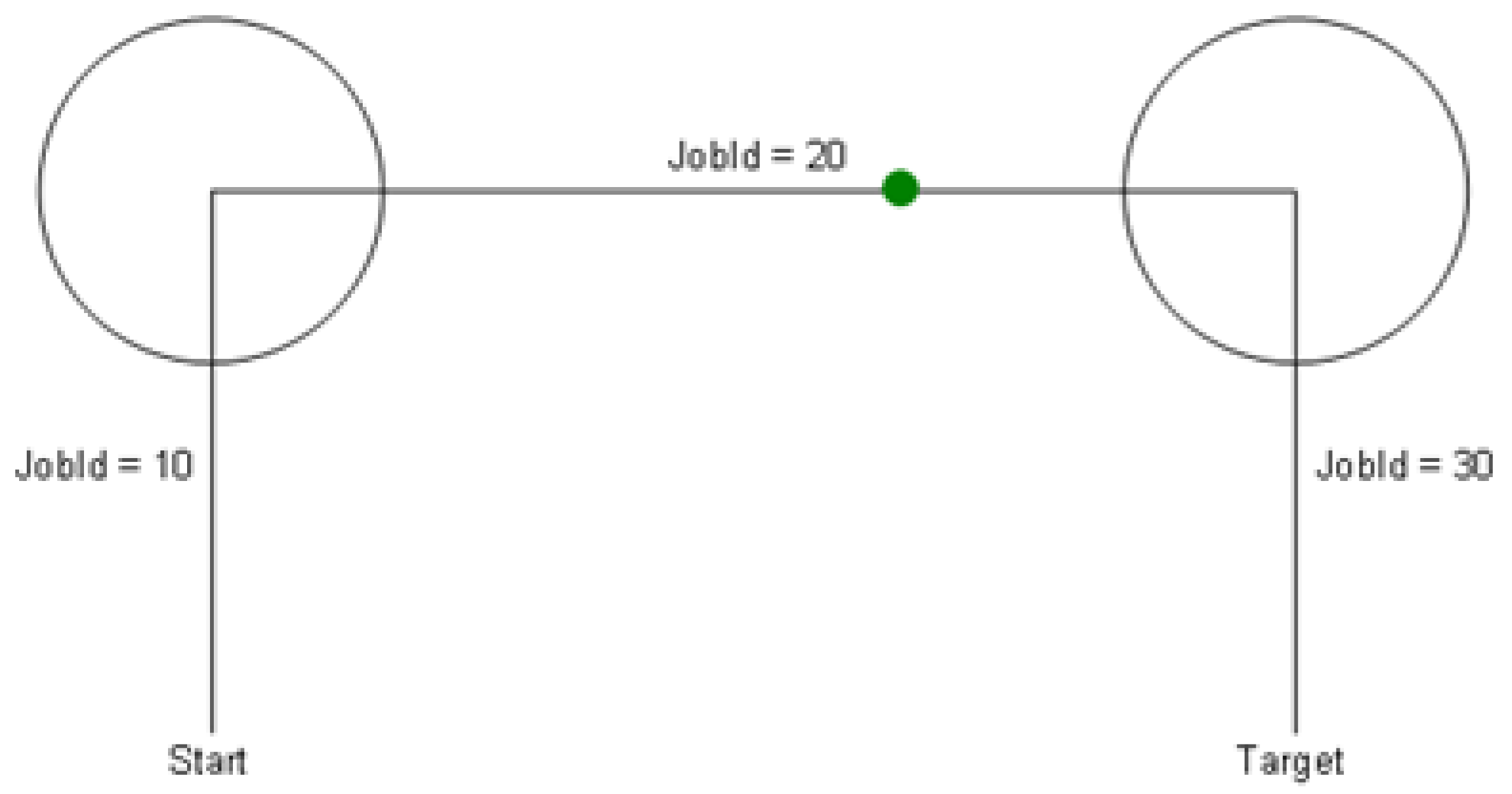

MoveL(i_udiSegmentId := 30, …); // The robot is processing segment 20

-> PreviousSegmentId = 10, CurrentSegmentId = 20, NextSegmentId = 30

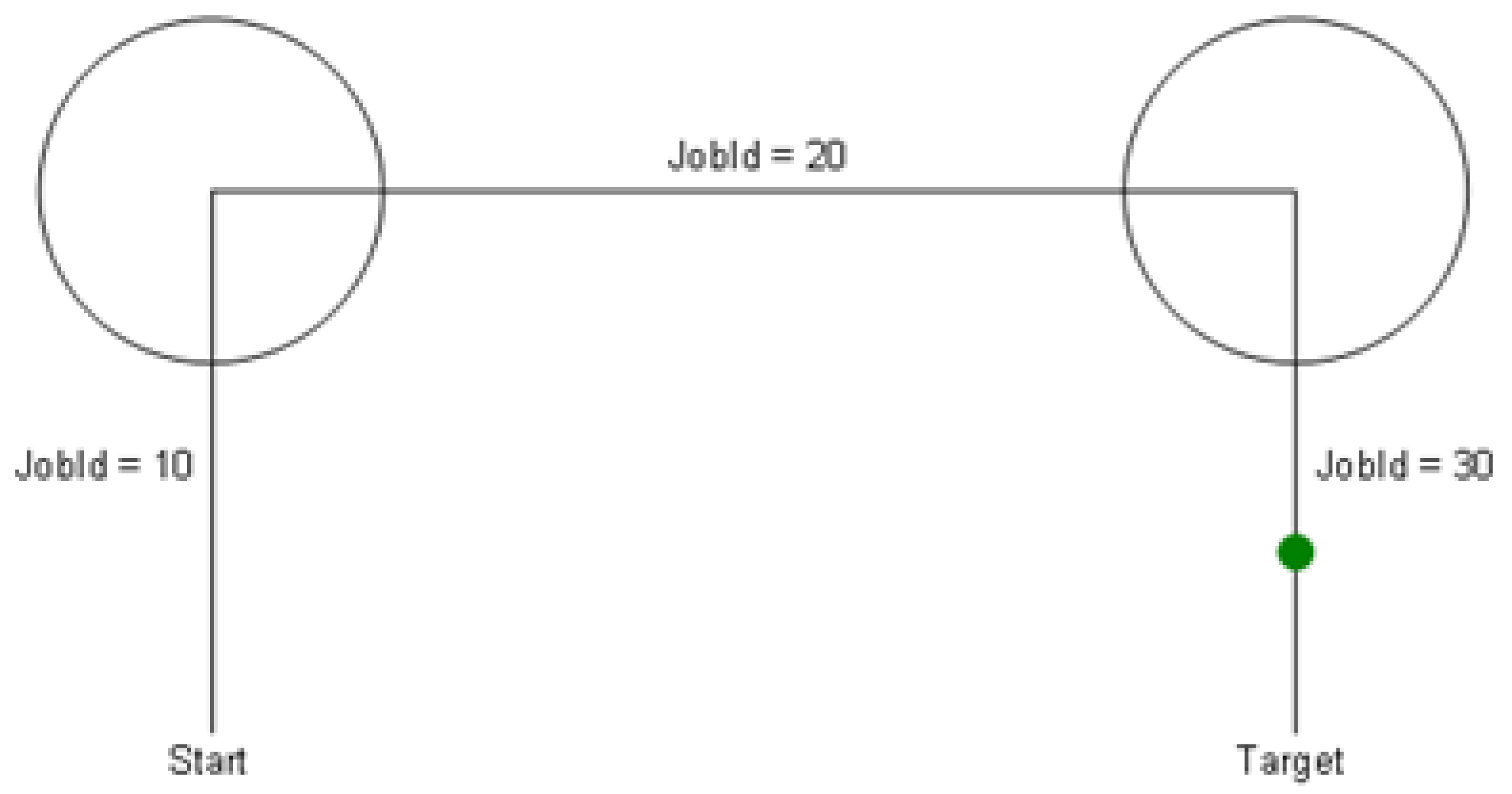

// The robot is processing segment 30 now

-> PreviousSegmentId = 20, CurrentSegmentId = 30, NextSegmentId = 0

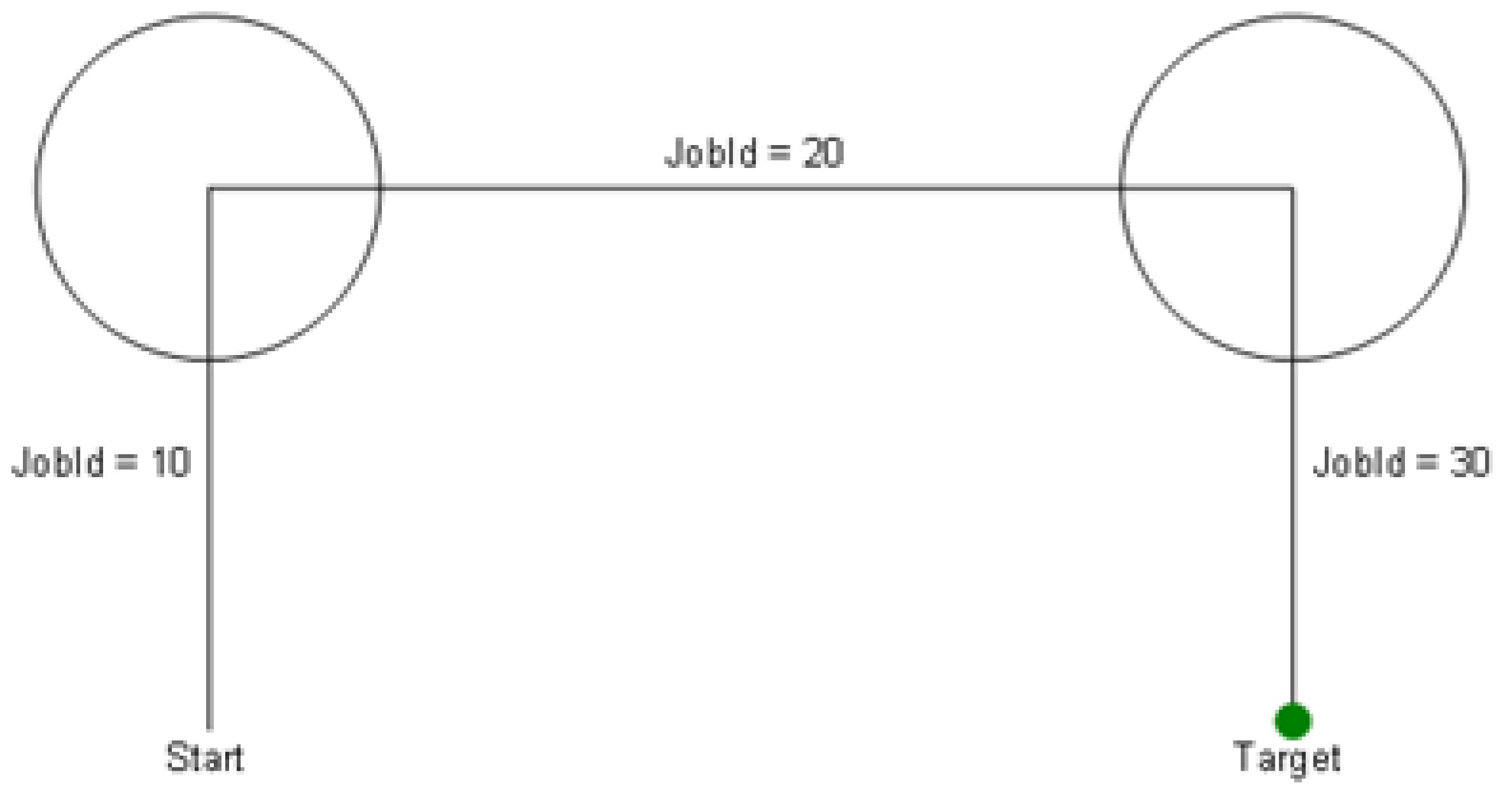

// The robot has reached the target of segment 30 now

// No further motion command has been issued

// Therefore the connected path has been completed

-> PreviousSegmentId = 30, CurrentSegmentId = 0, NextSegmentId = 0
