FC_SetTaskPriorityByName - General Information

Overview

Type:	Function
Available as of:	SystemInterface_1.53.7.9
Versions:	Current version

Task

Modify the priority of a task or multiple tasks with the same name.

Description

The priority of a task or multiple tasks specified with i_sTaskName is changed.

It is possible to modify, with a single call of this function, the priority of more than one task specifying as i_sTaskName the common initial part of the task names.

For instance, as in the example below, with i_sTaskName = TASK_S the function modifies priorities of the tasks TASK_SetTaskPriorityByName_Test, TASK_SR_SercosGetConfiguration, and TASK_SR_TestStandInit but not of task Task_TestManager.

Interface

Input	Data type	Description
i_sTaskName	STRING(80)	The task or multiple tasks, whose priority shall be changed
i_diPriorityOS	DINT	Priority 0..255

Return Value

Data type	Description
DINT	>0: The task priority has been changed. The value indicates the number of affected tasks. -1: Incorrect task name or priority (i_diPriorityOS) outside the limitations

Example

NOTE: When you use this function, you must provide the system level value. Therefore, you need to add 244 to the value you set for the task priority.

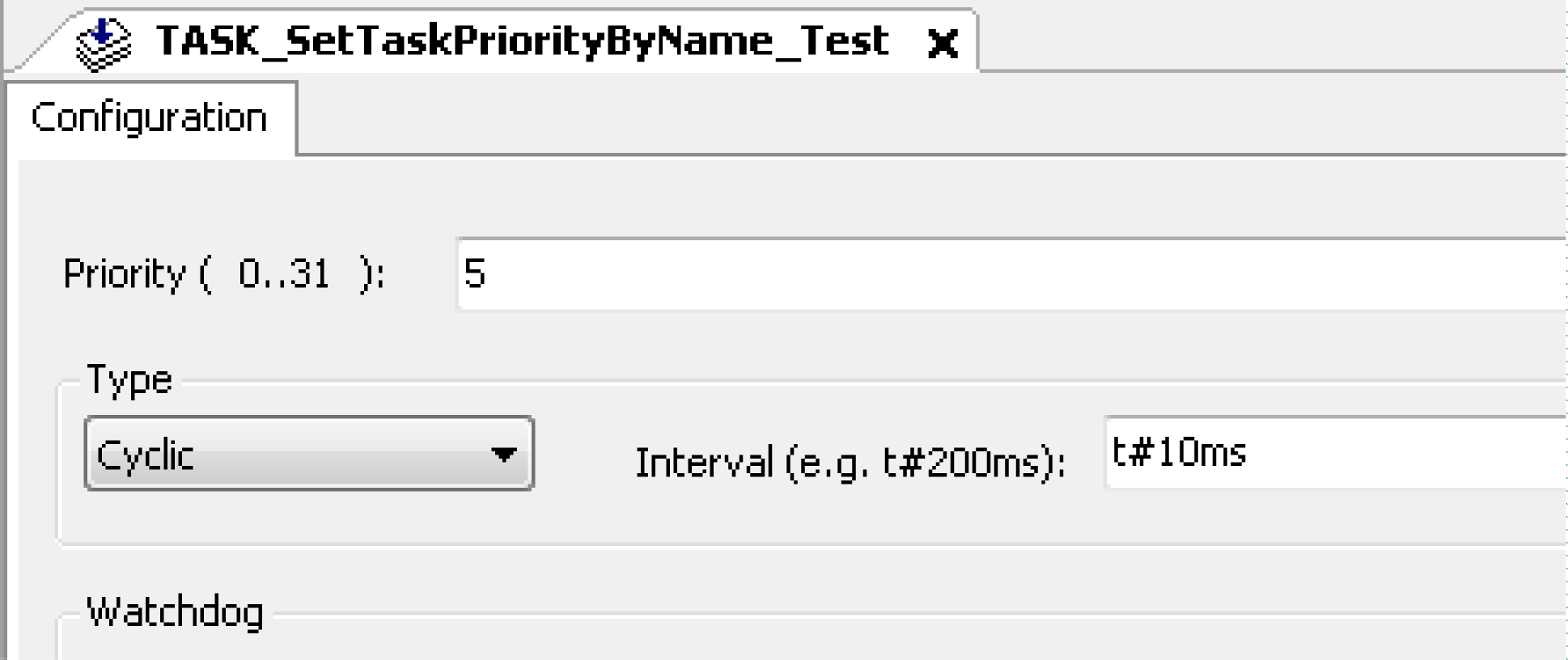

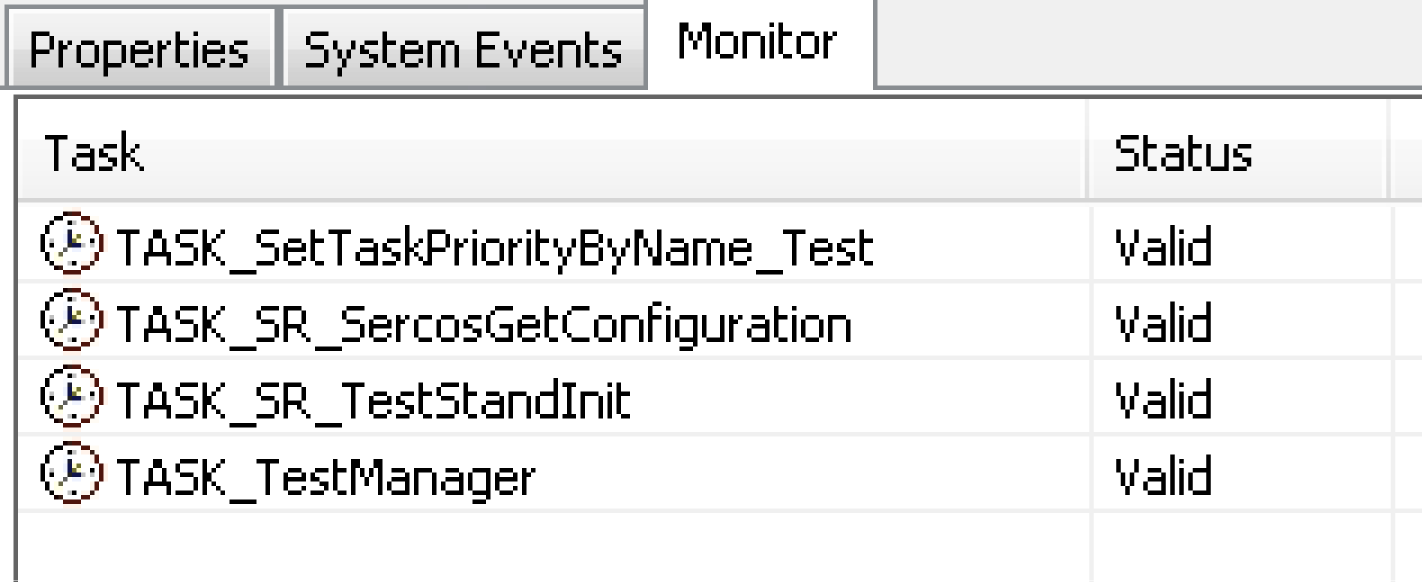

Example Based on the Following Tasks

PROGRAM SR_SetTaskPrioirityByName_Test
VAR
   xPrioTask1_HI : BOOL := FALSE;
   xPrioTask1_LO : BOOL := FALSE;
   xPrioTask2_HI : BOOL := FALSE;
   xPrioTask2_LO : BOOL := FALSE;
END_VAR
// Change priority of a single task
IF xPrioTask1_HI THEN
   IF 1 = FC_SetTaskPriorityByName('TASK_SetTaskPriorityByName_Test', 224 + 31) THEN
      xPrioTask1_HI := FALSE;
   END_IF
END_IF
IF xPrioTask1_LO THEN
   IF 1 = FC_SetTaskPriorityByName('TASK_SetTaskPriorityByName_Test', 224 + 5) THEN
      xPrioTask1_LO := FALSE;
   END_IF
END_IF
// Change priority of a group of matching task names
IF xPrioTask2_HI THEN
   IF 3 = FC_SetTaskPriorityByName('TASK_S', 224 + 31) THEN
      xPrioTask2_HI := FALSE;
   END_IF
END_IF
IF xPrioTask2_LO THEN
   IF 3 = FC_SetTaskPriorityByName('TASK_S', 224 + 10) THEN
      xPrioTask2_LO := FALSE;
   END_IF
END_IF
