Working with the OPC UA Server

Contents of This Topic

This topic contains the following subtopics:

Enabling the Server

Create image and EcoStruxure Machine Expert project and set communication parameters:

Step

Action

1

Create a new controller image with the Controller Assistant . See Controller Assistant > Edit image / Create new image.

2

Save newly created image on the memory card by using the Controller Assistant . See Controller Assistant > Load... / Save.

3

Create a new EcoStruxure Machine Expert project with the same controller type as saved on the memory card and the same firmware version. See New project...

4

Adjust the communication parameters of the controller in the EcoStruxure Machine Expert project so that a login on the controller is possible.

OPC UA Server Specific Steps

Symbols are the items of data shared with OPC UA clients. Symbols are selected from a list of the IEC variables used in the application. The selected symbols are then sent to the controller as part of the application download.

You can use a single symbol configuration to configure the access rights. In this case, the users belonging to a group with access to the OPC UA server have identical access rights.

Alternatively, you can use multiple symbol configurations, referred to as symbol sets. In this case, you can assign individual groups to each symbol set.

Procedure for using a single symbol configuration:

Step

Action

1

Add the object Symbol Configuration to the project by right-clicking on Application and then selecting Add Object > Symbol Configuration... by using the EcoStruxure Machine Expert editor Tools tree.

Result: The tab Symbol Configuration is displayed.

2

Click the button Build.

3

Select the symbols you want to provide via OPC UA and set the user rights.

Procedure for using multiple symbol configurations, referred to as symbol sets:

Step

Action

1

Add the object Symbol Configuration to the project by right-clicking on Application and then selecting Add Object > Symbol Configuration... by using the EcoStruxure Machine Expert editor Tools tree.

Result: The tab Symbol Configuration is displayed.

2

Click the button Build.

3

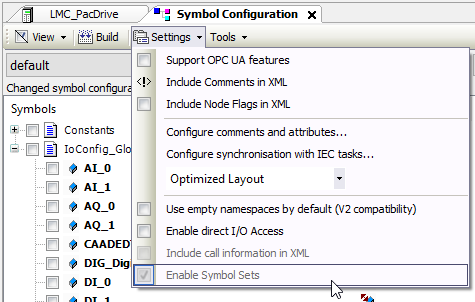

In Symbol Configuration, select Settings > Enable Symbol Sets.

Result: The icons for managing the symbol sets are displayed.

4

Click the button + (Add a new symbol set) to create a new symbol set.

5

Provide a name for the new symbol set and confirm with Add.

6

Select the symbols you want to use and set the user rights you want to grant.

Click to switch between the access rights of the symbol: read-only (), write-only (), or read/write ()

7

Select Online > Download or Online > Login to perform a download.

8

Click the button Configure Symbol Rights ....

Result: The tab of the controller is displayed.

9

In the tab Access Rights, click the green button Synchronization to be able to select an object.

10

Select the object OPC UA and set the access rights for the user groups.

11

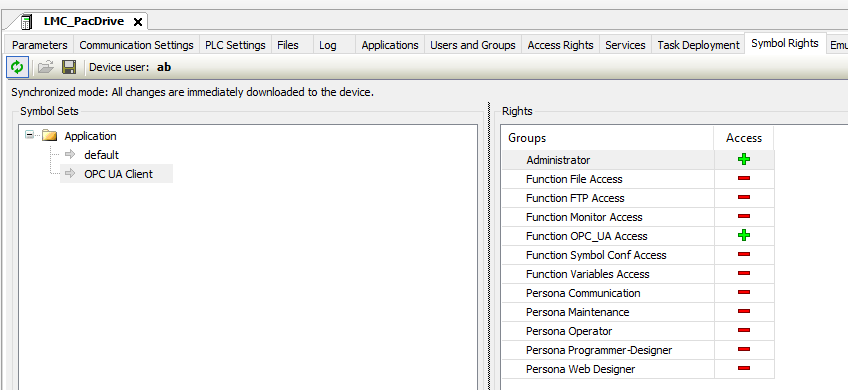

In the tab Symbol Rights, click the green button Synchronization to be able to select a symbol set.

12

Select the symbol set you want to modify and set the access rights for the user groups.

Starting the OPC UA server:

Step

Action

1

Activate the OPC UA server via the function SystemInterface.FC_OpcUaStart(",").

Refer to FC_OpcUaStart for additional information.

Example:

Start the OPC UA server via the function SystemInterface.FC_OpcUaStart()

diResult: DINT;

diResult := Systeminterface.FC_OpcUaStart(i_sUser := sUser, i_sPassword := sPassword);

Enabling Security

The communication between the OPC UA server and the OPC UA client can optionally be encrypted. In addition, a user name and password request can be activated.

Encrypted Connection

To set up an encrypted connection between the OPC UA server and the OPC UA client, perform the following steps:

  1. Depending on the required "Security Policy" and "Message Security Mode", select or clear the checkbox Only allow secure sessions

  2. Define trusted certificates

Checkbox "Only Allow Secure Sessions"

Proceed as follows (see also General settings > Security settings):

Step

Action

1

In the Devices tree, double-click the controller.

2

Select OPC UA server configuration > General settings to open the General settings tab.

3

In the Security settings section, select or clear the checkbox Only allow secure sessions , depending on the required "Security Policy" and "Message Security Mode".

Cleared checkbox:

  • Security policy = None

    Message security mode = None

  • Security policy = Basic256Sha256

    Message security mode = Sign or SignAndEncrypt

  • - Security policy = Aes128_Sha256_RsaOaep

    Message security mode = Sign or SignAndEncrypt

  • Security policy = Aes256_Sha256_RsaPss

    Message security mode = Sign or SignAndEncrypt

Selected checkbox:

  • Security policy = Basic256Sha256

    Message security mode = SignAndEncrypt

  • - Security policy = Aes128_Sha256_RsaOaep

    Message security mode = SignAndEncrypt

  • Security policy = Aes256_Sha256_RsaPss

    Message security mode = SignAndEncrypt

Define Trusted Client Certificates

The OPC UA server and the client have to trust the public key of the other participant in order to be able to establish an encrypted connection. By default, the OPC UA server does not trust a public key.

The client certificates that can be trusted must be located in a trusted certificates list. In order to allow the OPC UA server to trust the client and accept a connection, you have to move the respective client certificate from the rejected certificates list to the trusted certificates list.

Proceed as follows to move a rejected certificates list to the trusted certificates list (see also Client certificate management):

Step

Action

1

In the Devices tree, double-click the controller.

2

Select OPC UA server configuration > Client certificate management to open the Client certificate management tab.

3

In the toolbar, click Load to get the server certificate data from the OPC UA client.

Result: The OPC UA client server certificate data is displayed in the rejected certificates list.

4

Click << to move a server certificate from the rejected certificates list to the trusted certificates list.

Result: The status of the client certificate has changed to trusted.

Reading the OPC UA Server Configuration

With the SystemInterface.FC_OpcUaGetServerConfig() function the current server configuration can be read out.

More information on this function can be found under FC_OpcUaGetServerConfig.

Stopping the OPC UA Server

The OPC UA server can be stopped via the SystemInterface.FC_OpcUaStop() function.

More information on this function can be found under FC_OpcUaStop.
