Introduction
Each slice consists of three elements. These elements are the bus base, the electronic module and the terminal block.
Elements

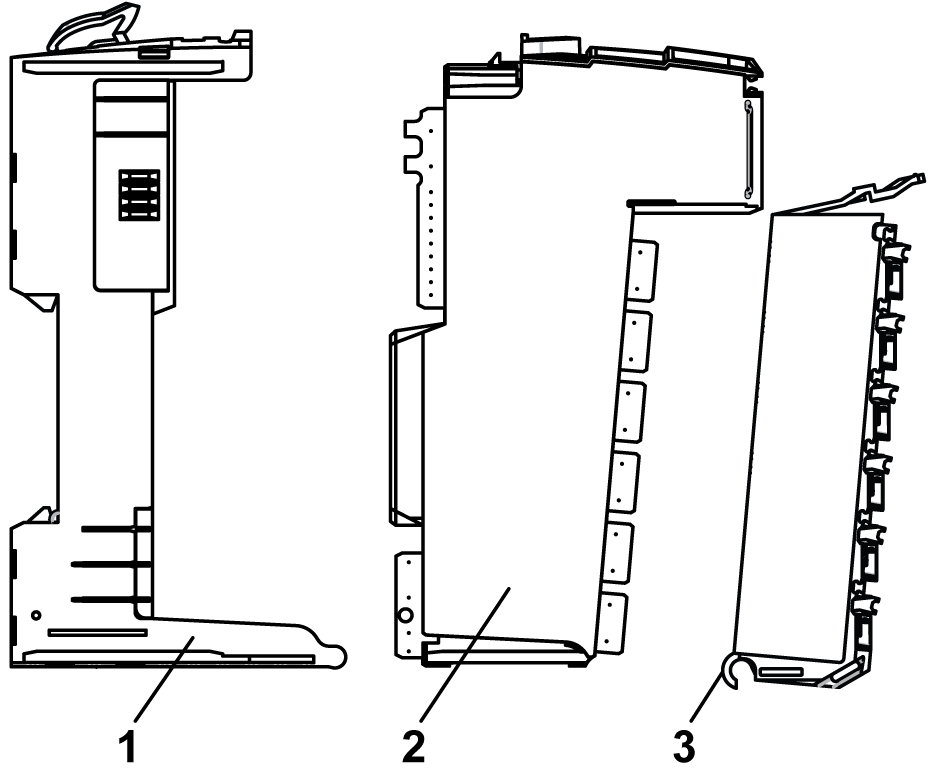

The following illustration shows the elements of a slice.
1 Bus base
2 Electronic module
3 Terminal block
When assembled the three components form an integral unit that resists vibration and electrostatic discharge.
|
NOTICE
|
|
ELECTROSTATIC DISCHARGE
-
Never touch the contacts of the electronic module.
-
Always keep the connector in place during normal operation.
Failure to follow these instructions can result in equipment damage.
|
Dimensions

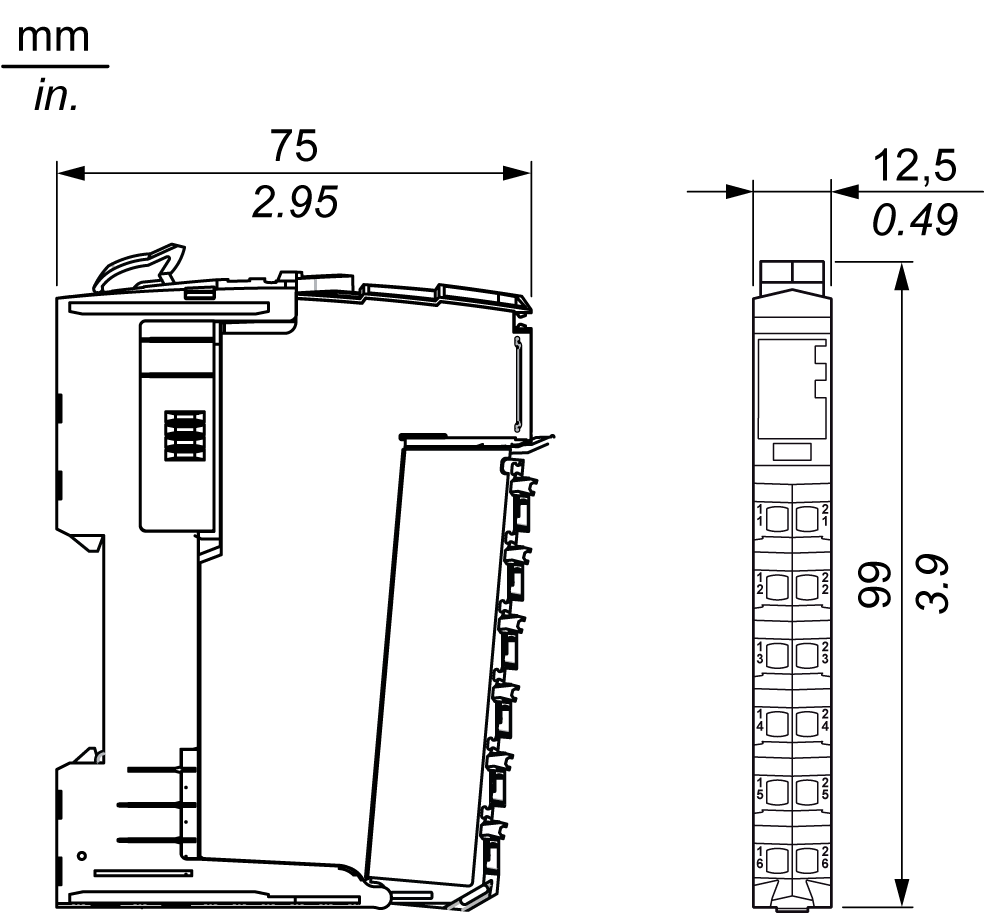

The following illustration shows the dimensions of a slice:
Pin Assignment

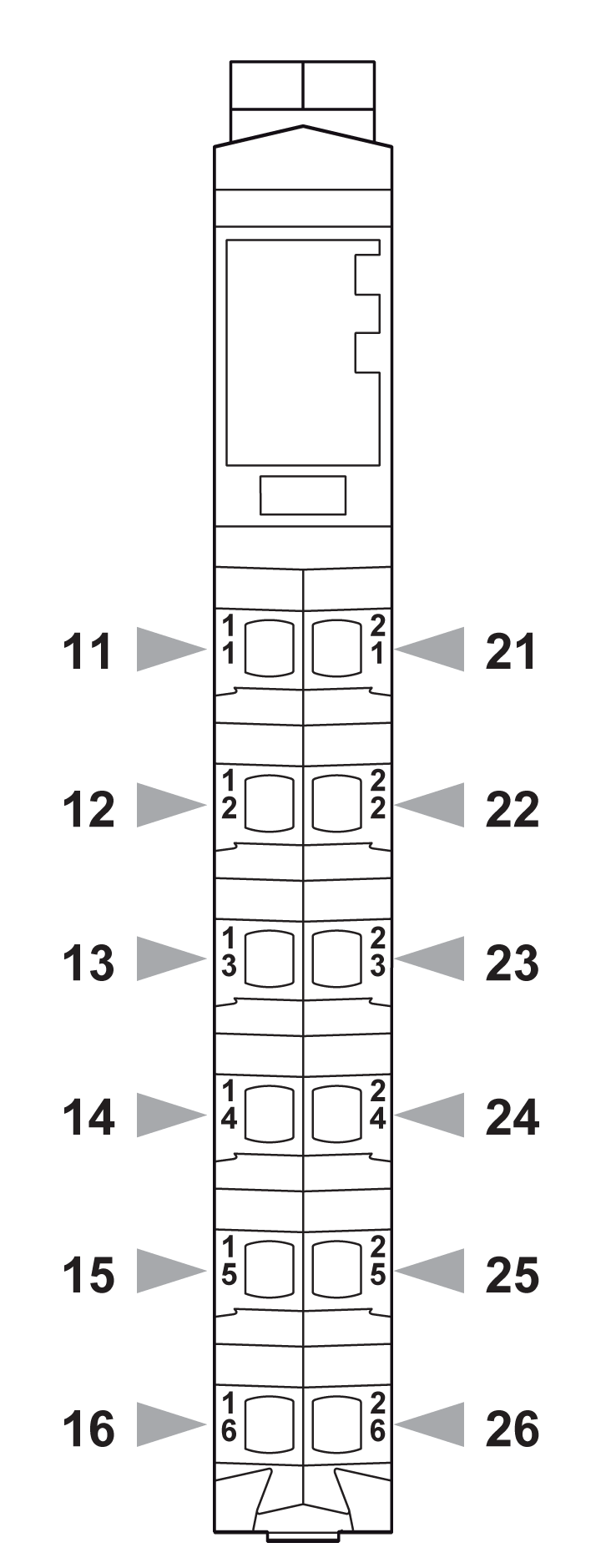

The following illustration shows the pin assignments for the 12-pin terminal block:
