Command 'Commit', Command 'Commit Project'

Symbol:

Function: The command commits changes that were made in CODESYS to the SVN repository. The Commit dialog opens for this purpose.

Call:

Context menu: SVN to commit exactly this object
Project ‣ SVN ‣ Commit Project to commit all changes in the project at the same time

Requirement: At least one object was modified. An object whose contents have been modified is overlaid in the object tree with the , , or symbol.

When you execute the command, the lock on the objects to be committed is lifted automatically.

Dialog 'Commit'

Commit to: <URL project/object>
	URL in SVN repository Example: `file:///D:/SVN repository/trunk/ControlABC.project`
Log message	Type in a log message that comments your change. Example: `Bug fix error 123`
Recent Messages	Opens the Recent Messages dialog for displaying the last log messages. You can click a log message to accept it.

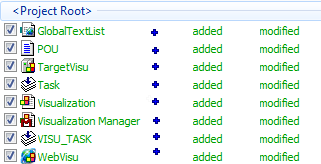

Changes made (double-click on object for compare, right-click on object for more operations)
	List of objects that were changed and can therefore be committed. The SVN URLs mirror the hierarchy of the object in the SVN repository. The objects are highlighted in color according to the object status: Blue: Modified Green: Added Dark red: Deleted Red: Conflicted Black: Non-versioned (not in SVN repository) Note: These objects are displayed when the Show non-versioned objects option is selected. Gray: Excluded from commit Note: This is the case when the Ignore during commit option is selected. The list also contains objects which have not been modified but have a lock. This helps to prevent locking from going unnoticed in the repository. Double-click an object in order to open the compare dialog. The revision of the working copy is compared with the base revision. The compare dialog also opens when you click Compare in the context menu. Right-click an object in order to open the context menu. Note: When the Commit Project command has been executed, a list of objects is shown here. When the Commit command is applied to a specific object, only this object is shown (if modified or locked) and its modified or locked child objects.
Object	: The object is selected for the commit. Example:
Text status	Object status in CODESYS Modified Added Deleted Non-versioned Conflicted
Property status	Status of the metadata of the object Modified Added Deleted Conflicted Normal
Lock	If the object has a lock, then it is shown here the user who applied the lock. Example: `b.mayer`
Description	Display of the log message

Select/Deselect All

: All objects in the list are selected.

Keep Locks

: Your locked object remains in locked after the commit.

Keep Change Lists:

: The change list also remains after the commit.

: The change list is not deleted after the commit.

Update After Commit (recommended)

: The object/project is updated after the commit. Select this check box to ensure that the project is up-to-date and to prevent conflicts resulting from mixed revisions of working copies.

Button Update Project

Updates the project

Hint: Prevent conflicts by committing a previously updated project/object.

Keyboard shortcut Ctrl+Enter

Checks the working copy first. Starts the commit of changes when the working copy is current.

Opens a dialog when the working copy is outdated. You can then select from the following:

Abort the commit, I want to investigate the issue.
Yes, I want to update this project now.
Continue with the commit, I know what I do.

Note: The history of the commit is displayed in the Messages view.

The messages are highlighted in color.

Blue: Commit a change
Green: Add an object
Dark red: Delete/replace an object
Black: Other messages (summary)

Note

Handling external objects If the external object is in the same SVN repository, then changes in this external object are listed in the commit dialog and committed together with the internal project. If an external object is in another SVN repository, then you are notified about changes in the external project and you have to commit these separately.

An external object has the externals property.

Context menu (right-click on object)

Compare	Opens the compare dialog to compare the working copy with the top-level revision.
Compare with HEAD version	Opens the compare dialog to compare the working copy with the HEAD revision.
Compare with Revision	The list entries are highlighted in color according to the object status: Blue: Modified Green: Added Dark red: Deleted Red: Conflicted Black: Non-versioned (not in SVN repository) Note: These objects are displayed when the Show non-versioned objects option is selected. Gray: Excluded from commit Note: This is the case when the Ignore during commit option is selected for the object.
Revert	Discards your changes to the working copy. Then the object corresponds to the revision in the SVN repository.
Show log	Shows the version history of the selected object.
Properties	Opens the SVN Properties dialog. The properties are displayed there and you can edit them.
Move to change list	Note: This command has not been implemented yet.
