Accessories for the TM5 System

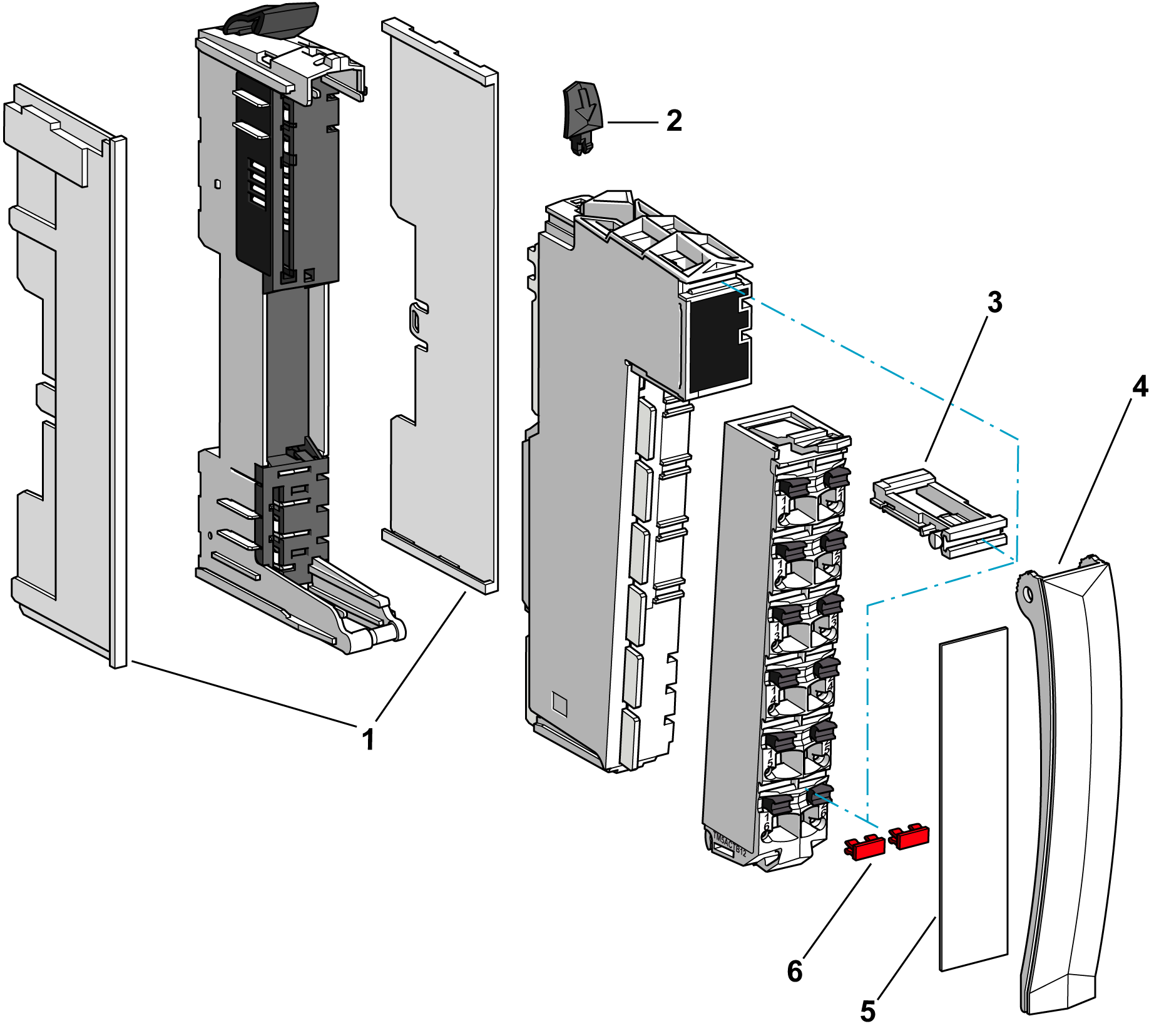

Overview

The TM5 accessories include the following:

1 Left and right bus base locking plates

2 Electronic module locking clip

3 Terminal locking clip

4 Plain text cover holder

5 Legend strips

6 Label tab

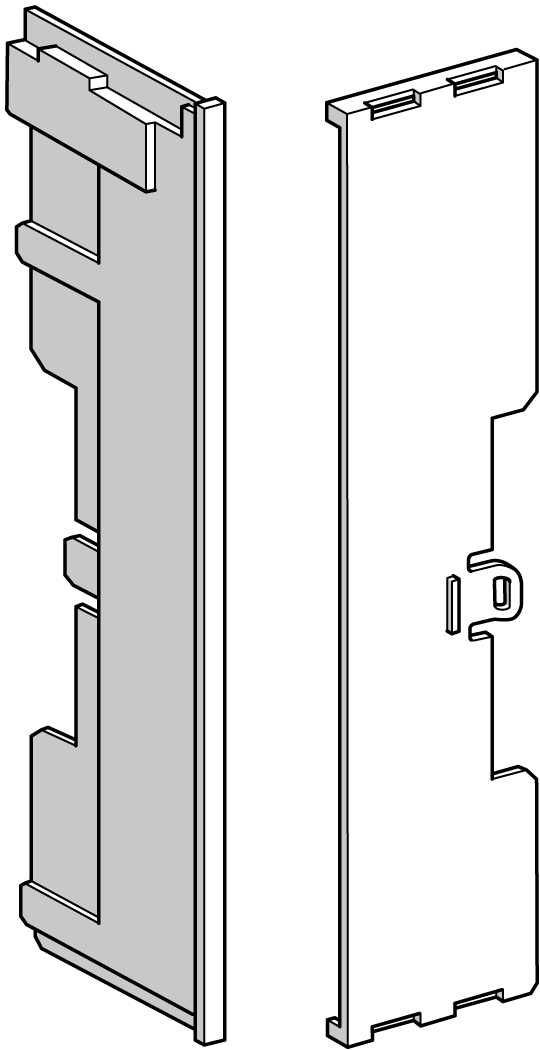

Bus Base Locking Plate

The bus base locking plate helps protect the TM5 bus exposed contacts on either the right and/or the left side of the TM5 system configuration:

Reference	Description
TM5ACLPL10	10 left bus base locking plates
TM5ACLPR10	10 right bus base locking plates

You must use the bus base locking plate to help avoid damage to the TM5 during installation from electrostatic discharge.

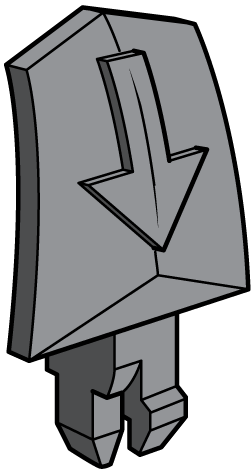

Electronic Module Locking Clip

The locking clip helps to securely lock the electronic module to the bus base:

Reference	Description
TM5ACADL100	Locking clip (x100)

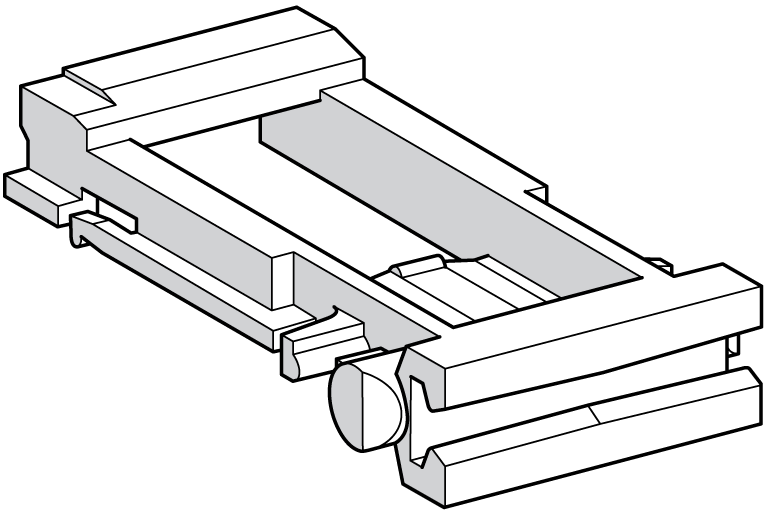

Terminal Locking Clip

The terminal locking clip helps to secure the terminal block to the electronic module:

Reference	Description
TM5ACTLC100	Terminal locking clip (x100)

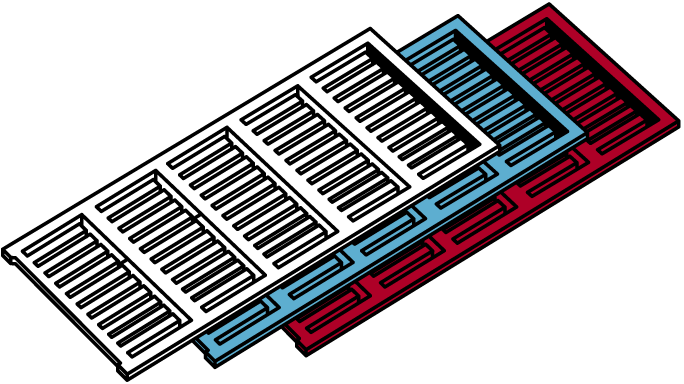

Label Tabs and Labeling Tool

The label tabs are used for:

• labeling,

• coding.

The following table gives you the references of the three colored label tabs:

Reference	Description
TM5ACLITW1	White label tabs, for 16 modules
TM5ACLITR1	Red label tabs, for 16 modules
TM5ACLITB1	Blue label tabs, for 16 modules

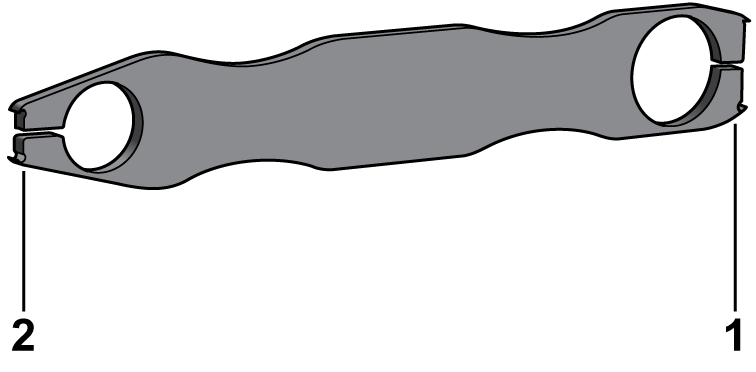

The following labeling tool is needed for installing the label tabs, and the coding system between the connectors and the electronic modules:

Reference	Description
TM5ACLT1	Labeling insert tool for label tabs 1 Double-width cutters 2 Single-width cutters

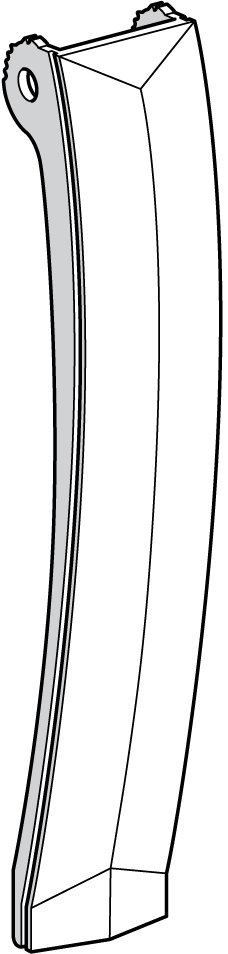

Plain Text Cover Holder

In addition to the label tabs, the cover holder allows plain text labeling. The plain text cover holder is attached to the terminal locking clip:

Reference	Description
TM5ACTCH100	Plain text cover holder (x100)
TM5ACTLS100	Legend strip for cover holder (x100)

TM5 Bus Expansion Cable

The TM5 bus expansion cable is used between Transmitter and Receiver modules for TM5 data bus:

Reference	Description
TCSXCNNXNX100	Expansion bus cable 100 m (328 ft)

Refer to Modicon TM5 Transmitter and Receiver Modules Hardware Guide for connections.

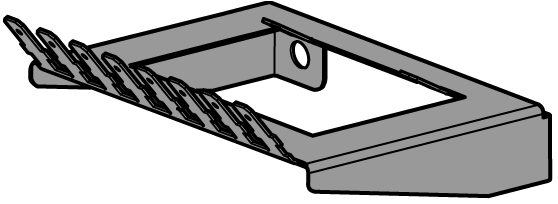

TM2XMTGB Grounding Plate

The TM2XMTGB Grounding Plate is an accessory used in the TM5 grounding step of the TM5 System installation:

Reference	Description
TM2XMTGB	Grounding Plate
