TM5SPDG5D4F Presentation

Main Characteristics

The TM5SPDG5D4F CDM provides five 0 Vdc and five 24 Vdc terminal connections from an external 24 Vdc power source. There is no connection to the 24 Vdc I/O power segment.

The module is equipped with an exchangeable fuse between the 24 Vdc potential on the terminal block and the external 24 Vdc power source. The status of the fuse is available with the status LEDs and in the I/O mapping tab of the EcoStruxure Machine Expert software.

The table below gives you the main characteristics of the TM5SPDG5D4F electronic module:

Main Characteristics
Power supply source	External 24 Vdc power source
Type of common connections	0 Vdc	24 Vdc
Number of common connections	5	5

Ordering Information

The following figure shows a slice with the TM5SPDG5D4F electronic module:

Number	Model Number	Description	Color
1	TM5ACBM11 or TM5ACBM15	Bus base Bus base with address setting	White White
2	TM5SPDG5D4F	Electronic module	White
3	TM5ACTB12	Terminal block, 12-pin	White

Number

Model Number

Description

Color

1

TM5ACBM11

or

TM5ACBM15

Bus base

Bus base with address setting

White

2

TM5SPDG5D4F

Electronic module

White

3

TM5ACTB12

Terminal block, 12-pin

White

NOTE: For more information, refer to TM5 Bus Bases and Terminal Blocks.

Status LEDs

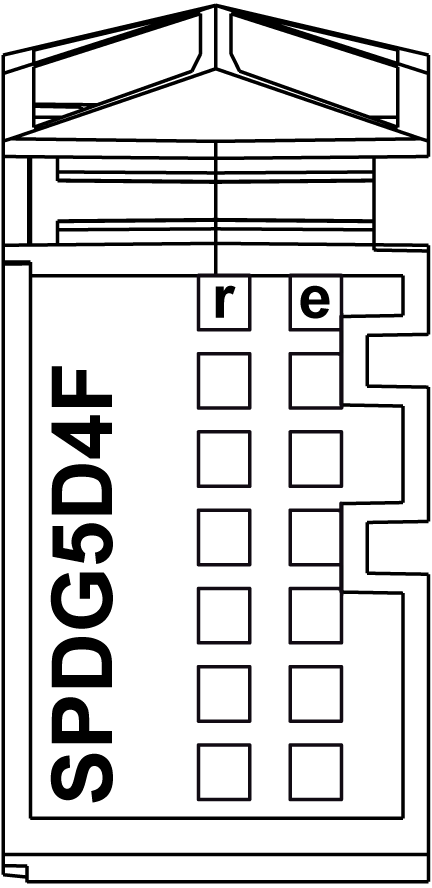

The following figure shows the TM5SPDG5D4F status LEDs:

The table below describes the TM5SPDG5D4F status LEDs:

LEDs	Color	Status	Description
r	Green	Off	Module supply not connected
		Single flash	Reset state
		Flashing	Preoperational state
		On	RUN state
e	Red	Off	No error detected or module supply not connected.
		On	Detected error or reset state
		Single Flash	Fuse is blown or absent
		Double Flash	Insufficient feed voltage
e+r	Steady red / single green flash		Invalid firmware
