Optional Equipment and Accessories

Overview

This section presents the optional equipment and accessories for the Lexium P robot. For the standard replacement equipment, refer to Standard Replacement Equipment.

Item description and content

Representation

Item reference

To be used for

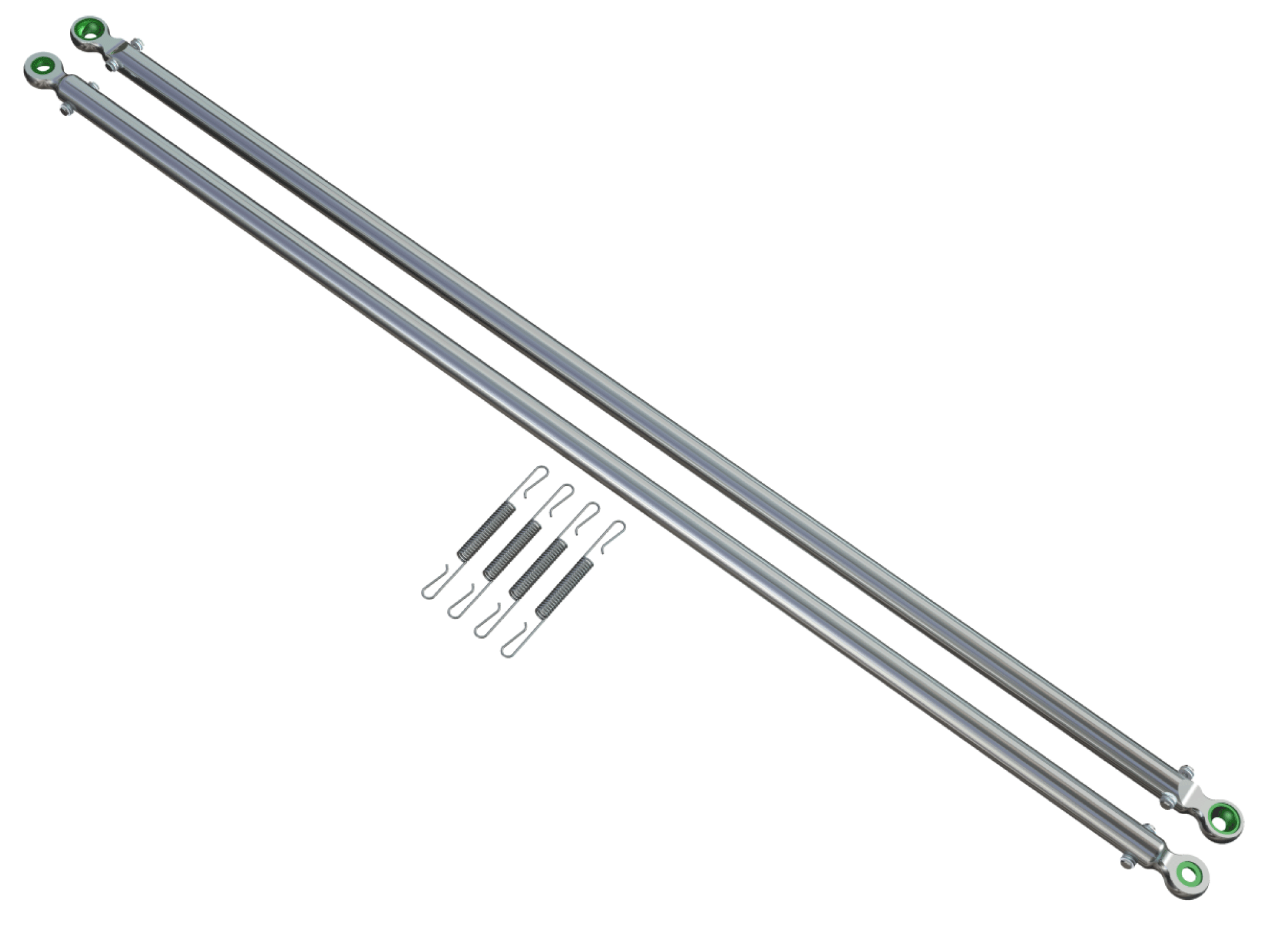

Lower arms pair with rolls, sockets, and springs:

  • 2x lower arm complete

  • 4x springs

VRKP2YYYYY00004

VRKP2

VRKP4YYYYY00004

VRKP4

VRKP5YYYYY00004

VRKP5

VRKP6YYYYY00004

VRKP6

VRKP6YYYYY00E04

VRKP6•••••••E00

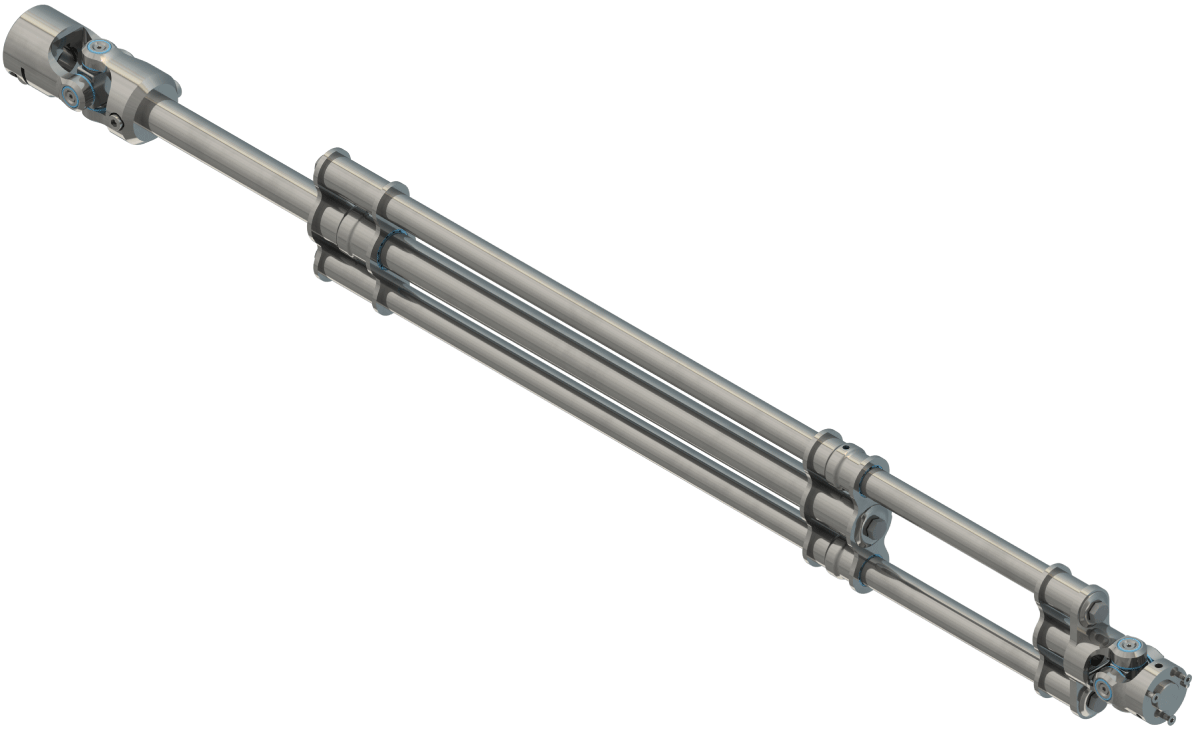

Telescopic Axis Double with universal joints:

  • 1x Telescopic Axis Double complete

VRKP2YYYYY00007

VRKP2

VRKP4YYYYY00007

VRKP4

VRKP5YYYYY00007

VRKP5

VRKP6YYYYY00007

VRKP6

VRKP6YYYYY00E07

VRKP6•••••••E00

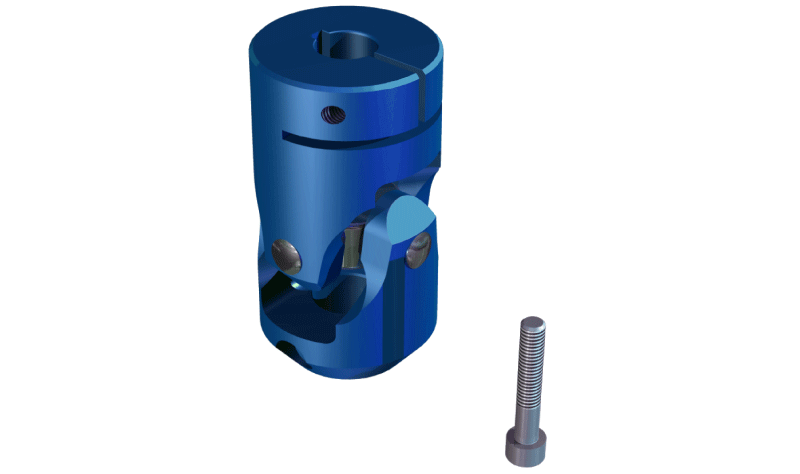

Plastic upper universal joint with fastener:

  • 1x plastic upper universal joint

  • 1x clamping screw upper universal joint

VRKP4YYYYY00008

All Lexium P robots

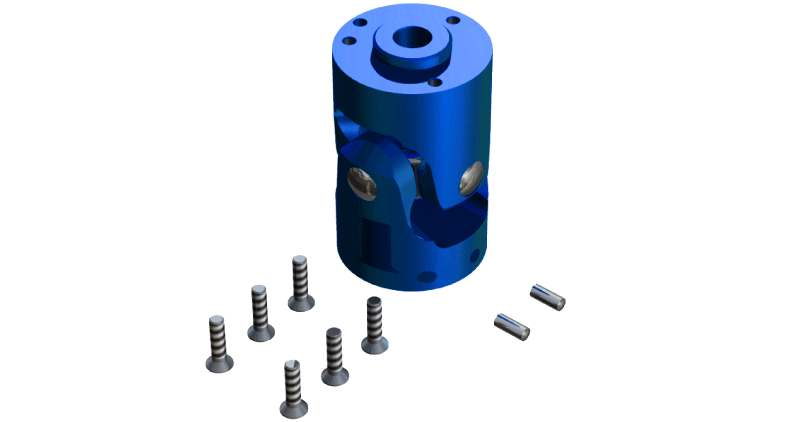

Plastic lower universal joint with fasteners and indexing bolt:

  • 1x plastic lower universal joint

  • 6x countersunk screw universal joint

  • 1x straight pin universal joint

VRKP4YYYYY00009

All Lexium P robots

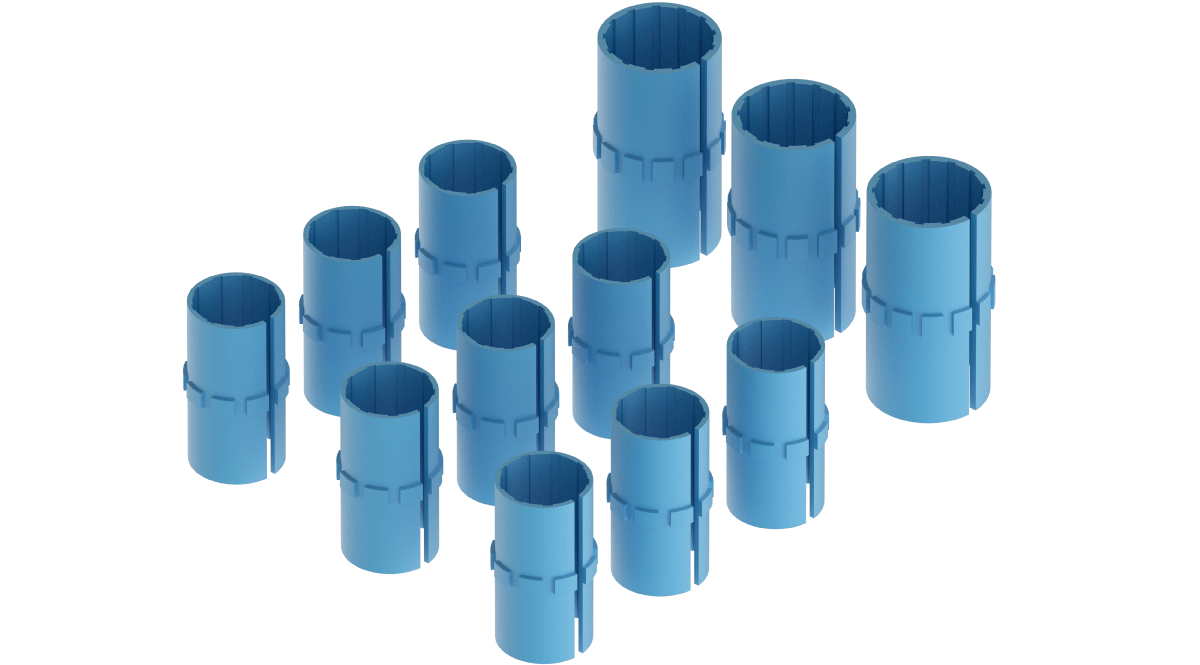

Food grade slide films, three sets:

  • 3x food grade slide film 20

  • 9x food grade slide film 16

VRKP4YYYYY00013

All Lexium P robots

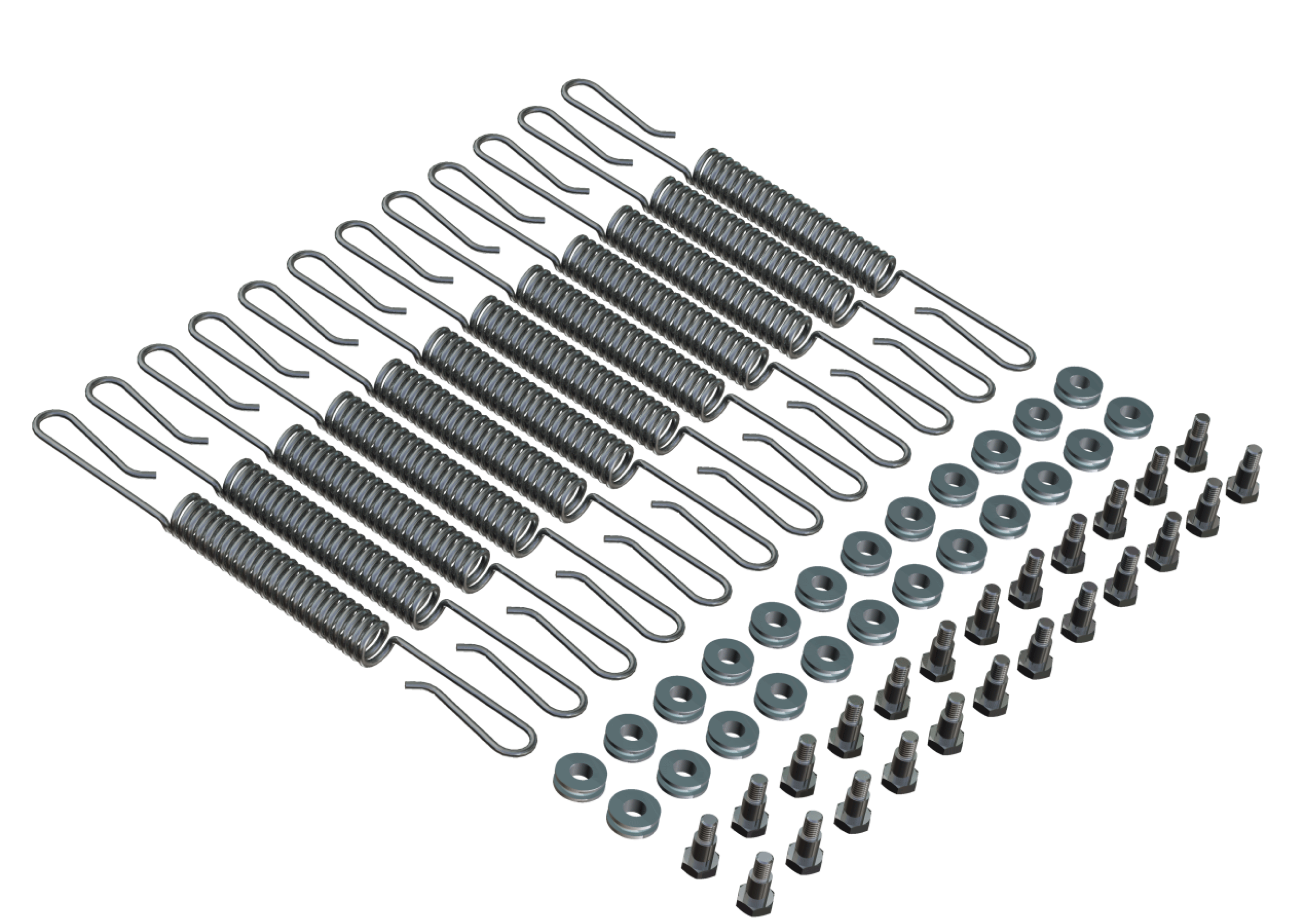

Springs, rolls, and fasteners. Set for one robot:

  • 12x springs

  • 24x roll

  • 24x screw

VRKP4YYYYY00023

All Lexium P robots

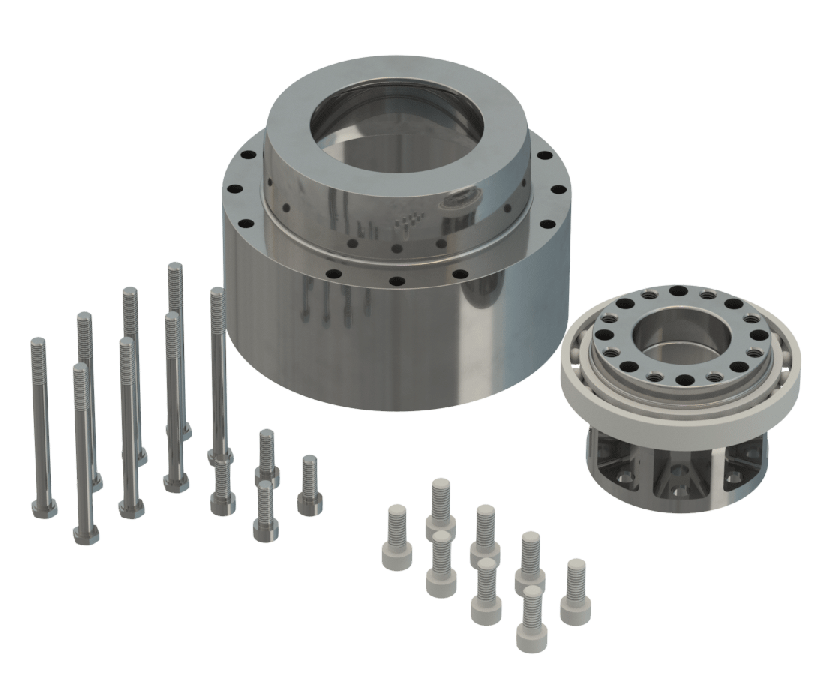

Gearbox Leakage Protection for the main axis with fasteners:

  • 1x protection box for gearbox

  • 1x output-flange-extension

  • 8x screw for output-flange-extension

  • 4x screw for protection box / gearbox

  • 12x screw for protection box / housing

VRKPXYYYYY00031

VRKP2

VRKP4

VRKP5

VRKP6

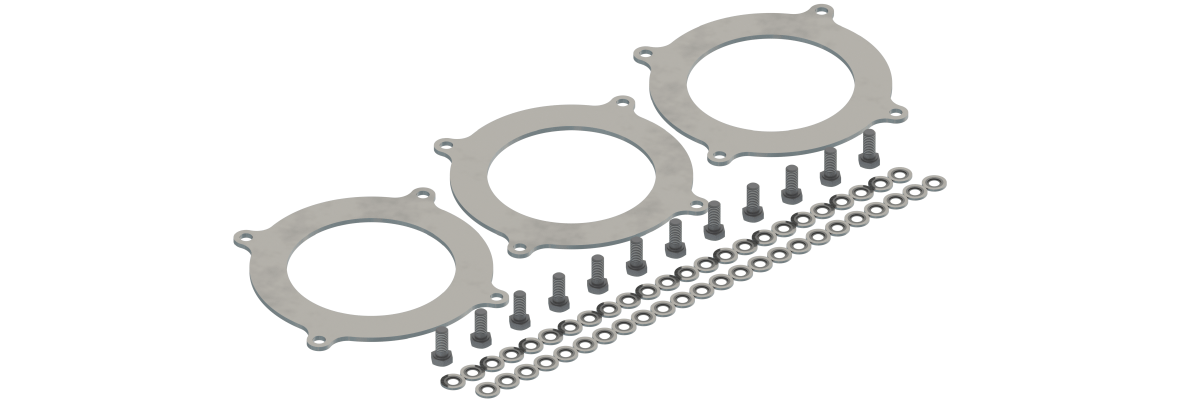

Impact Plate for the main axis with fasteners. Set for one robot:

  • 3x Impact Plate

  • 12x screw for Impact Plate

  • 48x sealing washer

VRKP1YYYYY00035

VRKP0

VRKP1

VRKPXYYYYY00035

VRKP2

VRKP4

VRKP5

VRKP6

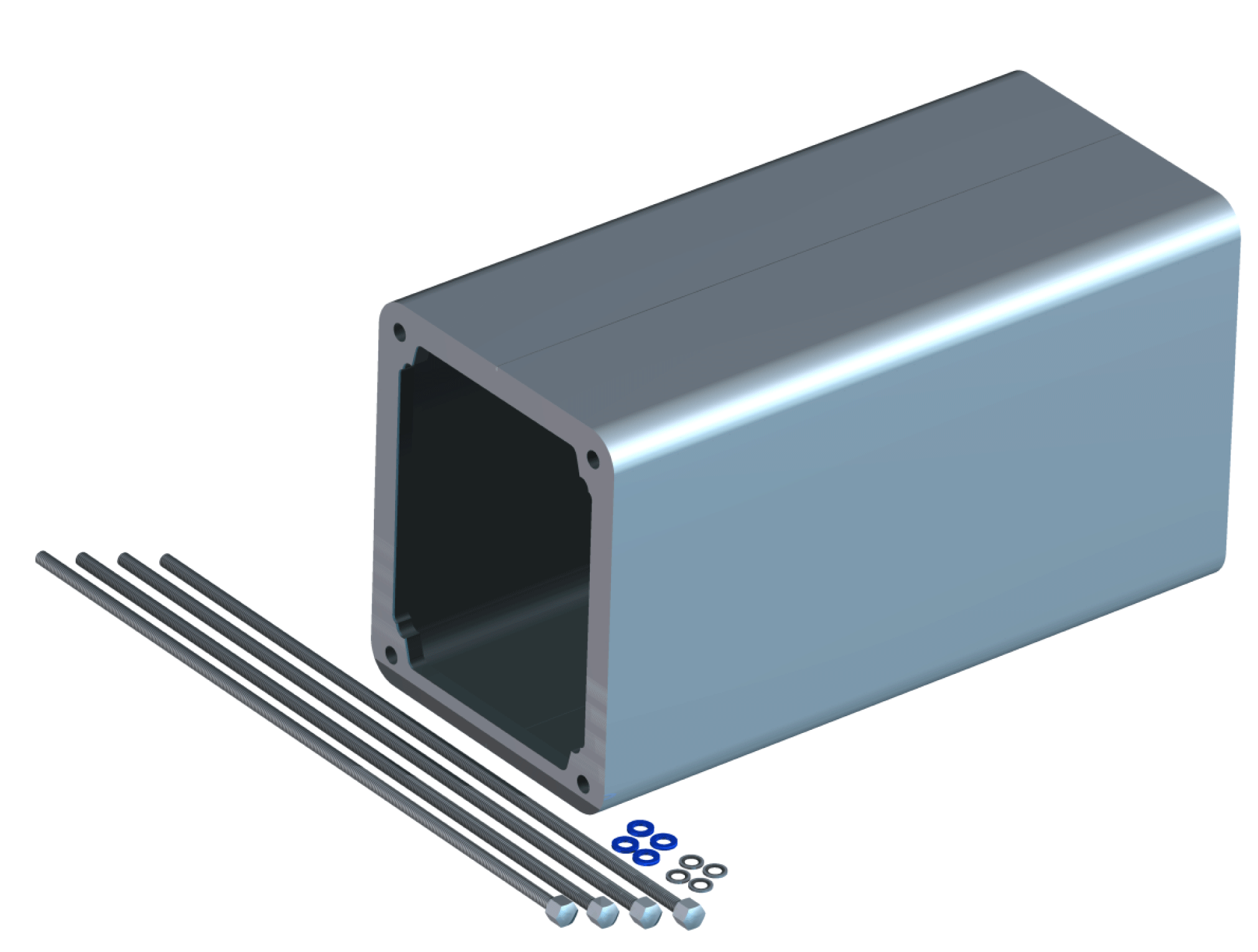

Motor cover extended with fasteners - without sealing:

  • 1x motor cover extended

  • 4x threaded rod

  • 4x sealing washer

  • 4x lock washer

VRKPXYYYYY00036

VRKP2•••WD

VRKP2•••WF

VRKP4•••WD

VRKP4•••NO

VRKP4•••WF

VRKP5•••WF

VRKP6•••WF

for robots with Gearbox Leakage Protection

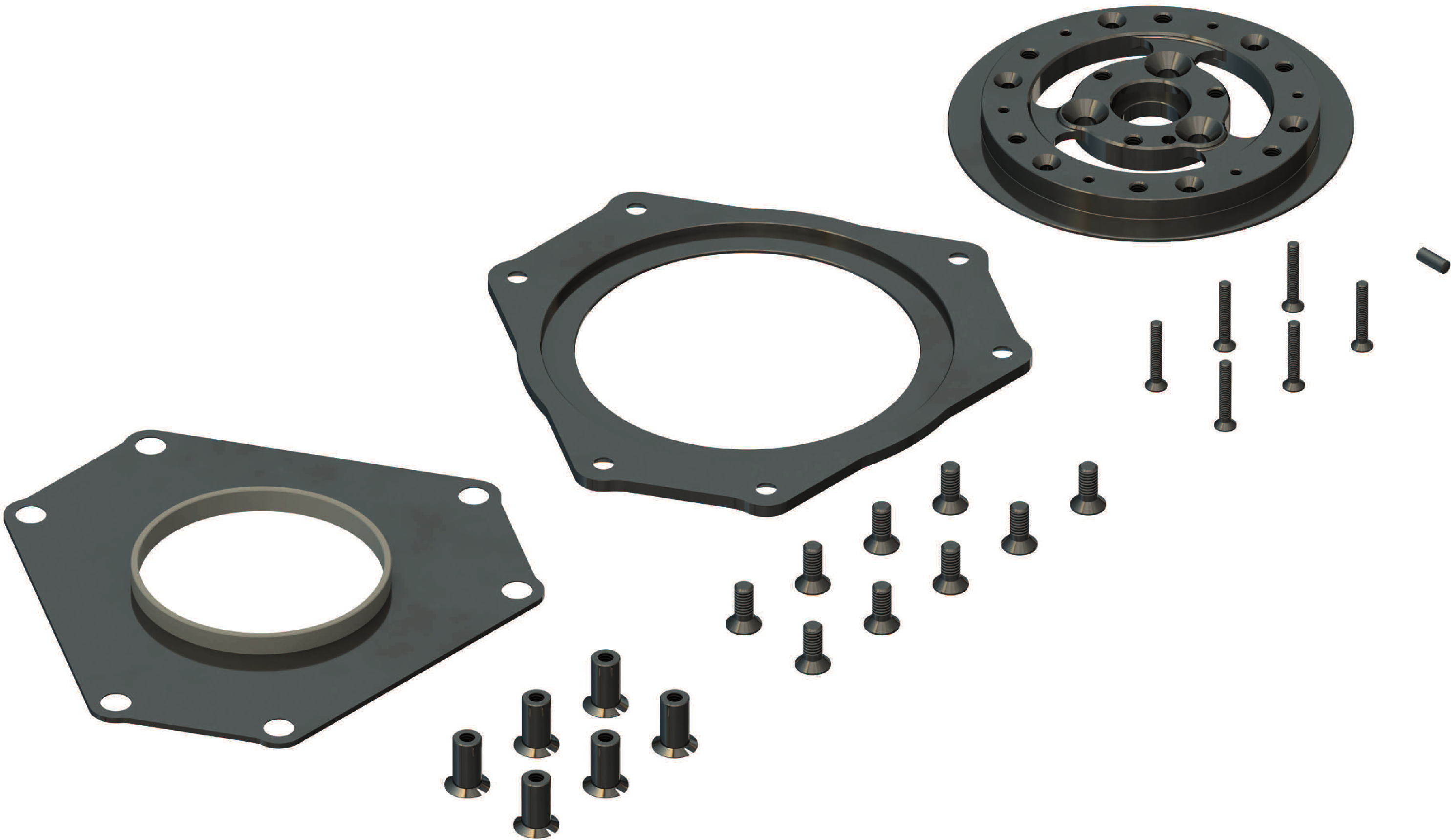

Lexium P Parallel Plate Bearing Protection:

  • 1x cover top side

  • 1x flange offset ring

  • 1x cover bottom side

  • 6x collar nut

  • 6x screw for cover bottom side

  • 9x screw for flange offset ring

  • 1x straight pin flange offset ring

VRKPXYYYYY00042

VRKP•••R

Lexium P Maintenance Cover Pipe Connection:

  • 1x Maintenance Cover Pipe Connection

  • 2x media cover blank

  • 1x sealing gasket maintenance cover

  • 2x sealing gasket media cover

  • 24x sealing washer maintenace / media cover

  • 24x screws maintenace / media cover

  • 1x straight pin flange offset ring

VRKPXYYYYY00048

VRKP2•••WD

VRKP4•••WD

VRKP4•••NO

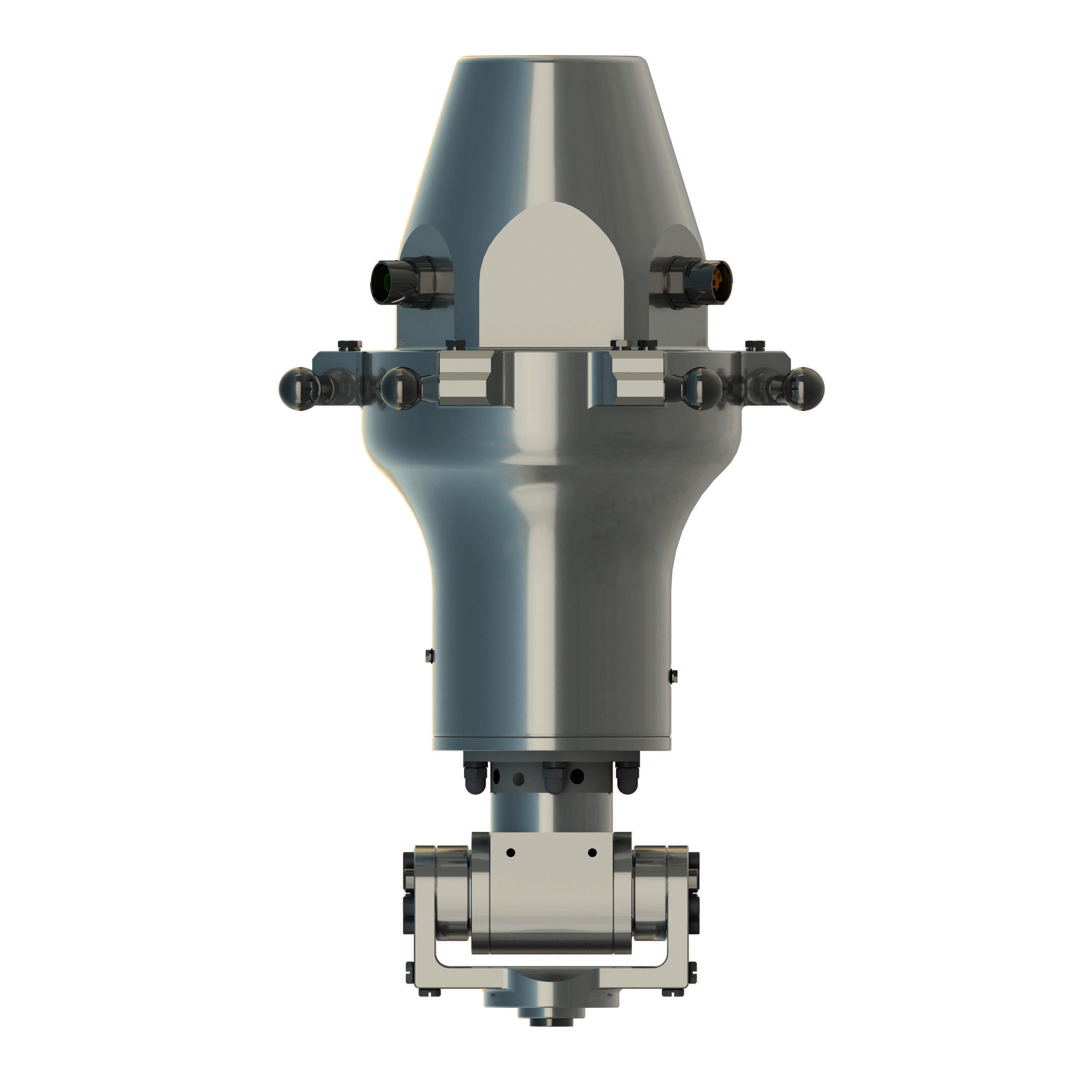

Lexium P Double Rotational Module:

  • 1x Double Rotational Module

VRKPXYYYYY00038

All Lexium P robots

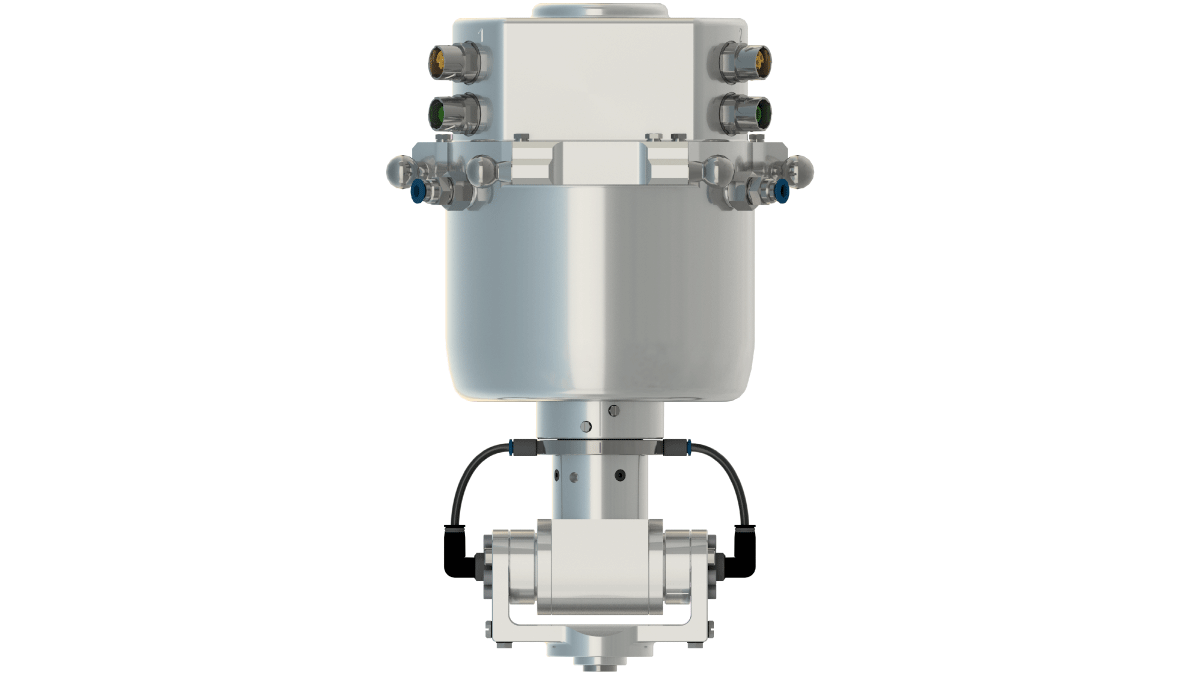

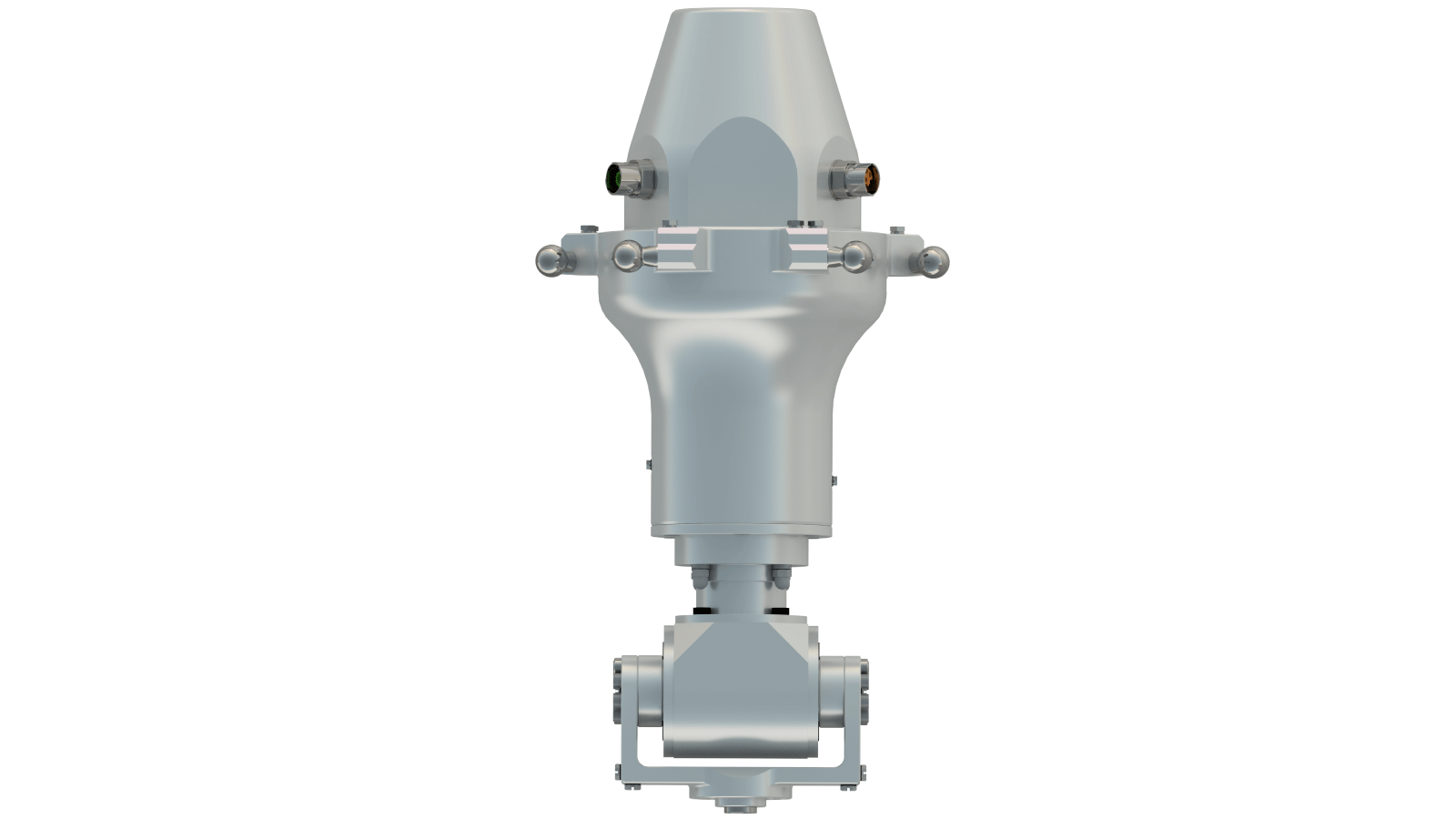

Lexium P Rotational Tilting Module:

  • 1x Rotational Tilting Module

VRKPXYYYYY00039

All Lexium P robots

Lexium P Rotational Tilting Module HD:

  • 1x Rotational Tilting Module HD

VRKPXYYYYY00041

All Lexium P robots

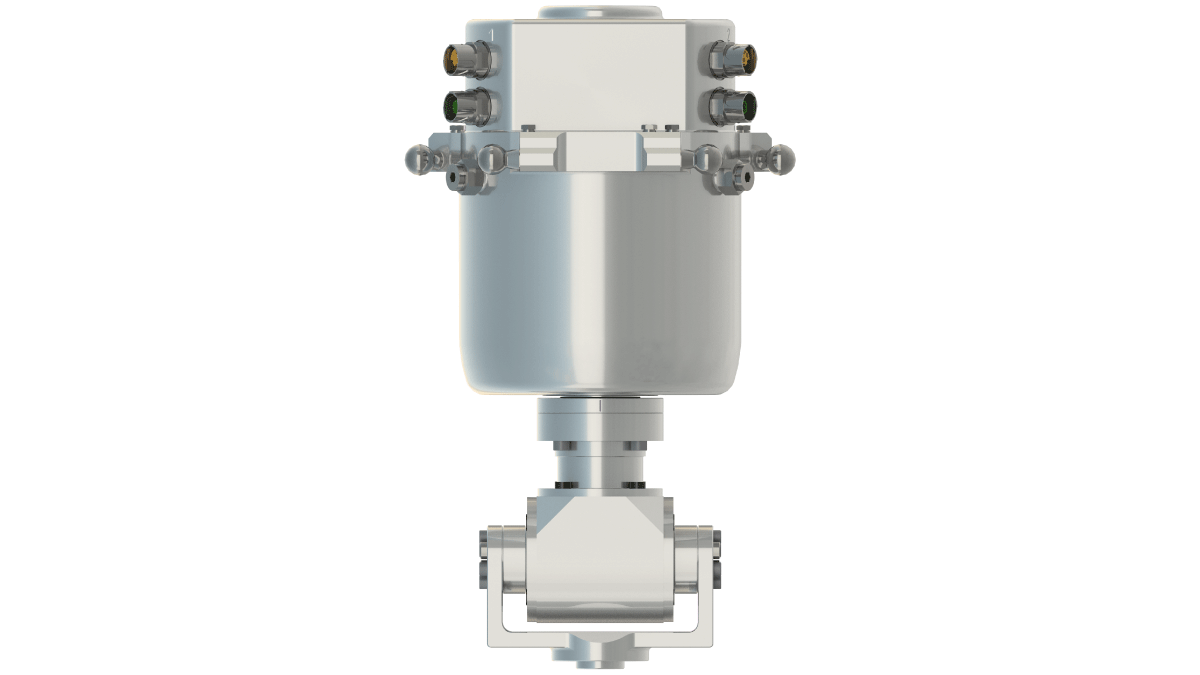

Lexium P Rotational Module B:

  • 1x Rotational Module B

VRKPXYYYYY00045

All Lexium P robots

Lexium P Rotational Module HT-B:

  • 1x Rotational Module HT-B

VRKPXYYYYY00046

All Lexium P robots

Lexium P Double Rotational Module HD:

  • 1x Double Rotational Module HD

VRKPXYYYYY00049

All Lexium P robots

Lexium P Rotational Tilting Module HD-B:

  • 1x Rotational Tilting Module HD-B

VRKPXYYYYY00050

All Lexium P robots

Lexium P Tilting Module HT-B-HD:

  • 1x Tilting Module HT-B-HD

VRKPXYYYYY00052

All Lexium P robots

Lexium P Tilting Module B:

  • 1x Tilting Module B

VRKPXYYYYY00053

All Lexium P robots

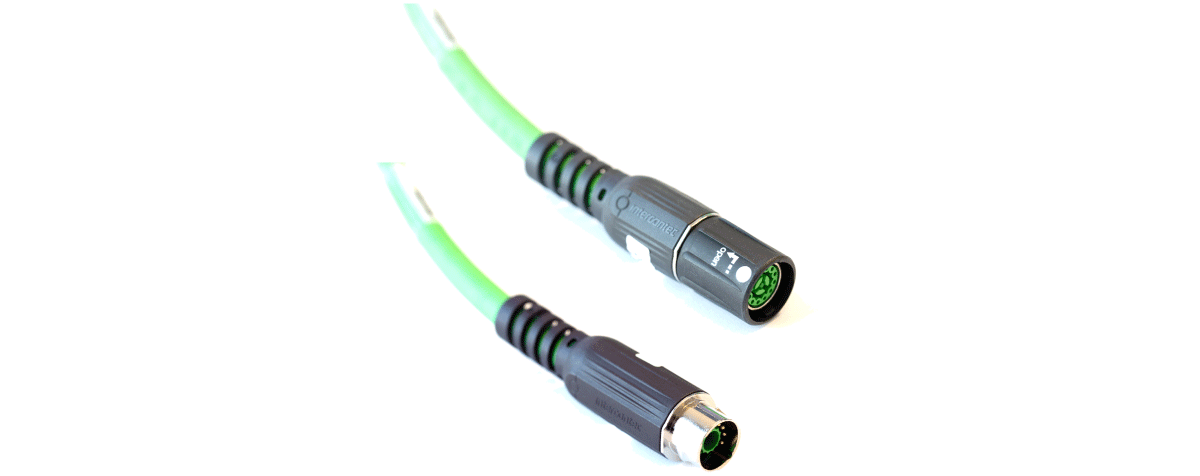

Encoder extension cable for the optional modules:

  • 1x encoder extension cable

VW3E2100R030

VRKP0

VRKP1

VRKP2

VRKP4

VW3E2100R043

VRKP5

VRKP6

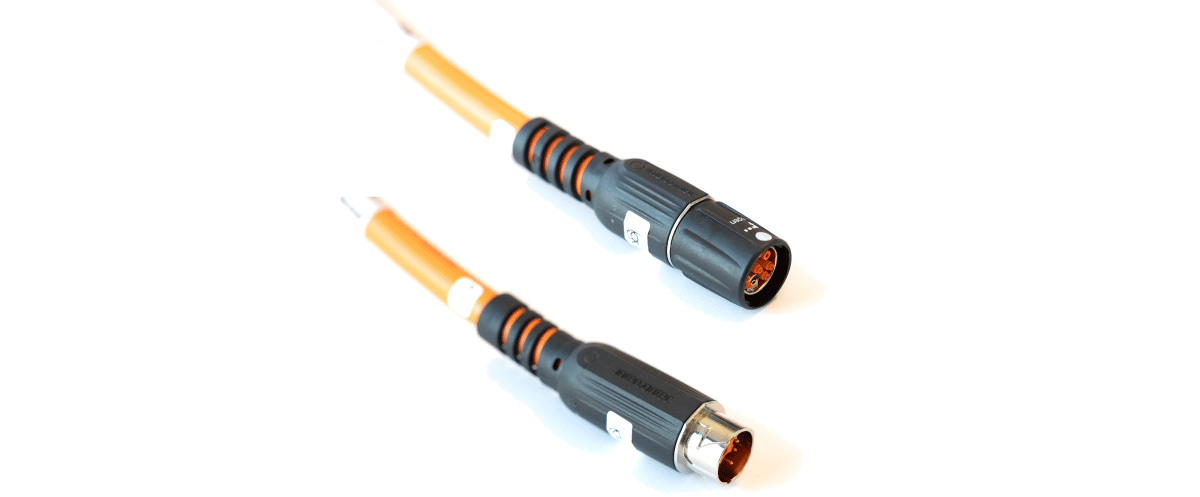

Power extension cable for the optional modules:

  • 1x power extension cable

VW3E1168R030

VRKP0

VRKP1

VRKP2

VRKP4

VW3E1168R043

VRKP5

VRKP6
