Overview
In the window, select to open the view. This view summarizes the objects of a controller and their values in a tree structure.
While the other data views cover only a certain perspective of the data, this view includes all objects of the controller and their values.
The following figure shows an example of the view. The information displayed in this view varies, depending on the selected controller:

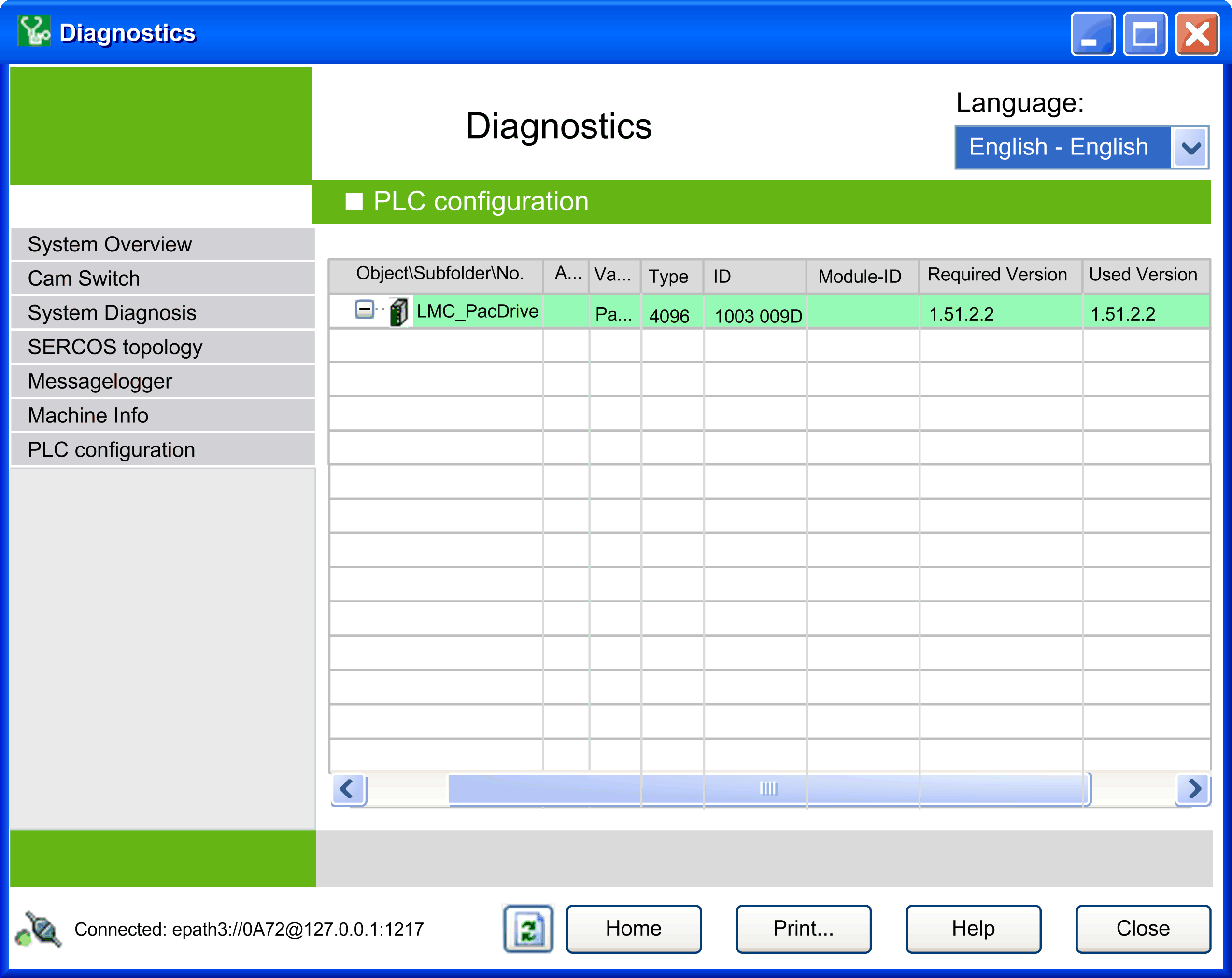

Some controllers provide information on the and the in this view. The column shows the versions of the device descriptions that are required by the project. The column shows the version that is used by Diagnostics to request the data from the controller. If Diagnostics detects the appropriate device description inside the installation of the PC, both columns have the same value. However, if the appropriate device description is not available, a fallback version can be used with the latest available version. In this case, the version number is displayed in bold.
Click the plus () sign to open a subelement.
By choosing from the contextual menu, you can fully collapse or expand all elements.
