EipGetHealth: Read the Health Bit Value

Function Description

This function returns the health bit value of a specific EtherNet/IP connection.

The connection ID can be found for each EtherNet/IP target device in its Connections tab.

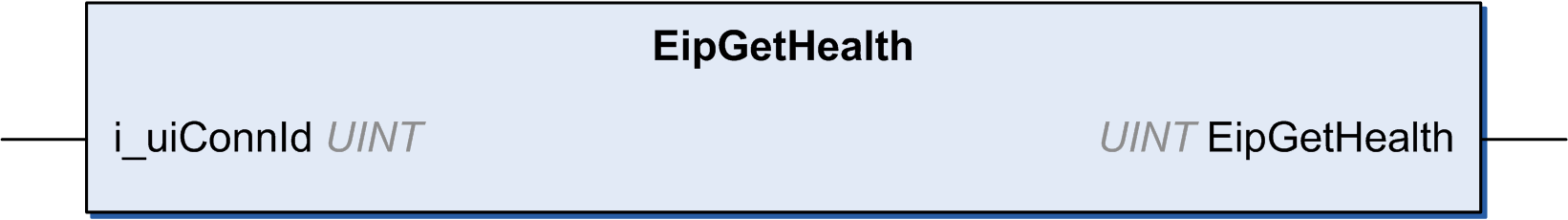

Graphical Representation

IL and ST Representation

To see the general representation in IL or ST language, refer to Function and Function Block Representation.

I/O Variable Description

This table describes the input variable:

Input

Type

Comment

i_uiconnId

UINT

Connection ID of the connection monitored.

This table describes the output variable:

Output

Type

Comment

EipGetHealth

UINT

  • 0: Connection not established

  • 1: Connection established

Example

This is an example of a call of this function:

conID:=257 ;

channelHealth := EipGetHealth(conID)(* Get the health value (1=OK, 0=Not OK) of the connection number conID. The connection ID is displayed in the configuration editor of the device *)
