Torque / Speed Characteristic Curves
Overview
The torque-speed characteristic curve represents the following characteristics:
-
The permissible permanent torque (operating type S 1)
-
The peak torque with mains voltage = 3 x 230 Vac
-
The peak torque with mains voltage = 3 x 400 Vac
-
The peak torque with mains voltage = 3 x 480 Vac (for ILM140•• only)

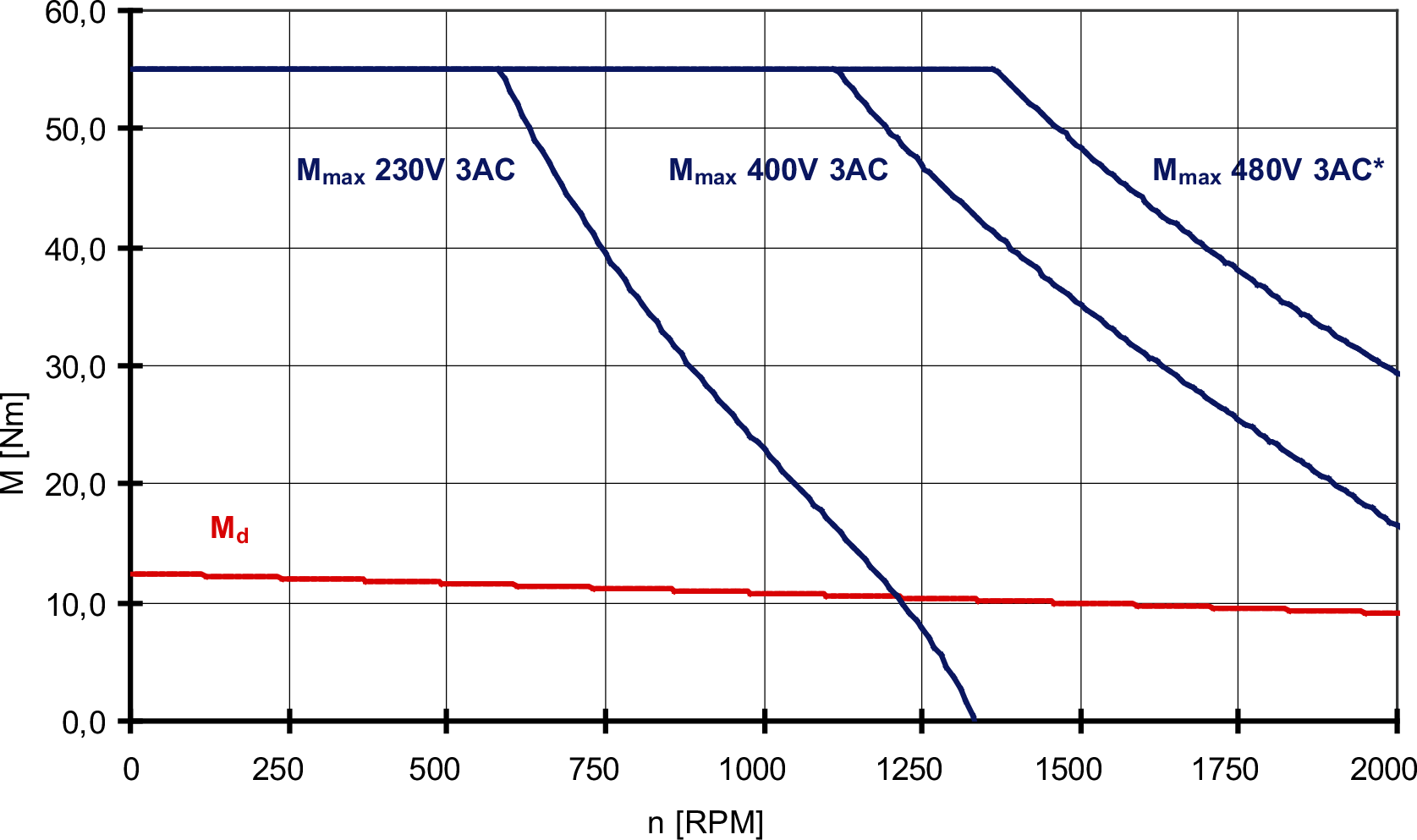

Example of a torque-speed characteristic curve (ILM140•• only):
The characteristic curves refer to an ambient temperature of 40 °C / 104 °F and a maximum winding temperature of 120 °C / 248 °F.

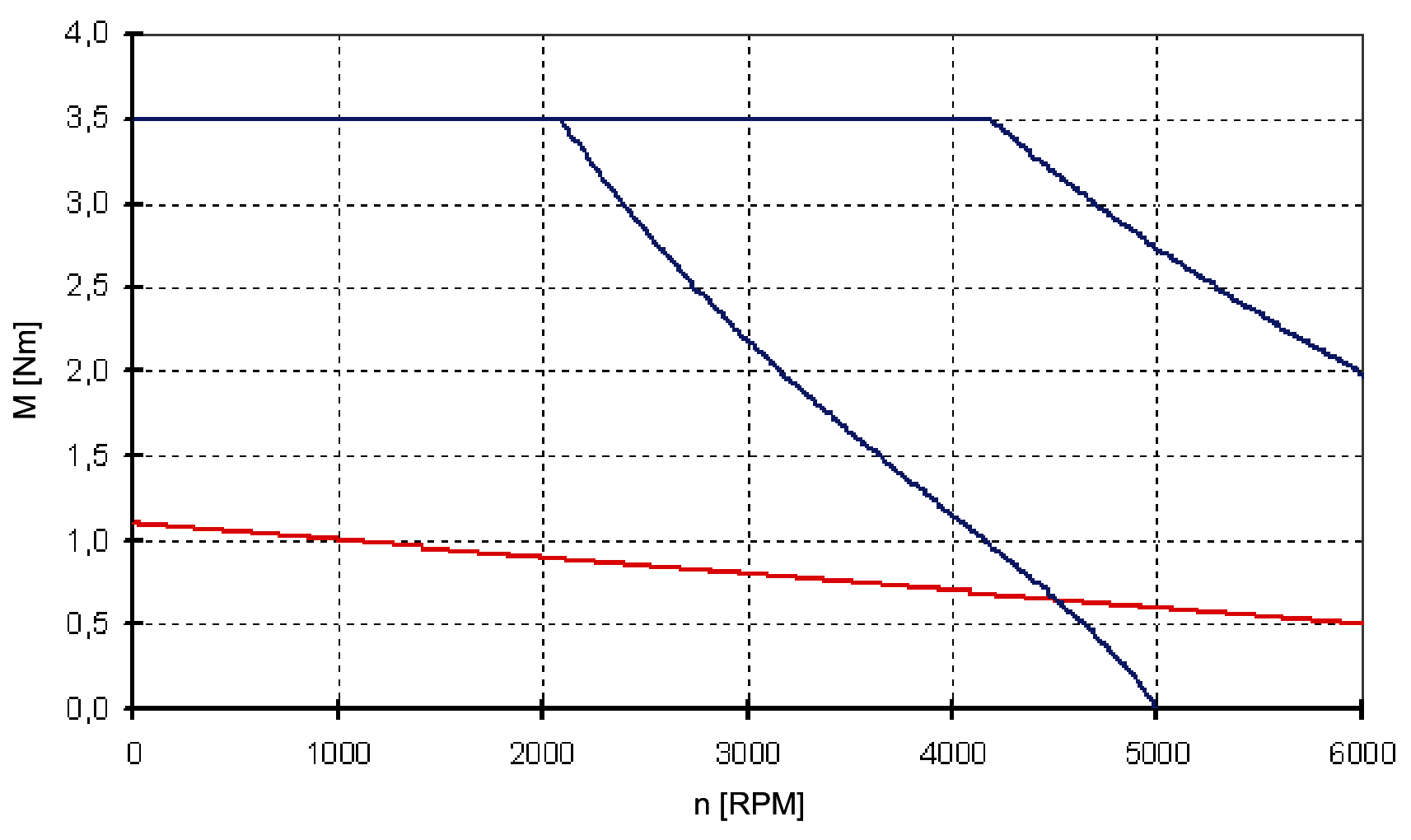

Torque-speed characteristic curve ILM0701P:

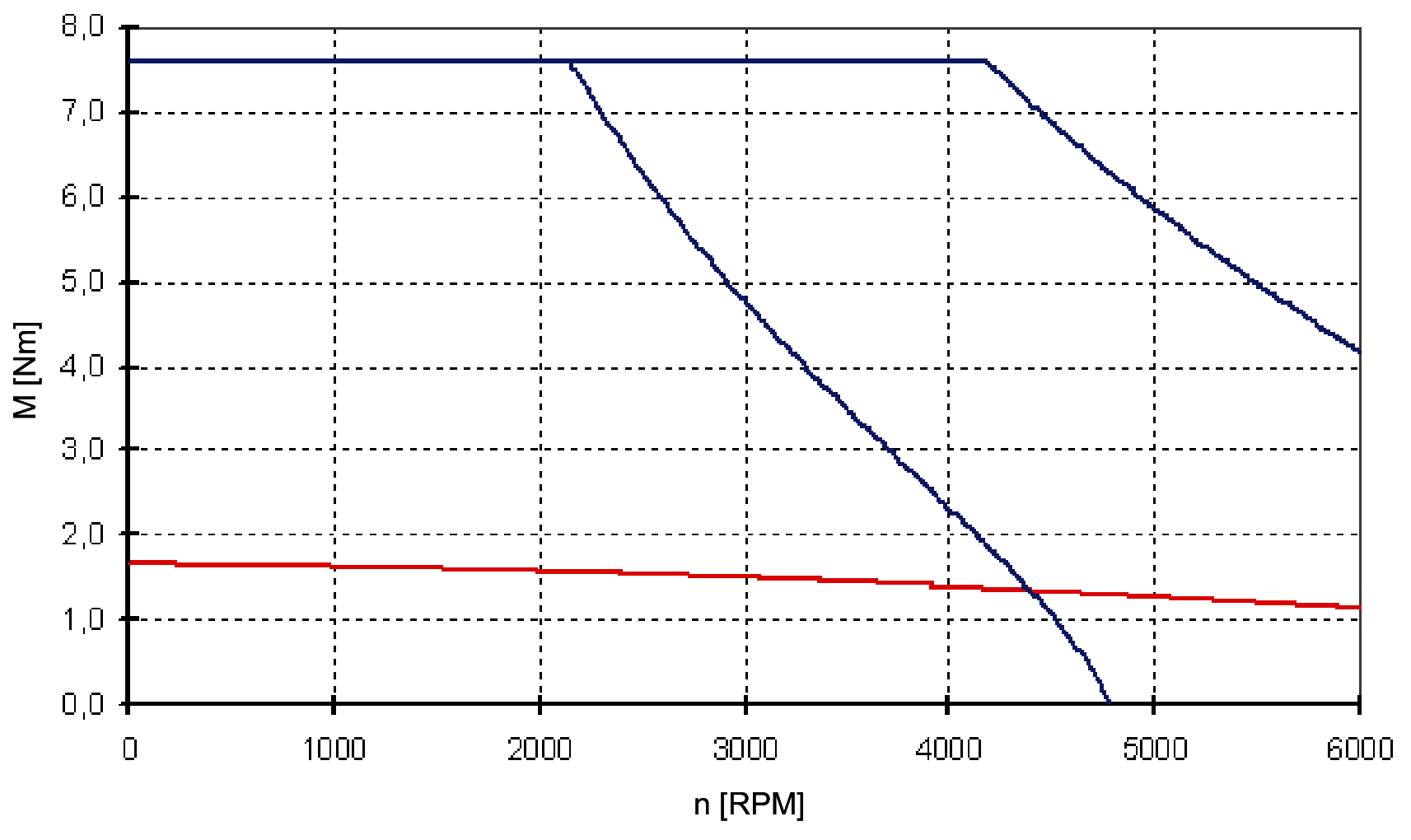

Torque-speed characteristic curve ILM0702P:

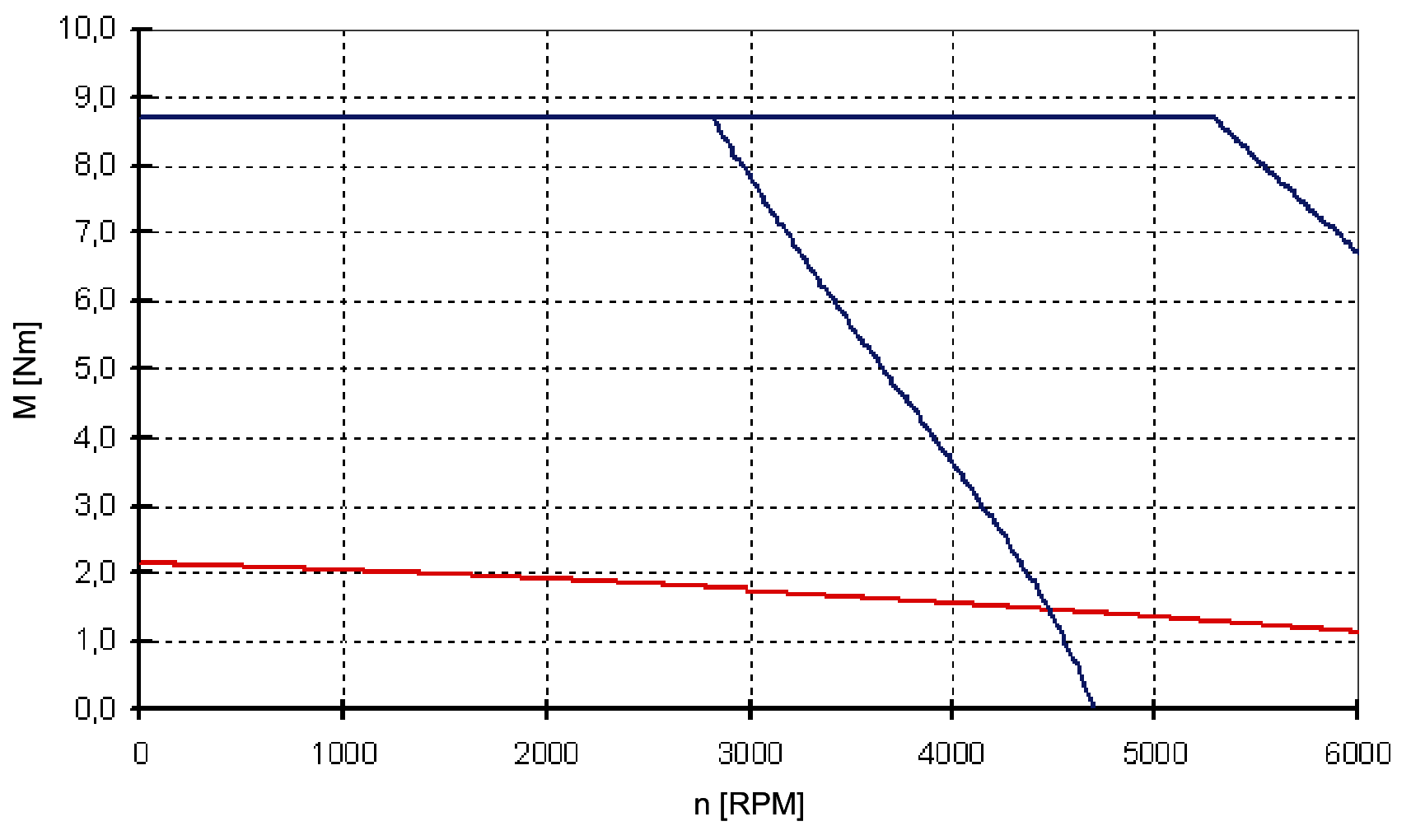

Torque-speed characteristic curve ILM0703P:
Torque-speed characteristic curve ILM1001P:
Torque-speed characteristic curve ILM1002P:

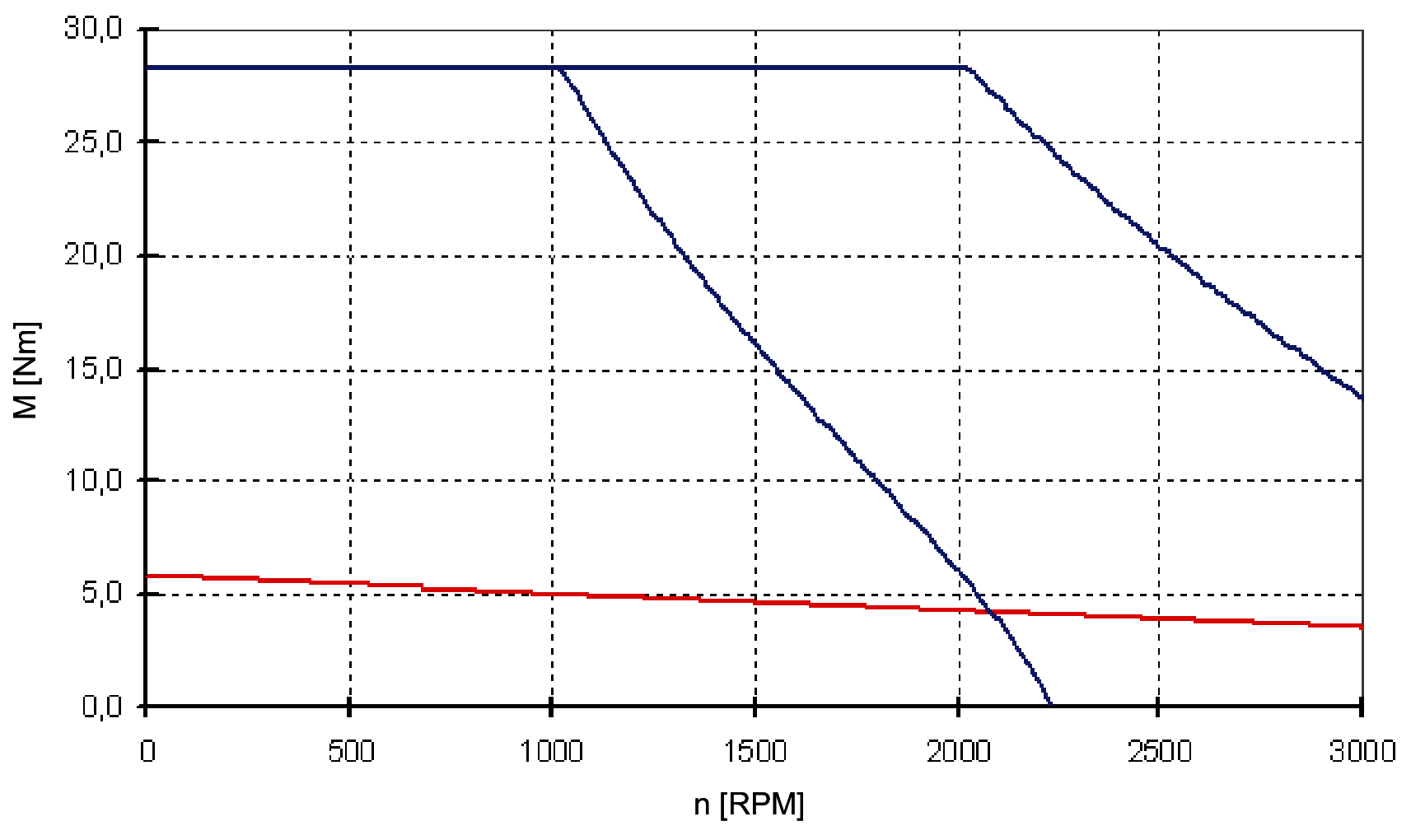

Torque-speed characteristic curve ILM1003P:

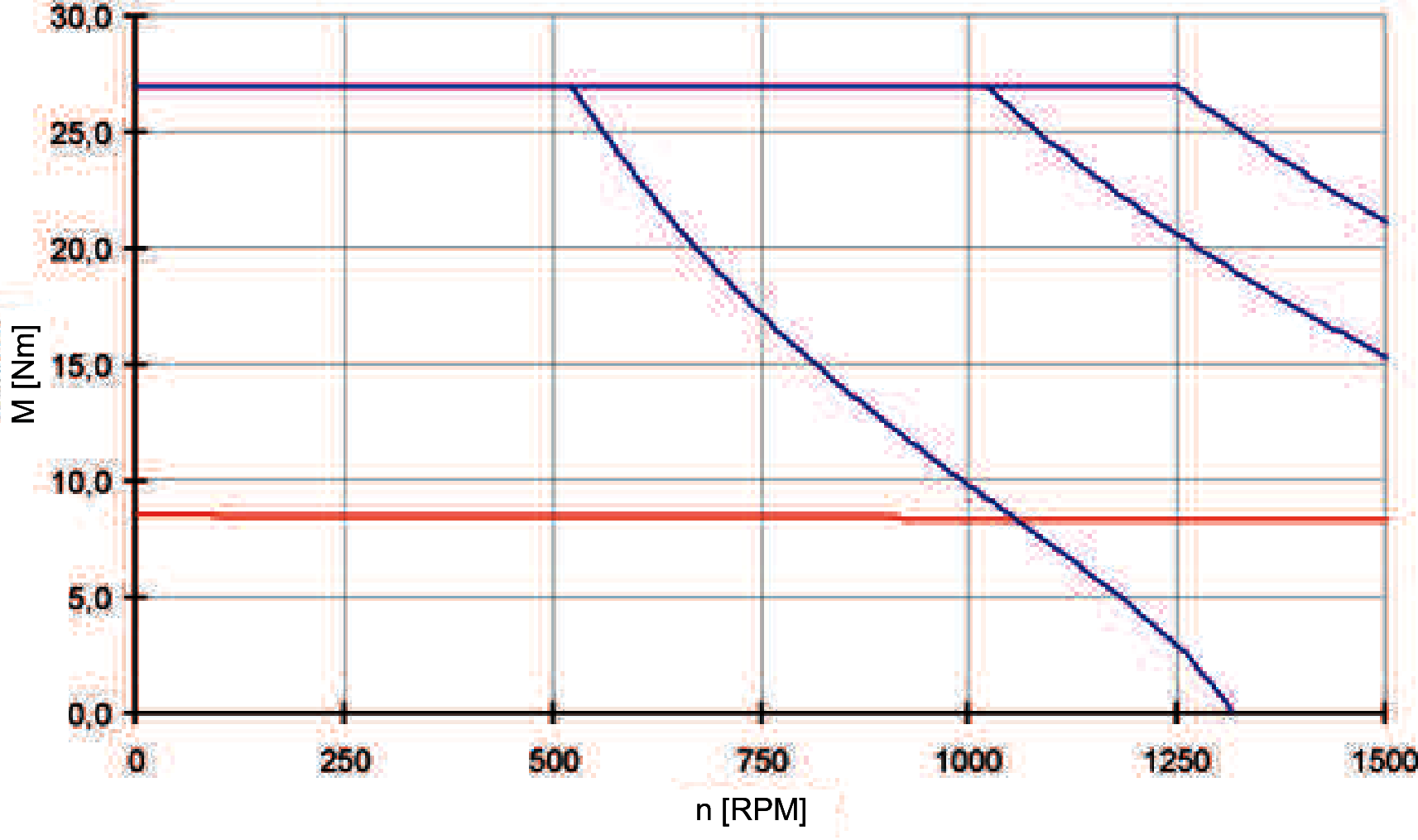

Torque-speed characteristic curve ILM1401M:

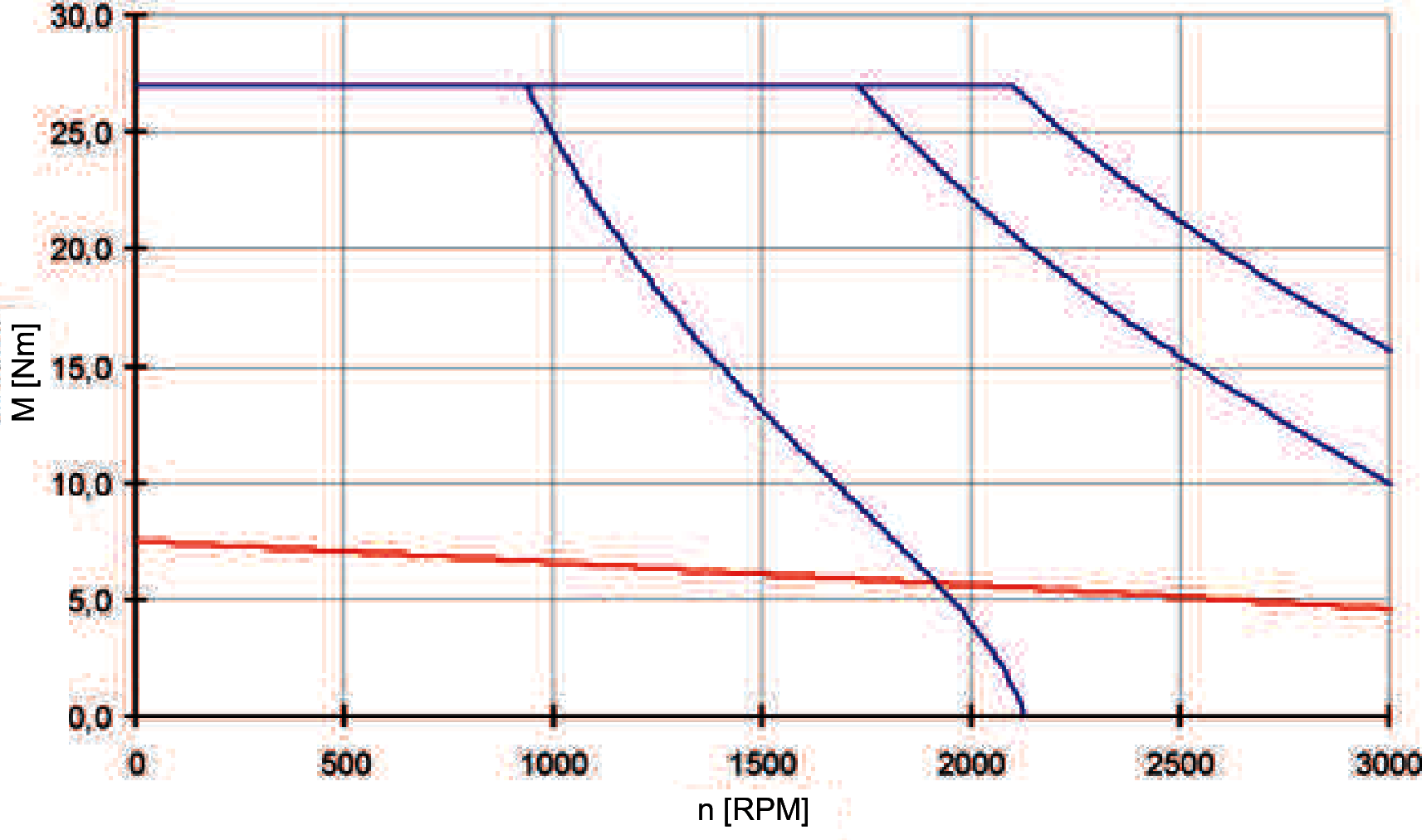

Torque-speed characteristic curve ILM1401P:

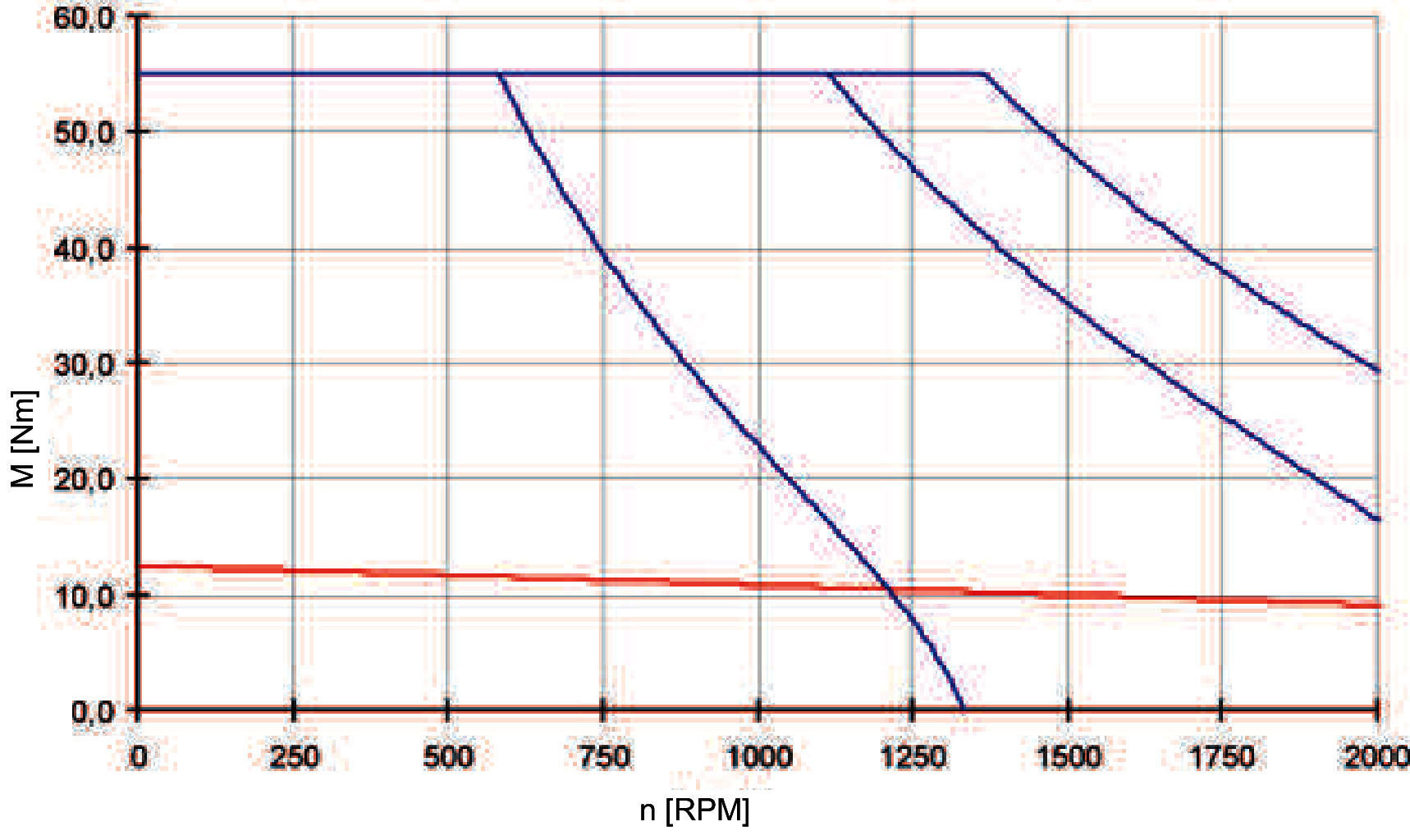

Torque-speed characteristic curve ILM1402P:
