Acknowledging a Motor Change

Description

Procedure for confirming a motor change via the integrated HMI.

If the 7-segment display shows (mot):

• Press the navigation button.

  The 7-segment display shows (save).

• Press the navigation button to save the new motor parameters to the nonvolatile memory.

  The drive switches to operating state 4 Ready To Switch On.

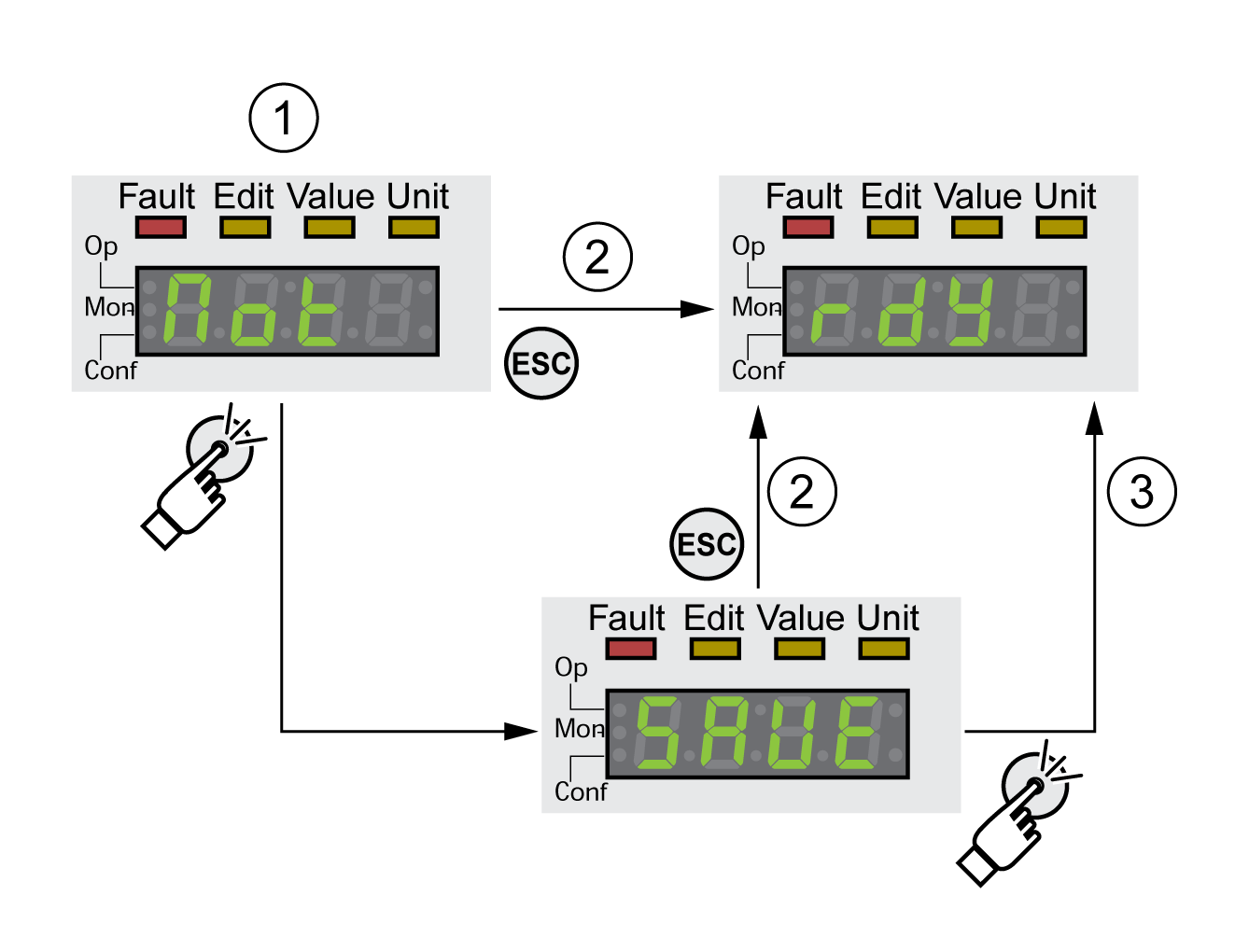

Confirming a motor change via the integrated HMI

1 HMI displays that a replacement of a motor has been detected.

2 Canceling the saving process

3 Saving switching to operating state 4 Ready To Switch On.
