Connection Digital Inputs and Outputs (CN6)
General
The device has configurable inputs and configurable outputs. The standard assignment and the configurable assignment depend on the selected operating mode. For more information, see Digital Signal Inputs and Digital Signal Outputs.
Cable Specifications
|
Shield: |
- |
|
Twisted Pair: |
- |
|
PELV: |
Required |
|
Cable composition: |
0.25 mm2, (AWG 22) |
|
Maximum cable length: |
30 m (98.4 ft) |
Properties of Connection Terminals CN6
|
Characteristic |
Unit |
Value |
|---|---|---|
|
Connection cross section |
mm2 (AWG) |
0.2 ... 1.0 (24 ... 16) |
|
Stripping length |
mm (in) |
10 (0.39) |

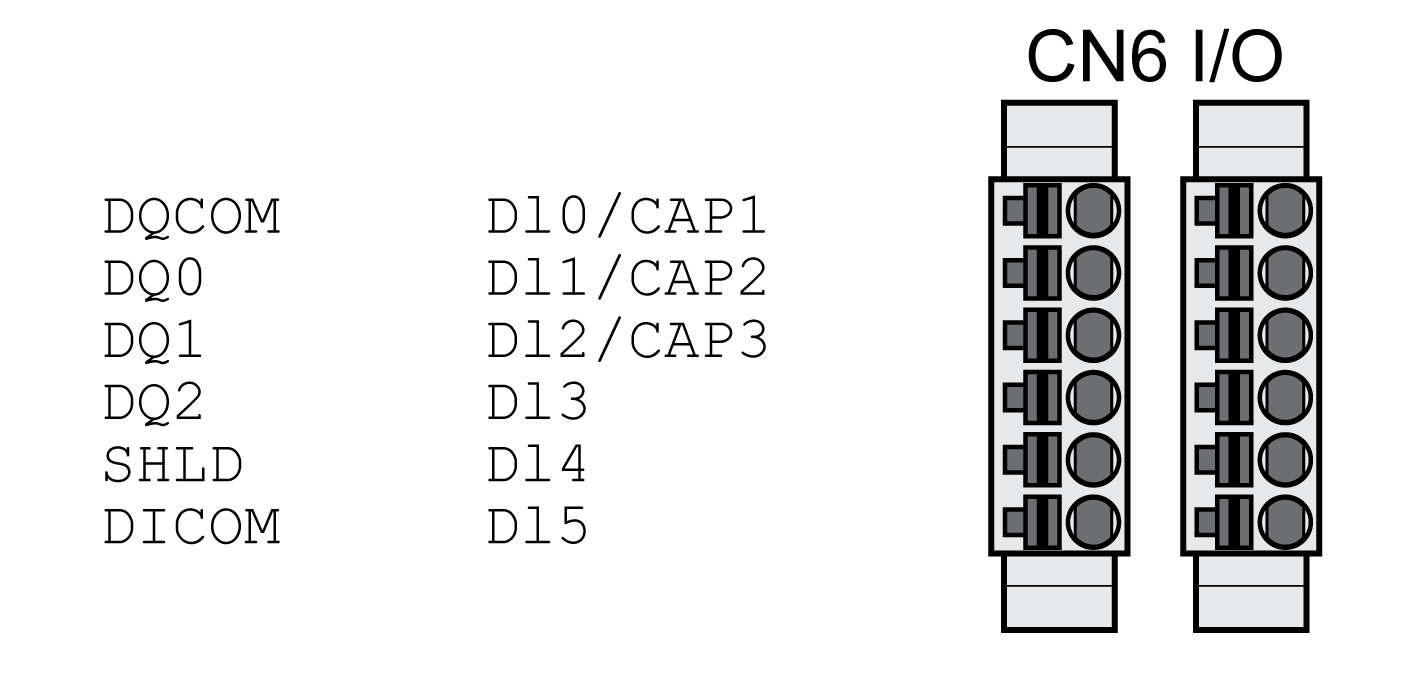

Wiring Diagram
|
Signal |
Meaning |
|---|---|
|
DQCOM |
Reference potential to DQ0 ... DQ2 |
|
DQ0 |
Digital output 0 |
|
DQ1 |
Digital output 1 |
|
DQ2 |
Digital output 2 |
|
SHLD |
Shield connection |
|
DICOM |
Reference potential to DI0 ... DI5 |
|
DI0/CAP1 |
Digital input 0 / Capture input 1 |
|
DI1/CAP2 |
Digital input 1 / Capture input 2 |
|
DI2/CAP3(1) |
Digital input 2 / Capture input 3(1) |
|
DI3 |
Digital input 3 |
|
DI4 |
Digital input 4 |
|
DI5 |
Digital input 5 |
|
(1) Available with hardware version ≥RS03 |
|
The connectors are coded. Verify correct assignment when connecting them.
The configuration and the standard assignment of the inputs and outputs are described in section Digital Signal Inputs and Digital Signal Outputs.
