IF_MulticarrierConfiguration - ConfigureMulticarrierTrack (Method)

Overview

Type:	Method
Available as of:	V1.0.0.0

Task

Assigning the track object Lexium MC Track.

Description

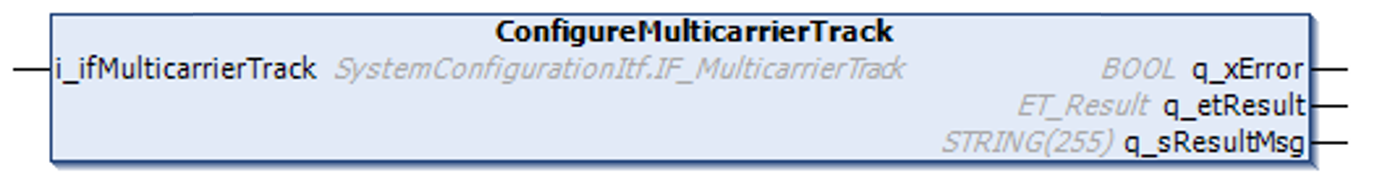

With the method ConfigureMulticarrierTrack, you can assign the track object Lexium MC Track from the Devices tree to the configuration.
For more information on the carrier object Lexium MC Track, refer to the Lexium™ MC multi carrier Device Objects and Parameters Guide.

Inputs

Input	Data type	Description
i_ifMulticarrierTrack	SystemConfigurationItf.IF_MulticarrierTrack	Track object from the Devices tree.

Outputs

Output	Data type	Description
q_xError	BOOL	Indicates TRUE if an error has been detected. For details, refer to q_etResult and q_sResultMsg.
q_etResult	ET_Result	Provides diagnostic and status information as a numeric value. If q_xError = FALSE, q_etResult provides status information. If q_xError = TRUE, q_etResult provides diagnostic/error information.
q_sResultMsg	STRING [255]	Provides additional diagnostic and status information as a text message.
