Behavior of IF_RobotFeedbackTracking.lrRemainingTimePathPositionEnd

General

IF_RobotFeedbackTracking provides two parameters you can use to evaluate the tracking:

  • lrRemainingTime displays the time for the synchronization phase to be finished.

  • lrRemainingTimePathPositionEnd displays the time until the connected path will reach the specified end position.

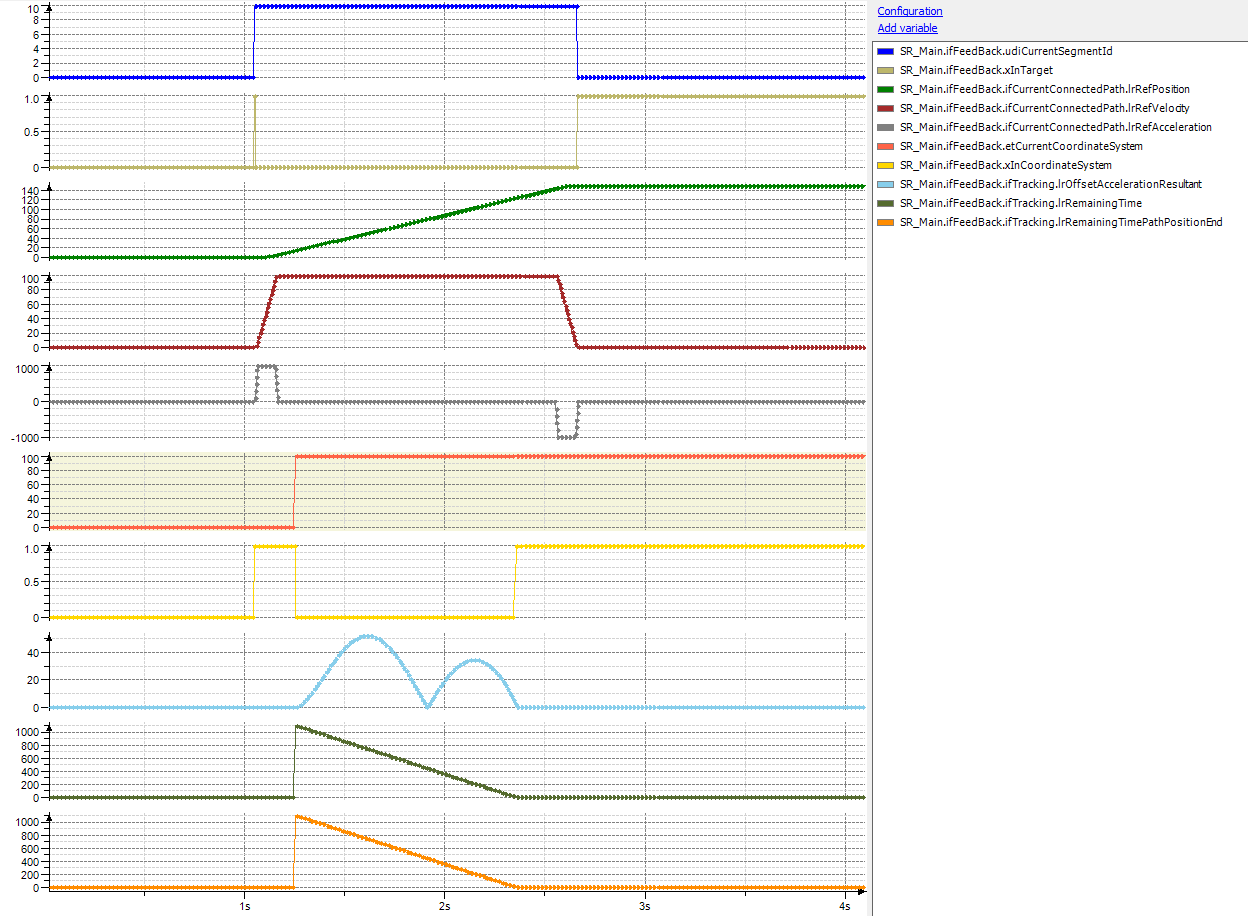

Trace 1

In case the tracking acceleration can be reduced, both parameters display the same value.

NOTE: Both values are calculated LREAL values and so a simple comparison ifTracking.lrRemainingTime = ifTracking.lrRemainingTimePathPositionEnd does not work.

Possible verifications are:

  • ABS(ifTracking.lrRemainingTime - ifTracking.lrRemainingTimePathPositionEnd) < 1.0 or

  • ifTracking.lrRemainingTimePathPositionEnd ≤ ifTracking.lrRemainingTime

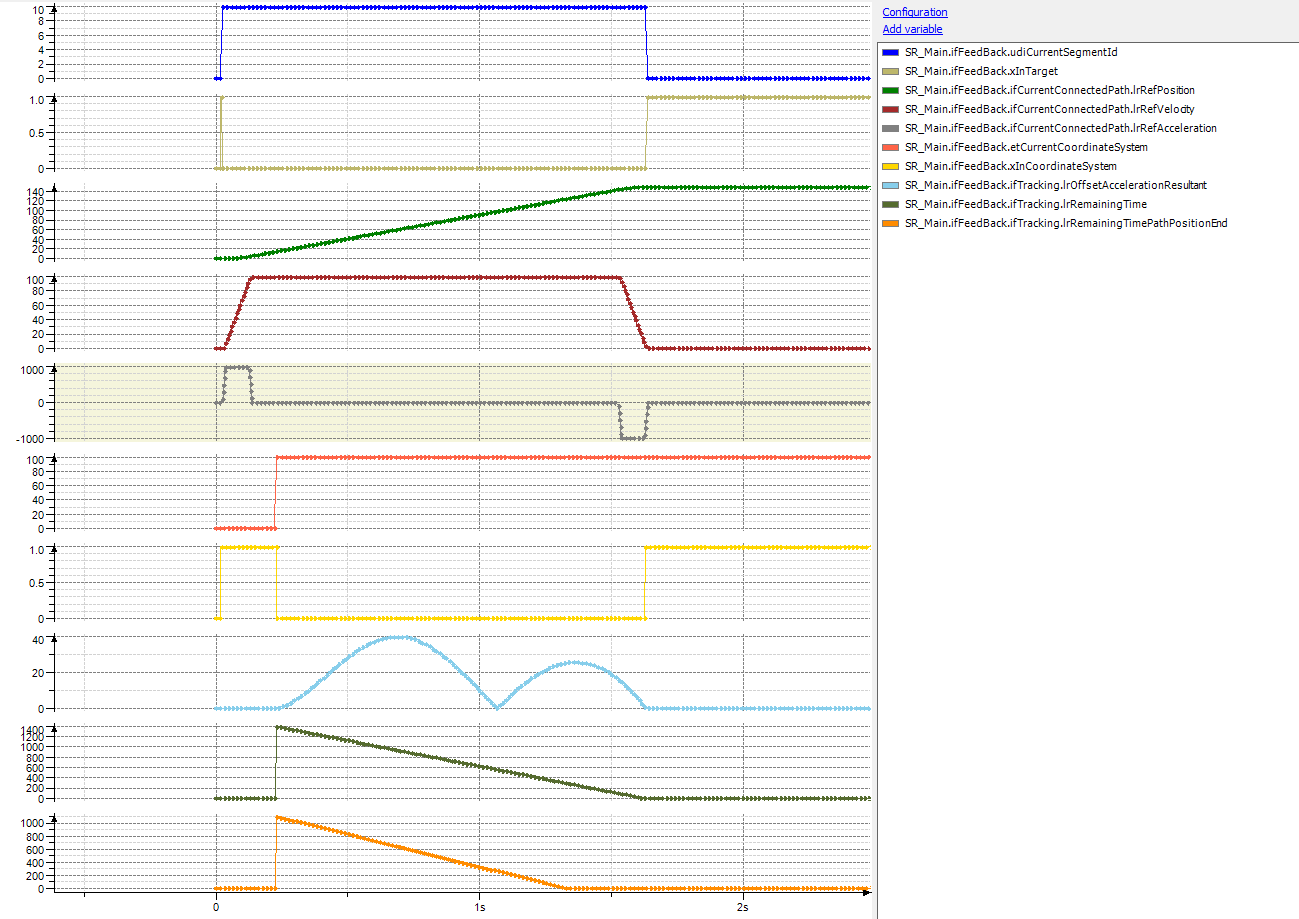

Trace 2

When the necessary resulting acceleration for the synchronization phase is higher than the configured maximum resulting acceleration for tracking, lrRemaingTime is greater than lrRemainingTimePathPositionEnd.

Trace 3

You can use the two time parameters to reset a stop on path earlier. With the former tracking, you had to wait for xInCoordinateSystem before you reset the stop, now your code could be like this:

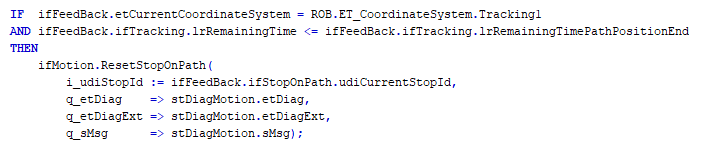

Reset stop-on-path based on remaining times

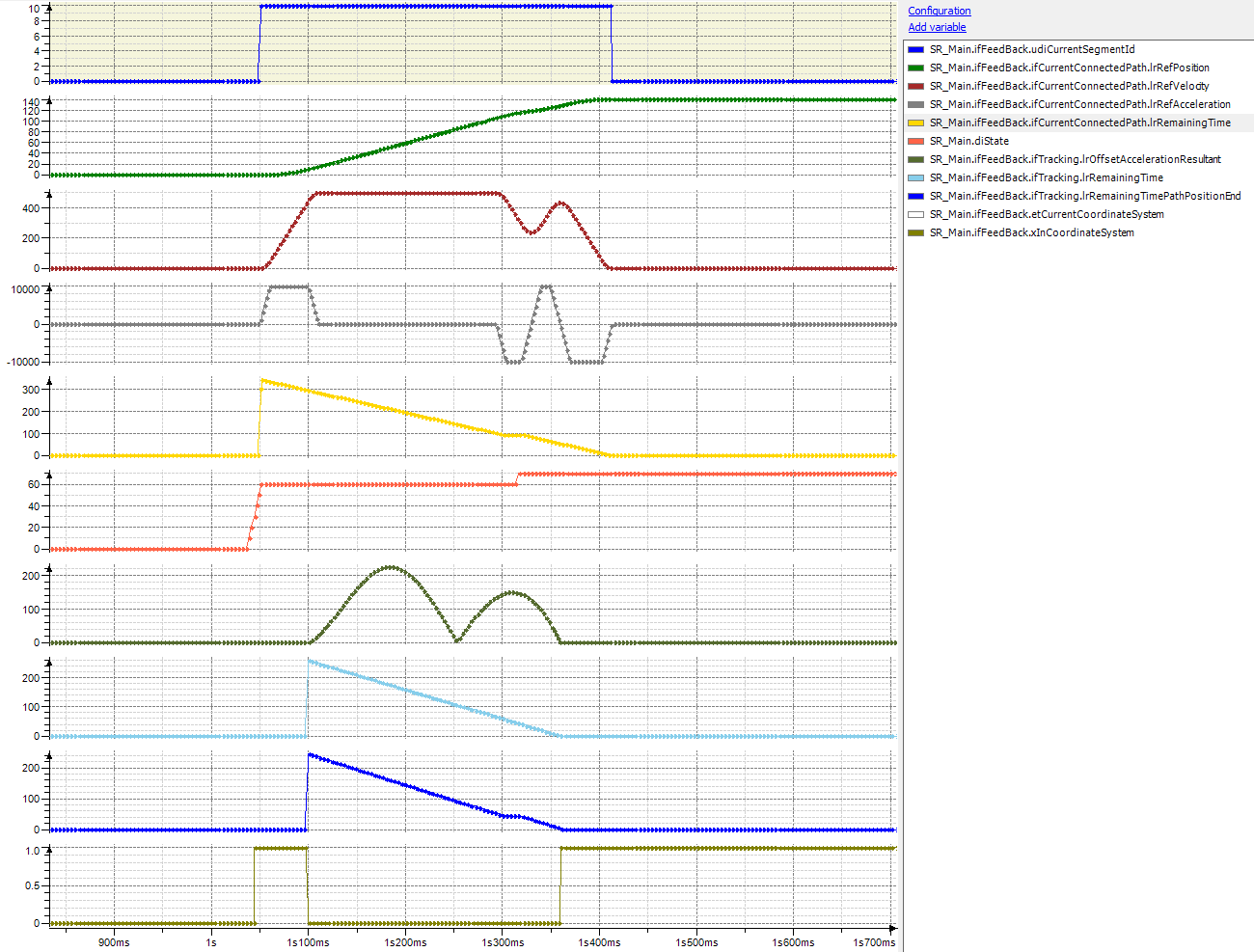

Here, the necessary acceleration is greater than the given maximum acceleration. As a result, the necessary time for the synchronization is approximately 260 ms, while lrRemainingTimePathPositionEnd is only 245 ms.

As a result, the stop-on-path is not reset and becomes effective (the velocity of the robot shows a slight dip). Because of this, the remaining time until path position end increases. As soon as the time is greater than the remaining time of the synchronization, the stop-on-path is reset without forcing the robot into a complete stop.
