The traces which are located in the folder SmgAddOnModuleExample\Traces of the demo project are made to explain how the SoMotionGenerator module is working.

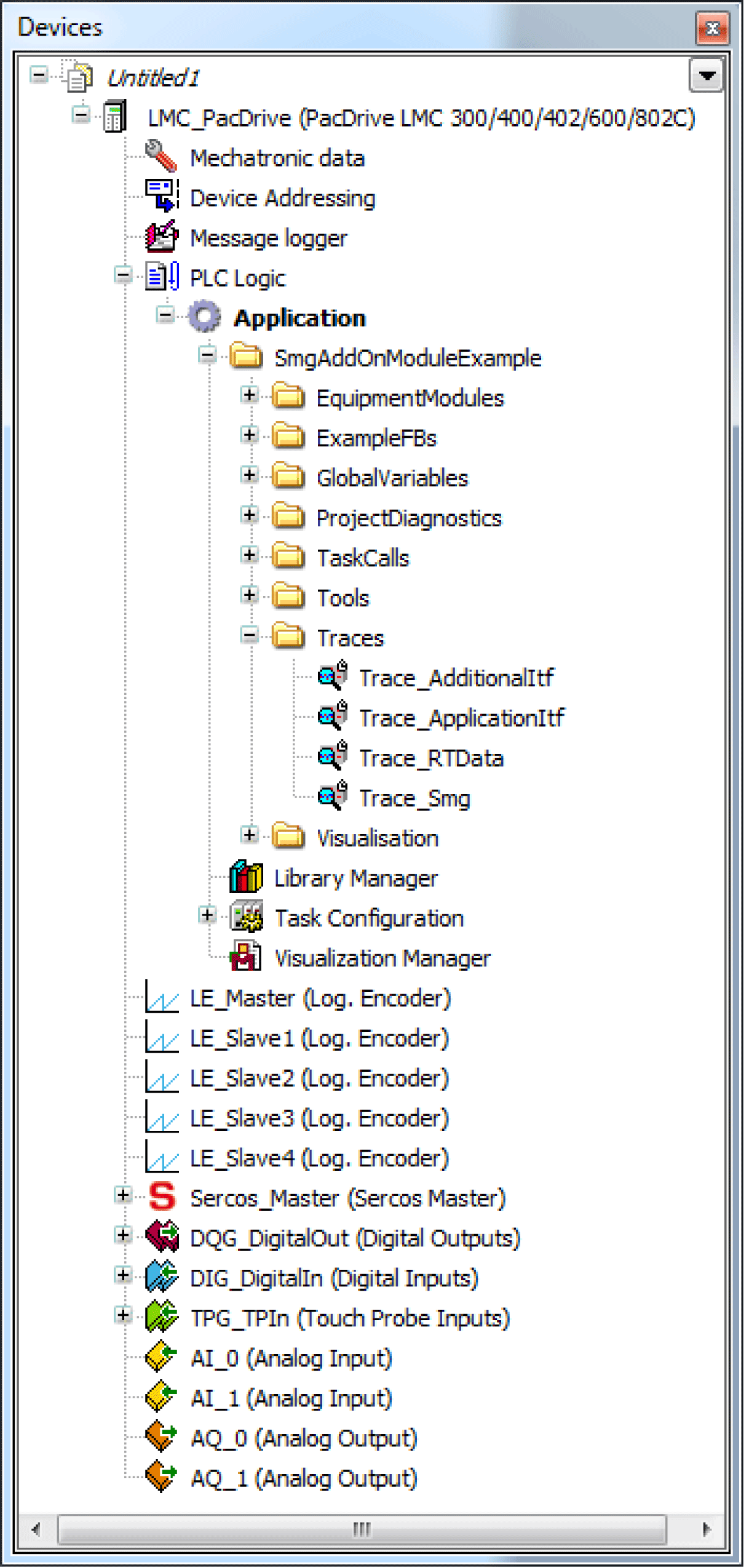

SmgAddOnModuleExample Folder

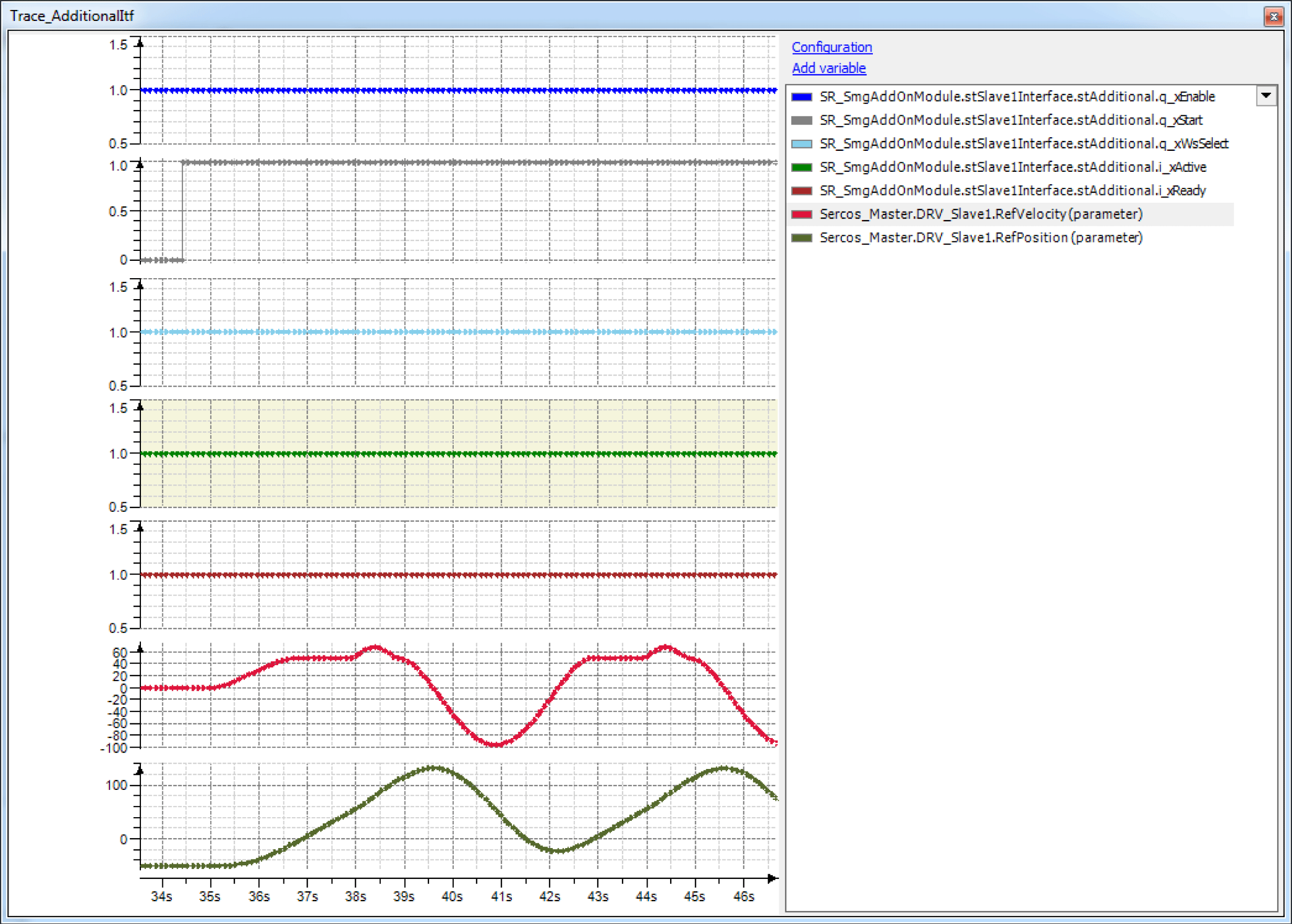

Trace_AdditionalItf: This trace shows the substantial variables which are sent by the module interface to the application.
Trace_AdditionalItf
Trace_ApplicationItf: This trace shows the substantial variables which are received by the application from the module interface.
Trace_ApplicationItf

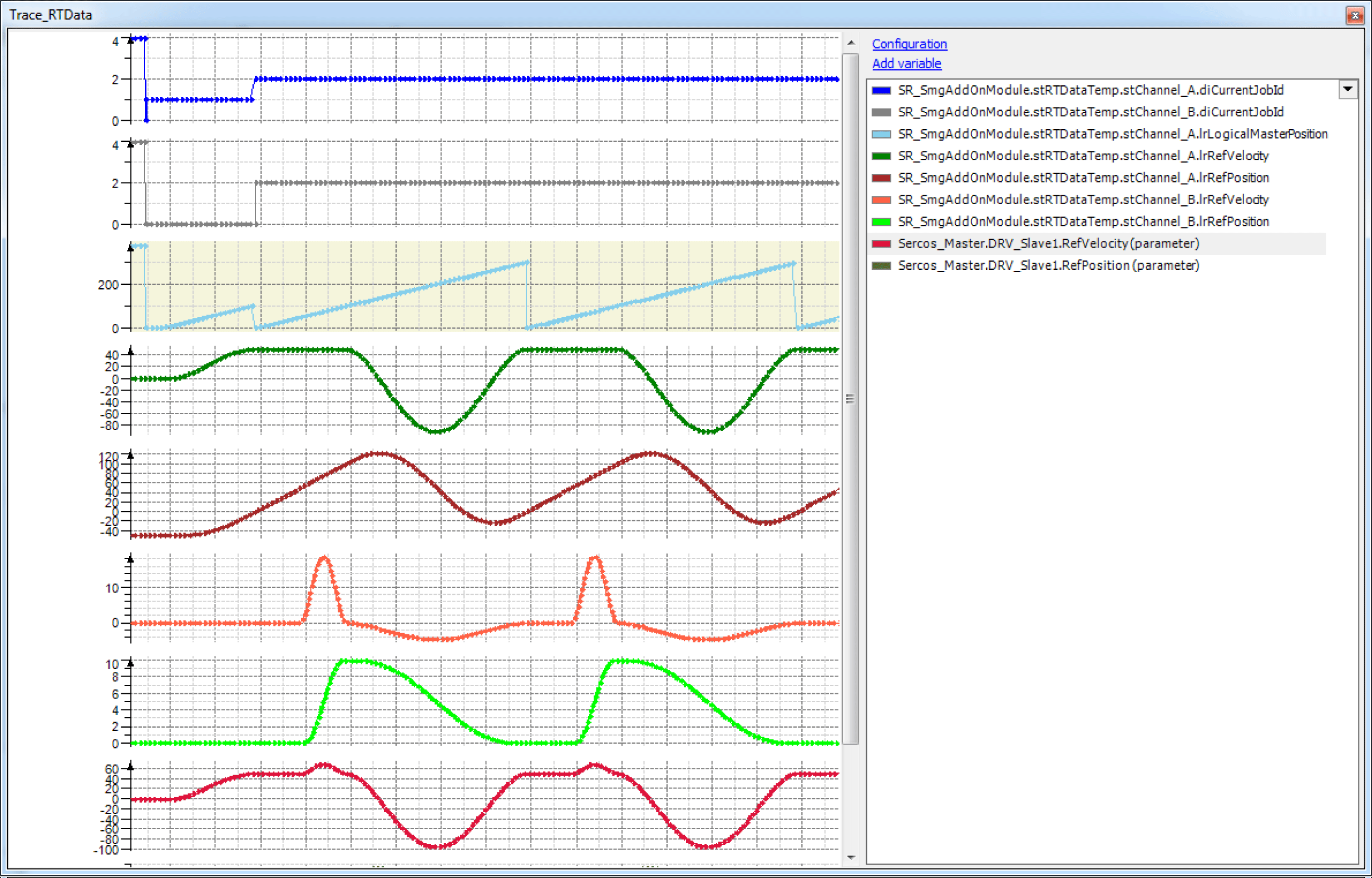

Trace_RTData: This trace shows the superposition of cam curves which are generated by the FB_SoMotionGenerator.
Trace_RTData
