Configuration of the Real-Time Clock
The real-time clock of the controller can be adjusted via the Services tab of the controller configuration.

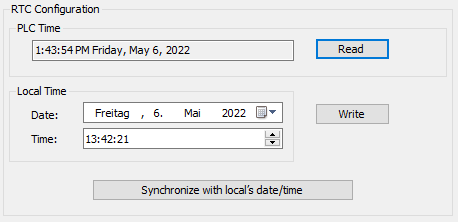

The Services tab provides the following possibilities:
-
Reading the time and date of the controller
-
Setting the time and date of the controller
|
Element |
Description |
|---|---|
|
PLC Time field |
Displays the date and time read from the controller when you click the Read button, with no conversion applied. This read-only field is initially empty. |
|
Read button |
Reads the date and time saved on the controller and displays the values in the PLC Time field. |
|
Local time fields |
Defines a date and time to send to the controller when you click the Write button. If necessary, modify the default values before clicking the Write button. A message box informs you about the result of the command. The date and time fields are initially filled with the PC settings. |
|
Write button |
Writes the date and time defined in the Local time fields to the logic controller. A message box informs you of the result of the command. |
|
Synchronize controller with computer’s date/time button |
Sends the PC date and time. A message box informs you of the result of the command. |
