Parts Identification and Functions

Parts Identification and Functions

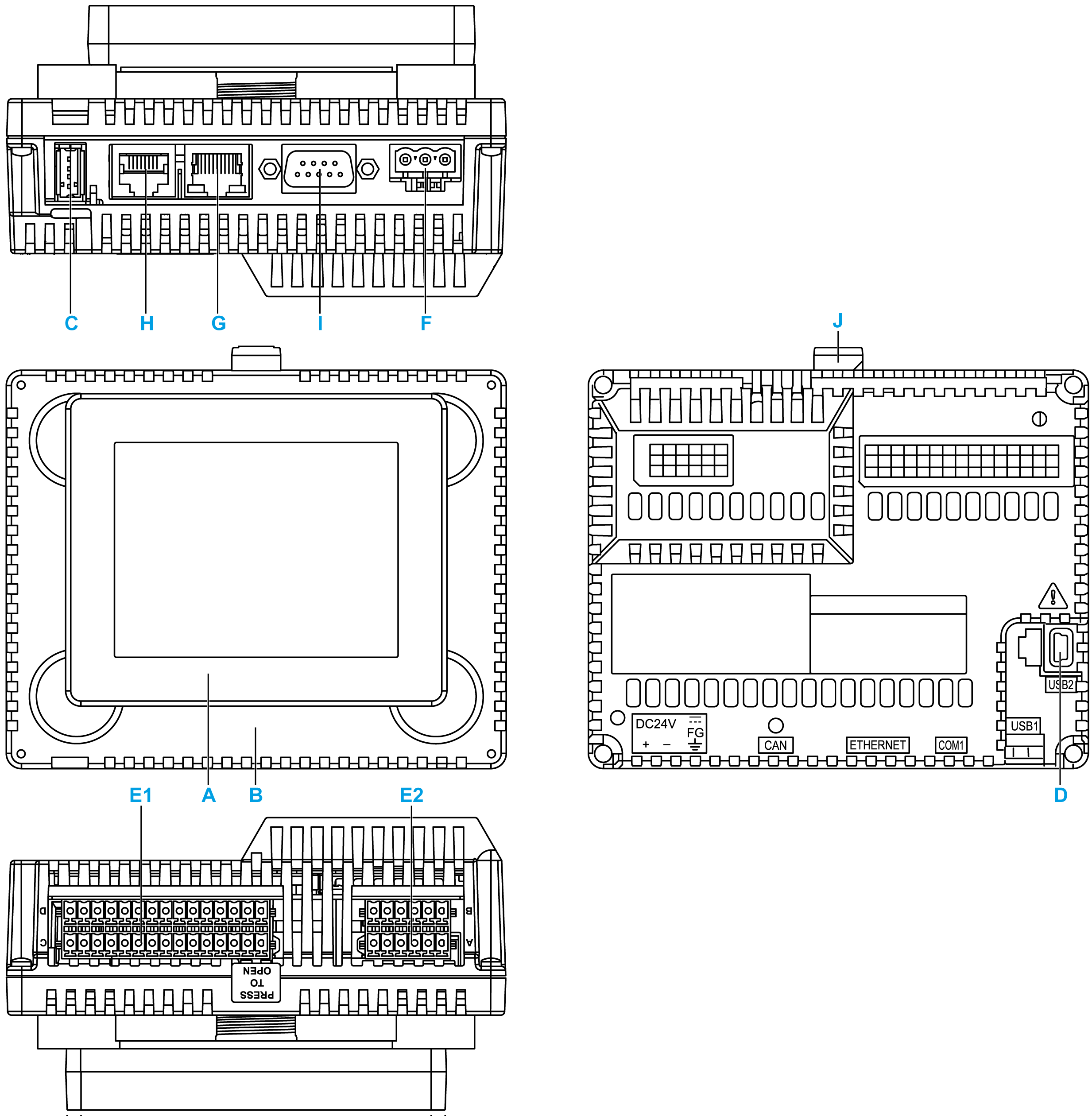

HMISCU Parts Identification


Part	Description
A	Display module
B	Rear module
C	USB (type A) port (USB1)
D	USB (type mini B) port (USB2)
E1	I/O terminal block 1
E2	I/O terminal block 2
F	DC power supply connector
G	Ethernet connector
H	Serial link (RS-232C/485)
I	CANopen connector
J	Yellow button lock

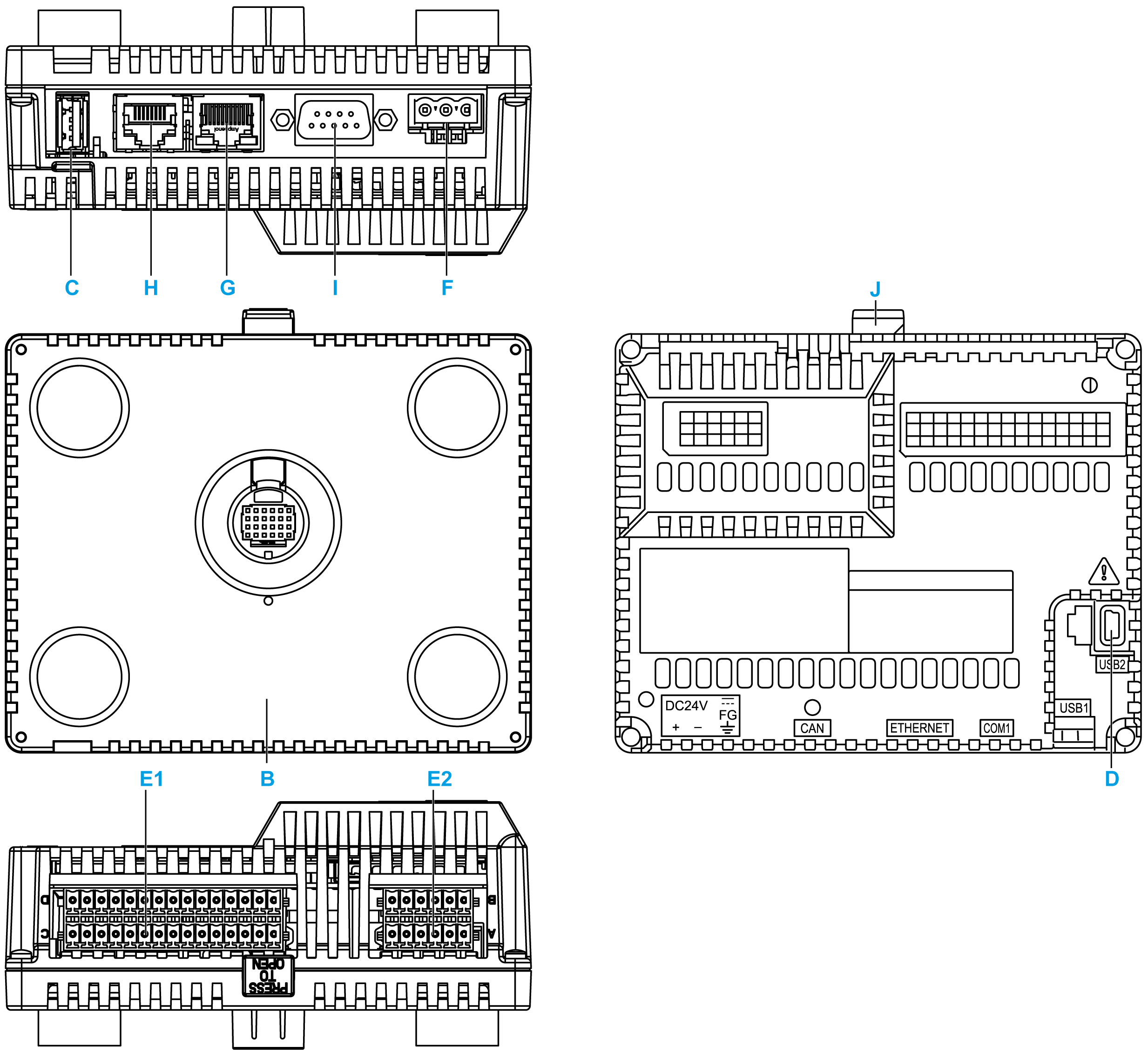

Rear Module Parts Identification


Part	Description
B	Rear module
C	USB (type A) port (USB1)
D	USB (type mini B) port (USB2)
E1	I/O terminal block 1
E2	I/O terminal block 2
F	DC power supply connector
G	Ethernet connector
H	Serial link (RS-232C/485)
I	CANopen connector
J	Yellow button lock
