Optional Interface Installation
Before installing or removing an interface module, shut down Windows in an orderly fashion and remove the power from the device.
|
HAZARD OF ELECTRIC SHOCK, EXPLOSION OR ARC FLASH |
oRemove all power from the device before removing any covers or elements of the system, and prior to installing or removing any accessories, hardware, or cables. oUnplug the power cable from both the Magelis Industrial PC and the power supply. oAlways use a properly rated voltage sensing device to confirm power is off. oReplace and secure all covers or elements of the system before applying power to the unit. oUse only the specified voltage when operating the Magelis Industrial PC. The DC unit is designed to use 24 Vdc input. |
Failure to follow these instructions will result in death or serious injury. |
Compatible table:
Part number |
Description |
S-Panel PC |
Enclosed PC |
---|---|---|---|
HMIYMINUSB1 |
Interface USB 3.0, 2 x USB |
Yes |
Not applicable |
HMIYMINAUD1 |
Interface audio BKT, 1 x LI/LO/MIC |
Not applicable |
Not applicable |
HMIYMINSL24851 |
Interface 2 x RS-422/485 isolation |
Yes |
Not applicable |
HMIYMINSL44851 |
Interface 4 x RS-422/485 isolation, DB 37, cable |
Yes |
Not applicable |
HMIYMINSL22321 |
Interface 2 x RS-232 isolatation |
Yes |
Not applicable |
HMIYMINSL42321 |
Interface 4 x RS-232, DB37, cable |
Yes |
Not applicable |
HMIYMINAUD21 |
Interface audio 1 x LI/LO/MIC |
Yes(1) |
Not applicable |
HMIYMINATPM201 |
Interface TPM 2.0 |
Not applicable |
Not applicable |
HMIYMINIO1 |
Interface 16DI/8DO, 1 x DB37, 2 m cable |
Yes |
Not applicable |
HMIYMINWIFI1 |
Interface WiFi, AC3160, 2 x antenna |
Yes |
Not applicable |
HMIYMINGPRS1 |
Interface 3G, C109, 1 x antenna |
Yes |
Not applicable |
HMIYMIN4GUS1 |
Interface 4G US, 1 x antenna |
Yes |
Not applicable |
HMIYMIN4GEU1 |
Interface 4G EU/ASIA, 1 x antenna |
Yes |
Not applicable |
HMIYADDPDVI11 |
Interface DP to DVI adaptor, active mode |
Not applicable |
Not applicable |
HMIYMINDVII1 |
Interface 1 x DVI-I |
Yes |
Not applicable |
HMIYMINVGADVID1 |
Interface, 1 x DVI-D, 2 x VGA, two brackets |
Yes(2) |
Not applicable |
HMIYMINDP1 |
Interface display, HD BaseT TX |
Not applicable |
Not applicable |
HMIYMINPRO1 |
Interface Profibus w/NVRAM, 128 Mb + ML |
Yes |
Not applicable |
HMIYMINCAN1 |
Interface fieldbus, 2 x CANopen |
Yes |
Not applicable |
(1) S-Panel PC has default audio line out. For Line in, Line out and Mic in, please use mini PCIe HMIYMINAUD21. (2) Only support one Interface bracket; either with 2 x VGA or DVI-D bracket. |

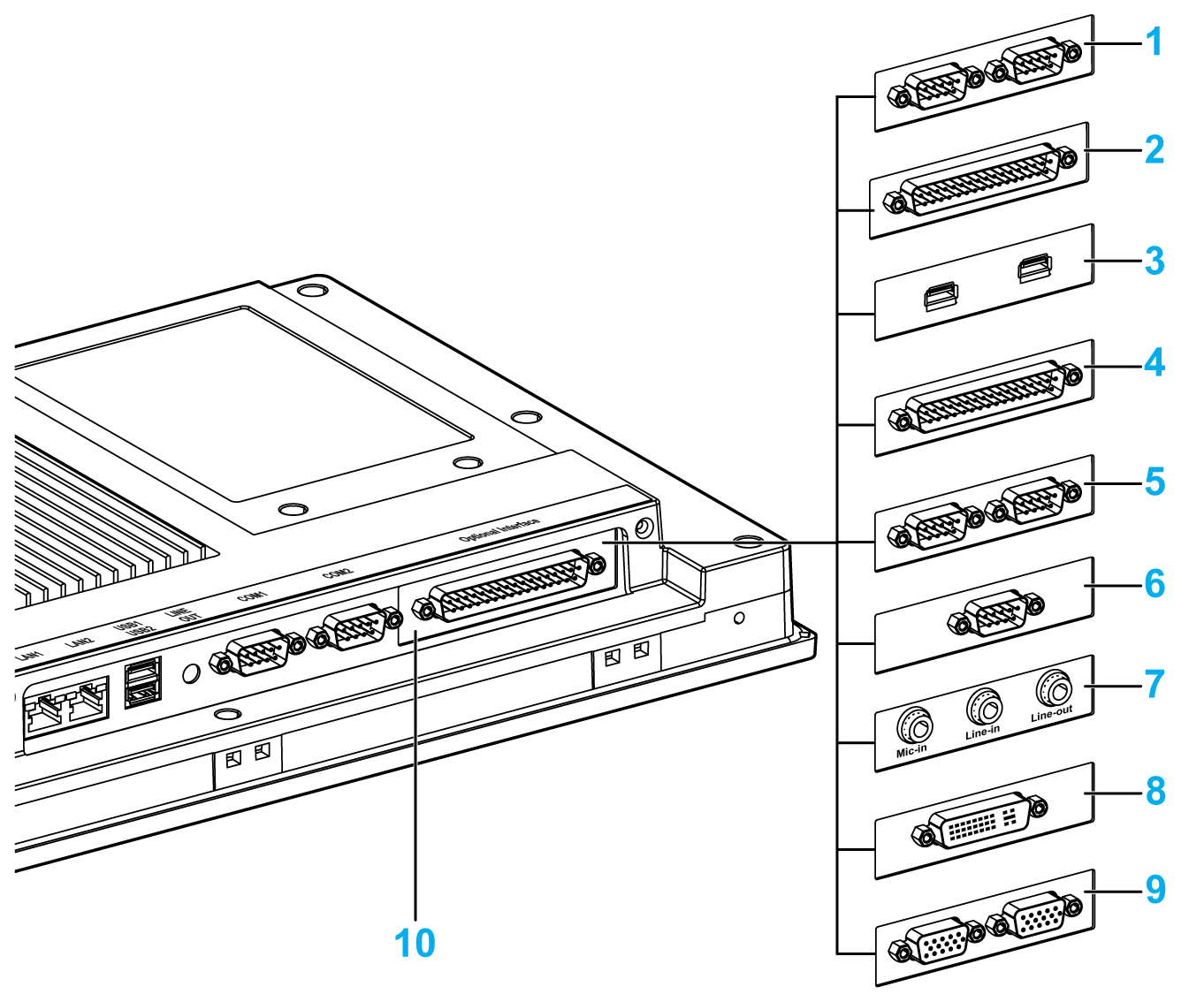

The figure shows the possible interfaces:
1 2 x RS-232/422/485 interface
2 4 x RS-232/422/485 interface
3 USB interface
4 DIO interface
5 CANopen interface
6 Profibus DP interface
7 Audio interface
8 DVI interface
9 VGA interface
10 Optional interface
The table shows the type and the interface part numbers:
Designation |
Part number |
Interface |
PCIe card |
Pin header from system |
Interface plate |
---|---|---|---|---|---|
HMIYMINNVRAM1 |
Card NVRAM (non-volatile random-access memory) |
1 |
– |
– |
|
HMIYMINSL24851 |
2 x RS-422/485 isolated |
1 |
– |
1 |
|
HMIYMINSL44851 |
4 x RS-422/485 |
||||
HMIYMINSL22321 |
2 x RS-232 isolated |
||||
HMIYMINSL42321 |
4 x RS-232 |
||||
HMIYMINIO1 |
16 x DI / 8 x DO |
1 |
– |
1 |
|
HMIYMINCAN1 |
2 x CanOpen/CanBus |
1 |
– |
1 |
|
HMIYMINPRO1 |
1 x Profibus DP master NVRAM |
1 |
– |
1 |
|
HMIYMINUSB1 |
2 x USB 3.0 (card with pin-header) |
1 |
1 |
1 |
|
HMIYMINWIFI1 |
1 x Wireless LAN and 2 x antennas |
1 |
– |
1 |
|
HMIYMINGPRS1 |
1 x GPRS (general packet radio service) card with mPCIe card |
1 |
|
1 |
|
HMIYMINAUD21 |
1 x Audio |
1 |
– |
1 |
|
HMIYMINDVII1 |
1 x DVI-I |
1 |
– |
1 |
|
HMIYMINVGADVID1 |
1 x DVI-D |
1 |
– |
1 |
|
2 x VGA |
1 |
– |
1 |
||
HMIYMIN4GUS1 |
4G interface for US and antenna |
1 |
– |
1 |
|
HMIYMIN4GEU1 |
4G interface for EU/Asia and antenna |
1 |
– |
1 |
Before installing or removing a mini PCIe card, shut down Windows in an orderly fashion and remove the power from the device.
|
POTENTIAL FOR EXPLOSION IN HAZARDOUS LOCATION |
Do not use this product in hazardous locations. |
Failure to follow these instructions will result in death or serious injury. |
NOTICE |
ELECTROSTATIC DISCHARGE |
Take the necessary protective measures against electrostatic discharge before attempting to remove the Magelis Industrial PC cover. |
Failure to follow these instructions can result in equipment damage. |
|
OVERTORQUE AND LOOSE HARDWARE |
oDo not exert more than 0.5 Nm (4.5 lb-in) of torque when tightening the installation fastener, enclosure, accessory, or terminal block screws. Tightening the screws with excessive force can damage the installation fastener. oWhen fastening or removing screws, ensure that they do not fall inside the Magelis Industrial PC chassis. |
Failure to follow these instructions can result in injury or equipment damage. |
NOTE: Be sure to remove the power before attempting this procedure.
Step |
Action |
---|---|
1 |
Disconnect the power cord to the S-Panel PC. |
2 |
Touch the housing or ground connection (not the power supply) to discharge any electrostatic charge from your body. |
3 |

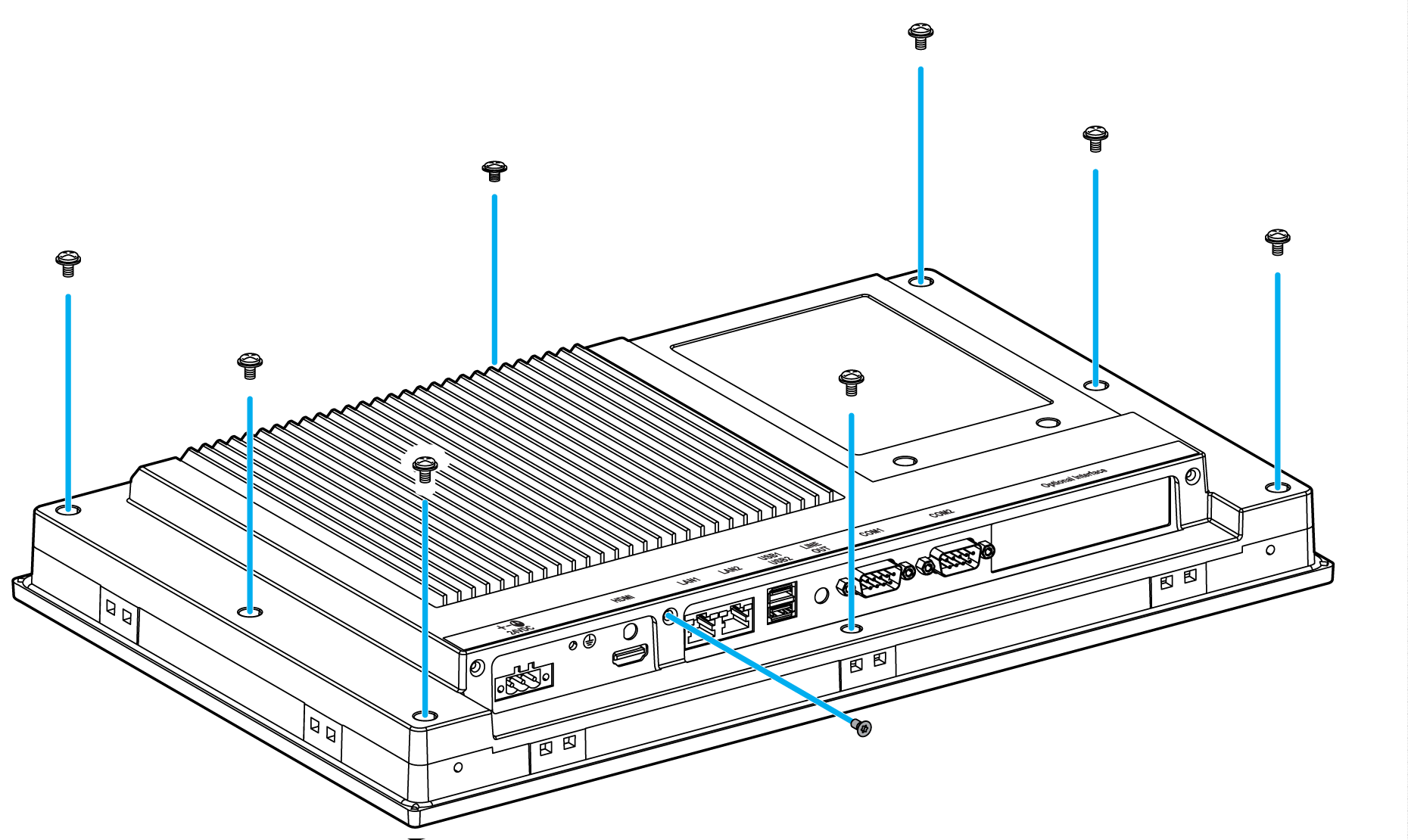

Remove the 9 screws from the cover and, remove it: ![]()
|
4 |

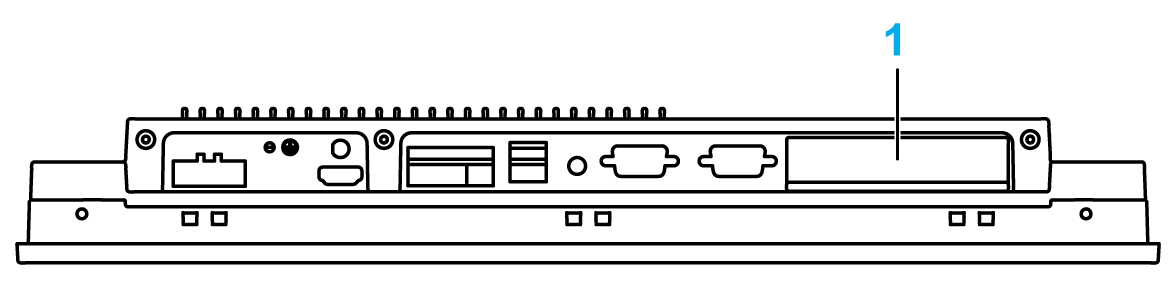

Insert the interface into the slot and fasten it to the S-Panel PC with 2 screws: ![]()
1 Optional interface NOTE: The recommended torque to tighten these screws is 0.5 Nm (4.5 lb-in). |
5 |

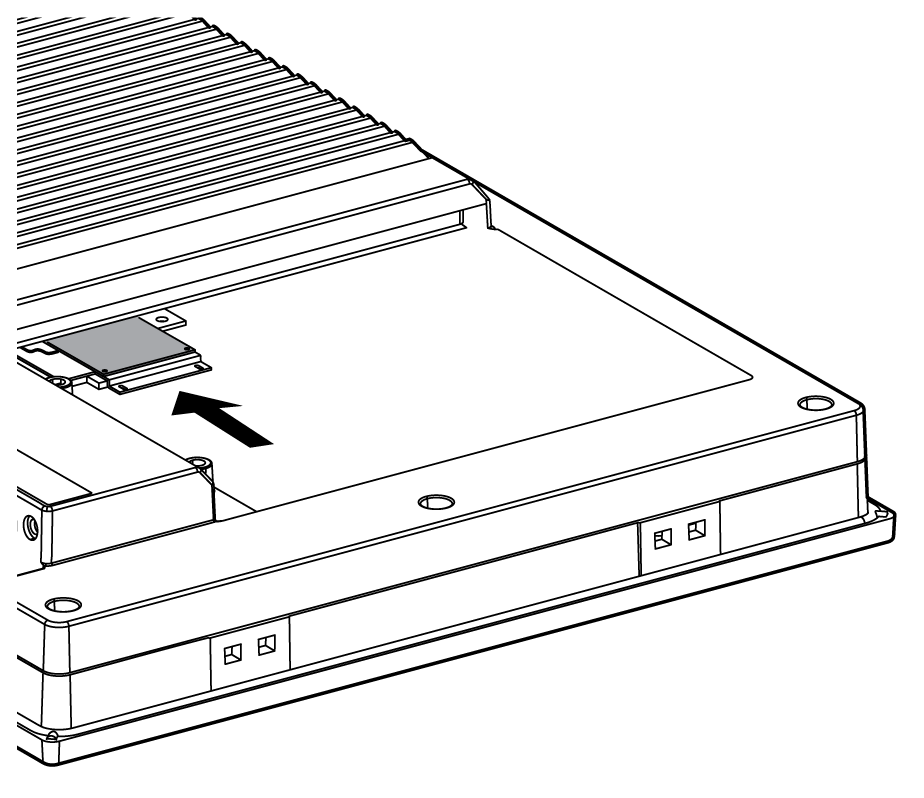

Insert the mini PCIe card into the expansion card connector and fasten it with 2 screws: ![]()
NOTE: When using a mini PCIe card with an external cable attached, install a clamp or other device to secure the cable. NOTE: A size 2 Phillips screw driver is required. The recommended torque to tighten these screws is 0.5 Nm (4.5 lb-in). |
6 |
Replace the cover and fasten it with the screws: ![]()
NOTE: The recommended torque to tighten these screws is 0.5 Nm (4.5 lb-in). |
