Overview
|
Type:
|
Function
|
|
Available as of:
|
V1.0.0.0
|
Functional Description
The function FC_BuildIDN builds the structured IDN with the input values from the symbolic addressing (<S/P>-<PS>-<DBN>.<SI>.<SE>). The function verifies the input values. If an input is determined to be invalid, a result code is given. In this case, the return value FC_BuildIDN is set to FALSE.

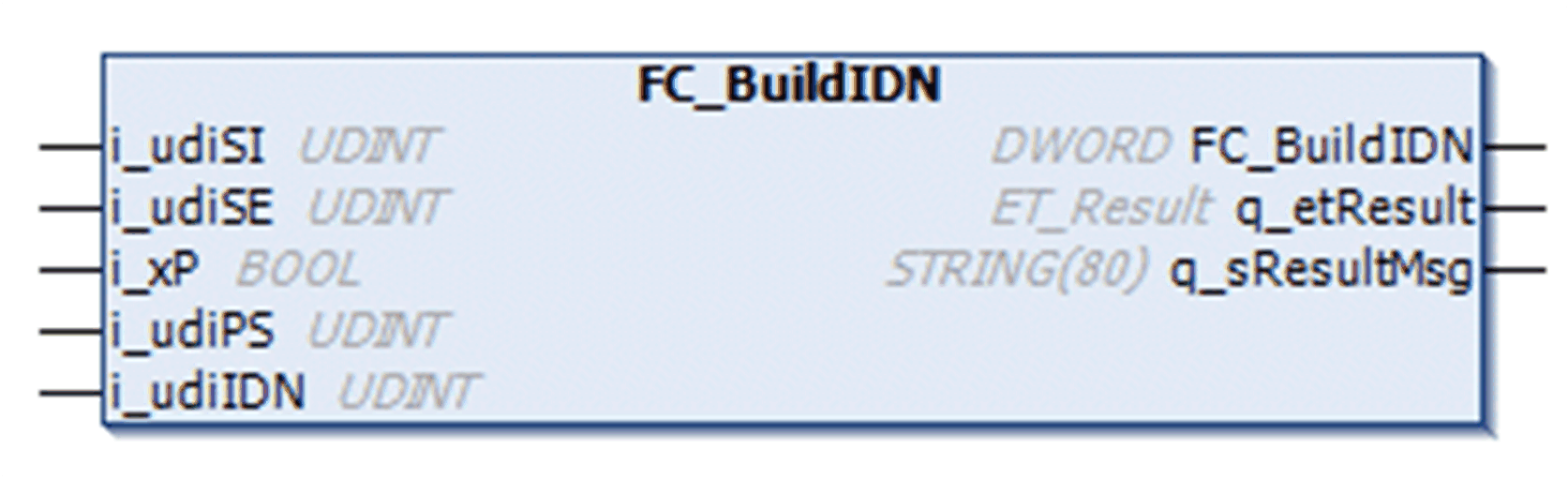

Interface
|
Input
|
Data type
|
Description
|
|
i_udiSI
|
UDINT
|
Structure instance of the IDN
|
|
i_udiSE
|
UDINT
|
Structure element of the IDN
|
|
i_xP
|
BOOL
|
S/P parameter:
0 (FALSE) = S
1 (TRUE) = P
|
|
i_udiPS
|
UDINT
|
Parameter set of the IDN
|
|
i_udiIDN
|
UDINT
|
Data block number of the IDN
|
|
Output
|
Data type
|
Data type
|
|
q_etResult
|
ET_Result
|
Result of the function
|
|
q_sResultMsg
|
STRING[80]
|
Description of the result
|
Return Value
|
Data type
|
Data type
|
|
DWORD
|
The return value of the function FC_BuildIDN is the structured IDN as a DWORD or FALSE if any input is determined to be invalid. This return value can be used as the input i_dwParamterIDN for the function blocks FB_ReadParameter and FB_WriteParamter.
|
