Text List
Overview
A text list is an object managed globally in the node of the or assigned to an application in the .
It serves the following purposes:
-
Multi-language support for static and dynamic texts and tooltips in visualizations and in the alarm handling
-
Dynamic text exchange
Text lists can be exported and (re-) imported. Export is necessary, if a language file in XML format has to be provided for a target visualization, but is also useful for translations.
Possible formats of text lists:
-
Text
-
XML
You can activate support of Unicode.
Each text list is uniquely defined by its namespace. It contains text strings which are uniquely referenced within the list by an identifier (ID, consisting of any sequence of characters) and a language identifier. The text list to be used is specified when configuring the text for a visualization element.
Depending on the language which is set in the visualization, the corresponding text string is displayed in online mode. The language used in a visualization is changed by a input. This is accomplished by a mouse action that you have configured on the given visualization element. Each text list must at least contain a default language, and optionally in other languages that you choose to define. If no entry is found which matches the language currently set in EcoStruxure Machine Expert, the default language entry of the text list is used. Each text can contain formatting definitions.
Basic structure of a text list
|
Identifier (Index) |
Default |
<Language 1> |
<Language 2> |
.... <Language n> |
|---|---|---|---|---|
|
<unique string of characters> |
<text abc in default language> |
<text abc in language 1> |
<text abc in language 2> |
... |
|
<unique string of characters> |
<text xyz in default language> |
<text xyz in language 1> |
<text xyz in language 2> |
... |
Text List Types
There are two types of text usable in visualization elements and correspondingly there are two types of list:
-
GlobalTextListfor static texts -
Textlist for dynamic texts
for Static Texts
is a special text list where the identifiers for the particular text entries are handled implicitly and are not editable. The list can be exported, edited externally and then reimported.

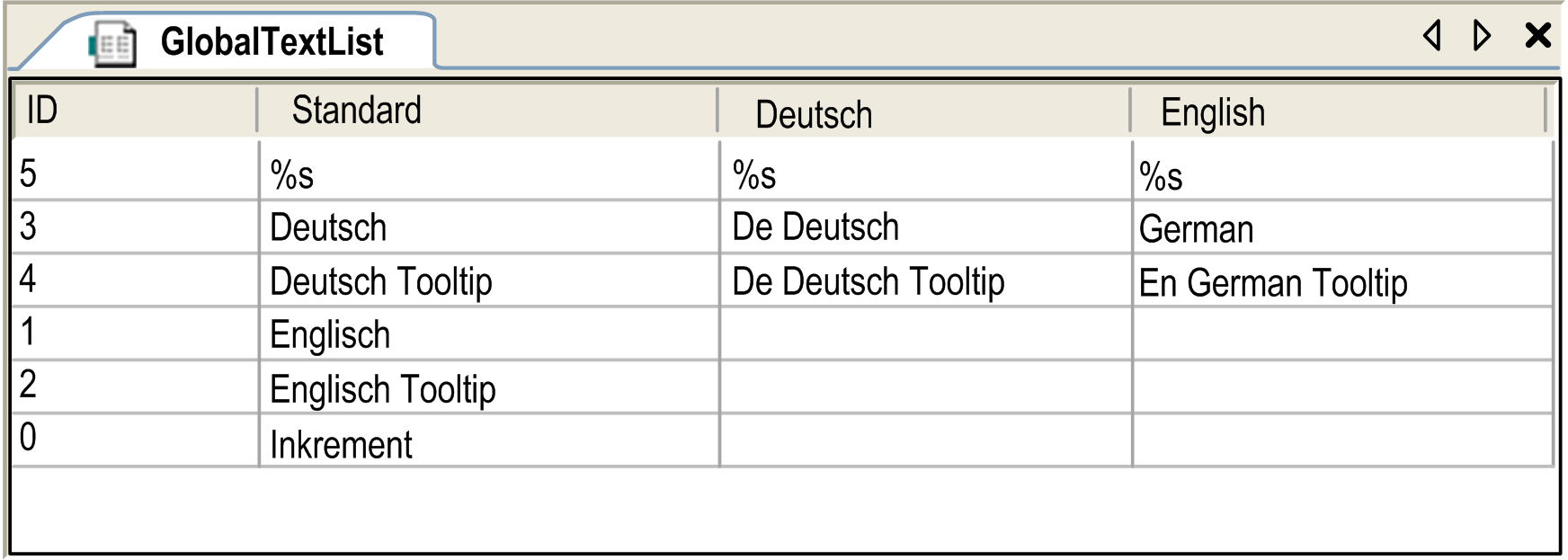

Static texts in a visualization, in contrast to dynamic texts, are not exchanged by a variable in online mode. The only option to exchange the language of a visualization element is via a input. A static text is assigned to a visualization element via property or in category . When the first static text is defined in a project, a text list object named is added to the node of the . It contains the defined text string found in the column , and an automatically assigned integer number as the text identifier. For each static text that is created thereafter, the identifier number is incremented and assigned to the visualization element.
If a static text is entered into a visualization element (for example, if in a rectangle with property category of , the string is specified), this text is looked up in the .
-
If the text is found (for example, , ), the element value of will be assigned to an internal variable. This establishes the relationship between the element and the corresponding line in the .
-
If the text is not found, a new line is inserted in the (for example, ). In the element, the value is assigned to the internal variable.
If you have exported, edited and reimported the , it is validated as to whether the identifiers are still matching those which are used in the configuration of the respective visualization elements. If necessary, an implicit update of the identifiers used in the configuration will be implemented.
To update the ID numbers of the texts that are defined for a visualization, you can remove the by right-clicking the node and executing the command. Then open a visualization and execute the command . A new node is created in the with the static texts of the visualizations available in the project.
Textlist for Dynamic Texts
Dynamic texts can be modified dynamically in online mode. The text index (), which is a string of characters, must be unique within the text list. In contrast to , you have to define it. Also in contrast to the , create text lists for dynamic texts explicitly by selecting the node, clicking the green plus button, and executing the command .
The available dynamic text lists are offered when configuring a visualization element via property / . If you specify a text list name combined with the text index () - which can be entered directly or by entering a project variable which defines the ID string - the text can be modified in online mode.
A dynamic text list must be exported if it is needed as a language file for language switching in a target visualization. Specify the file path in the . Such as , a dynamic text list can also be exported for external editing and reimported. In contrast to , when you import dynamic text lists, there is no automatic check and update of the identifiers.
| NOTICE | |
|---|---|
Detailed Example
This example explains how to configure a visualization element, which displays the corresponding message when an error is detected in an application that processes error events identified via numeric IDs assigned to an integer variable ivar_err.

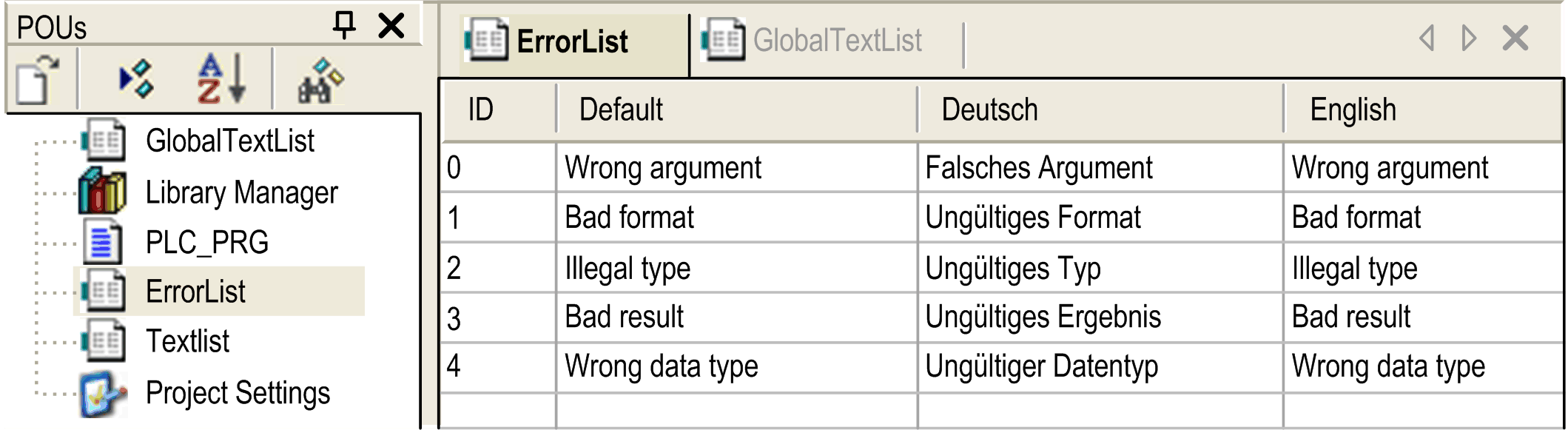

Provide a dynamic textlist named where the message texts for error IDs 0 to 4 are defined in languages , , and :

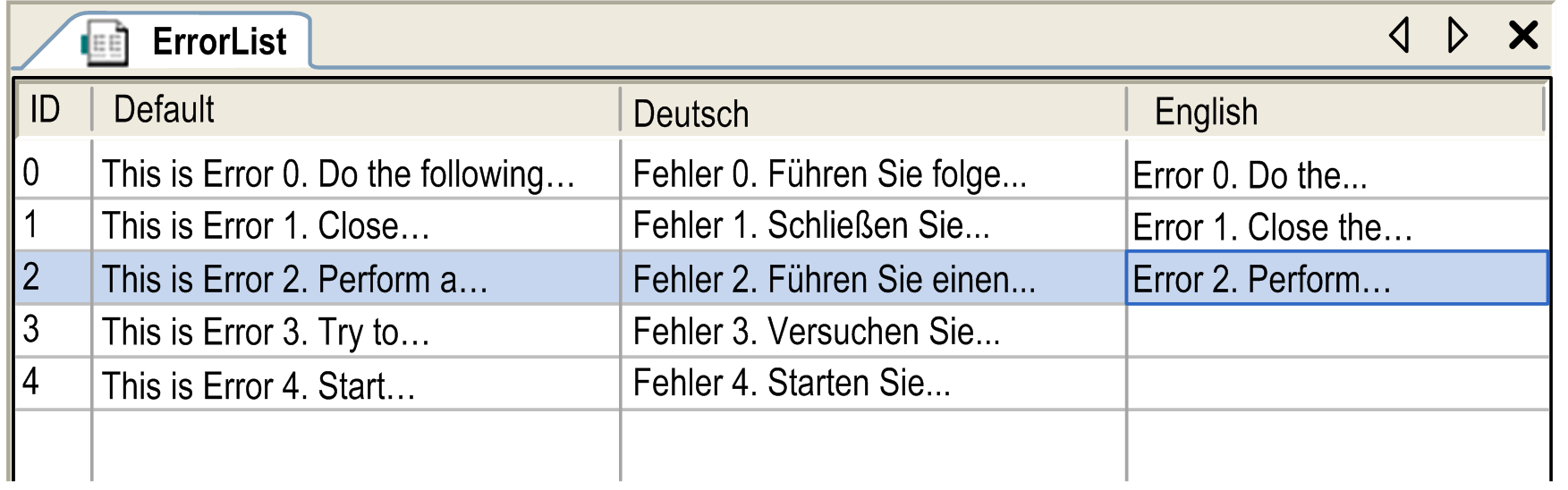

Within a table cell, you can add a line break by pressing the keyboard shortcut + .
To use the error IDs in the visualization configuration, define a STRING variable, for example strvar_err. To assign the integer value of ivar_err to strvar_err, use strvar_err:=INT_TO_STRING(ivar_err);.

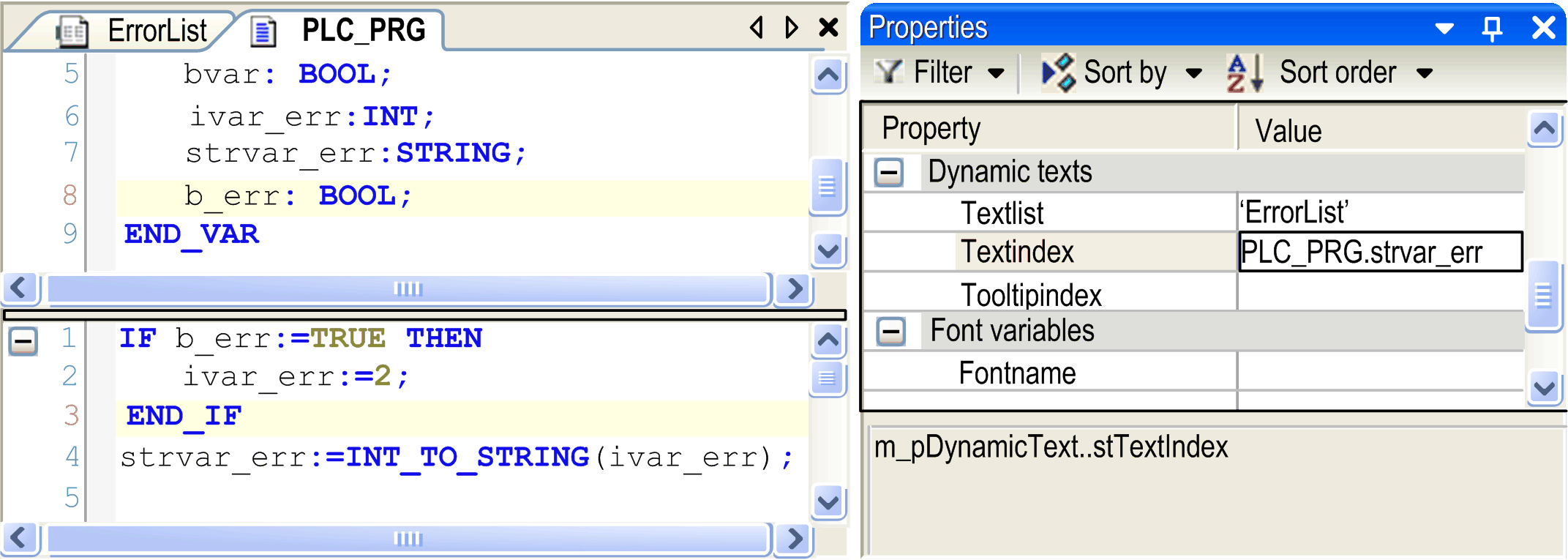

strvar_err can be entered as parameter in the configuration of the properties of a visualization element. This element will display the appropriate message in online mode.
The next example is for processing the error ID using project variables and configuration of a visualization element (), which should display the appropriate message:
Creating a Text List
-
To create a text list for dynamic texts, add a object to the project in the . To create an application-specific text list, select an application node. To create a global text list, select the node. Then click the green plus button of the selected node, and execute the command . When you have specified a list name and confirmed the dialog box, the new list is inserted below the selected node, and a text list editor view opens.
-
To get a text list for static texts (), either assign a text in property in category of a visualization object to get the list created automatically, or generate it explicitly by command .
-
To open an existing text list for editing, select the list object in the or node of the . Right-click the text list node and execute the command , or double-click the text list node. Refer to the table Basic structure of a text list for how a text list is structured.
-
For adding a new default text in a text list, either use the command , or edit the respective field in the empty line of the list. To edit a field in a text list, click the field to select it and then click the field again or press SPACE to get an edit frame. Enter the desired characters and close the edit frame with RETURN.
Support of Unicode Format
To use Unicode format, activate the respective option in the . Further on, set a special compilation directive for the application: select the application in the , open the dialog box, tab. In the field, enter VISU_USEWSTRING.

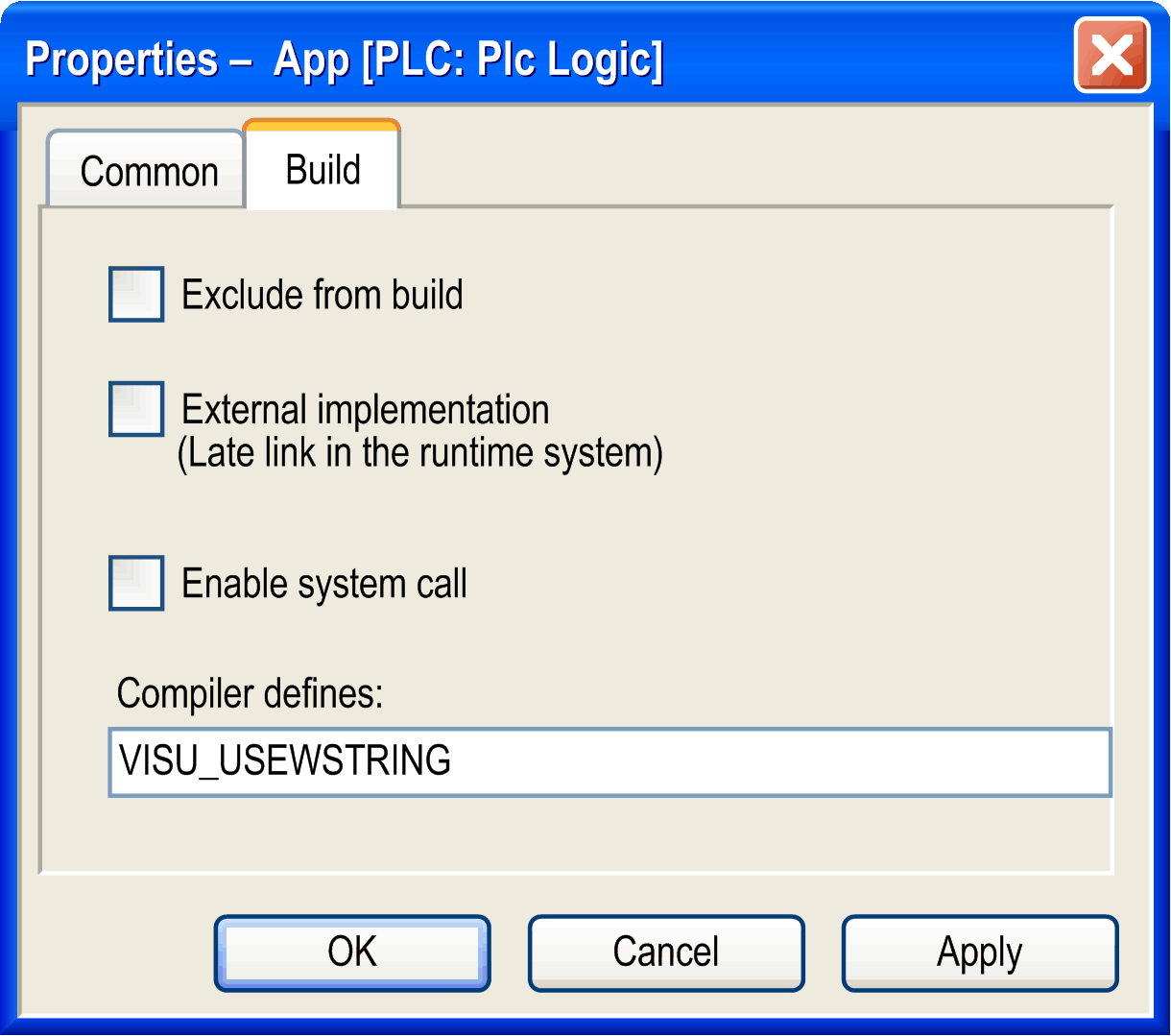

Dialog box with compiler definition
Export and Import of Text Lists
Static and dynamic text lists can be exported as files in CSV format. Exported files can also be used for adding texts externally, for example by an external translator. However, only files available in text format (*.csv) can be reimported.
See the description of the respective text list commands.
Specify the folder in which the export files should be saved in the dialog box .
Formatting of Texts
The texts can contain formatting definitions (%s,%d,…), which allow to include the present values of variables in a text. For the possible formatting strings, see the Visualization part of the EcoStruxure Machine Expert online help.
When using text with formatting strings, the replacement is done in the following order:
-
The actual text string to be used is searched via list name and ID.
-
If the text contains formatting definitions, these are replaced by the value of the respective variable.
Subsequent Delivery of Translated Texts
By inserting GlobalTextList.csv in the directory which is used for loading text files, a subsequent integration of translated texts is possible. When the bootproject is started up, the firmware detects that an additional file is available. The text is compared with that in the existing textlist files. New and modified texts are then applied to the textlist files. The updated textlist files will then be applied at the next startup.
List Components for Text Input
Via the dialog box , you can specify a text template file. All texts of column of this file will be copied to a list, which will be used for the functionality. A template file can be used which has been created before via the command.
Multiple User Operations
By use of the source control, it is possible that multiple users work simultaneously on the same project. If a static text is modified in visualization elements by more than one user, it will cause modifications to the (refer to GlobalTextList). In this case, the Text-Ids may no longer be coherent with the visualization elements. Use the following error detection and correction methods:
-
Use the command , such errors may be detected in the visualizations.
-
Use the command , these errors may be resolved automatically. The affected visualizations as well as the must have write permission.
Use of Textlists for Changing Language in Visualizations
If an appropriate textlist is available, that is, a textlist defining several language versions for a text, then the language used for the texts in a visualization can be switched in online mode by an input on a visualization element. The properties of the element must specify the textlist to be used, and an input action, , must be configured specifying the language which should be used after the mouse action has been performed.
