Cursor Positions in SFC

Overview

Possible cursor positions in an SFC diagram in the SFC editor are indicated by a gray shadow when moving with the cursor over the elements.

Cursor Positions in Texts

There are 2 categories of cursor positions: texts and element bodies. See the possible positions indicated by a gray shaded area as shown in the following illustrations:

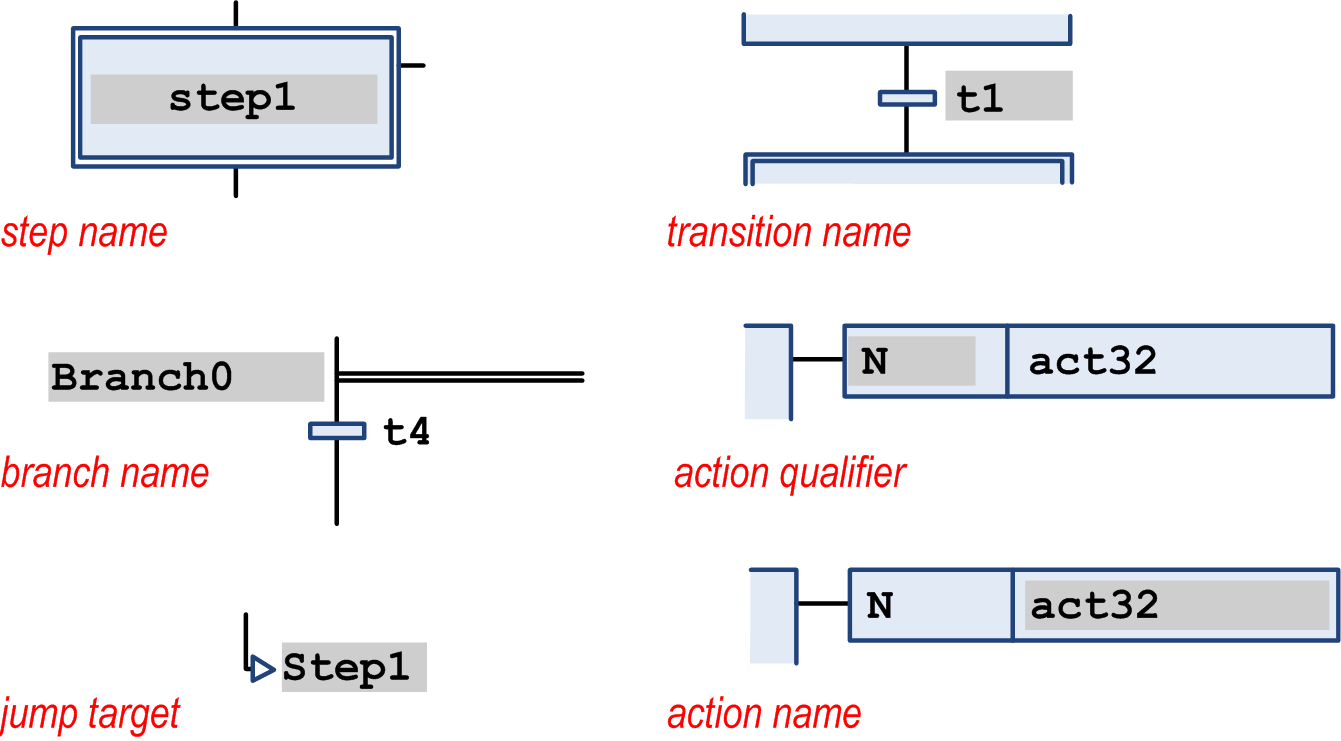

Possible cursor positions in texts:

When you click a text cursor position, the string will become editable.

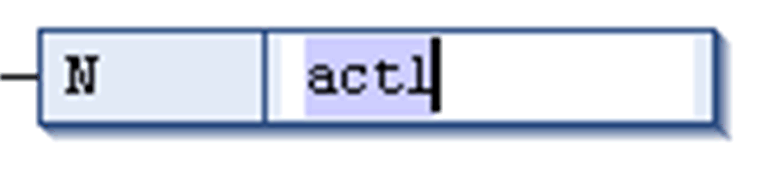

Select action name for editing:

Cursor Positions in Element Bodies

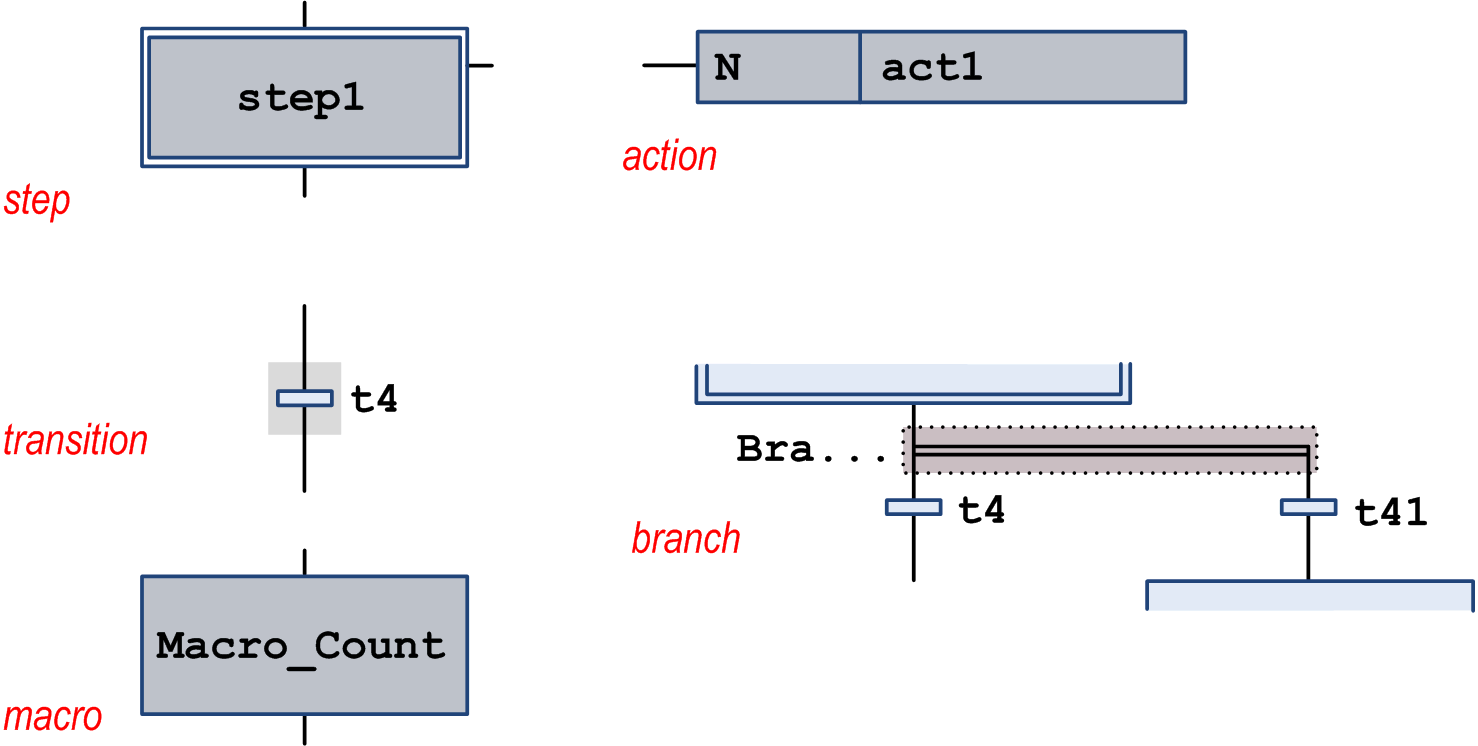

Possible cursor positions in element bodies:

When you click a shadowed area, the element is selected. It gets a dotted frame and is displayed as red-shaded (for multiple selection, refer to Working in the SFC Editor ).

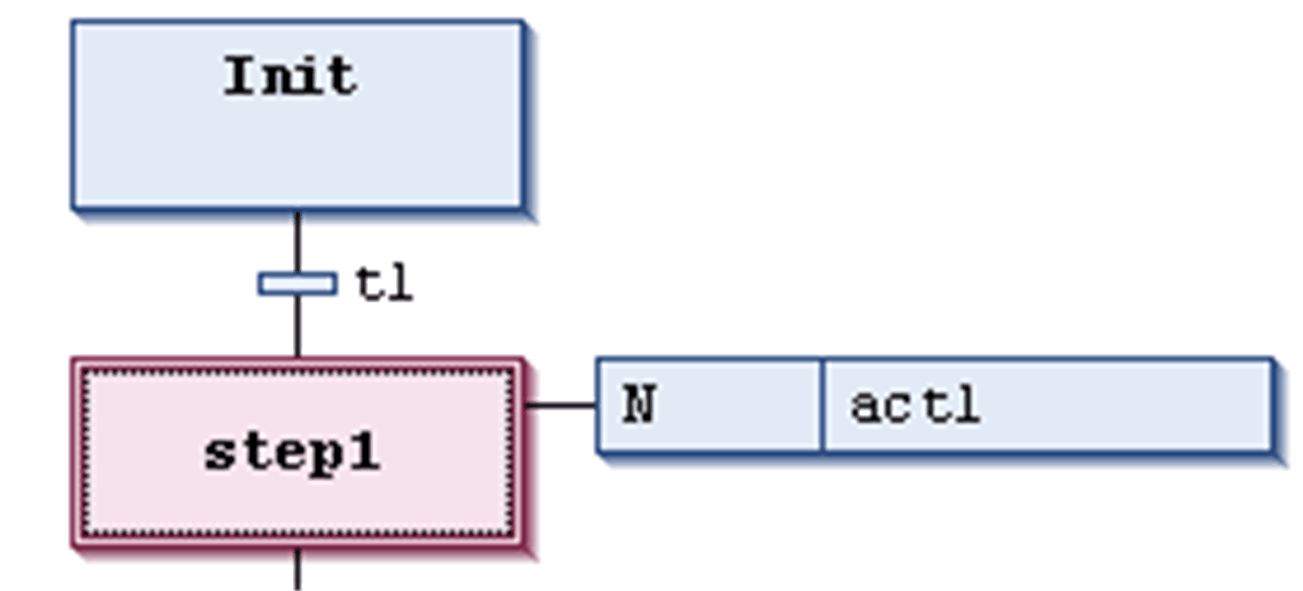

Selected step element
