`Attribute monitoring_encoding`

Overview

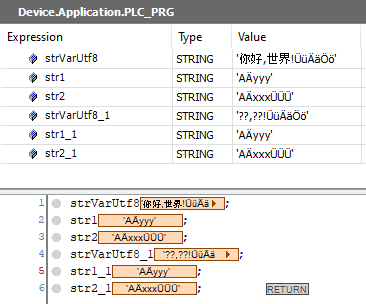

Add the pragma Attribute monitoring_encoding to string variables and aliases. Values of variables marked with this pragma are decoded in UTF-8 format during monitoring.

Syntax

{attribute 'monitoring_encoding' := 'UTF8'}

Example

Insert the pragma Attribute monitoring_encoding above the variable declaration.

PROGRAM PLC_PRG
VAR
    {attribute 'monitoring.encoding' := 'UTF8'}
    strDat : STRING := 'abc';
    attribute 'monitoring_encoding' := 'UTF-8'}
    strVarUtf8: STRING := UTF8#'你好,世界!ÜüÄäÖö';
    {attribute 'monitoring_encoding' := 'UTF-8'}
    str1: STRING := UTF8#'AÄyyy';
    {attribute 'monitoring_encoding' := 'UTF-8'}
    str2: STRING := UTF8#'AÄxxxÜÜÜ';

    strVarUtf8_1: STRING := '你好,世界!ÜüÄäÖö';
    str1_1: STRING := 'AÄyyy';
    str2_1: STRING := 'AÄxxxÜÜÜ';
END_VAR
