Resistor - Functional Description

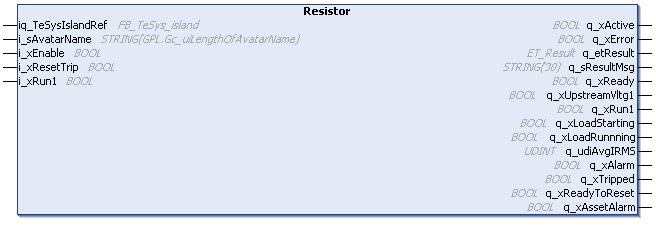

Function block

V2.0.3.0

Reference to the TeSys island device.

Reference to the avatar defined in the TeSys island configuration.

A rising edge at the input i_xEnable starts the cyclic data exchange between the function block and the selected avatar. As long as i_xEnable is TRUE, the cyclic data is exchanged at every controller cycle. A falling edge at the input i_xEnable stops the data exchange. Refer to Behavior of the Function Blocks with the Input i_xEnable.

If this input is set to TRUE, an avatar trip event is reset.

If this input is set to TRUE, the avatar forward switch is closed.

If the function block is active, this output is set to TRUE.

If this output is set to TRUE, an error has been detected. For details, refer to q_etResult and q_etResultMsg.

Provides diagnostic and status information as a numeric value.

Provides additional diagnostic and status information as a text message.

Indicates TRUE if the avatar is ready to receive commands.

If this output is set to TRUE, the avatar has detected that upstream main power of the first device is present (circuit breaker closed).

If this output is set to TRUE, the avatar forward switch is closed.

If this output is set to TRUE, the motor is in start phase.

If this output is set to TRUE, a Run or Close command has been executed and current is flowing in the poles (equivalent to motor running but also for non-motor avatars).

Indicates the lifetime average current measured by the device.

(Unit: mA)

If this output is set to TRUE, a protection event has been detected by the avatar.

If this output is set to TRUE, a protection trip event has been detected by the avatar.

If this output is set to TRUE, the avatar meets the trip reset conditions and can be reset with a trip reset command.

If this output is set to TRUE, a power device or Safety Interface Module within the avatar has reached or exceeded 90% of the rated number of operations (per avatar parameter).
