ReadAlarmCounters - Functional Description
Functional Description
The function block ReadAlarmCounters returns the alarm counters and resets the alarm counters of the selected avatar.

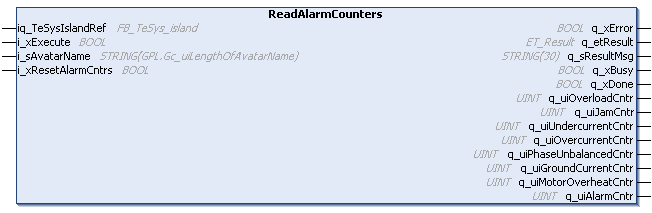

Interface
|
Input |
Data type |
Description |
|---|---|---|
|
iq_TeSysIslandRef |
FB_TeSys_island |
Reference to the TeSys island device. |
|
i_xExecute |
BOOL |
Upon a rising edge of this input, the function block starts the execution. The outputs q_xDone, q_xError, q_etResult, and q_etResultMsg are reset with the falling edge of i_xExecute. Refer to Behavior of Function Blocks with the Input i_xExecute. |
|
i_sAvatarName |
STRING(GPL.Gc_uiLengthOfAvatarName) |
Reference to the avatar defined in the TeSys island configuration. |
|
i_xResetAlarmCntrs |
BOOL |
If this input is set to TRUE, the alarm counters are reset. |
|
Output |
Data type |
Description |
|---|---|---|
|
q_xError |
BOOL |
If this output is set to TRUE, an error has been detected. For details, refer to q_etResult and q_etResultMsg. |
|
q_etResult |
ET_Result |
Provides diagnostic and status information as a numeric value. |
|
q_sResultMsg |
STRING[30] |
Provides additional diagnostic and status information as a text message. |
|
q_xBusy |
BOOL |
If this output is set to TRUE, the function block execution is in progress. |
|
q_xDone |
BOOL |
If this output is set to TRUE, the execution has been completed successfully. |
|
q_uiOverloadCntr |
UINT |
Counter of alarms related to thermal overload protection. |
|
q_uiJamCntr |
UINT |
Counter of alarms related to jam protection. |
|
q_uiUndercurrentCntr |
UINT |
Counter of alarms related to undercurrent protection. |
|
q_uiOvercurrentCntr |
UINT |
Counter of alarms related to overcurrent protection. |
|
q_uiPhaseUnbalancedCntr |
UINT |
Counter of alarms related to phase unbalance protection. |
|
q_uiGroundCurrentCntr |
UINT |
Counter of alarms related to ground current protection. |
|
q_uiMotorOverheatCntr |
UINT |
Counter of motor overheat events. |
|
q_uiAlarmsCntr |
UINT |
Counter of alarms related to protections. |
