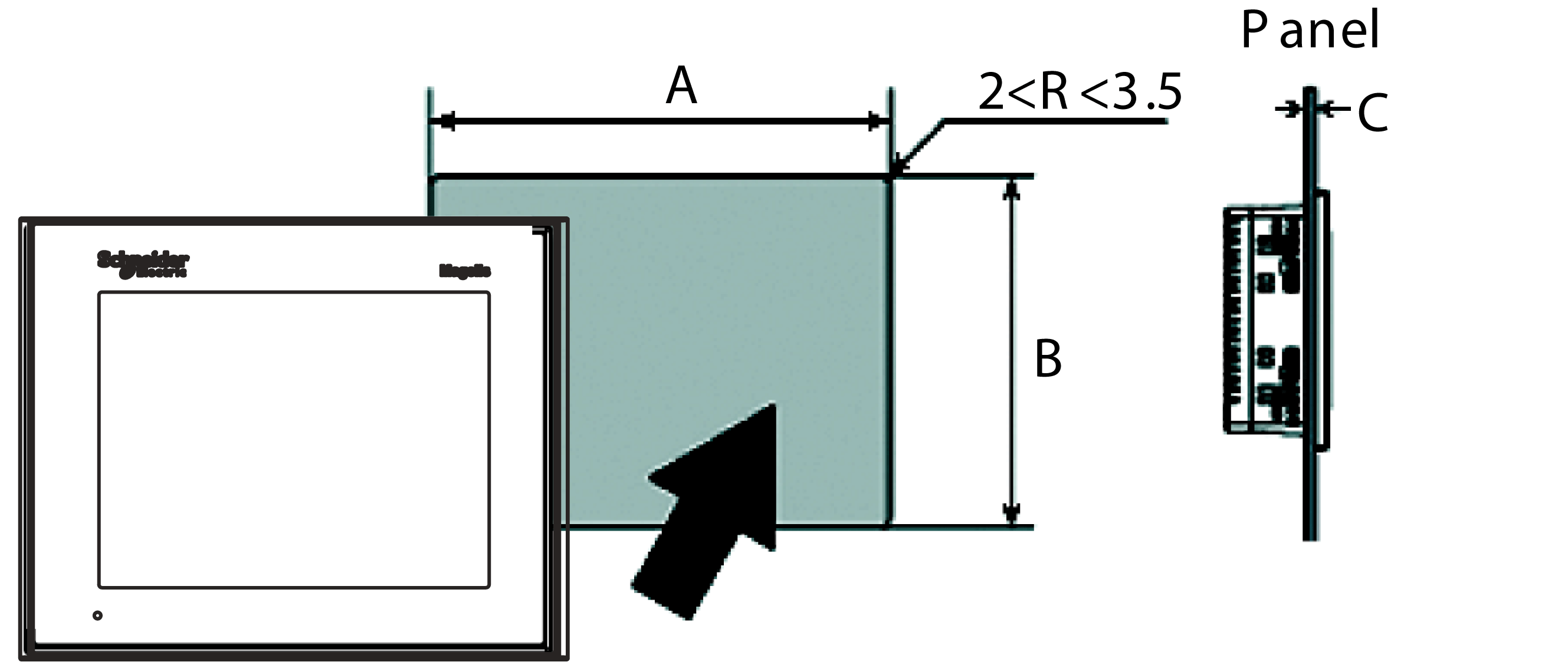

Create a panel cut-out and insert the unit into the panel from the front. The following illustration shows the panel cut-out for a XBT GT/XBT GK unit (example from the XBT GT1005series).
The following table shows the panel cut-out dimensions for each unit:
|
Unit |
A |
B |
C Screw Installation Fastener |
C Spring Clips |
|---|---|---|---|---|
|
XBT GT1105 XBT GT1135 XBT GT1335 |
118.5+1/0 mm (4.67+0.04/0 in.) |
92.5+1/0 mm (3.64+0.04/0 in.) |
1.6...5 mm (0.06...0.20 in.) |
1.5...6 mm (0.06...0.24 in.) |
|
XBT GT2110 XBT GT2120 XBT GT2130 XBT GT2220 XBT GT2330 XBT GT2430 XBT GT2930 |
156+1/0 mm (6.14+0.04/0 in.) |
123.5+1/0 mm (4.86+0.04/0 in.) |
1.6...5 mm (0.06...0.20 in.) |
1.5...6 mm (0.06...0.24 in.) |
|
XBT GT4230 XBT GT4330 XBT GT4340 |
204.5+1/0 mm (8.05+0.04/0 in.) |
159.5+1/0 mm (6.28+0.04/0 in.) |
1.6...10 mm (0.06...0.39 in.) |
1.5...6 mm (0.06...0.24 in.) |
|
XBT GT5230 |
301.5+1/0 mm (11.87+0.04/0 in.) |
227.5+1/0 mm (8.96+0.04/0 in.) |
1.6...10 mm (0.06...0.39 in.) |
1.5...6 mm (0.06...0.24 in.) |
|
XBT GT5330 XBT GT5340 XBT GT5430 |
259+1/0 mm (10.20+0.04/0 in.) |
201+1/0 mm (7.91+0.04/0 in.) |
1.6...10 mm 0.06...0.39 in. |
1.5...6 mm (0.06...0.24 in.) |
|
XBT GT6330 XBT GT6340 |
301.5+1/0 mm (11.87+0.04/0 in.) |
227.5+1/0 mm (8.96+0.04/0 in.) |
1.6...10 mm (0.06...0.39 in.) |
1.5...6 mm (0.06...0.24 in.) |
|
XBT GT7340 |
383.5+1/0 mm (15.10+0.04/0 in.) |
282.5+1/0 mm (11.12+0.04/0 in.) |
1.6...10 mm (0.06...0.39 in.) |
1.5...6 mm (0.06...0.24 in.) |
|
XBT GK2120 XBT GK2330 |
209+/-0.4 mm (8.18+/-0.01 in.) |
243+/-0.4 mm (9.52+/-0.01 in.) |
1.5...6 mm (0.06...0.24 in.) |
1.5...6 mm (0.06...0.24 in.) |
|
XBT GK5330 |
285+/-0.4 mm (11.22+/-0.01 in.) |
309+/-0.4 mm (12.17+/-0.01 in.) |
1.5...6 mm (0.06...0.24 in.) |
1.5...6 mm (0.06...0.24 in.) |
