CAUTION

RISK OF BURNING INJURY

Do not touch the rear chassis during operation.

Failure to follow these instructions can result in injury or equipment damage.

Check that the installation wall or cabinet surface is flat, in good condition and has no jagged edges. Metal reinforcing strips may be attached to the inside of the wall, near the panel cutout, to increase its rigidity.

Decide on the thickness of the enclosure wall , based on the level of strength required.

Even if the installation wall thickness is within the recommended range for the panel cutout dimensions, depending on wall’s material, size, and installation location of this product and other devices, the installation wall could warp. To prevent warping, the installation surface may need to be strengthened.

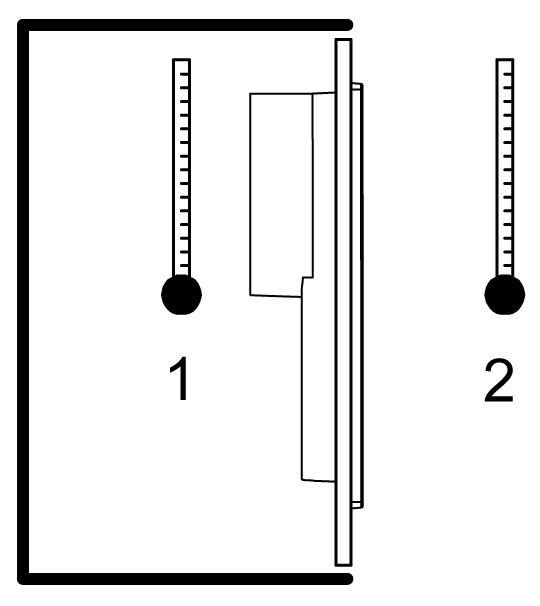

Confirm that the surrounding air temperature and the ambient humidity are within their designated ranges. Surrounding air temperature: 0 to 55 °C (32 to 131 °F); ambient humidity: 10 to 90% RH; wet bulb temperature: maximum 39 °C (102 °F) . When installing this product in a cabinet or enclosure, the surrounding air temperature is the cabinet’s or enclosure’s internal temperature.

1   Cabinet interior

2   Panel face

Confirm that heat from surrounding equipment does not cause this product to exceed its standard operating temperature.

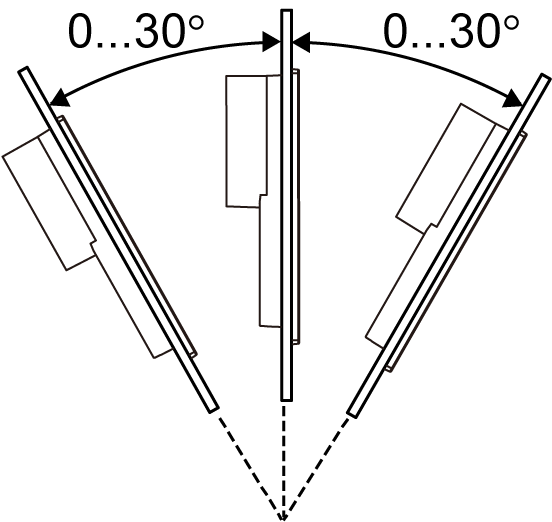

When installing this product in a slanted position, the product face should not incline more than 30°.

When installing this product in a slanted position with an incline more than 30°, the ambient temperature must not exceed 40 °C (104 °F). You may need to use forced air cooling (fan, A/C) to ensure the ambient operating temperature is 40 °C or less (104 °F or less).

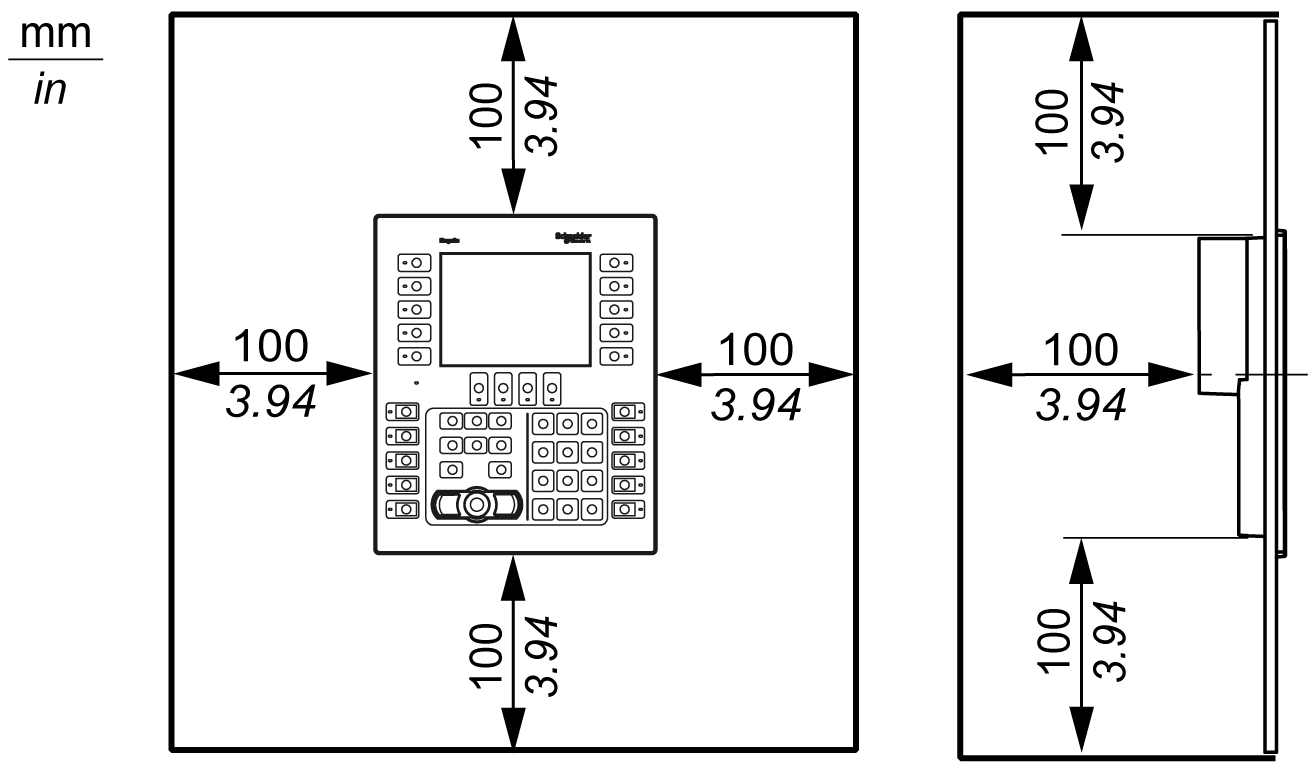

For easier maintenance, operation and improved ventilation, install this product at least 100 mm (3.94 in) away from adjacent structures and other equipment as shown in the following illustration:

Please ensure you have enough space to insert and remove the storage card.
