Side |

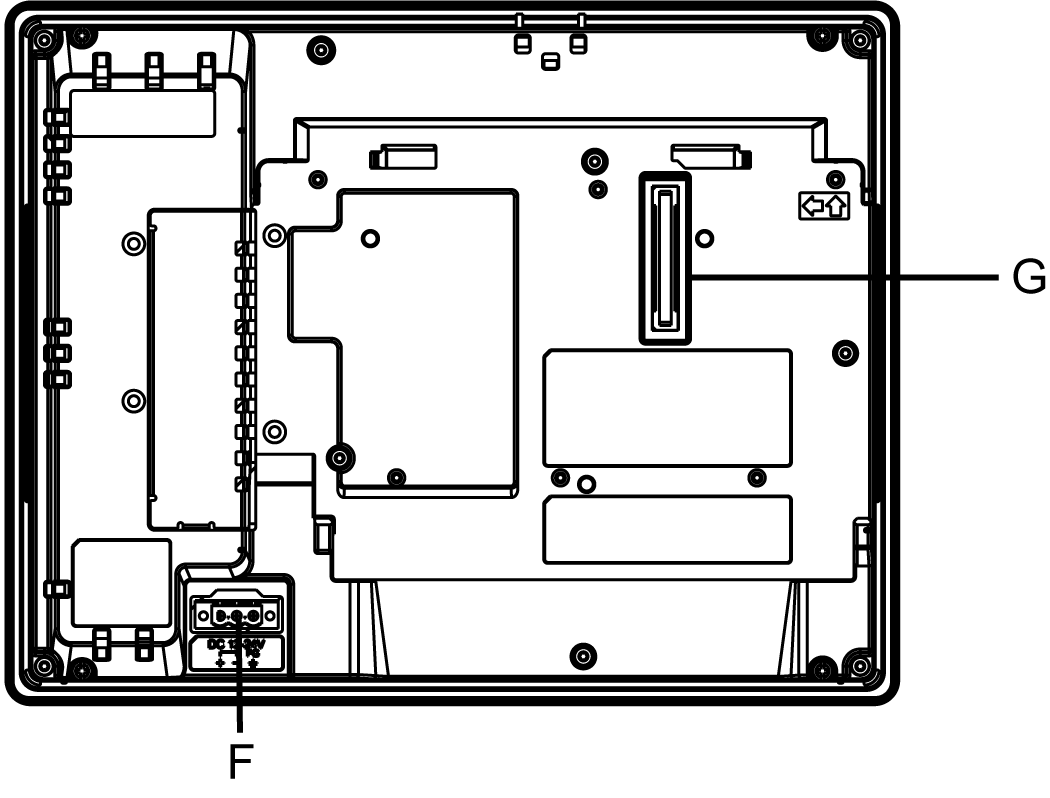

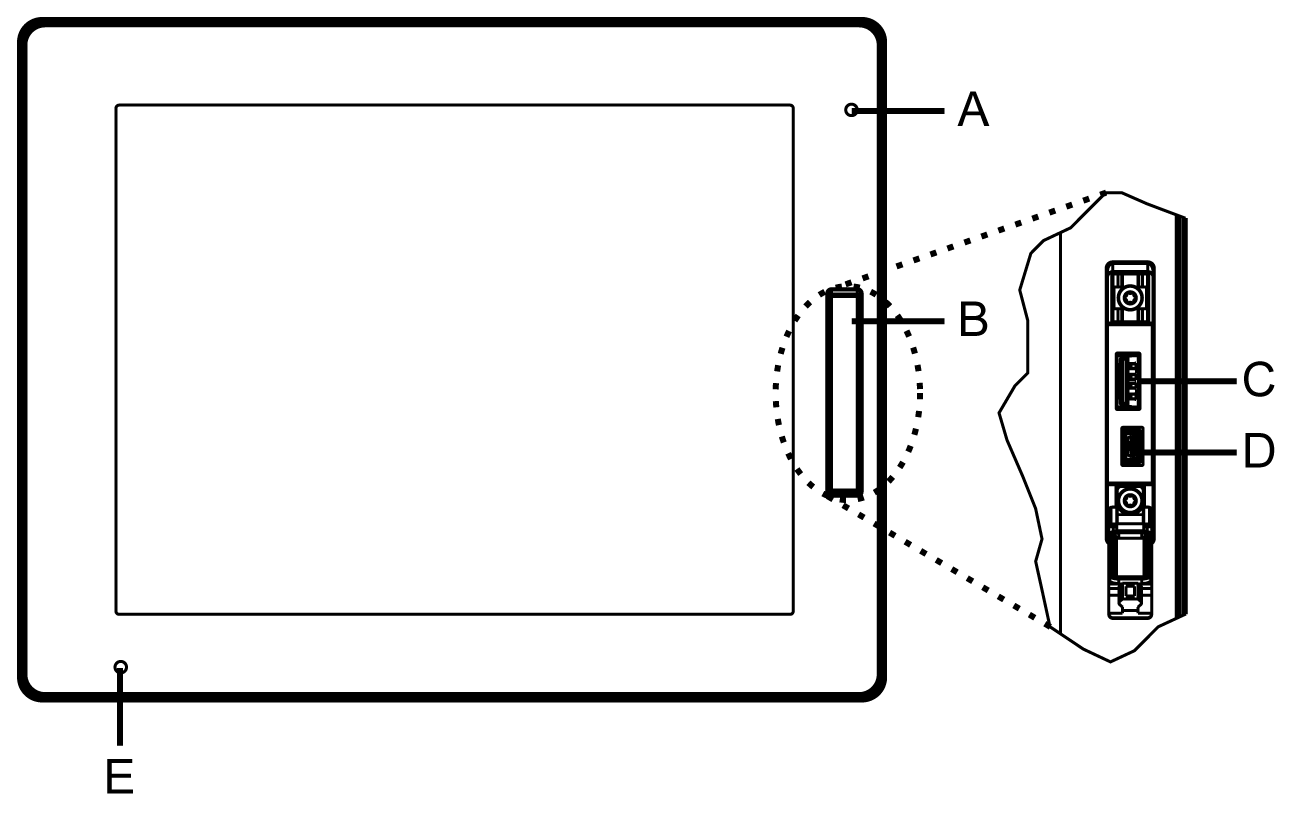

HMIDT542 |
|---|---|
|
Front |
|
|
Rear |
|
|
Part |
Name |
Description |
|---|---|---|
|
A |
Brightness Sensor |
Brightness sensor which automatically controls the brightness of the backlight. |
|
B |
Front USB Cover |
USB (Type A) Interface and USB (mini-B) Interface are located in the Front USB Cover opening. |
|
C |
USB (Type A) Interface |
Conforms to USB2.0 (Type A) x 1. Power supply voltage: 5 Vdc ±5% Maximum current supplied: 500 mA Maximum transmission distance: 5 m (16.4 ft) |
|
D |
USB (mini-B) Interface |
Conforms to USB2.0 (mini-B) x 1. Maximum transmission distance: 5 m (16.4 ft) |
|
E |
Status LED |
|
|
F |
Power Plug Connector |
- |
|
G |
Box Module Interface |
Interface that connects the Display Module and Box Module. |
|
Side |

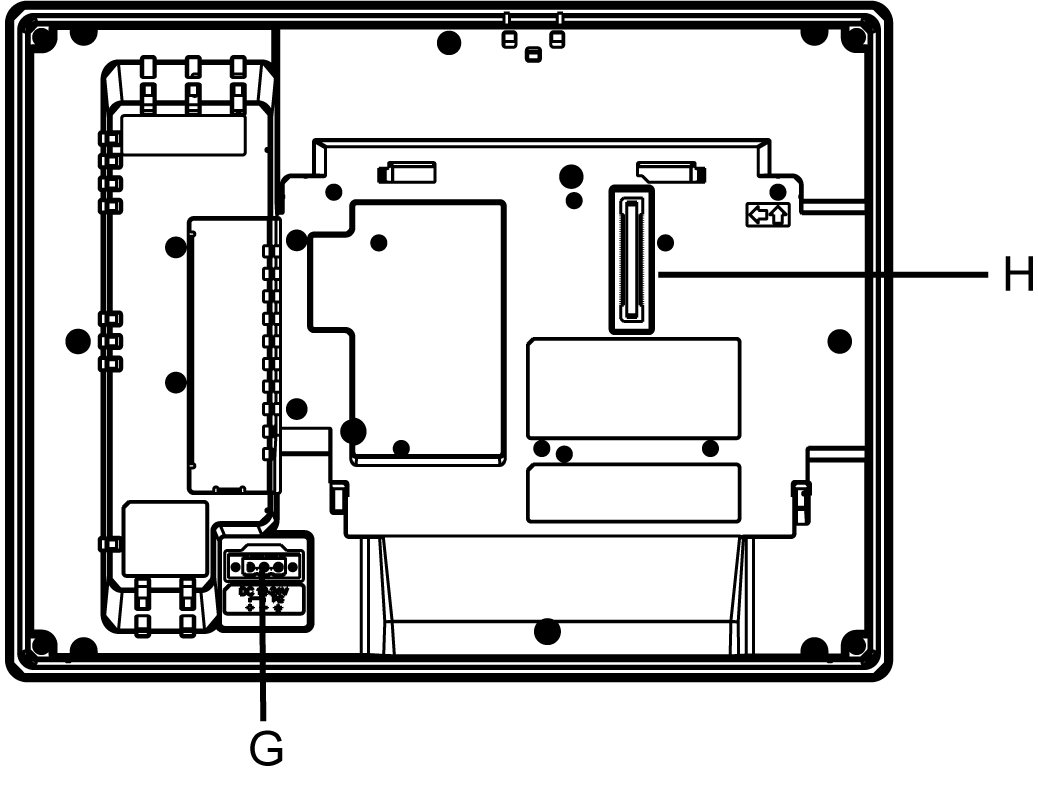

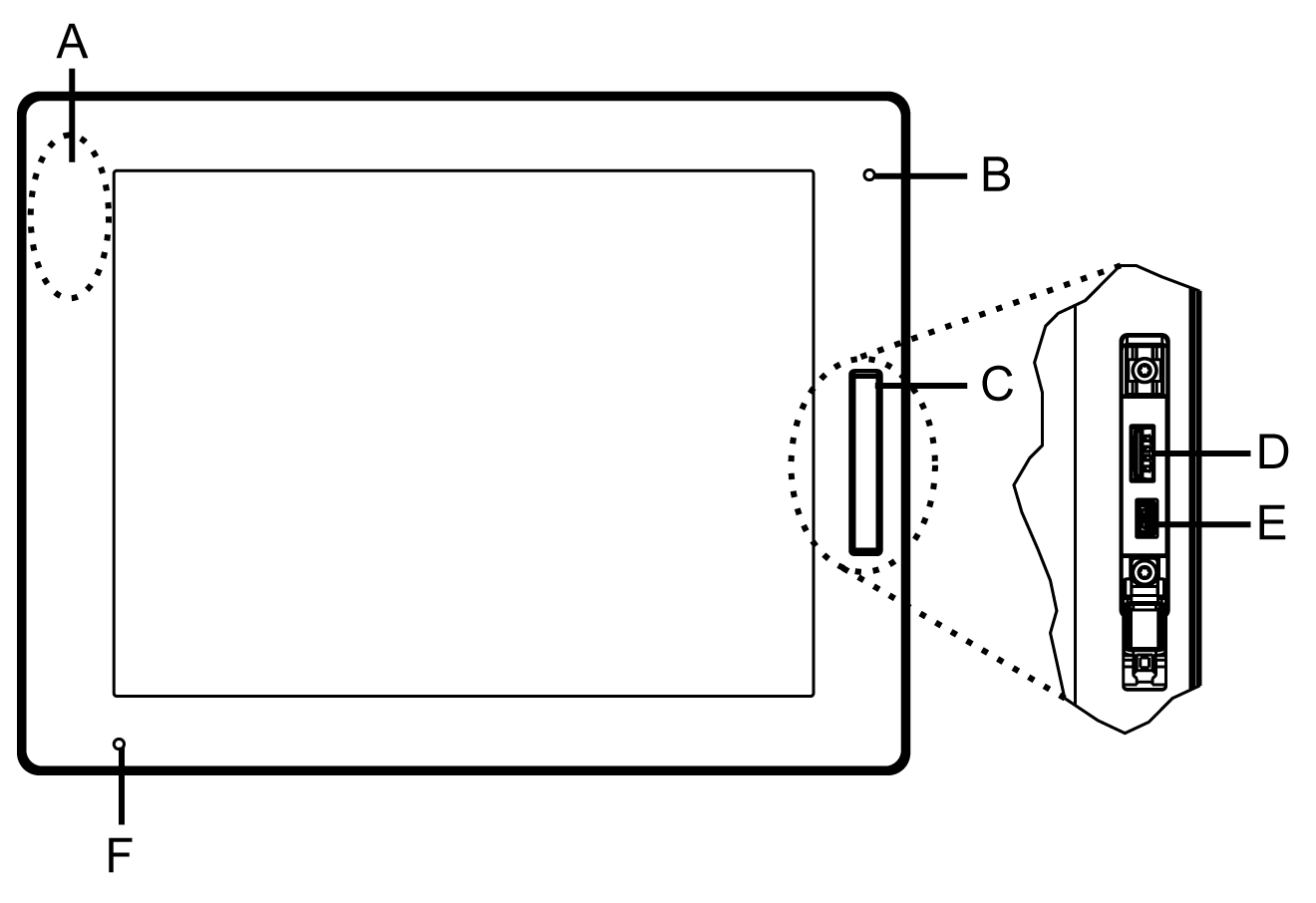

HMIDT642/HMIDT643 |
|---|---|
|
Front |
|
|
Rear |
|
|
Part |
Name |
Description |
|---|---|---|
|
A |
Wireless LAN Antenna |
A built-in antenna for wireless LAN (only for HMIDT643). |
|
B |
Brightness Sensor |
Brightness sensor which automatically controls the brightness of the backlight. |
|
C |
Front USB Cover |
USB (Type A) Interface and USB (mini-B) Interface are located in the Front USB Cover opening. |
|
D |
USB (Type A) Interface |
Conforms to USB2.0 (Type A) x 1. Power supply voltage: 5 Vdc ±5% Maximum current supplied: 500 mA Maximum transmission distance: 5 m (16.4 ft) |
|
E |
USB (mini-B) Interface |
Conforms to USB2.0 (mini-B) x 1. Maximum transmission distance: 5 m (16.4 ft) |
|
F |
Status LED |
|
|
G |
Power Plug Connector |
- |
|
H |
Box Module Interface |
Interface that connects the Display Module and Box Module. |
|
Side |

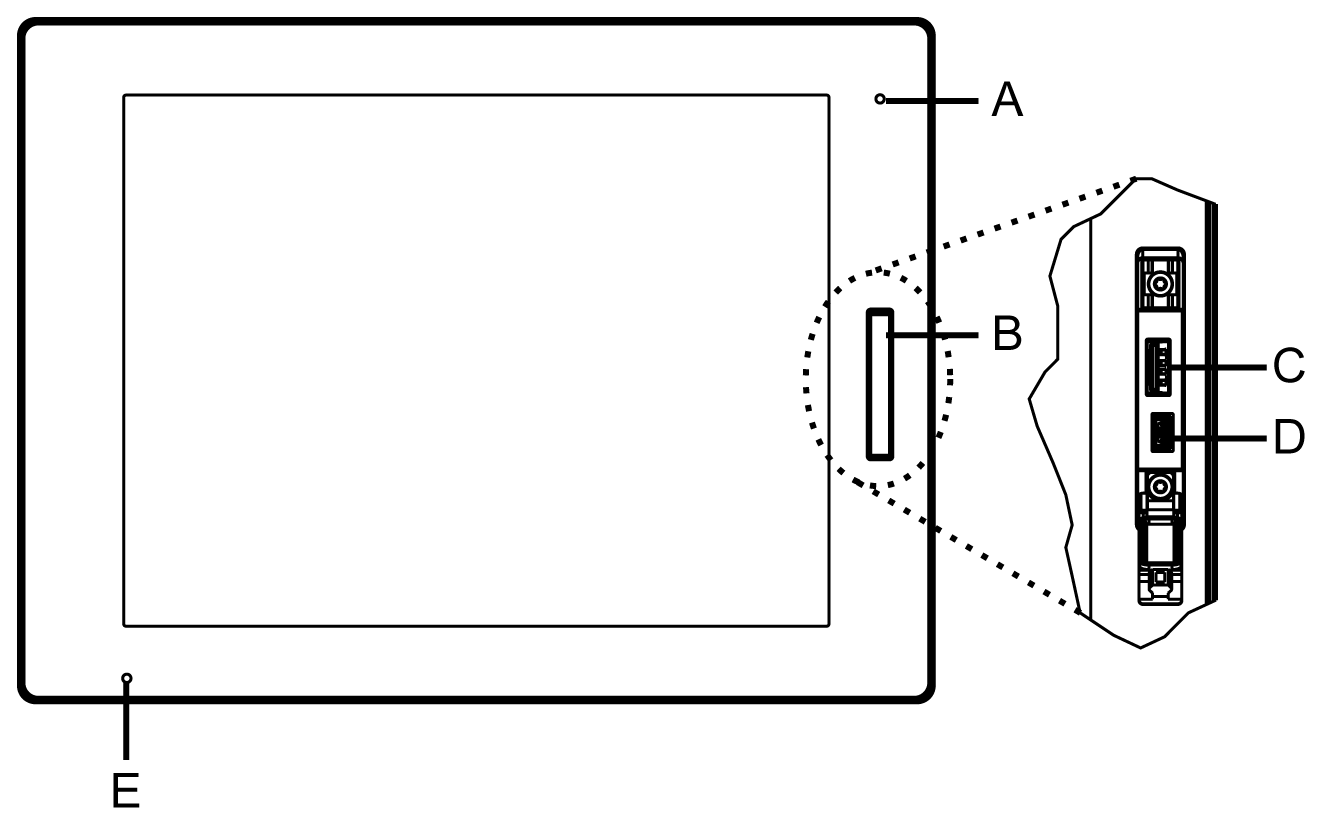

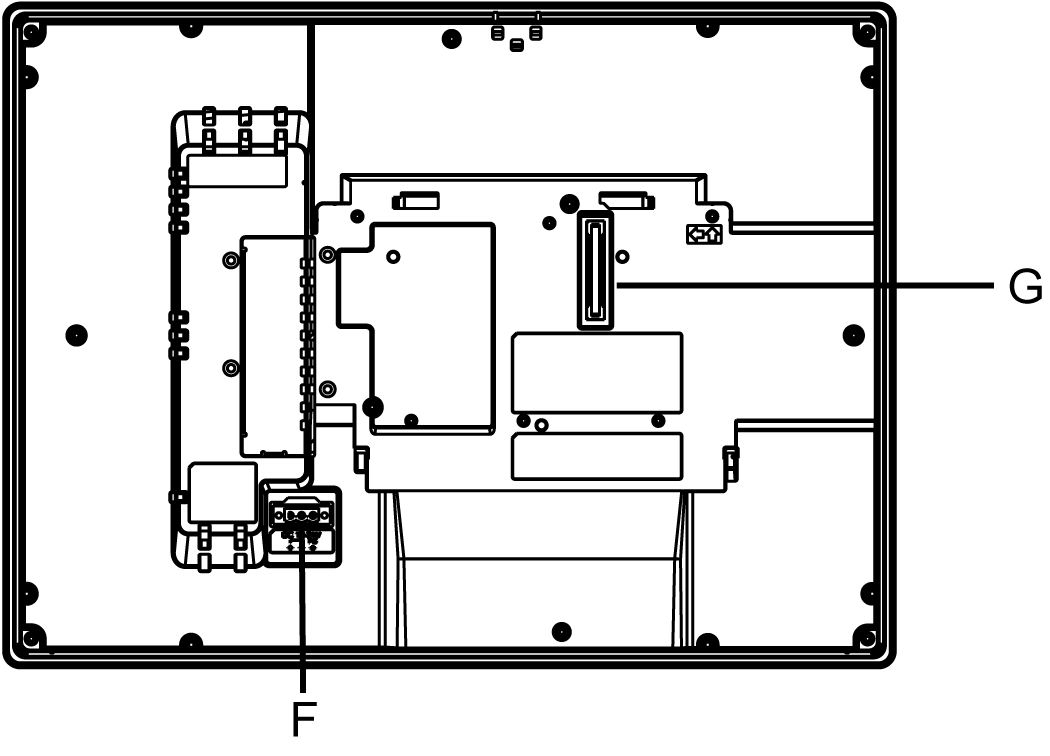

HMIDT732 |
|---|---|
|
Front |
|
|
Rear |
|
|
Part |
Name |
Description |
|---|---|---|
|
A |
Brightness Sensor |
Brightness sensor to automatically control the brightness of the backlight. |
|
B |
Front USB Cover |
USB (Type A) Interface and USB (mini-B) Interface are located in the Front USB Cover opening. |
|
C |
USB (Type A) Interface |
Conforms to USB2.0 (Type A) x 1. Power supply voltage: 5 Vdc ±5% Maximum current supplied: 500 mA Maximum transmission distance: 5 m (16.4 ft) |
|
D |
USB (mini-B) Interface |
Conforms to USB2.0 (mini-B) x 1. Maximum transmission distance: 5 m (16.4 ft) |
|
E |
Status LED |
|
|
F |
Power Plug Connector |
- |
|
G |
Box Module Interface |
Interface that connects the Display Module and Box Module. |

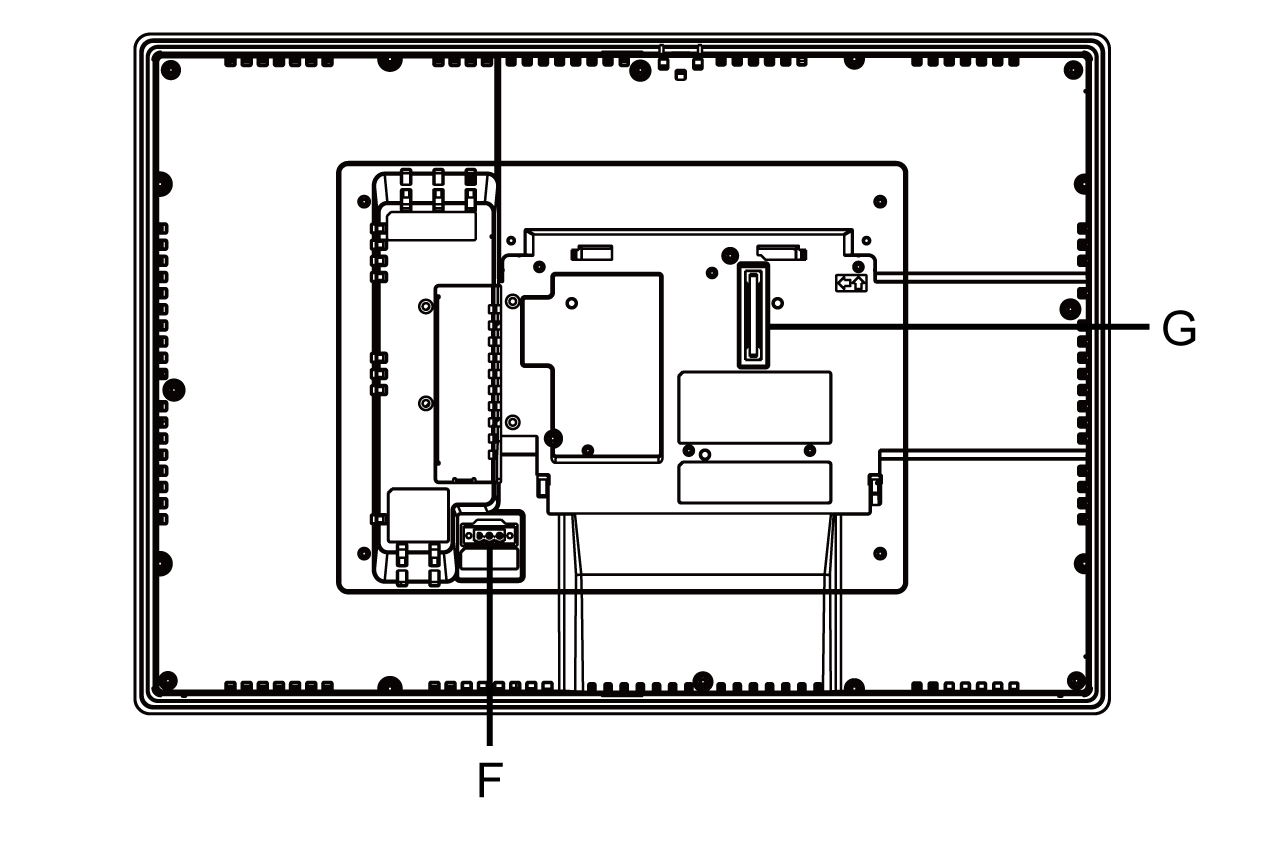

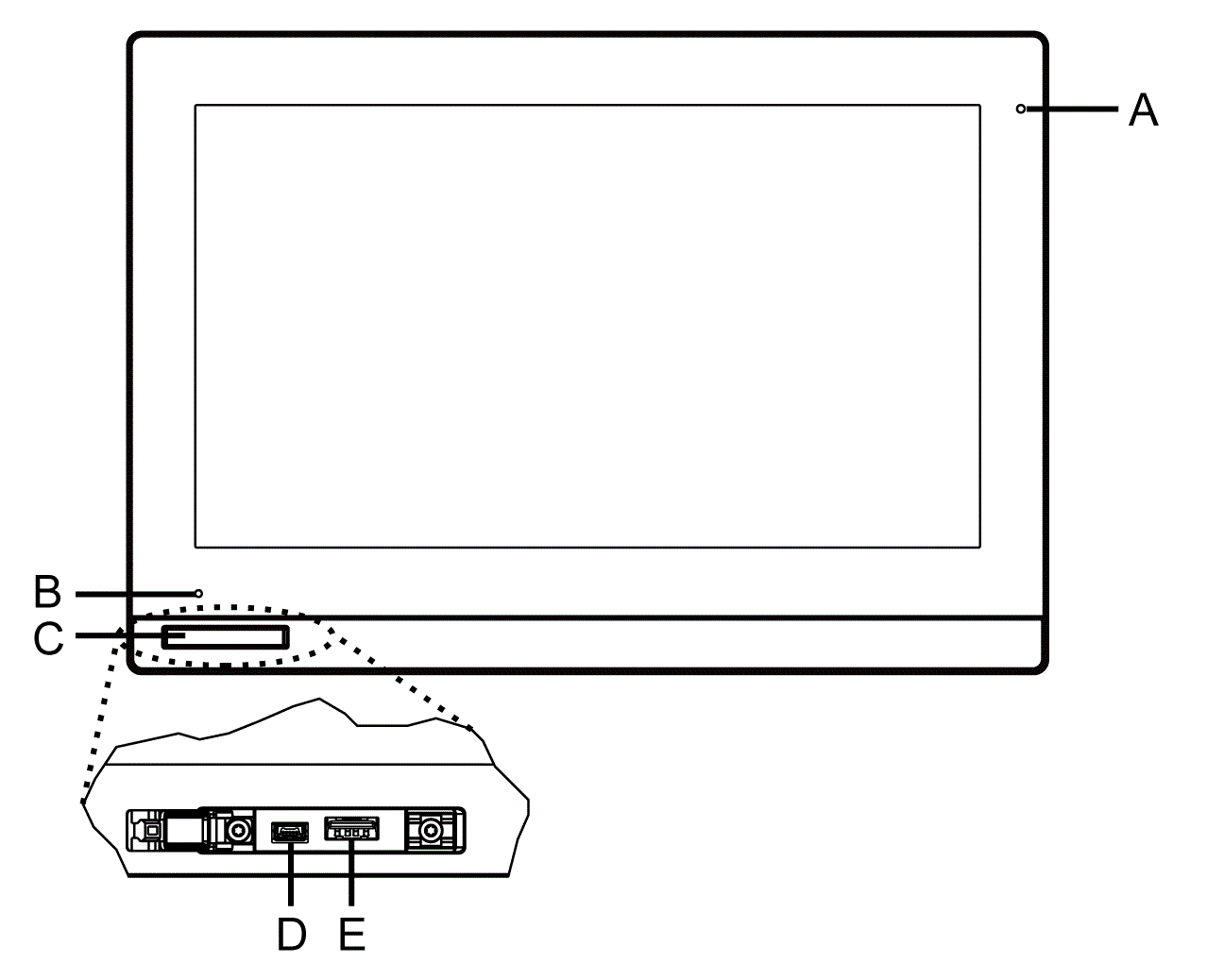

NOTE: The figures below show HMIDT952.
|
Side |
HMIDT752/HMIDT952 |
|---|---|
|
Front |
|
|
Rear |
|
|
Part |
Name |
Description |
|---|---|---|
|
A |
Brightness Sensor |
Brightness sensor to automatically control the brightness of the backlight. |
|
B |
Status LED |
|
|
C |
Front USB Cover |
USB (Type A) Interface and USB (mini-B) Interface are located in the Front USB Cover opening. |
|
D |
USB (mini-B) Interface |
Conforms to USB2.0 (mini-B) x 1. Maximum transmission distance: 5 m (16.4 ft) |
|
E |
USB (Type A) Interface |
Conforms to USB2.0 (Type A) x 1. Power supply voltage: 5 Vdc ±5% Maximum current supplied: 500 mA Maximum transmission distance: 5 m (16.4 ft) |
|
F |
Power Plug Connector |
- |
|
G |
Box Module Interface |
Interface that connects the Display Module and Box Module. |
