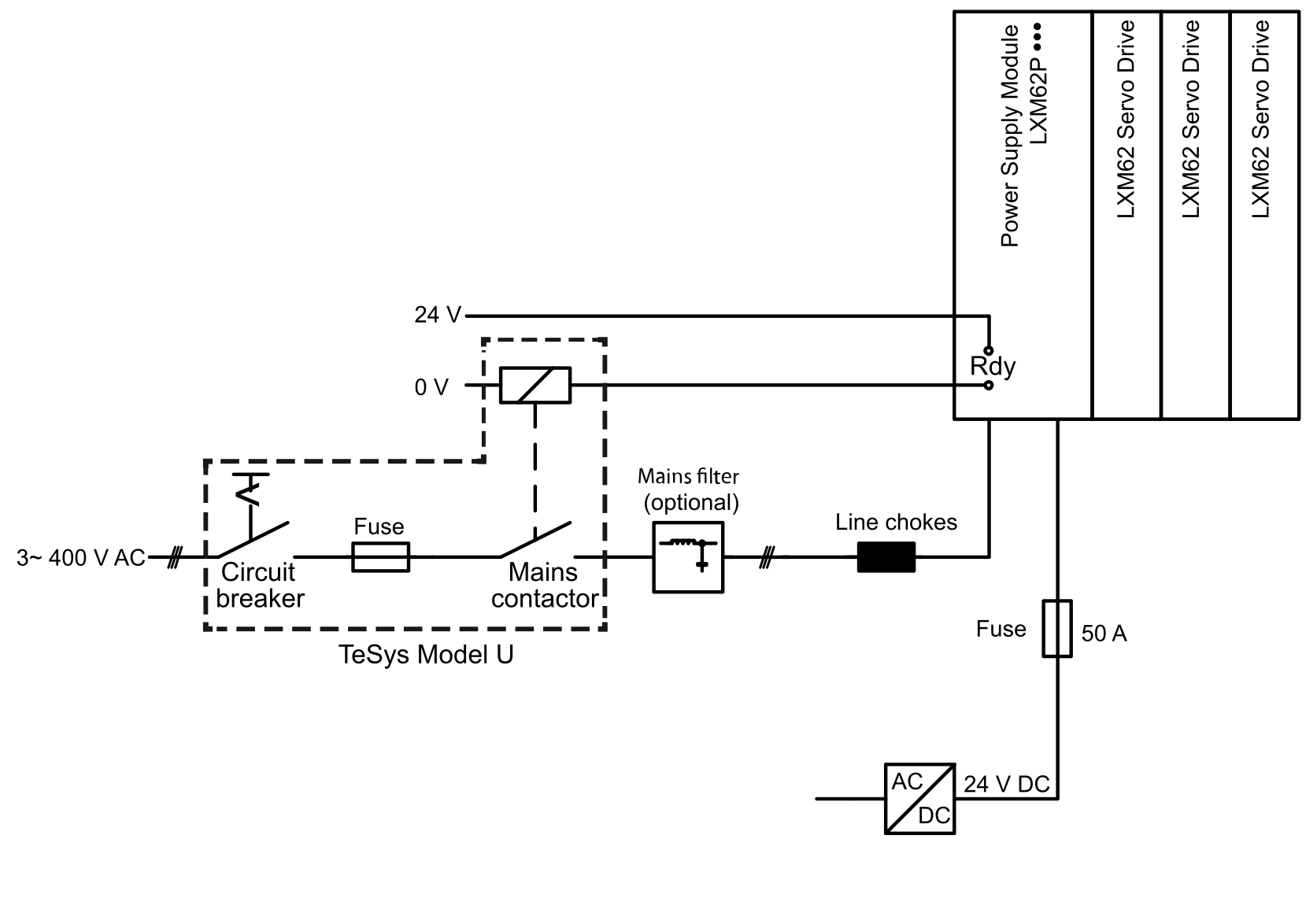

Connection of the Lexium 62 Power Supply

NOTE: The 24 Vdc supply input current must be limited to 50 A maximum, which can be realized by a 50 A fuse as shown above. In particular, a 50 A fuse is mandatory if a non-current limiting 24 Vdc power supply is used.
