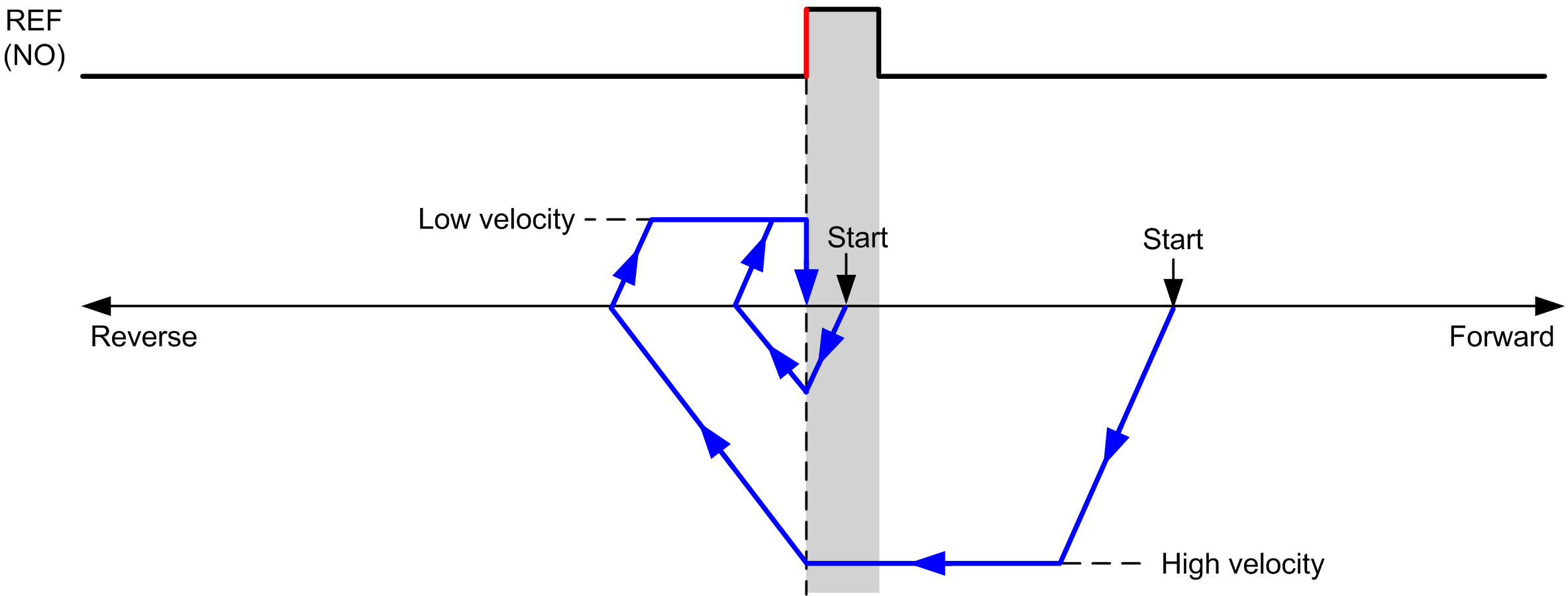

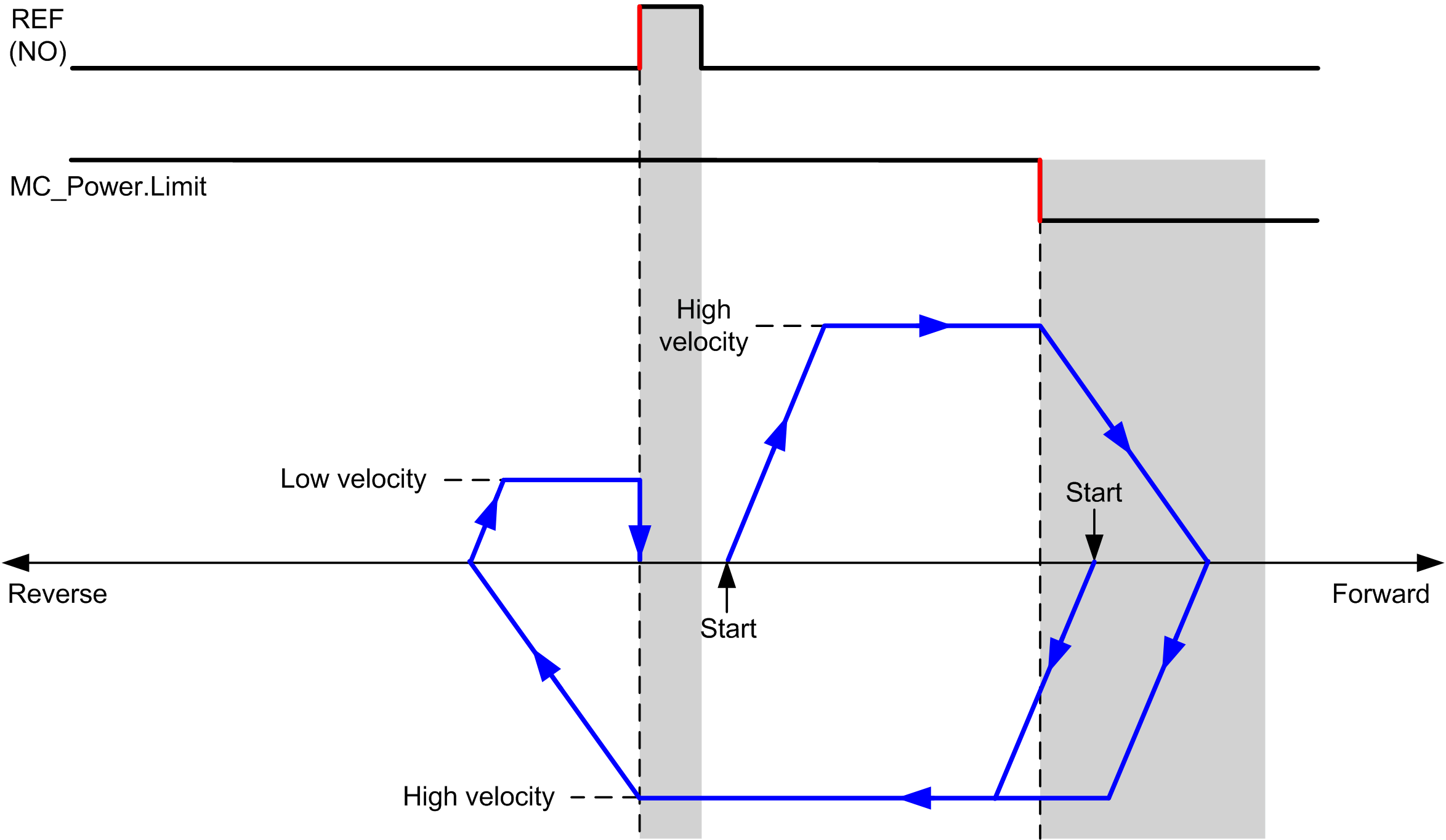

Short Reference Reversal: Positive Direction
Homes to the reference switch rising edge in forward direction.
The initial direction of motion is dependent on the state of the reference switch:
REF (NO) Reference point (Normally Open)
REF (NO) Reference point (Normally Open)

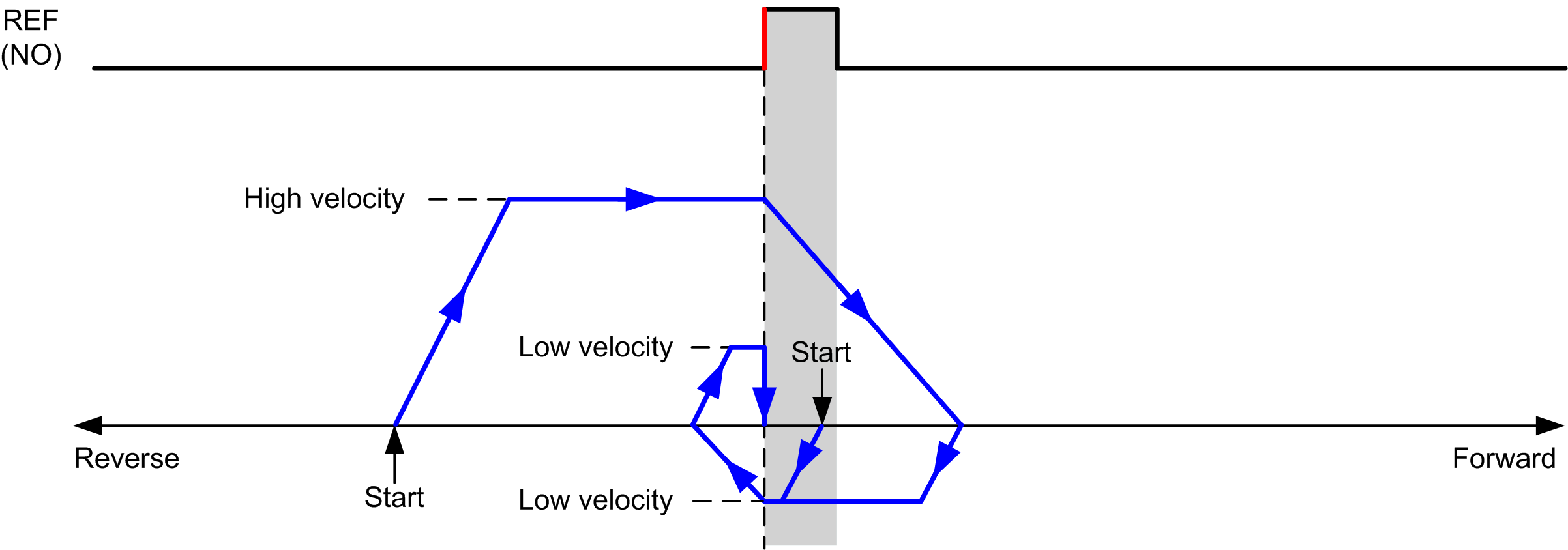

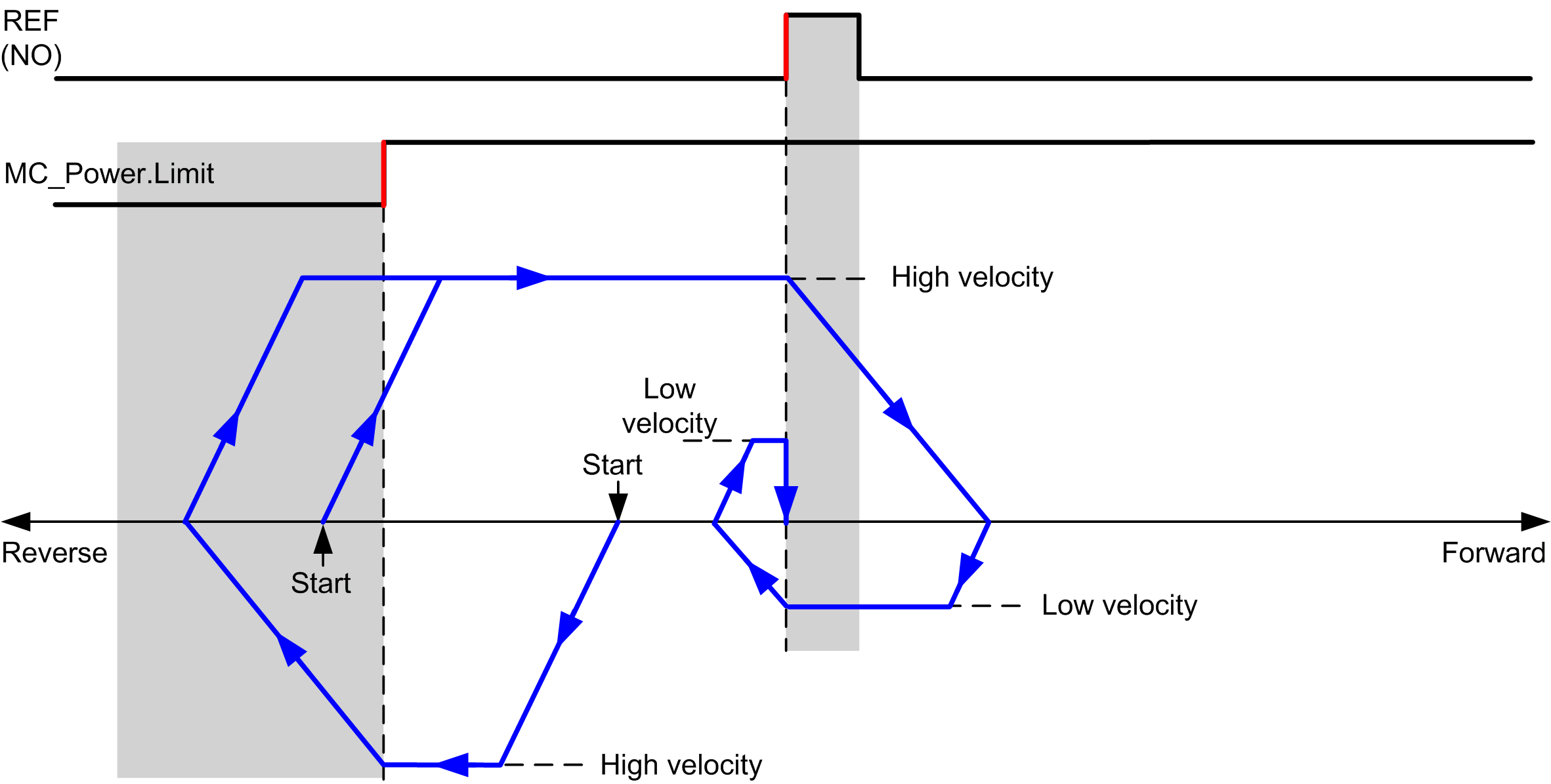

Short Reference Reversal: Negative Direction
Homes to the reference switch rising edge in forward direction.
The initial direction of motion is dependent on the state of the reference switch:
REF (NO) Reference point (Normally Open)
REF (NO) Reference point (Normally Open)
