Short Reference & Index Inside
Short Reference & Index Inside: Positive Direction

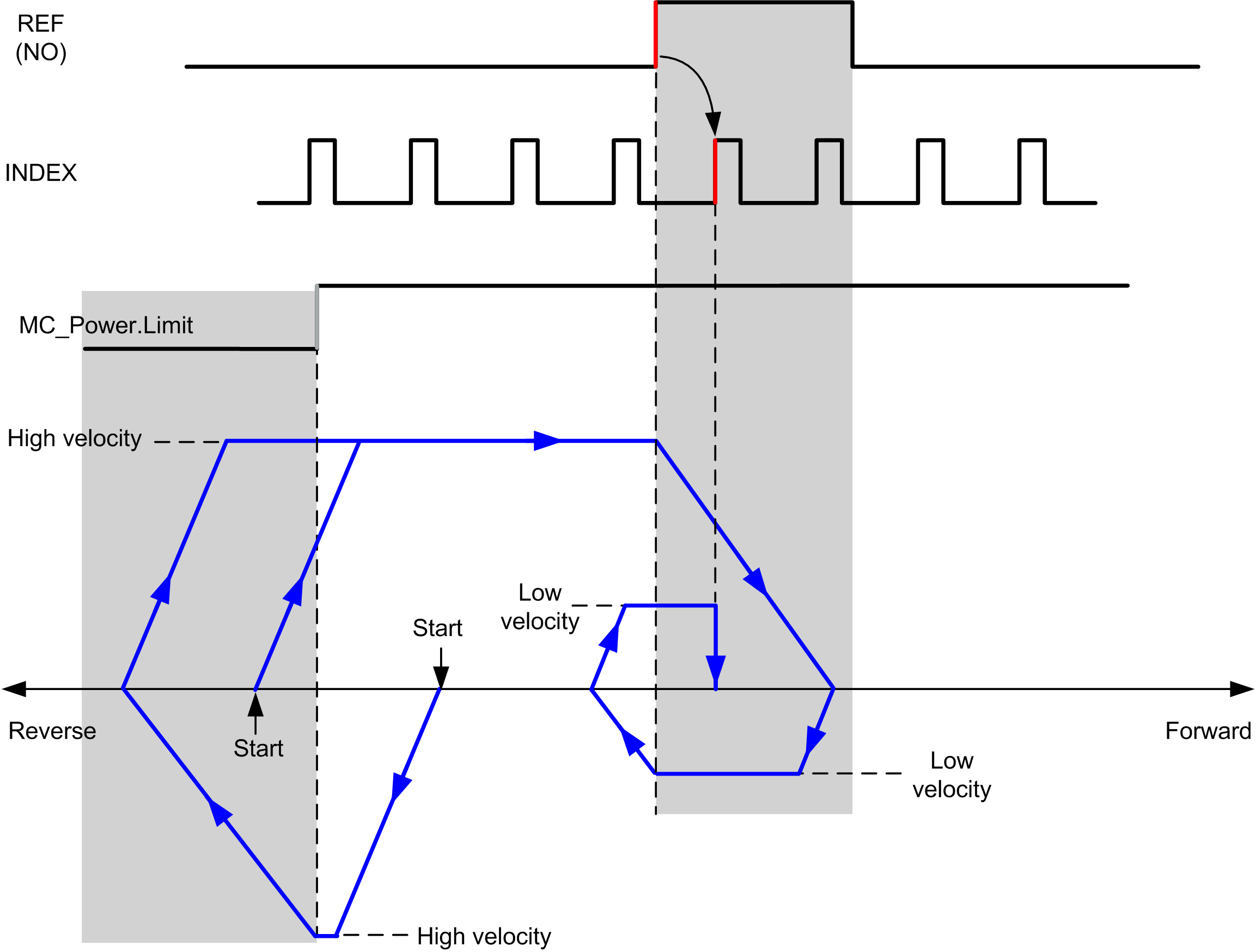

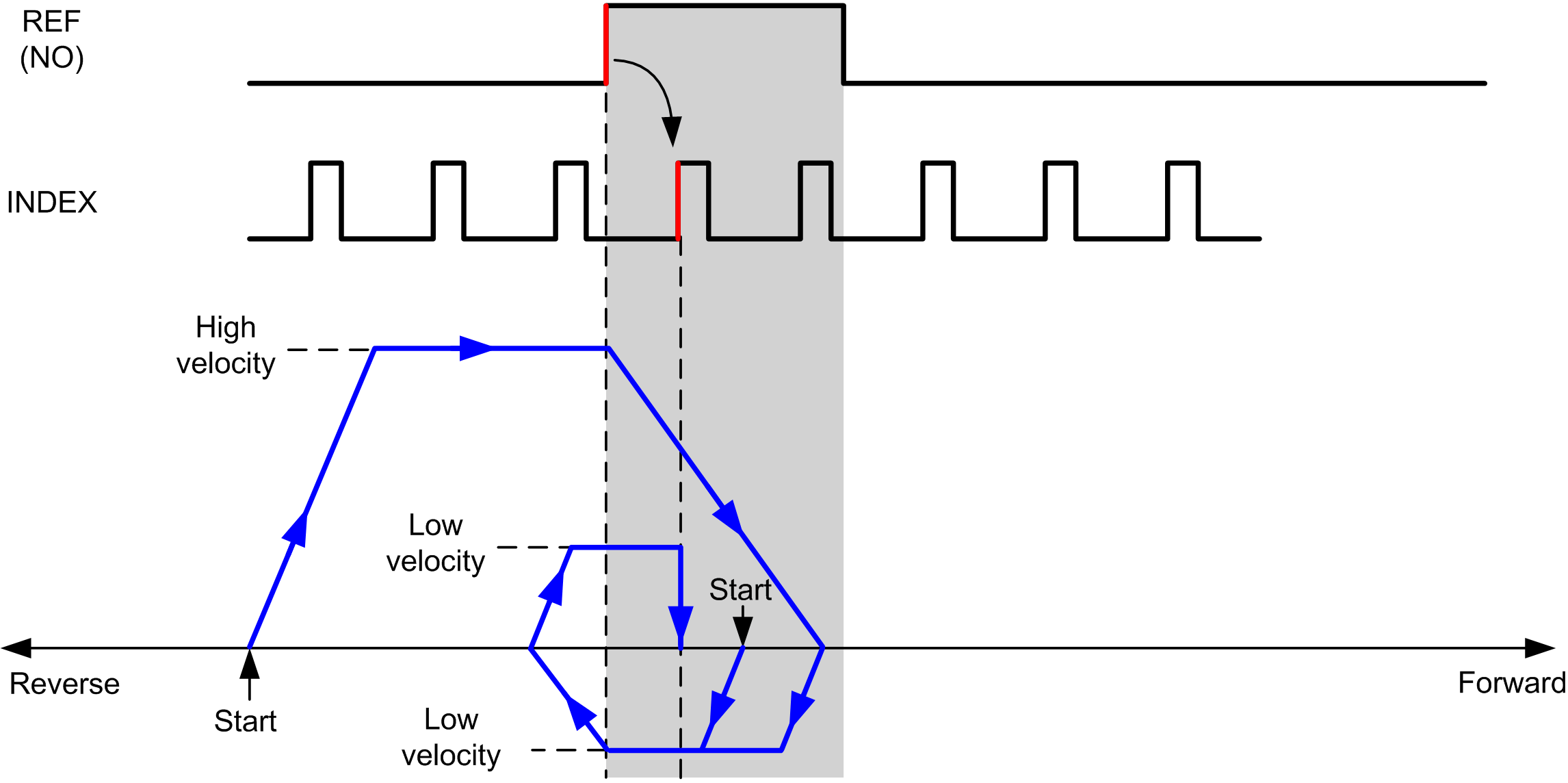

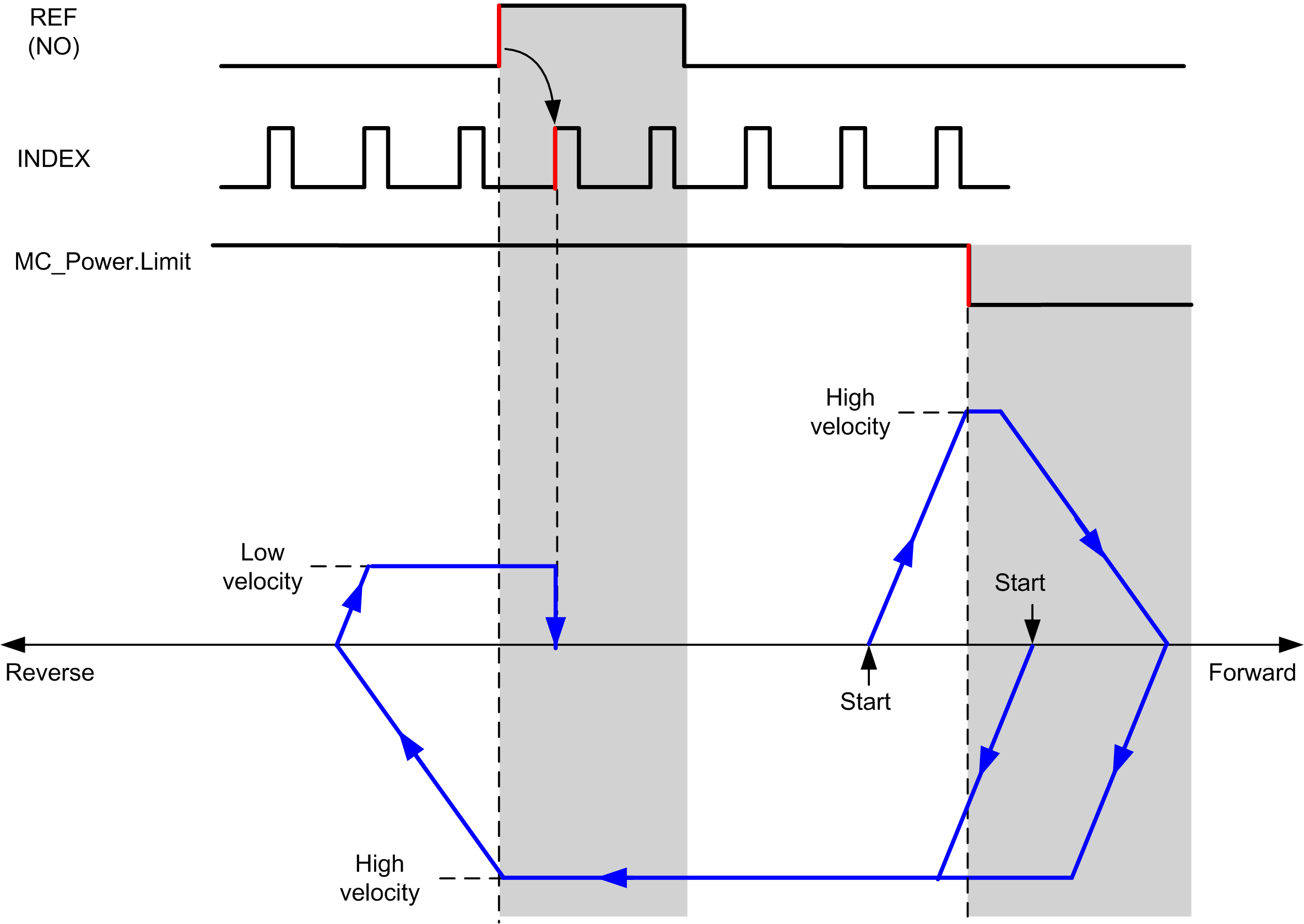

Homes to the first index, after the reference switch rising edge in forward direction.
The initial direction of motion is dependent on the state of the reference switch:
REF (NO) Reference point (Normally Open)
REF (NO) Reference point (Normally Open)
Short Reference & Index Inside: Negative Direction

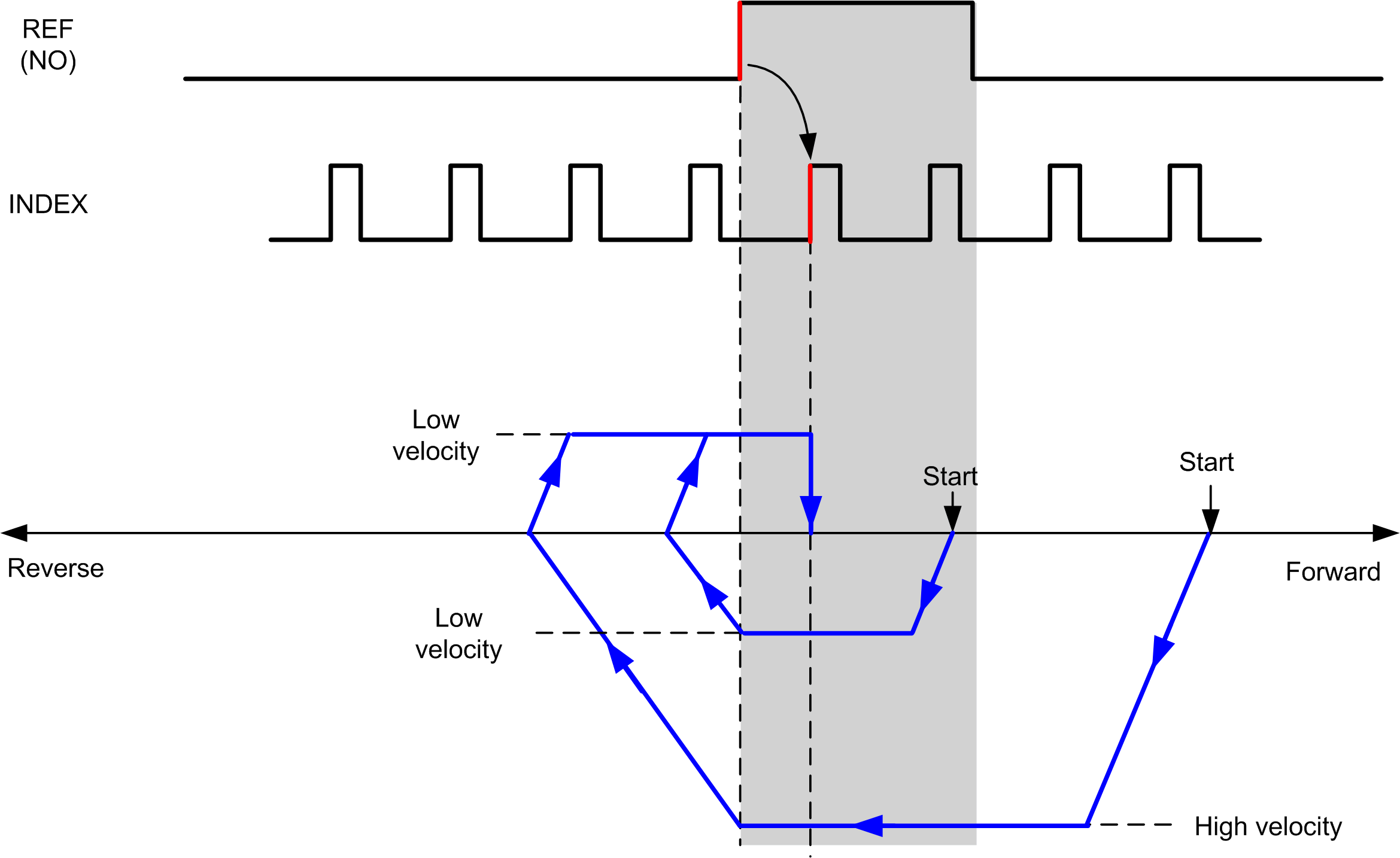

Homes to the first index, after the reference switch rising edge in forward direction.
The initial direction of motion is dependent on the state of the reference switch:
REF (NO) Reference point (Normally Open)
REF (NO) Reference point (Normally Open)
