FC_GetLabel: Gets the Label of Memory
Function Description
This function retrieves the label of a memory medium. If a device has no label, then an empty string is returned.
The name of the memory medium (user disk, system disk, SD card) is transferred:
-
User disk = “/usr”
-
System disk = “/sys”
-
SD card = “/sd0”

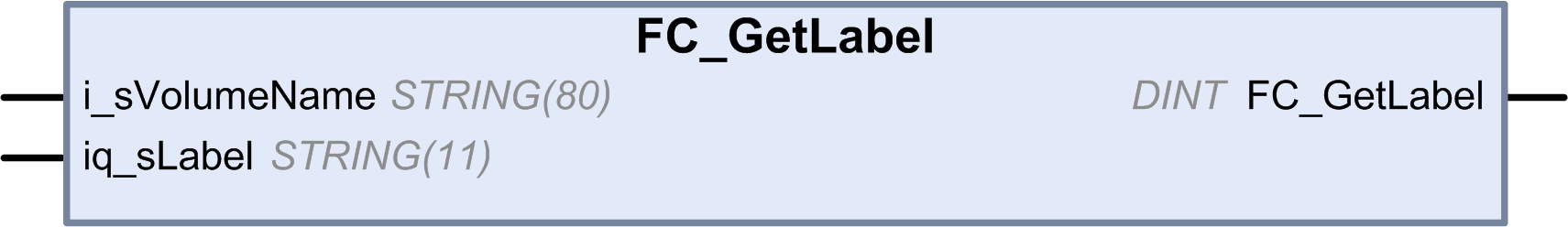

IL and ST Representation
To see the general representation in IL or ST language, refer to the chapter Function and Function Block Representation.
I/O Variable Description
This table describes the input variables:
|
Input |
Data type |
Description |
|---|---|---|
|
i_sVolumeName |
STRING[80] |
Name of the device whose label must be accessed |
|
iq_sLabel |
STRING[11] |
Label of the device |
This table describes the output variables:
|
Output |
Data type |
Description |
|---|---|---|
|
FC_GetLabel |
DINT |
0: The label was retrieved successfully -1: Error when accessing the label -318: Invalid parameter |
