Wiring Diagram

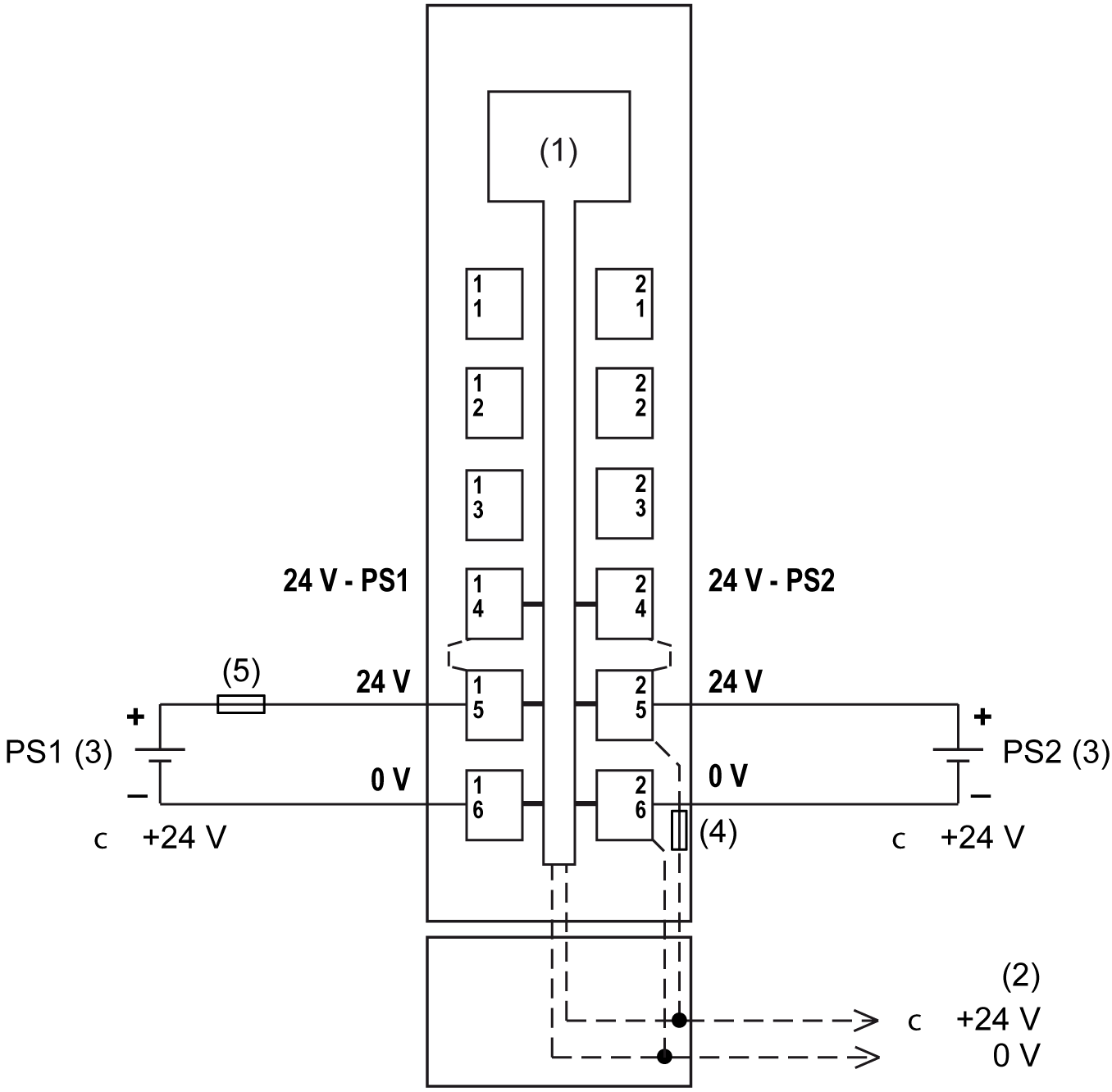

The following figure shows the wiring diagram for the TM5SPS2F:
1 Internal electronics
2 24 Vdc I/O power segment integrated into the bus bases
3 PS2: External isolated power supply 24 Vdc
4 Integrated fuse type T slow-blow 6.3 A 250 V exchangeable
5 External fuse type T slow-blow 1 A 250 V
NOTE: Connect the 0 Vdc power circuits together and to the functional ground (FE) of your system to meet the EMC requirements.
|
DANGER
|
|
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OVERHEATING AND FIRE
-
Do not connect the modules directly to line voltage.
-
Use only isolating PELV systems according to IEC 61140 to supply power to the modules.
-
Connect the 0 Vdc of the external power supplies to FE (Functional Earth/ground).
Failure to follow these instructions will result in death or serious injury.
|
|
WARNING
|
|
UNINTENDED EQUIPMENT OPERATION
Do not connect wires to unused terminals and/or terminals indicated as “No Connection (N.C.)”.
Failure to follow these instructions can result in death, serious injury, or equipment damage.
|
