Physical description

Introduction

This section describes the parts of 3 digital I/O modules, one with a HE10 connector, one with a removable screw terminal bock and one with a non removable spring terminal block. In general, the modules with a HE10 connector have a reference ending in K whereas the modules with a terminal block have a reference ending in T. Your I/O module may differ from the illustrations but the parts will be the same.

Illustration

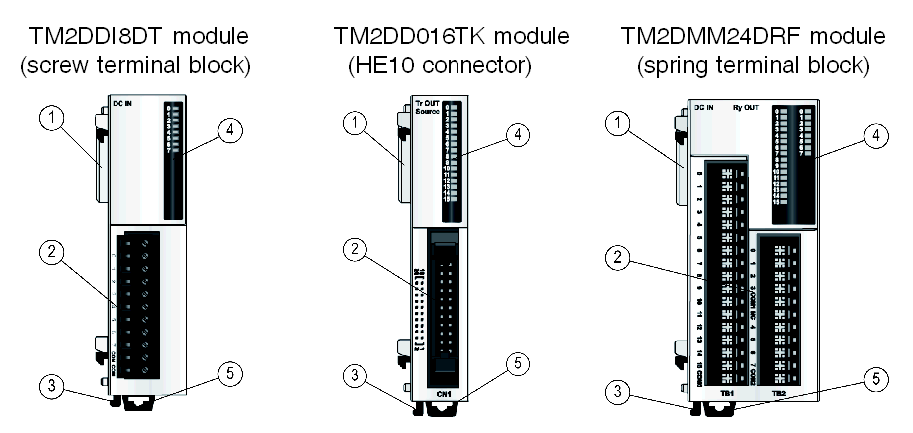

The following pictures show the parts of the 3 digital I/O modules:






Elements

The following table describes the different elements of the 3 digital I/O modules shown above:

Label

TM2DDI8DT

TM2DDO16TK

TM2DMM24DRF

1

Expansion connector for electrical connection (one on each side, right side not shown). It is designed to provide continuity of the electrical link between the modules connected.

2

Removable screw terminal block (supplied with the module)

HE10 Connector

Non removable spring terminal block

3

Locking device for attachment to the previous module

4

Led for displaying the channels and module diagnostics

5

Clip-on lock
