Accessories

Introduction

This section describes the TM2 Digital I/O modules accessories.

Cables

The following table lists the cables features:

Cable name

Reference

Digital I/O Cables



Cable equipped at a one end with an HE10 connector. (AWG 22 / 0.34 mm2; length: 3 m / 9.84 ft)

TWDFCW30K

Cable equipped at a one end with an HE10 connector. (AWG 22 / 0.34 mm2; length: 5 m / 16.4 ft)

TWDFCW50K

Telefast® Cables for TM2 digital I/O expansion modules



Cable equipped with a HE10 connector at each end. (AWG 28 / 0.08 mm2; length: 0.5 m / 1.64 ft)

ABFT20E050

Cable equipped with a HE10 connector at each end. (AWG 28 / 0.08 mm2; length: 1 m / 3.28 ft)

ABFT20E100

Cable equipped with a HE10 connector at each end. (AWG 28 / 0.08 mm2; length: 2 m / 6.56 ft)

ABFT20E200

Terminal Block End Clamp Type AB1AB8P35

Terminal Block End Clamps (reference AB1AB8P35) help reduce side-to-side movement of your controller and modules on the mounting rail. A controller and its associated modules are mounted on the mounting rail between two end clamps in order to improve the shock and vibration characteristics of the assembly.

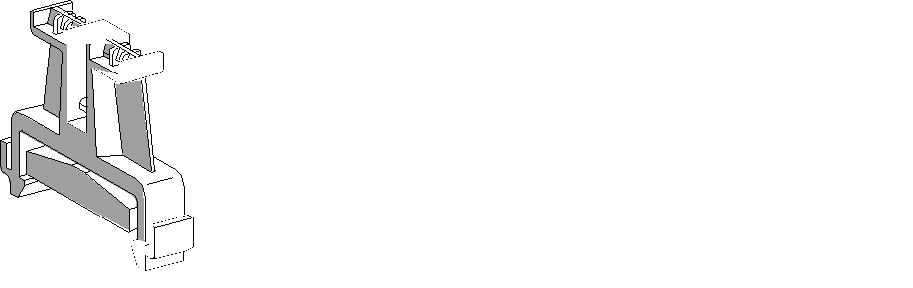

The following picture shows an end clamps type AB1AB8P35:






The DIN Rail

 You can mount the controller and its expansions on a mounting rail. A mounting rail can be attached to a smooth mounting surface or suspended from a Electronic Industries Alliance rack or in a Type 4 cabinet.

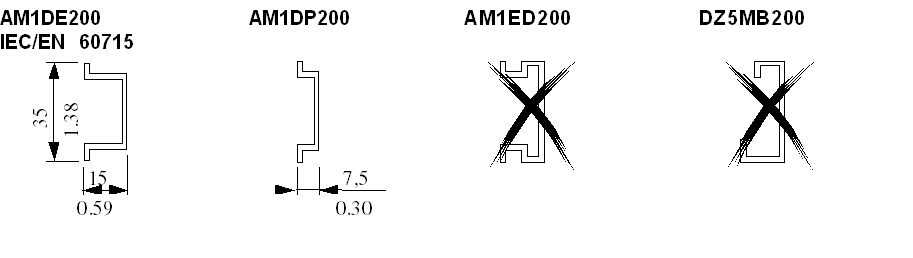

The following picture shows the different sizes of the DIN rail:






You can order the suitable DIN rail from Schneider Electric:

Rail depth

Catalogue part number

15 mm (0.59 in.)

AM1DE200

7,5 mm (0.30 in.)

AM1DP200

NOTE: Do not use AM1ED200 and DZ5MB200

TWDXMT5 Mounting Strip

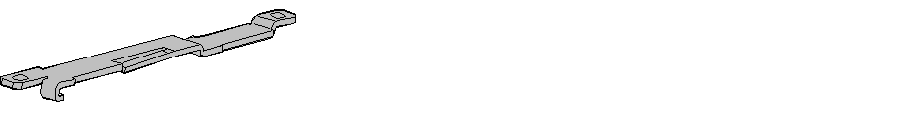

 The following illustration shows a TWDXMT5 Panel Mount Kit which can be used instead of mounting rail to mount your controller and I/O modules directly to a panel:
