This expansion module is a 4-point input/4-point output module with a terminal block.
For further hardware information, refer to TM2DMM8DRT.

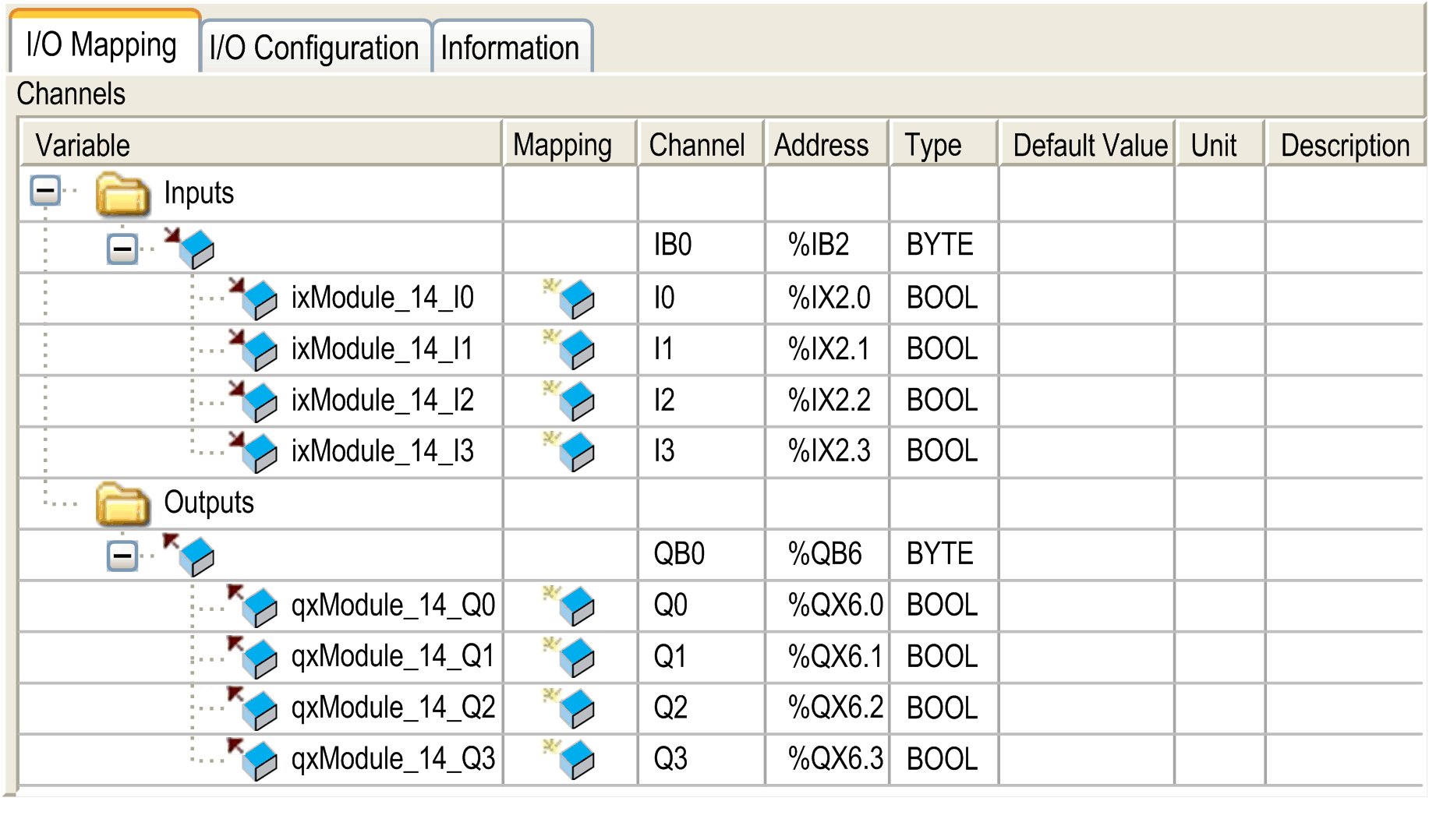

This table identifies the addresses of each input and output with the channel name.
|
Channel |
Type |
Default Value |
Description |
|
|---|---|---|---|---|
|
Inputs |
IB0 |
BYTE |
- |
State of all inputs |
|
I0 |
BOOL |
- |
State of input 0 |
|
|
... |
... |
|||
|
I3 |
State of input 3 |
|||
|
Outputs |
QB0 |
BYTE |
- |
Command byte of all outputs |
|
Q0 |
BOOL |
- TRUE FALSE |
Command bit of output 0 |
|
|
... |
... |
|||
|
Q3 |
Command bit of output 3 |
|||
For further generic descriptions, refer to I/O Mapping Tab Description.
This tab allows you to configure the module as an optional module:
If the module is connected to a distributed device, you can configure the fallback behavior.
