Introduction
This expansion module has a built-in removable screw terminal block for the connection of inputs and power supply.
NOTE: Loop powered sensors are not supported by these expansion modules. The modules do not provide loop power when wired for current.

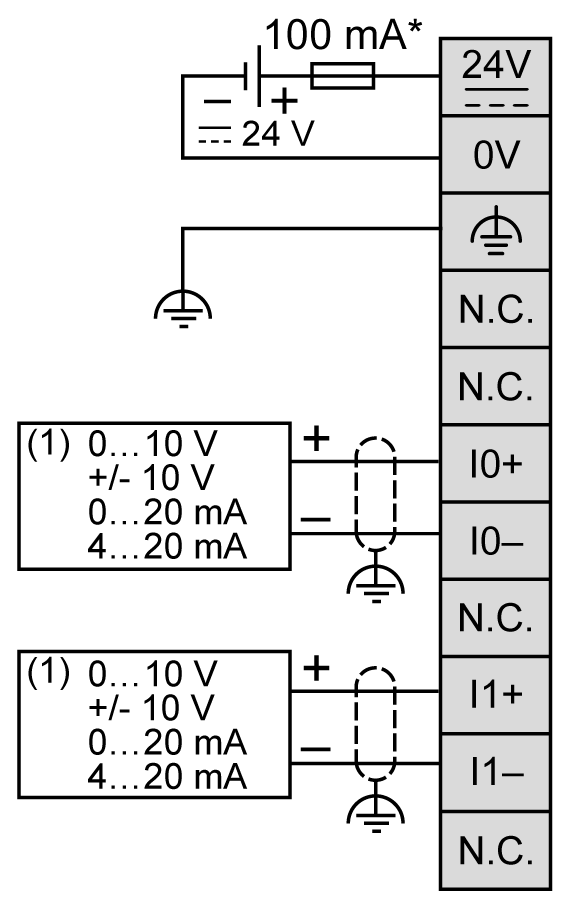

Wiring Diagram
The following figure illustrates the connection between the inputs, the sensors, and their commons:
* Type T fuse
(1) Current/Voltage analog output device
|
WARNING
|
|
UNINTENDED EQUIPMENT OPERATION
Do not connect wires to unused terminals and/or terminals indicated as “No Connection (N.C.)”.
Failure to follow these instructions can result in death, serious injury, or equipment damage.
|
