TM3DI16 / TM3DI16G Presentation

Overview

TM3DI16 (screw) and TM3DI16G (spring) digital expansion module:

16 channels
24 Vdc digital input
1 common line
Sink/source
Removable screw or spring terminal block

Main Characteristics

Characteristic		Value
Number of input channels		16
Input type		Type 1 (IEC/EN 61131-2)
Logic type		Sink/Source
Rated input voltage		24 Vdc
Connection type	TM3DI16	Removable screw terminal blocks
Connection type	TM3DI16G	Removable spring terminal blocks
Cable type and length	Type	Unshielded
Cable type and length	Length	Maximum 30 m (98 ft)
Weight		100 g (3.52 oz)

Status LEDs

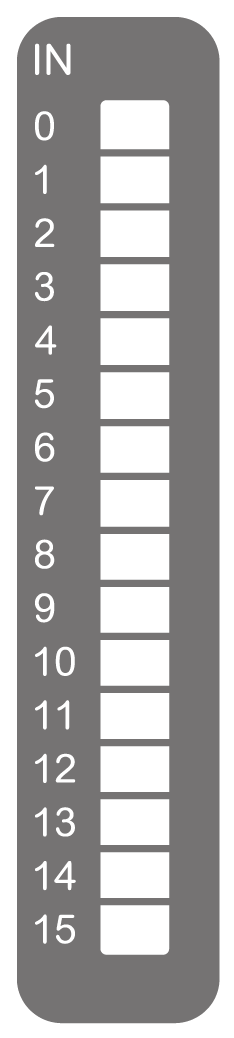

The following figure show the status LEDs:

This table describes the status LEDs:

LED	Color	Status	Description
0...15	Green	On	The input channel is activated
0...15	Green	Off	The input channel is deactivated
