TM3DQ32TK Wiring Diagram
Introduction
These expansion modules have two built-in HE10 (MIL 20) connectors for the connection of outputs and power supply.
Wiring Diagram with Free-Wire Cables

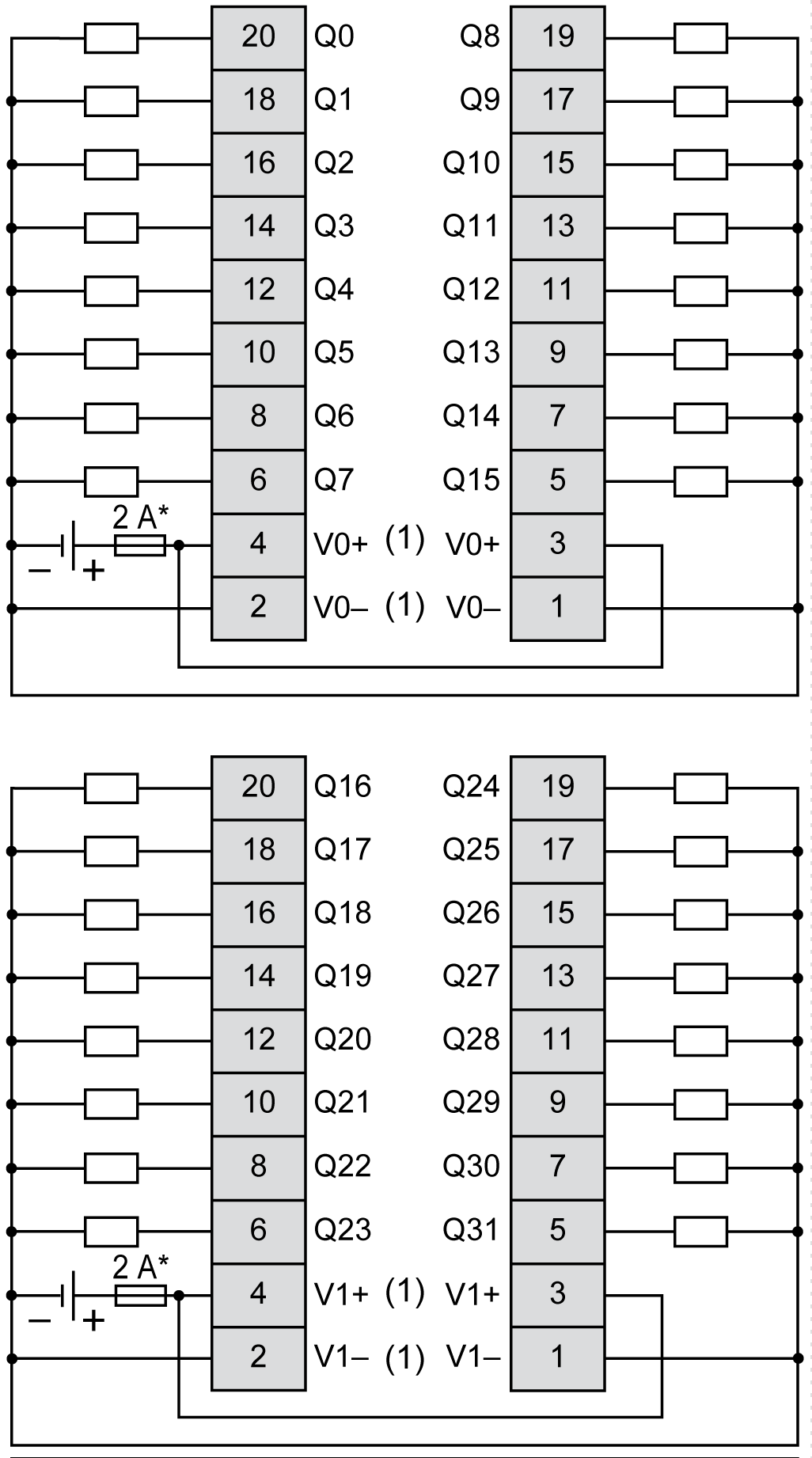

The following figure illustrates the connections between the outputs, the actuators, and their commons:
* Type T fuse
(1) The V0+ terminals are connected internally.
The V0- terminals are connected internally.
The V1+ terminals are connected internally.
The V1- terminals are connected internally.
The V0+ and V1+ terminals are not connected internally.
The V0- and V1- terminals are not connected internally.
For information about 24 Vdc power supply, refer to DC Power Supply Characteristics.
For more information on the TWDFCW••K cable colors, refer to TWDFCW••K Cable Description.
